Diamond grinding wheels rarely stop cutting because the diamond abrasive has been completely consumed. In many precision grinding operations, cutting performance declines because the wheel becomes glazed. During glazing, worn diamond particles remain locked within the bond, preventing fresh abrasive from engaging the workpiece efficiently. Grinding forces increase, spindle load rises, surface finish deteriorates, and grinding temperatures become more difficult to control.

Wheel glazing is frequently mistaken for wheel wear. As a result, manufacturers often replace grinding wheels before evaluating coolant delivery, dressing practices, bond selection, machine condition, or grinding parameters. This approach increases tooling costs while leaving the actual production problem unresolved.

Operations machining silicon carbide, alumina, silicon nitride, sapphire, fused silica, tungsten carbide, gallium arsenide (GaAs), polycrystalline diamond (PCD), optical glass, and other advanced engineering materials commonly experience glazing when process variables move outside their qualified operating window.

Successful process optimization begins by identifying why glazing developed instead of simply replacing the wheel.

Why Engineers Investigate Wheel Glazing

Wheel glazing often develops gradually. Early warning signs allow engineers to correct the process before grinding quality begins to decline.

Common Production Triggers

Production Observation	Engineering Concern
Increasing spindle load	Cutting efficiency decreasing
Reduced material removal	Diamond abrasive no longer cutting effectively
Burn marks on workpiece	Grinding temperature increasing
Surface finish becoming inconsistent	Grinding process losing stability
More frequent dressing required	Abrasive exposure should be evaluated
Higher grinding forces	Wheel condition should be inspected
Longer cycle times	Production efficiency decreasing
Increased operator adjustments	Process variation developing

These production changes usually indicate that multiple process variables should be reviewed together rather than adjusting only one operating condition.

What Is Wheel Glazing?

Wheel glazing occurs when the exposed diamond abrasive becomes dull while remaining securely retained within the bond. Instead of cutting efficiently, the wheel begins rubbing against the workpiece. Material removal decreases while friction and grinding forces increase.

Unlike wheel loading, where workpiece material accumulates between abrasive particles, glazing is primarily related to worn abrasive exposure.

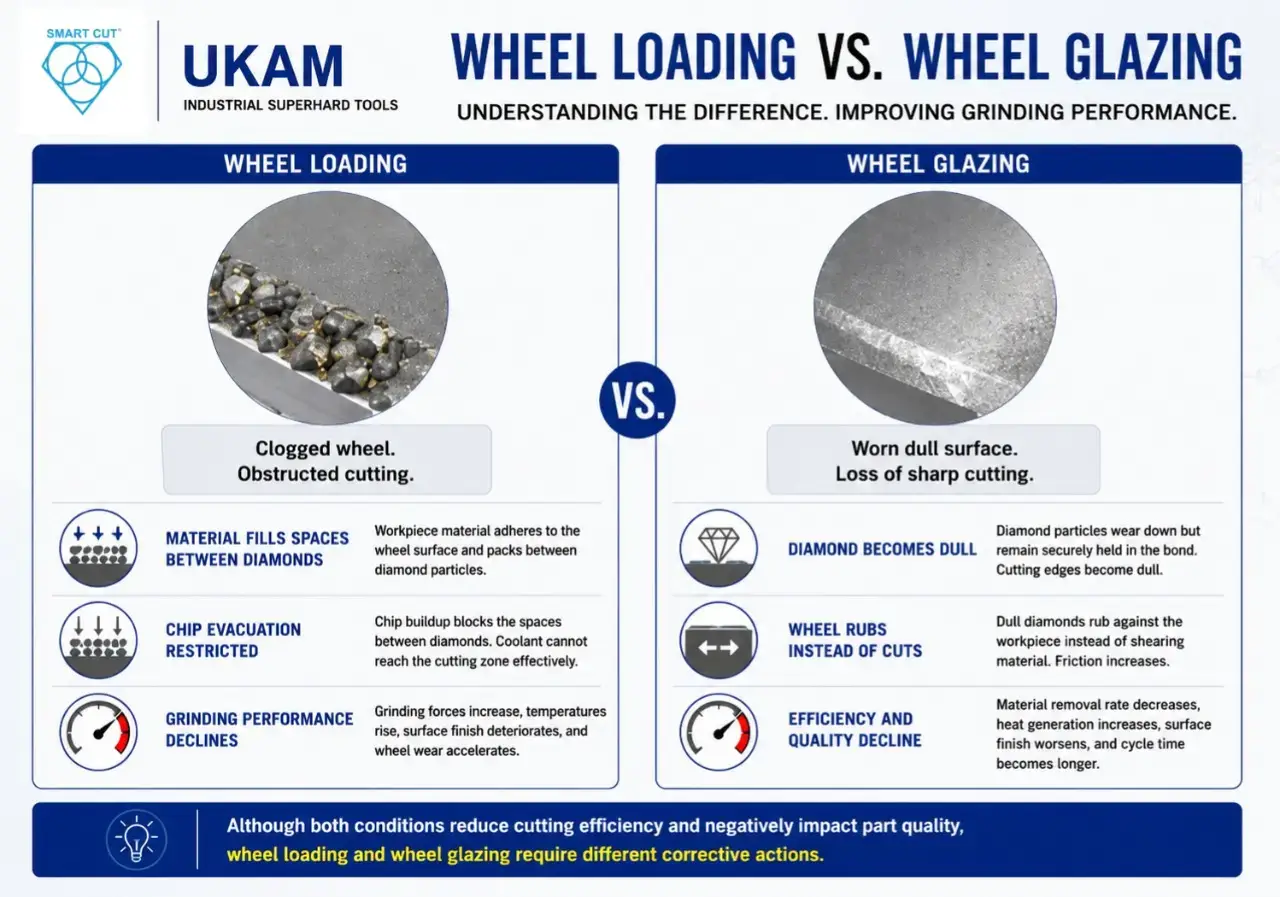

Wheel Loading Compared with Wheel Glazing

Wheel Loading	Wheel Glazing
Material accumulates between abrasive particles	Diamond abrasive becomes worn while remaining in the bond
Chip evacuation becomes restricted	Cutting action gradually decreases
Coolant effectiveness may decline	Grinding friction increases
Often associated with inadequate chip removal	Often associated with delayed dressing or unsuitable wheel specification
Surface quality may deteriorate	Surface finish and grinding efficiency decline together

Although these conditions differ, they frequently occur during the same production cycle and should be evaluated together during troubleshooting.

Baseline Documentation Before Process Changes

Before modifying wheel specification, dressing frequency, coolant delivery, or grinding parameters, engineers should document existing operating conditions.

Parameter	Information to Record
Workpiece material	Silicon carbide, alumina, silicon nitride, sapphire, fused silica, tungsten carbide, GaAs, PCD, glass, or other material
Grinding operation	Surface grinding, cylindrical grinding, profile grinding, peripheral grinding, wafer grinding
Bond type	Resin bond, metal bond, or hybrid bond
Diamond grit size	Current wheel specification
Diamond concentration	Current specification
Coolant delivery method	Flood, directed nozzle, or center feed
Dressing method	Current procedure and frequency
Machine condition	Spindle condition, rigidity, vibration
Surface finish requirement	Engineering specification

Documenting these conditions provides a reliable engineering reference when evaluating process improvements.

Illustrative Cost Comparison Example

Wheel purchase price alone rarely represents the true cost of grinding. Process stability, maintenance requirements, dressing frequency, engineering support, and production consistency often have a greater influence on manufacturing cost.

The following comparison is provided for illustrative purposes only. Actual manufacturing costs vary according to workpiece material, wheel specification, machine condition, production volume, coolant system, and operating practices.

Cost Factor	Supplier A	Supplier B
Initial wheel price	Lower	Higher
Engineering application review	Limited	Process focused
Wheel qualification support	Limited	Available
Dressing recommendations	General	Application specific
Grinding consistency	Moderate	Higher
Technical assistance	Product recommendation	Process optimization guidance
Manufacturing approach	Wheel replacement	Root cause analysis and qualification

Manufacturing cost should be evaluated using total process performance rather than wheel purchase price alone.

Common Causes of Wheel Glazing

Wheel glazing rarely develops because of one isolated factor. Most production issues result from several process variables acting together.

Cause 1: Incorrect Bond Selection

Bond type determines how diamond particles are retained and exposed during grinding. A bond that retains worn abrasive for too long may reduce cutting efficiency as production continues. UKAM offers resin bond, metal bond, and hybrid bond diamond wheel systems engineered for different production objectives.

Engineering Considerations

Cause 2: Delayed Dressing

Dressing restores cutting performance by exposing fresh diamond abrasive. Delaying dressing allows worn abrasive to remain active longer than intended.

Engineering Considerations

Cause 3: Unsuitable Diamond Grit Size

Diamond grit size influences cutting efficiency, chip formation, and grinding forces. Selecting grit size without considering the application objective may contribute to glazing.

Engineering Considerations

Cause 4: Incorrect Diamond Concentration

Diamond concentration influences abrasive density and wheel behavior during grinding.

Engineering Considerations

Cause 5: Poor Coolant Delivery

Effective coolant delivery helps remove heat and grinding debris from the grinding zone. Poor coolant coverage may accelerate glazing by increasing grinding temperature.

Engineering Considerations

Cause 6: Machine Condition

Grinding performance depends on a stable machine platform. Spindle condition, wheel mounting, vibration, and machine rigidity all influence wheel behavior.

Engineering Considerations

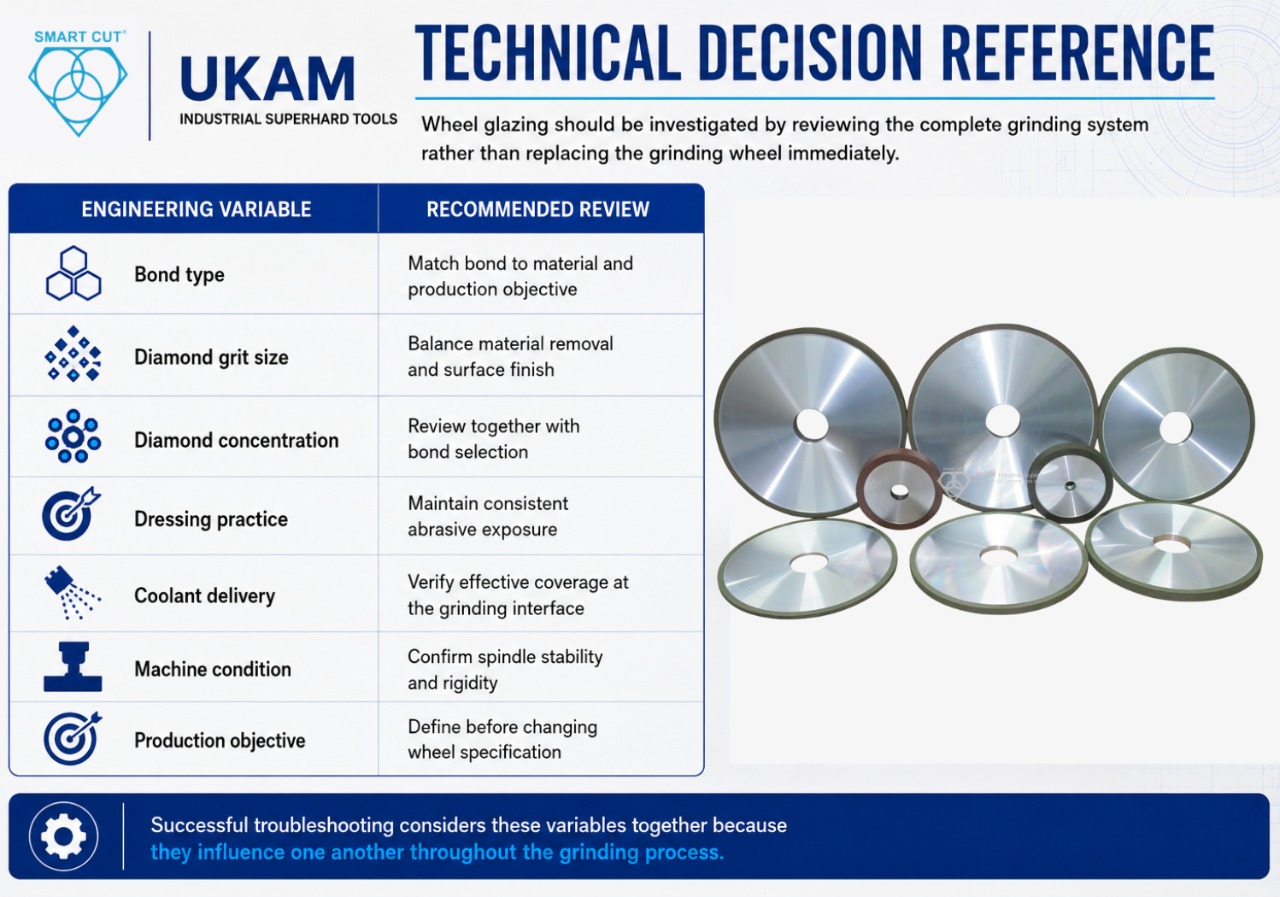

Technical Decision Reference

Wheel glazing should be investigated by reviewing the complete grinding system rather than replacing the grinding wheel immediately.

Engineering Variable	Recommended Review
Bond type	Match bond to material and production objective
Diamond grit size	Balance material removal and surface finish
Diamond concentration	Review together with bond selection
Dressing practice	Maintain consistent abrasive exposure
Coolant delivery	Verify effective coverage at the grinding interface
Machine condition	Confirm spindle stability and rigidity
Production objective	Define before changing wheel specification

Successful troubleshooting considers these variables together because they influence one another throughout the grinding process.

Engineering Perspective

Wheel glazing should be viewed as a process condition rather than a tooling failure. Engineers who document operating conditions, inspect wheel behavior, review supporting process variables, and qualify controlled process changes generally achieve more stable grinding performance than those who replace grinding wheels without investigating the root cause.

Material Specific Wheel Glazing Characteristics

Wheel glazing develops differently depending on the material being ground. Material hardness, fracture behavior, thermal conductivity, chip formation, and grinding objectives all influence how quickly glazing appears. Successful qualification should evaluate each material independently rather than applying one grinding strategy across multiple applications.

Silicon Carbide (SiC)

Silicon carbide is one of the most abrasive engineering ceramics processed with diamond wheels. As grinding continues, dull diamond particles may remain exposed while cutting efficiency gradually decreases.

Primary Failure Mode: Wheel glazing resulting in increased grinding forces and reduced material removal.

Common Causes

Engineering Recommendations

Alumina (Al₂O₃)

Alumina fractures in a brittle manner. Once glazing develops, grinding stability may decrease before obvious wheel wear becomes visible.

Primary Failure Mode: Surface finish deterioration accompanied by edge chipping.

Common Causes

Engineering Recommendations

Silicon Nitride (Si₃N₄)

Silicon nitride generates relatively high grinding forces. Wheel glazing gradually increases spindle load as cutting efficiency declines.

Primary Failure Mode: Higher spindle load with decreasing stock removal.

Common Causes

Engineering Recommendations

Sapphire

Sapphire grinding requires stable abrasive exposure to maintain optical quality.

Primary Failure Mode: Thermal surface damage.

Common Causes

Engineering Recommendations

Fused Silica

Fused silica is susceptible to subsurface damage when grinding temperatures increase.

Primary Failure Mode: Microfracture beneath the finished surface.

Common Causes

Engineering Recommendations

Tungsten Carbide

Tungsten carbide requires stable grinding conditions because high grinding forces accelerate wheel glazing.

Primary Failure Mode: Loss of cutting efficiency.

Common Causes

Engineering Recommendations

Gallium Arsenide (GaAs)

Gallium arsenide requires careful process control because of its brittle structure.

Primary Failure Mode: Surface fracture resulting from unstable grinding conditions.

Common Causes

Engineering Considerations

Polycrystalline Diamond (PCD)

Grinding PCD places significant demands on abrasive exposure and process stability.

Primary Failure Mode: Wheel glazing accompanied by increased grinding forces.

Common Causes

Engineering Considerations

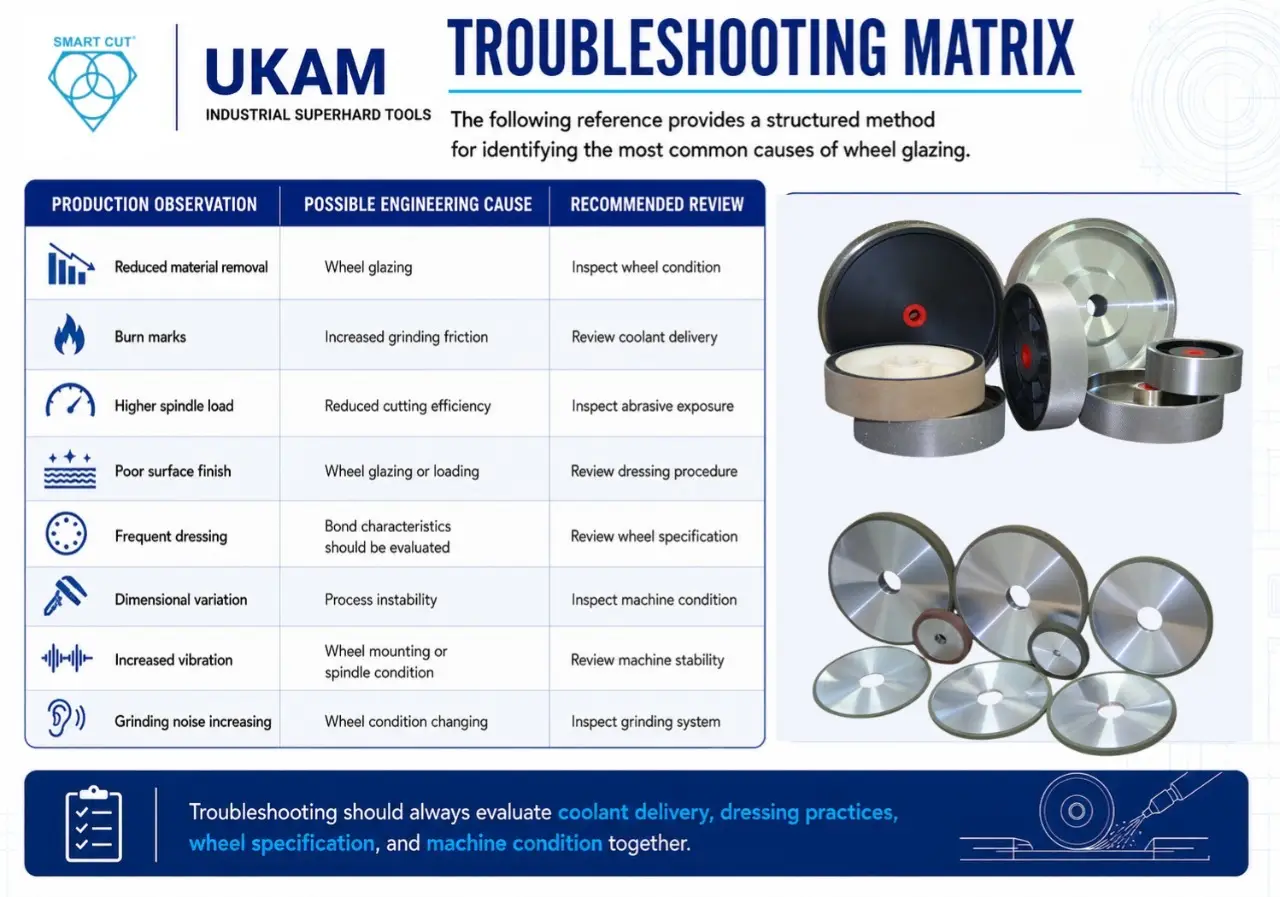

Troubleshooting Matrix

The following reference provides a structured method for identifying the most common causes of wheel glazing. For a step-by-step diagnostic walkthrough, see UKAM’s Diamond & CBN Wheel Troubleshooting Guide.

Production Observation	Possible Engineering Cause	Recommended Review
Reduced material removal	Wheel glazing	Inspect wheel condition
Burn marks	Increased grinding friction	Review coolant delivery
Higher spindle load	Reduced cutting efficiency	Inspect abrasive exposure
Poor surface finish	Wheel glazing or loading	Review dressing procedure
Frequent dressing	Bond characteristics should be evaluated	Review wheel specification
Dimensional variation	Process instability	Inspect machine condition
Increased vibration	Wheel mounting or spindle condition	Review machine stability
Grinding noise increasing	Wheel condition changing	Inspect grinding system

Troubleshooting should always evaluate coolant delivery, dressing practices, wheel specification, and machine condition together.

Restoring Cutting Performance

Restoring cutting performance begins by identifying why glazing developed. Replacing the grinding wheel should not be the first corrective action unless inspection confirms that the wheel has reached the end of its useful service life.

Phase 1: Inspect the Wheel

Review:

Inspection often identifies the root cause before process changes are introduced.

Phase 2: Review Dressing Practices

Evaluate:

Fresh abrasive exposure frequently restores grinding performance without changing the wheel specification. UKAM’s dressing sticks are designed for this purpose.

Phase 3: Review Supporting Process Variables

Inspect:

Changing only one variable rarely produces long term process stability.

Phase 4: Implement Controlled Process Changes

Modify one operating condition at a time.

Review:

Documentation simplifies future troubleshooting.

Phase 5: Validate Process Stability

Continue monitoring:

Qualification should continue until stable grinding performance has been demonstrated.

Supplier Evaluation Table

Selecting a grinding wheel supplier should include technical support capability in addition to product availability.

Ask the Supplier	What the Answer Reveals
Which bond is recommended for this application?	Material application knowledge
Which grit size is appropriate?	Grinding expertise
Which concentration should be considered?	Process optimization capability
Which coolant method is recommended?	Manufacturing experience
What dressing practices are recommended?	Process engineering knowledge
Can application recommendations be provided?	Technical support capability
Is qualification guidance available?	Engineering assistance beyond product supply

SMART CUT® Product Comparison

The following comparison summarizes engineering flexibility rather than product performance claims. See the full SMART CUT® Diamond & CBN Wheels line for available specifications.

Feature	Conventional Diamond Blade	SMART CUT® Diamond Wheel
Bond options	Standard configurations	Multiple bond options available
Diamond grit selection	Standard range	Broad grit selection
Diamond concentration	Standard offerings	Multiple concentration options
Material compatibility	Application dependent	Configurable for multiple engineering materials
Engineering support	Supplier dependent	Application guidance available

The comparison illustrates available specification options. Final wheel selection should always follow application requirements and documented process qualification.

Grinding Wheel Glazing Qualification Checklist

Restoring cutting performance requires more than replacing the grinding wheel. A structured qualification process helps engineers identify the root cause of glazing, validate corrective actions, and maintain consistent production performance.

Workpiece Evaluation

Workpiece material identified
Material hardness reviewed
Surface finish requirement confirmed
Dimensional tolerance documented
Production objective defined
Critical quality characteristics recorded

Grinding Wheel Evaluation

Bond type verified
Diamond grit size confirmed
Diamond concentration reviewed
Wheel dimensions inspected
Wheel condition documented
Abrasive exposure evaluated

Machine Evaluation

Coolant Evaluation

Dressing Evaluation

Production Qualification

Surface finish inspected
Grinding forces monitored
Wheel glazing reviewed
Wheel loading inspected
Material removal rate evaluated
Process documentation completed

Completing this checklist before changing wheel specifications improves process repeatability and simplifies future troubleshooting.

Frequently Asked Questions

What is the difference between wheel glazing and wheel loading?

Wheel glazing occurs when worn diamond particles remain retained within the bond and gradually lose their cutting ability. Wheel loading develops when workpiece material accumulates between abrasive particles, restricting chip removal. Although the two conditions are different, they often occur together during production and should be evaluated as part of the same troubleshooting process.

Does wheel glazing always mean the grinding wheel should be replaced?

No. Many glazing problems can be corrected by reviewing dressing practices, coolant delivery, bond selection, grit size, diamond concentration, and machine condition. Wheel replacement should normally be considered only after confirming that the wheel has reached the end of its useful service life or no longer responds to appropriate dressing.

Which process variables contribute most to wheel glazing?

Wheel glazing is usually influenced by several process variables rather than a single cause. Bond selection, diamond grit size, diamond concentration, coolant delivery, dressing practices, grinding parameters, spindle condition, and machine rigidity all contribute to grinding performance. Reviewing these variables together provides a more reliable method of identifying the root cause.

Can coolant delivery reduce wheel glazing?

Yes. Effective coolant delivery helps control grinding temperature, removes grinding debris, and supports stable cutting conditions. Poor coolant coverage may increase grinding friction and accelerate glazing. Engineers should verify coolant direction, flow, and cleanliness before changing wheel specifications.

Does bond type influence glazing?

Yes. Bond type determines how diamond particles are retained and exposed during grinding. Resin bond, metal bond, and hybrid bond wheels each behave differently depending on the workpiece material and production objective. Bond selection should always be qualified together with grit size, concentration, and dressing practices.

How often should wheel condition be inspected?

Wheel inspection should become part of routine process monitoring rather than waiting until production quality declines. Monitoring wheel condition, dressing effectiveness, spindle load, and surface finish allows engineers to identify glazing before significant process variation develops.

What information should be documented before changing a grinding wheel specification?

Engineers should document the workpiece material, grinding operation, wheel specification, bond type, diamond grit size, concentration, coolant delivery method, dressing procedure, machine condition, surface finish requirements, dimensional tolerances, and production objectives. This information provides the baseline required for meaningful process qualification.
