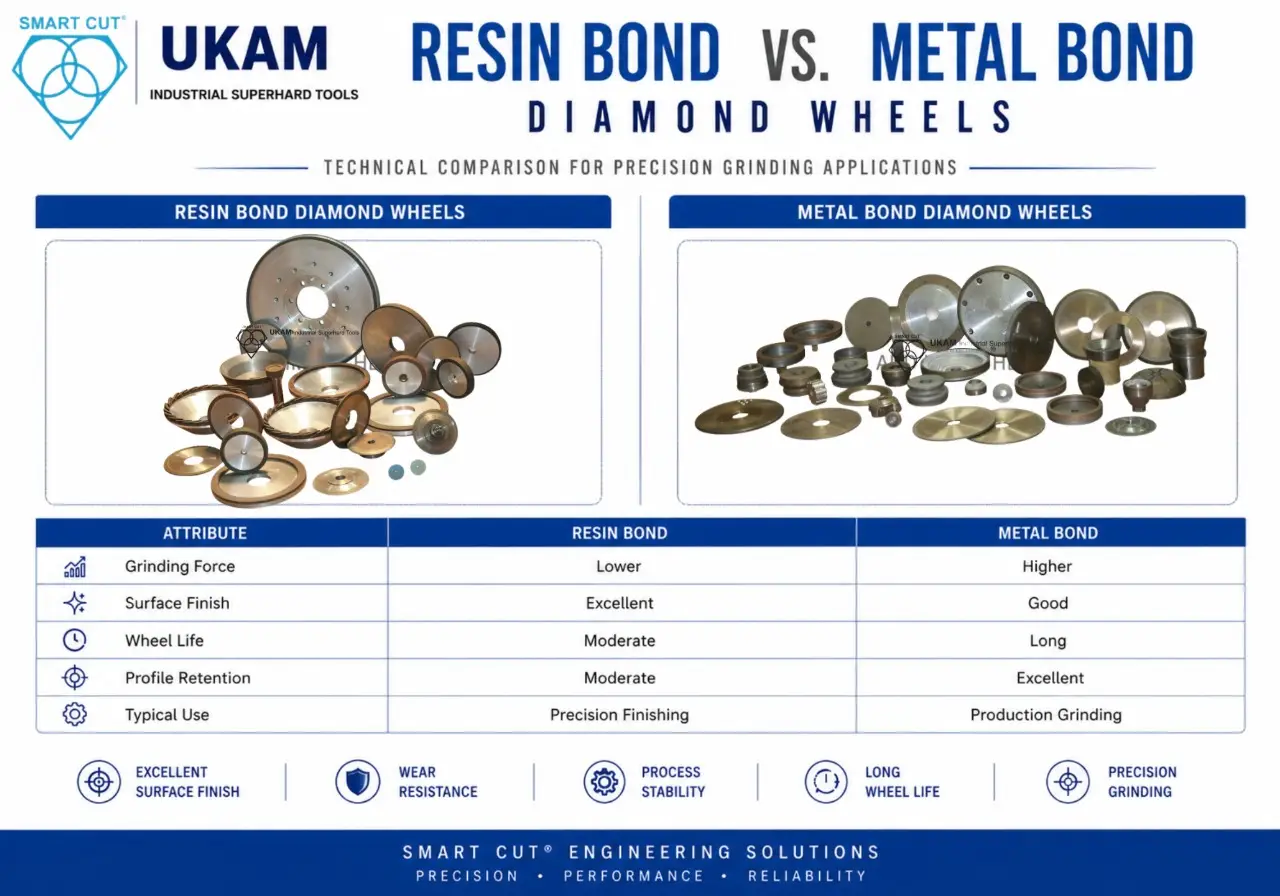

Selecting between a resin bond and a metal bond diamond wheel directly influences grinding efficiency, wheel wear, surface finish, dimensional accuracy, dressing requirements, and overall process stability. Engineers frequently focus on diamond grit size or diamond concentration when troubleshooting grinding problems, yet bond selection often determines how consistently the abrasive particles perform throughout the grinding process.

Both resin bond and metal bond diamond wheels are widely used for machining advanced ceramics, semiconductor materials, tungsten carbide, optical glass, composites, and other difficult to machine materials. Neither bond is universally suitable for every application. Each provides different grinding characteristics that should be matched to the workpiece material, production objectives, machine capability, coolant delivery, and required surface finish.

Successful bond selection begins with a clear understanding of the grinding application rather than selecting a wheel based on previous experience or purchase price. Engineers who evaluate the complete grinding system generally achieve more consistent production results and reduce unnecessary process adjustments.

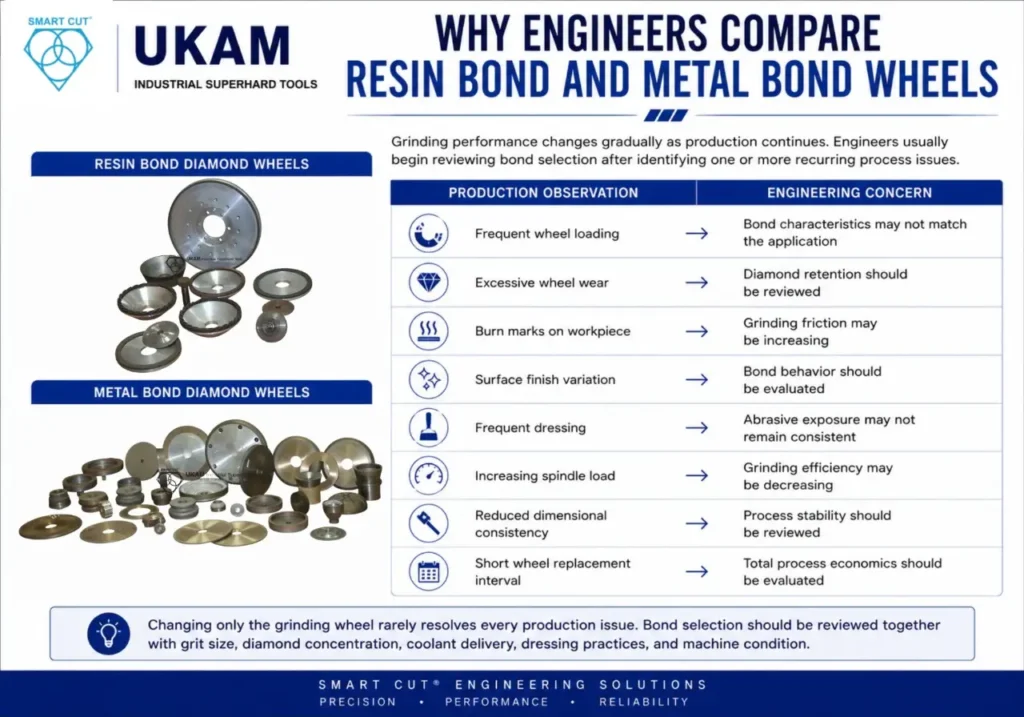

Why Engineers Compare Resin Bond and Metal Bond Wheels

Grinding performance changes gradually as production continues. Engineers usually begin reviewing bond selection after identifying one or more recurring process issues.

Production Observation	Engineering Concern
Frequent wheel loading	Bond characteristics may not match the application
Excessive wheel wear	Diamond retention should be reviewed
Burn marks on workpiece	Grinding friction may be increasing
Surface finish variation	Bond behavior should be evaluated
Frequent dressingdle load	Abrasive exposure may not remain consistent
Increasing spindle load	Grinding efficiency may be decreasing
Reduced dimensional consistency	Process stability should be reviewed
Short wheel replacement interval	Total process economics should be evaluated

Changing only the grinding wheel rarely resolves every production issue. Bond selection should be reviewed together with grit size, diamond concentration, coolant delivery, dressing practices, and machine condition.

Baseline Documentation Before Bond Evaluation

A structured process review provides engineers with measurable information before changing wheel specifications. Recording the current process also simplifies qualification of any future changes.

Parameter	Information to Record
Workpiece material	Silicon carbide, alumina, sapphire, silicon nitride, fused silica, tungsten carbide, GaAs, PCD, glass or other material
Grinding operation	Surface grinding, peripheral grinding, cylindrical grinding, wafer grinding or profile grinding
Existing wheel specification	Resin bond or metal bond
Diamond grit size	Current specification
Diamond concentration	Current specification
Coolant delivery method	Flood coolant, directed nozzle or center feed
Dressing method	Current procedure and frequency
Machine condition	Spindle condition, rigidity and vibration
Surface finish requirement	Engineering specification
Dimensional tolerance	Production requirement
Production objective	Stock removal, precision finishing or profile retention

Baseline documentation allows engineers to compare process improvements using consistent evaluation criteria

Illustrative Cost Comparison Example

Wheel purchase price represents only one part of manufacturing cost. Dressing frequency, wheel replacement intervals, grinding consistency, process stability, and technical support all contribute to overall production efficiency.

The following comparison is provided for engineering illustration only. Actual manufacturing costs vary according to material, wheel specification, machine condition, production volume, and operating practices.

Cost Factor	Supplier A	Supplier B
Initial wheel price	Lower	Higher
Bond selection support	Standard	Application focused
Wheel specification review	Limited	Engineering review available
Dressing frequency	More frequent	Optimized through application review
Process consistency	Moderate	Higher
Technical assistance	Product recommendation	Process guidance
Qualification support	Limited	Available

Engineering decisions should evaluate total manufacturing performance rather than wheel purchase price alone.

How Bond Type Influences Grinding Performance

The bond is the material that secures diamond particles within the grinding wheel. During grinding, the bond determines how long abrasive particles remain exposed, when worn particles are released, and how effectively new cutting edges become available.

A bond that retains worn diamonds for too long may contribute to wheel loading, glazing, increased grinding forces, and inconsistent surface finish. A bond that releases abrasive particles too quickly may increase wheel wear and reduce wheel life.

Effective bond selection balances abrasive retention with controlled abrasive renewal. This balance changes according to the material being machined and the objectives of the grinding operation

Resin Bond Diamond Wheels

Resin bond wheels are commonly selected where lower grinding forces, improved surface finish, and controlled cutting action are priorities. The bond gradually releases worn abrasive particles, allowing fresh diamond particles to participate in the grinding process.

Typical applications include:

General Characteristics

Characteristic	Resin Bond
Grinding forces	Generally lower
Surface finish	Fine finishing capability
Diamond exposure	Controlled abrasive renewal
Dressing requirements	Application dependent
Material removal	Suitable for precision grinding
Common applications	Ceramics, semiconductors, optical materials

Resin bond wheels are frequently selected where maintaining surface integrity is a primary production objective.

Metal Bond Diamond Wheels

Metal bond wheels are designed for applications requiring strong diamond retention, wear resistance, and profile stability. The bond holds abrasive particles securely during demanding grinding operations, making these wheels suitable for materials that generate high abrasive wear.

Typical applications include:

General Characteristics

Characteristic	Metal Bond
Diamond retention	Higher
Wear resistance	Higher
Profile stability	Excellent
Wheel durability	Extended
Grinding behavior	Application dependent
Common applications	Carbide, glass, ceramics

Metal bond wheels are commonly selected where maintaining wheel geometry throughout extended production is an important manufacturing objective.

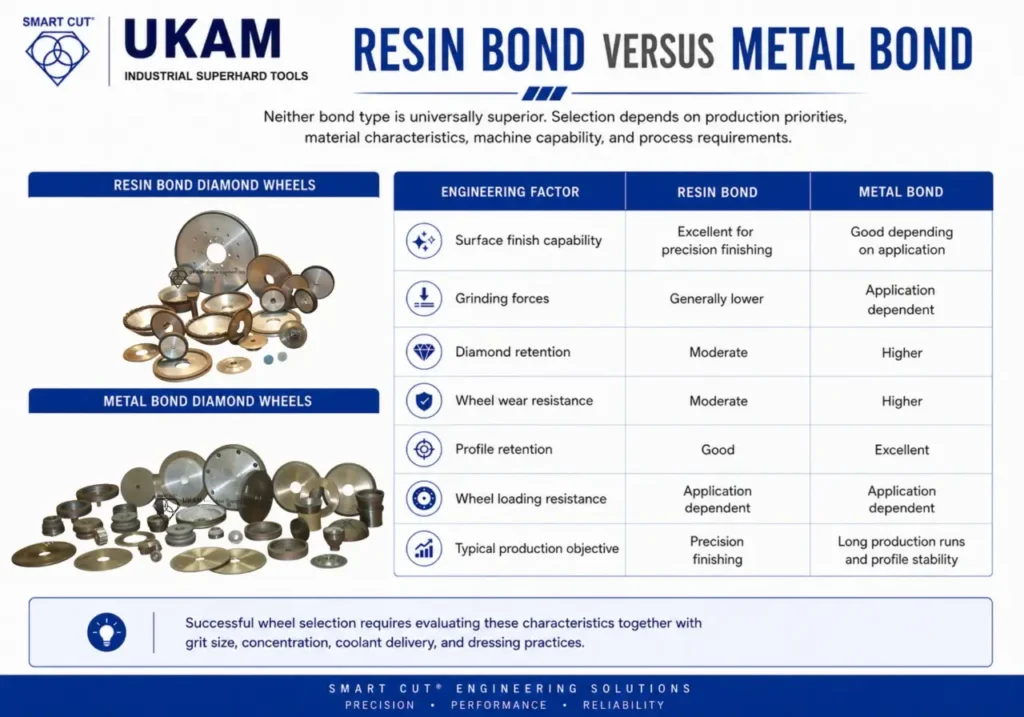

Resin Bond Versus Metal Bond

Neither bond type is universally superior. Selection depends on production priorities, material characteristics, machine capability, and process requirements.

Engineering Factor	Resin Bond	Metal Bond
Surface finish capability	Excellent for precision finishing	Good depending on application
Grinding forces	Generally lower	Application dependent
Diamond retention	Moderate	Higher
Wheel wear resistance	Moderate	Higher
Profile retention	Good	Excellent
Wheel loading resistance	Application dependent	Application dependent
Typical production objective	Precision finishing	Long production runs and profile stability

Successful wheel selection requires evaluating these characteristics together with grit size, concentration, coolant delivery, and dressing practices.

Engineering Variables That Influence Bond Selection

Bond selection should never be treated as an isolated decision. Engineers obtain better grinding performance by evaluating multiple process variables simultaneously.

Engineering Variable	Influence on Bond Selection
Workpiece material	Determines abrasive retention requirements
Material hardness	Influences bond wear characteristics
Surface finish specification	Influences bond behavior
Material removal objective	Determines wheel exposure requirements
Diamond grit size	Influences chip formation
Diamond concentration	Influences cutting consistency
Coolant delivery	Affects grinding temperature and debris removal
Dressing practice	Influences abrasive exposure
Machine rigidity	Supports grinding stability
Production volume	Influences process optimization strategy

Many production issues originate from selecting a bond without evaluating the complete grinding process.

Common Mistake	Typical Production Result
Selecting the lowest cost wheel	Higher manufacturing cost over time
Ignoring coolant delivery	Increased grinding temperature
Selecting grit size without reviewing bond	Reduced grinding consistency
Changing bond without documenting the process	Difficult troubleshooting
Infrequent wheel inspection	Progressive wheel loading
Ignoring machine condition	Variable grinding quality

Successful process improvement evaluates the grinding system rather than replacing only the grinding wheel.

Troubleshooting Bond Related Grinding Problems

Bond related problems usually develop gradually. Early identification helps reduce unnecessary production interruptions.

Production Observation	Possible Engineering Cause
Wheel loading	Bond retaining worn abrasive particles
Wheel glazing	Reduced abrasive renewal
Poor surface finish	Bond not matched to grinding objective
Burn marks	Increased grinding friction
Frequent dressing	Bond characteristics should be reviewed
Higher spindle load	Reduced grinding efficiency
Dimensional variation	Process instability
Reduced material removal	Wheel specification should be evaluated

Troubleshooting should include machine condition, coolant delivery, dressing practices, and wheel specification before selecting a replacement wheel.

Step by Step Bond Qualification Process

A structured qualification process improves repeatability and simplifies future process optimization.

Phase 1: Document Existing Conditions

Record:

Workpiece material
Bond type
Diamond grit size
Diamond concentration
Coolant delivery
Dressing method
Machine condition
Surface finish requirements

Phase 2: Review Material Characteristics

Evaluate:

These characteristics influence the most suitable bond selection.

Phase 3: Compare Bond Options

Review:

Selection should be based on engineering requirements rather than previous purchasing history.

Phase 4: Evaluate Supporting Variables

Review:

Bond selection becomes more effective when these variables are reviewed together.

Phase 5: Verify Process Stability

Continue monitoring:

Qualification should continue until the process demonstrates repeatable performance.

Supplier Evaluation Checklist

Selecting a grinding wheel supplier involves evaluating engineering support in addition to available product specifications.

Ask the Supplier	What the Answer Reveals
Which bond is recommended for this material?	Material application knowledge
Which grit range is appropriate?	Surface finish expertise
Which concentration should be considered?	Process optimization capability
Which coolant method is recommended?	Manufacturing experience
What dressing practices are suggested?	Grinding process knowledge
Can application recommendations be provided?	Engineering support capability
Are qualification guidelines available?	Technical service beyond product supply

SMART CUT® Product Comparison

The following comparison summarizes general engineering characteristics rather than product performance claims.

Feature	Conventional Diamond Wheel	SMART CUT® Diamond Wheel
Bond options	Standard configurations	Multiple bond options available
Diamond grit selection	Standard range	Broad grit selection
Diamond concentration	Standard offerings	Multiple concentration options
Material compatibility	Application dependent	Configurable for different engineering materials
Technical guidance	Supplier dependent	Application guidance available

This comparison illustrates specification flexibility. Final wheel selection should always follow process qualification and application requirements.

Bond Selection Qualification Checklist

Before approving a new grinding wheel specification for production, engineers should verify that the selected bond supports the material, grinding process, and production objectives. A structured qualification process improves repeatability and simplifies future troubleshooting.

Workpiece Qualification

Material identified
Material hardness documented
Surface finish requirement confirmed
Dimensional tolerance verified
Production objective defined
Critical quality characteristics recorded

Grinding Wheel Qualification

Bond type verified
Diamond grit size confirmed
Diamond concentration reviewed
Wheel dimensi Wheel dimensions verifiedons inspected
Wheel condition inspected before installation
Wheel specification documented

Machine Qualification

Coolant Qualification

Dressing Qualification

Production Qualification

A documented qualification process provides a valuable engineering reference whenever production conditions change or new materials are introduced.

Frequently Asked Questions

1. What is the primary difference between resin bond and metal bond diamond wheels?

The primary difference is how each bond retains and exposes the diamond abrasive during grinding. Resin bond wheels generally provide controlled abrasive renewal and lower grinding forces, making them suitable for precision finishing applications. Metal bond wheels provide stronger diamond retention, higher wear resistance, and improved profile stability for applications requiring extended wheel life and dimensional consistency.

2. Which bond type should be selected for advanced ceramics?

The answer depends on the material and production objective rather than the ceramic alone. Silicon carbide, alumina, sapphire, fused silica, and silicon nitride all respond differently during grinding. Engineers should evaluate material properties, surface finish requirements, coolant delivery, and dressing practices before selecting either resin bond or metal bond wheels.

3. Does bond type affect surface finish?

Yes. Bond behavior influences abrasive exposure, grinding forces, wheel loading, and grinding stability. These factors all contribute to finished surface quality. Surface finish should be evaluated together with grit size, concentration, coolant delivery, and dressing practices during process qualification.

4. Can changing bond type eliminate wheel loading?

Wheel loading is influenced by several process variables. Bond selection plays an important role, but coolant delivery, diamond grit size, concentration, dressing practices, machine condition, and workpiece material should also be evaluated. Successful troubleshooting reviews the complete grinding process rather than changing only one component.

5. Should wheel purchase price determine bond selection?

Wheel purchase price represents only one part of manufacturing cost. Engineers should also consider grinding consistency, dressing frequency, wheel replacement intervals, process stability, technical support, and qualification assistance. Evaluating total manufacturing performance generally produces better long term production results than comparing purchase price alone.

6. How often should bond selection be reviewed?

Bond selection should be reviewed whenever the workpiece material changes, production objectives change, dimensional tolerances become more demanding, or recurring grinding problems develop. Process reviews are also valuable after machine upgrades, coolant system modifications, or significant changes in production volume.

7. Can one bond specification be used for every material?

No. Silicon carbide, alumina, sapphire, silicon nitride, fused silica, tungsten carbide, gallium arsenide, polycrystalline diamond, glass, and composite materials each produce different grinding conditions. Selecting the most appropriate bond requires evaluating each material individually during process qualification.
