Selecting the correct diamond bond type is one of the most important engineering decisions in any precision grinding operation. Bond selection influences grinding forces, wheel wear, abrasive exposure, chip evacuation, surface finish, dimensional accuracy, dressing frequency, and overall process stability. An incorrect bond may cause wheel loading, glazing, excessive heat generation, premature wheel wear, or poor workpiece quality even when the diamond grit size and concentration have been selected correctly.

Precision grinding operations involving silicon carbide, alumina, sapphire, silicon nitride, fused silica, tungsten carbide, gallium arsenide, polycrystalline diamond, and other advanced engineering materials require bond systems that match both the material characteristics and production objectives. Selecting a bond based only on previous experience or wheel cost often produces inconsistent grinding performance.

Successful bond selection requires evaluating the complete grinding process, including workpiece material, machine capability, coolant delivery, diamond grit size, diamond concentration, dressing practices, and required surface finish. Engineers who evaluate these variables together generally achieve more stable production and consistent grinding quality than those who focus on a single wheel specification.

Why Engineers Review Bond Selection

Production problems that appear to be caused by the grinding wheel frequently originate from an incorrect bond specification. Engineers normally review bond selection after observing changes in grinding efficiency, wheel condition, or workpiece quality.

Production Observation	Engineering Concern
Frequent wheel loading	Bond releasing diamonds too slowly
Excessive wheel wear	Bond releasing diamonds too quickly
Burn marks	Excessive grinding friction
Poor surface finish	Inappropriate bond characteristics
Frequent dressing	Bond not matched to application
Increasing spindle load	Reduced abrasive exposure
Inconsistent dimensional accuracy	Unstable grinding process
Short wheel service interval	Incorrect bond selection

Several of these symptoms often occur together. Replacing the grinding wheel without reviewing bond selection usually provides only temporary improvement.

Baseline Documentation Before Changing Bond Type

Changing bond type without documenting the existing process makes it difficult to determine whether process improvements result from the bond itself or from other operating variables.

Parameter	Information to Record
Workpiece material	Silicon carbide, alumina, sapphire, fused silica, silicon nitride, tungsten carbide, GaAs, PCD or other material
Material hardness	Manufacturer specification
Grinding operation	Surface grinding, peripheral grinding, wafer grinding, cylindrical grinding or creep feed grinding
Existing bond type	Resin, metal or hybrid
Diamond grit size	Current specification
Coolant delivery method	Flood, directed nozzle or center feed
Dressing practice	Method and frequency
Machine condition	Spindle condition, vibration, rigidity
Surface finish requirement	Engineering specification
Dimensional tolerance	Drawing requirement

Recording these variables provides a consistent reference during process qualification.

Illustrative Cost Comparison

Bond selection affects more than wheel purchase price. Dressing frequency, grinding consistency, machine downtime, scrap risk, and process repeatability all contribute to manufacturing cost.

The following comparison is illustrative and represents engineering considerations only. It does not represent measured production results.

Cost Factor	Standard Supplier	Application Focused Supplier
Initial wheel price	Lower	Higher
Bond selection support	Standard	Application specific
Wheel specification review	Limited	Engineering based
Dressing frequency	More frequent	Optimized through application review
Process consistency	Moderate	Higher
Technical support	Product focused	Process focused
Qualification assistance	Limited	Available

Engineering decisions should evaluate total manufacturing performance rather than wheel purchase price alone.

Why Bond Type Matters

The bond is the material that holds diamond particles within the grinding wheel. As grinding progresses, the bond controls how the abrasive particles remain exposed, how worn diamonds are released, and how new cutting edges become available.

An effective bond balances two competing requirements.

The bond must retain diamond particles long enough to maintain wheel geometry while allowing worn abrasive particles to release at the appropriate time. If the bond holds diamonds too aggressively, wheel loading and glazing may occur. If the bond releases diamonds too quickly, wheel wear increases and wheel life may decrease.

Bond selection should always be evaluated together with diamond grit size, diamond concentration, coolant delivery, dressing practices, and workpiece material.

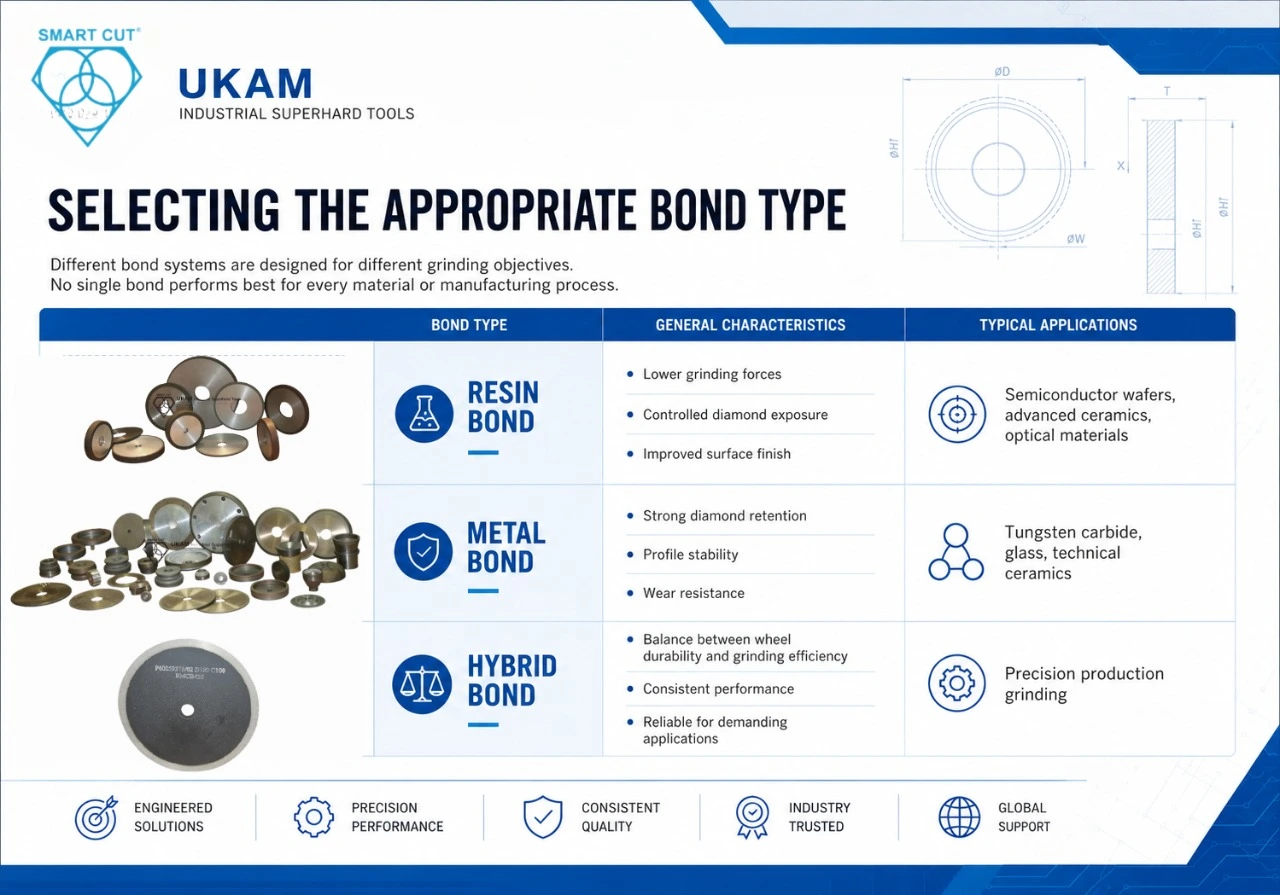

Selecting the Appropriate Bond Type

Different bond systems are designed for different grinding objectives. No single bond performs best for every material or manufacturing process.

Bond Type	General Characteristics	Typical Applications
Resin Bond	Lower grinding forces, controlled diamond exposure, improved surface finish	Semiconductor wafers, advanced ceramics, optical materials
Metal Bond	Strong diamond retention, profile stability, wear resistance	Tungsten carbide, glass, technical ceramics
Hybrid Bond	Balance between wheel durability and grinding efficiency	Precision production grinding

Resin bond systems are commonly selected where fine surface finishes and controlled grinding forces are primary objectives.

Metal bond systems are generally selected where profile retention, dimensional consistency, and abrasive wear resistance are important production requirements.

Hybrid bond systems combine characteristics of both resin and metal bond designs to provide balanced grinding performance across a wider range of applications.

Engineering Factors That Influence Bond Selection

Selecting the correct bond involves more than choosing between resin and metal. Engineers should evaluate the complete grinding system before specifying a wheel.

Engineering Variable	Influence on Bond Selection
Workpiece material	Determines bond wear requirements
Material hardness	Influences abrasive retention
Surface finish requirement	Affects bond behavior
Material removal rate	Determines wheel exposure requirements
Coolant delivery	Influences grinding temperature
Dressing practice	Affects wheel maintenance
Machine rigidity	Influences grinding stability
Production volume	Determines process optimization priorities

Each variable interacts with the others. Changing bond type alone rarely resolves production issues if other process variables remain unchanged.

Bond Selection and Material Removal

Material removal occurs when exposed diamond particles engage the workpiece and generate controlled chip formation. Bond behavior directly influences how efficiently this process continues throughout grinding.

If abrasive particles remain buried within the bond after becoming dull, grinding forces increase and wheel loading becomes more likely.

If abrasive particles release too quickly, wheel wear increases and dimensional consistency may become more difficult to maintain.

Successful bond selection provides a controlled balance between diamond retention and abrasive renewal throughout the grinding cycle.

Bond Selection and Coolant Performance — see: Selecting the Right Coolant Method

Bond selection and coolant delivery should always be evaluated together.

Coolant removes grinding debris, reduces grinding temperature, and helps maintain abrasive exposure. Even an appropriate bond specification may produce unstable grinding conditions if coolant does not effectively reach the grinding interface.

Similarly, changing coolant strategy without reviewing bond selection may not fully resolve wheel loading or glazing.

Engineers generally obtain more stable grinding performance by evaluating wheel specification, coolant delivery, dressing practices, and machine condition as a complete manufacturing system rather than independent variables.

Bond Selection by Material

The workpiece material should always be the starting point for bond selection. Material hardness, brittleness, thermal conductivity, chip formation, and grinding objectives all influence how the bond performs during production. Selecting the same bond specification for every material often leads to inconsistent grinding quality and unnecessary process adjustments.

Silicon Carbide (SiC)

Silicon carbide is highly abrasive and produces significant wheel wear during grinding. Bond selection should provide sufficient diamond retention while maintaining consistent abrasive exposure throughout the grinding cycle.

Primary Failure Mode

Wheel loading accompanied by increasing grinding forces.

Engineering Considerations

Resin bond wheels are commonly selected for applications requiring improved surface finish and controlled grinding forces.
Metal bond wheels may be appropriate where profile retention and extended wheel wear resistance are priorities.
Coolant delivery and dressing practices should be evaluated together with bond selection.

Alumina (Al₂O₃)

Alumina fractures in a brittle manner during grinding. Bond selection influences chip formation, edge quality, and wheel loading behavior.

Primary Failure Mode

Engineering Considerations

Common Bond Selection Mistakes

Many grinding problems develop because the wheel specification does not match the manufacturing objective.

Common Mistake	Typical Result
Selecting bond based only on wheel price	Higher manufacturing cost over time
Ignoring coolant delivery	Increased grinding temperature
Selecting grit without reviewing bond	Inconsistent wheel performance
Changing bond without documenting the process	Difficult troubleshooting
Infrequent wheel inspection	Progressive wheel loading
Ignoring machine condition	Variable grinding quality

Successful bond selection evaluates the complete grinding system rather than focusing on one specification.

Troubleshooting Bond Related Grinding Problems

Bond related problems usually appear as gradual reductions in grinding performance.

Production Observation	Possible Engineering Cause
Wheel loading	Bond holding worn diamonds too long
Wheel glazing	Limited abrasive renewal
Poor surface finish	Bond specification not matched to application
Burn marks	Excessive grinding friction
Frequent dressing	Bond characteristics not suitable for process
Higher spindle load	Reduced cutting efficiency
Variable dimensional accuracy	Process instability

Engineers should verify machine condition, coolant delivery, dressing practice, and wheel specification before replacing the grinding wheel.

Step by Step Bond Qualification Process

A structured qualification process improves repeatability and reduces unnecessary production changes.

Phase 1: Document Existing Conditions

Record:

Material
Bond type
Diamond grit size
Diamond concentration
Coolant delivery
Dressing practice
Machine condition
Surface finish requirements

Phase 2: Evaluate Material Requirements

Review:

These characteristics influence bond selection.

Phase 3: Select Bond Type

Compare:

The selected bond should support the required grinding objective rather than simply matching previous production history.

Phase 4: Review Supporting Variables

Evaluate:

Changing bond type without reviewing these variables often produces inconsistent results.

Phase 5: Verify Process Stability

Monitor:

Process qualification should continue until stable grinding performance has been demonstrated.

Supplier Evaluation Questions

Selecting a grinding wheel supplier involves evaluating engineering support as well as product availability.

Ask the Supplier	What the Answer Reveals
Which bond is recommended for my material?	Application knowledge
Which grit range is appropriate?	Surface finish expertise
Which concentration options are available?	Process optimization capability
What dressing practices are recommended?	Manufacturing experience
Which coolant method should be used?	Process engineering support
Can you review my application?	Process engineering support
Can you review my application?	Technical assistance capability
Do you provide application recommendations?	Engineering support beyond product sales

SMART CUT® Technology Comparison

Different grinding applications require different wheel characteristics. The following comparison summarizes general specification flexibility.

Feature	Conventional Diamond Wheel	SMART CUT® Diamond Wheel
Bond options	Standard selection	Multiple bond options available
Diamond grit options	Standard range	Broad grit selection
Diamond concentration	Standard offerings	Multiple concentration options
Material compatibility	Application dependent	Configurable for various advanced materials
Engineering guidance	Supplier dependent	Application guidance available

This comparison highlights available configuration options. Final wheel selection should always be based on application requirements and process qualification.

Bond Selection Qualification Checklist

A structured qualification process helps engineers verify that bond selection supports stable grinding performance before releasing a process to production. The checklist below can be adapted for new applications, production transfers, or process improvements.

Workpiece Evaluation

Material identified
Material hardness documented
Surface finish requirement confirmed
Dimensional tolerance verified
Material removal objective defined
Critical quality characteristics documented

Grinding Wheel Evaluation

Bond type selected
Diamond grit size confirmed
Diamond concentration reviewed
Wheel dimensions verified
Wheel condition inspected
Wheel specification recorded

Machine Evaluation

Coolant Evaluation

Dressing Evaluation

Production Qualification

A completed qualification checklist provides a valuable reference when troubleshooting future grinding issues or repeating the process on another machine.

Frequently Asked Questions

1. Why is bond type more important than many engineers realize?

Bond type controls how the diamond particles are supported throughout the grinding process. It influences abrasive retention, wheel wear, chip evacuation, grinding forces, and dressing behavior. Selecting an appropriate bond helps maintain stable grinding conditions throughout production. Bond selection should always be evaluated together with grit size, concentration, coolant delivery, and the workpiece material.

2. Should resin bond always be selected for precision grinding?

No. Resin bond wheels are frequently selected where lower grinding forces and improved surface finish are required, but they are not the correct solution for every application. Metal bond wheels provide greater wear resistance and profile retention for many demanding grinding operations. Hybrid bond systems combine characteristics of both designs. The final selection depends on the application requirements rather than one bond being universally preferred.

3. How does diamond grit size affect bond performance?

Bond and grit work together during grinding. A fine grit wheel combined with an unsuitable bond may increase wheel loading, while a coarse grit combined with an inappropriate bond may reduce surface finish quality. Engineers should evaluate grit size and bond selection as part of the same specification rather than independent decisions.

4. Can coolant compensate for an incorrect bond selection?

Coolant improves heat removal, chip evacuation, and grinding stability, but it cannot fully compensate for an unsuitable bond specification. If the bond does not support the grinding application, process problems may continue even with excellent coolant delivery. Successful grinding depends on selecting compatible wheel specifications and maintaining proper coolant coverage.

5. How frequently should bond selection be reviewed?

Bond selection should be reviewed whenever the workpiece material changes, production objectives change, surface finish requirements become more demanding, or grinding behavior changes significantly. Process reviews are also valuable after machine upgrades, coolant system modifications, or wheel specification changes.

6. Can one bond type be used for every engineering material?

No. Silicon carbide, alumina, sapphire, silicon nitride, fused silica, tungsten carbide, gallium arsenide, polycrystalline diamond, and other engineering materials respond differently during grinding. Material properties influence wheel wear, grinding forces, chip formation, and thermal behavior. Bond selection should always reflect the specific application requirements.

7. What information should be shared with a grinding wheel supplier?

Providing complete application information allows suppliers to recommend more appropriate wheel specifications. Engineers should share the workpiece material, grinding operation, required surface finish, dimensional tolerance, machine type, coolant method, production objectives, and any recurring process challenges. Accurate application information supports better engineering recommendations.
