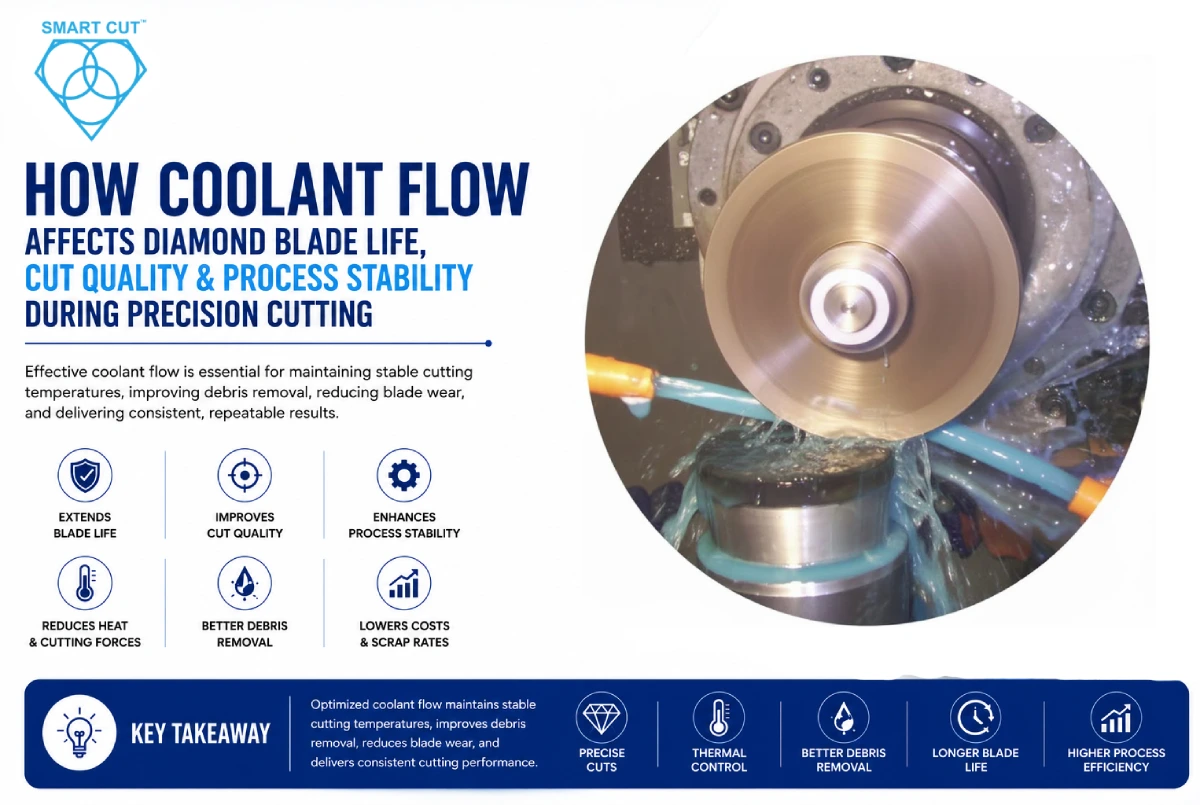

How Coolant Flow Affects Diamond Blade Life, Cut Quality & Process Stability During Precision Cutting
Coolant is one of the most important and often most overlooked variables in precision cutting operations.
Many manufacturers focus heavily on blade selection, spindle speed, feed rate, and machine rigidity while assuming coolant simply serves as a cooling medium.
In reality, coolant directly influences:
Blade life
Cut quality
Surface finish
Edge integrity
Process repeatability
Thermal stability
Material removal efficiency
Operating costs
Whether cutting silicon wafers, technical ceramics, carbides, composites, sapphire, quartz, glass, electronic packages, advanced materials, or metallographic samples, coolant performance frequently determines whether a cutting process remains stable and repeatable.
Poor coolant delivery can lead to:
Blade overheating
Thermal damage
Increased cutting forces
Edge chipping
Blade loading
Premature blade wear
Reduced productivity
Higher scrap rates
By contrast, optimised coolant systems help maintain stable cutting temperatures, improve debris removal, reduce blade wear, and support consistent cutting performance.
This article examines the engineering principles behind coolant performance and explains how coolant flow influences blade life, cut quality, and overall process stability.
Trusted by Tens of Thousands of Manufacturers, Laboratories Research Institutions Worldwide Since 1990
American Based Manufacturer
Established in 1990
Custom manufacturing

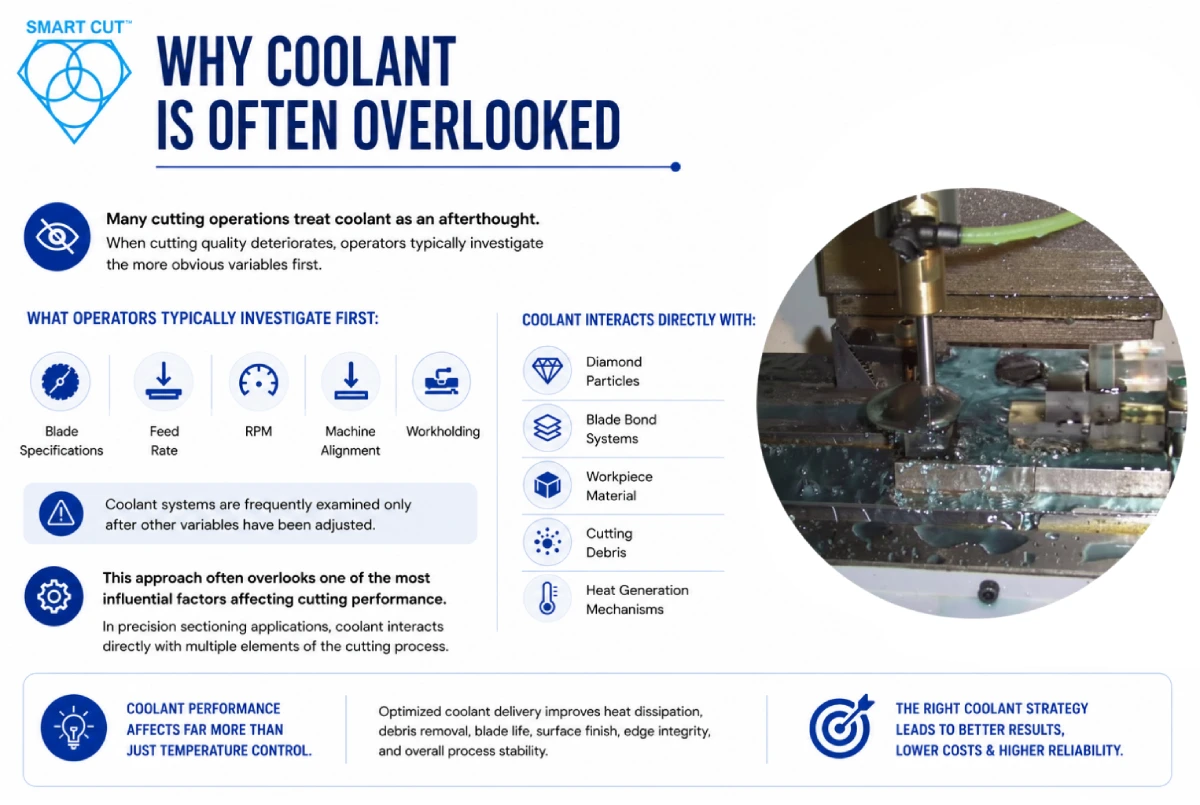

Why Coolant Is Often Overlooked
Many cutting operations treat coolant as an afterthought.
When cutting quality deteriorates, operators typically investigate:
Blade specifications
Feed rate
RPM
Machine alignment
Workholding
Coolant systems are frequently examined only after other variables have been adjusted.
This approach often overlooks one of the most influential factors affecting cutting performance.
In precision sectioning applications, coolant interacts directly with:
Diamond particles
Blade bond systems
Workpiece material
Cutting debris
As a result, coolant performance affects far more than just temperature control.

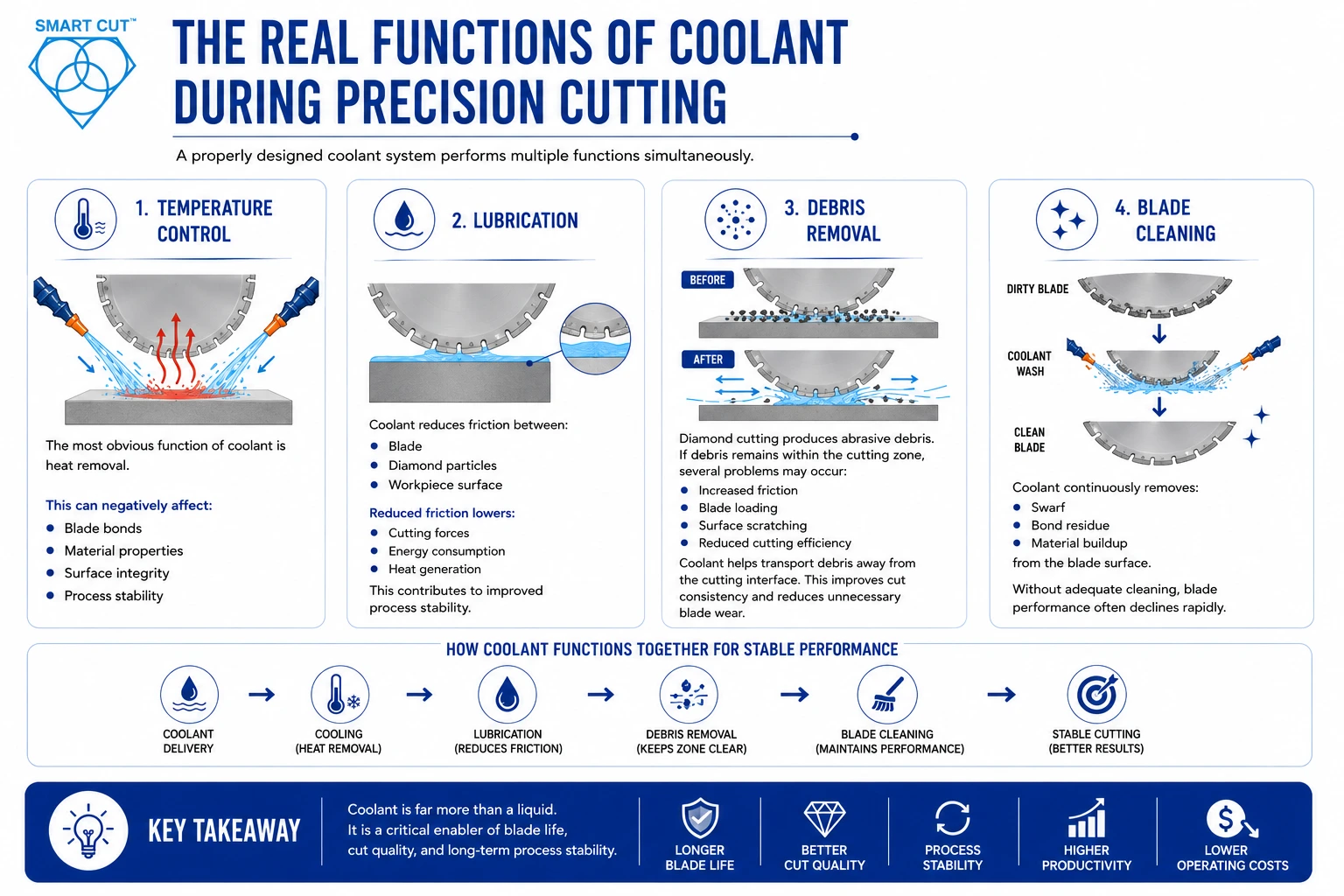

The Real Functions of Coolant During Precision Cutting
A properly designed coolant system performs multiple functions simultaneously.
Temperature Control
The most obvious function of coolant is heat removal.
During cutting, friction at the blade-workpiece interface generates localised heat.
Without adequate cooling, temperatures may rise rapidly.
This can negatively affect:
Material properties
Surface integrity
Process stability
Lubrication
Coolant reduces friction between:
Blade
Diamond particles
Workpiece surface
Reduced friction lowers:
Cutting forces
Energy consumption
Heat generation
This contributes to improved process stability.
Debris Removal
Diamond cutting produces abrasive debris.
If debris remains within the cutting zone, several problems may occur:
Increased friction
Blade loading
Surface scratching
Reduced cutting efficiency
Coolant helps transport debris away from the cutting interface.
This improves cut consistency and reduces unnecessary blade wear.
Blade Cleaning
Many operators underestimate how important blade cleaning can be.
Coolant continuously removes:
Swarf
Bond residue
Material buildup
from the blade surface.
Without adequate cleaning, blade performance often declines rapidly.

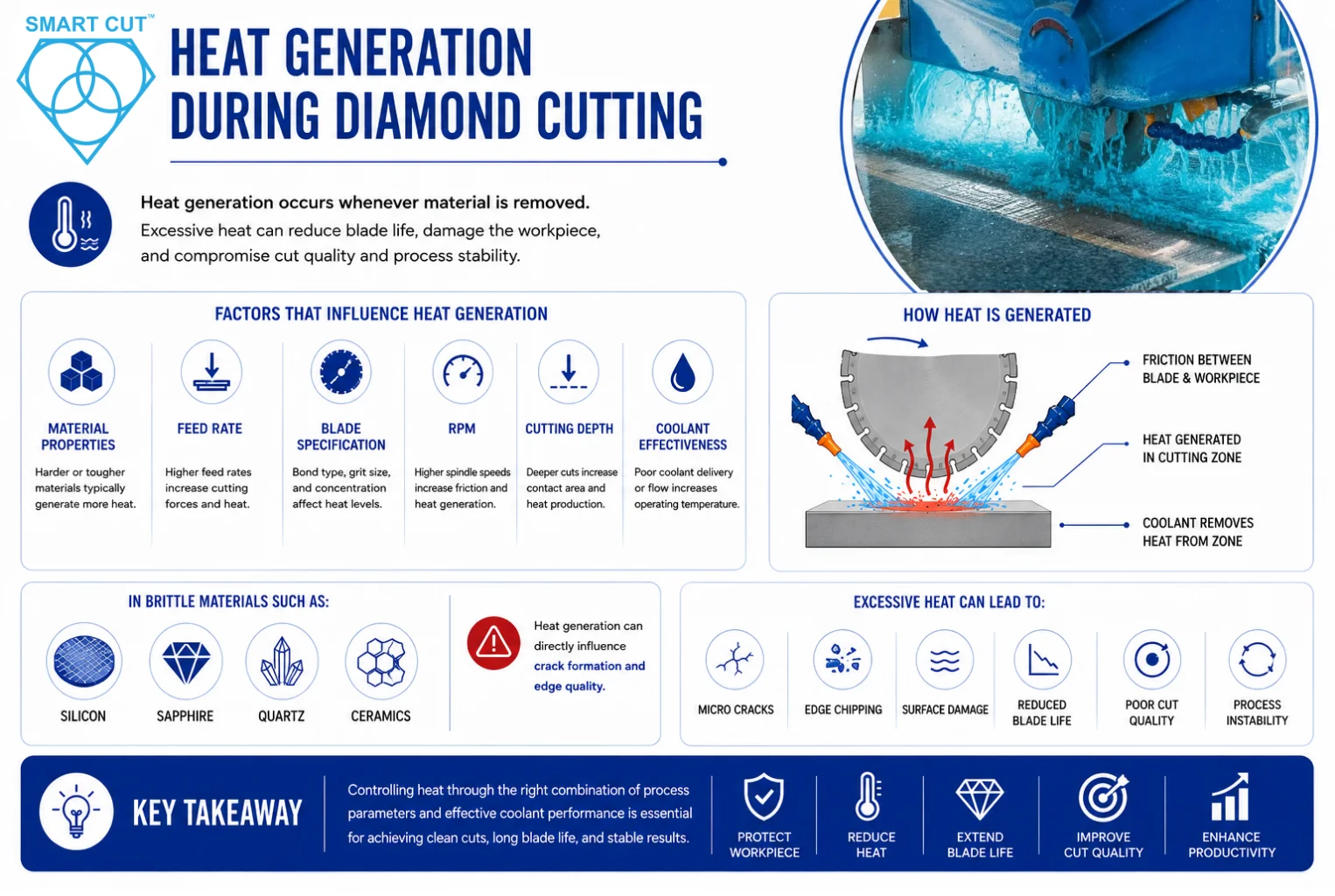

Heat Generation During Diamond Cutting
Heat generation occurs whenever material is removed.
The amount of heat produced depends on:
Material properties
RPM
Cutting depth
Coolant effectiveness
In brittle materials such as:
Sapphire
Quartz
Ceramics
Heat generation can directly influence crack formation and edge quality.

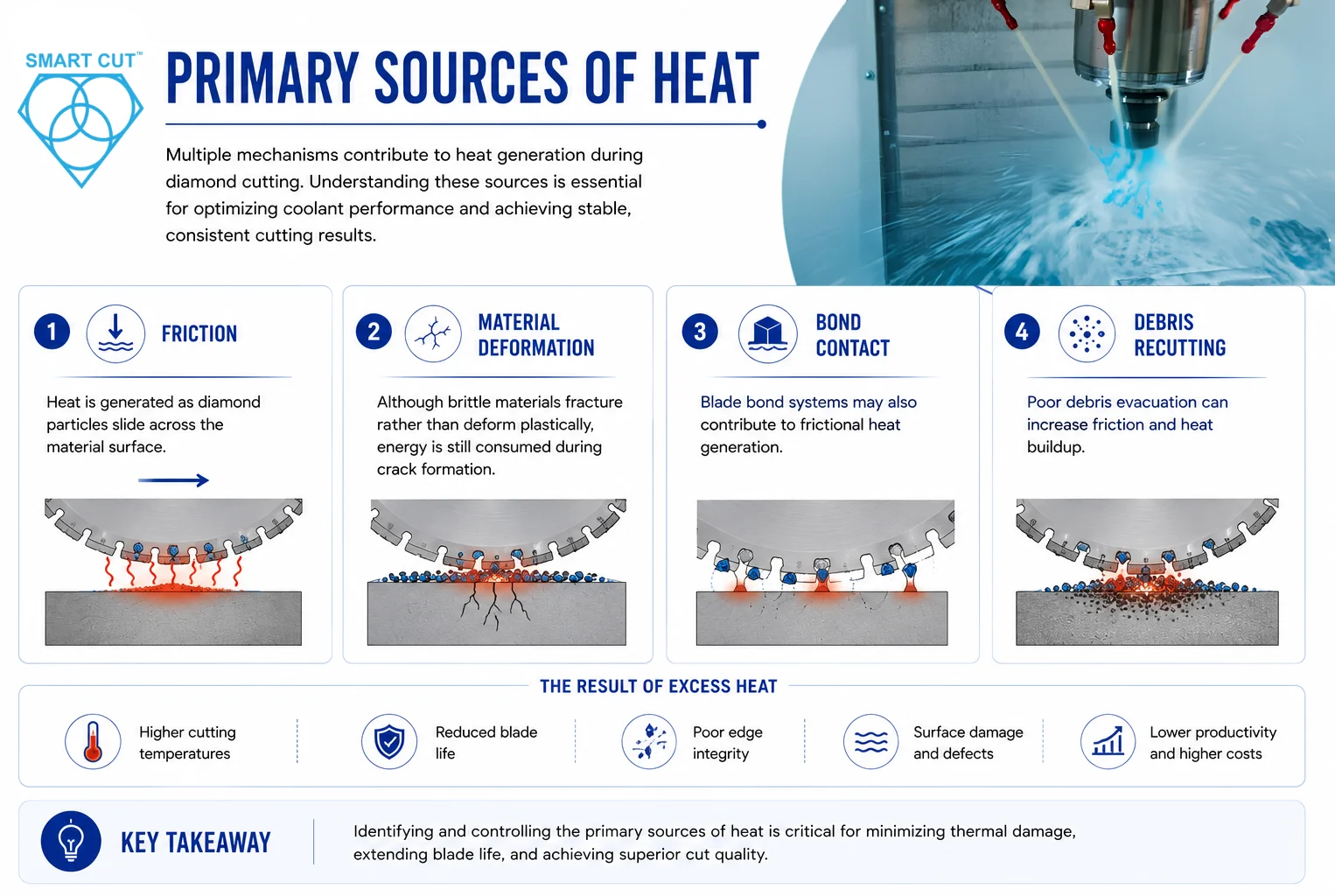

Primary Sources of Heat
Friction
Heat is generated as diamond particles slide across the material surface.
Material Deformation
Although brittle materials fracture rather than deform plastically, energy is still consumed during crack formation.
Bond Contact
Blade bond systems may also contribute to frictional heat generation.
Debris Recutting
Poor debris evacuation can increase friction and heat buildup.

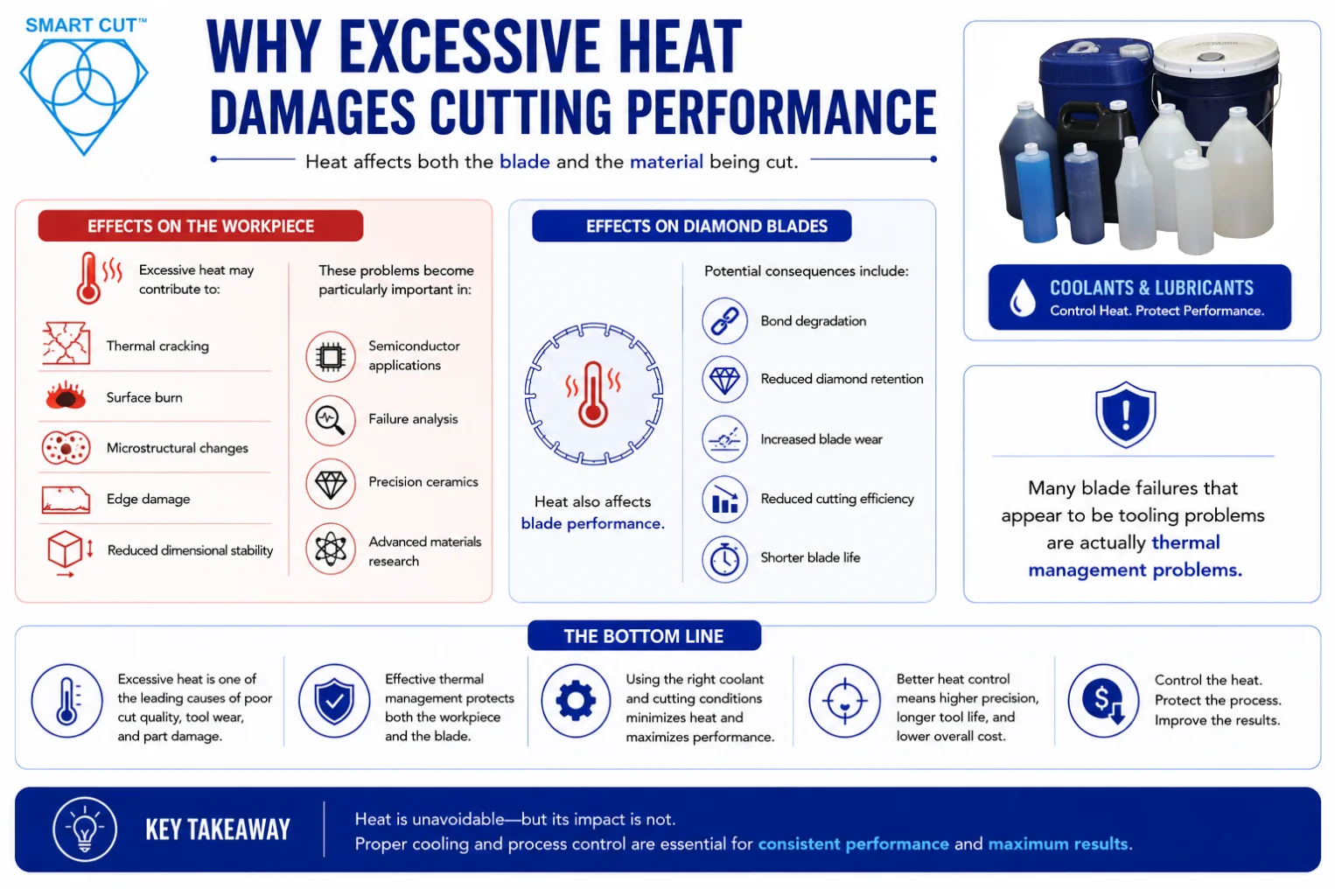

Why Excessive Heat Damages Cutting Performance
Heat affects both the blade and the material being cut.
Effects on the Workpiece
Excessive heat may contribute to:
Thermal cracking
Surface burn
Microstructural changes
Edge damage
Reduced dimensional stability
These problems become particularly important in:
Semiconductor applications
Failure analysis
Precision ceramics
Advanced materials research
Effects on Diamond Blades
Heat also affects blade performance.
Potential consequences include:
Bond degradation
Reduced diamond retention
Increased blade wear
Reduced cutting efficiency
Shorter blade life
Many blade failures that appear to be tooling problems are actually thermal management problems.

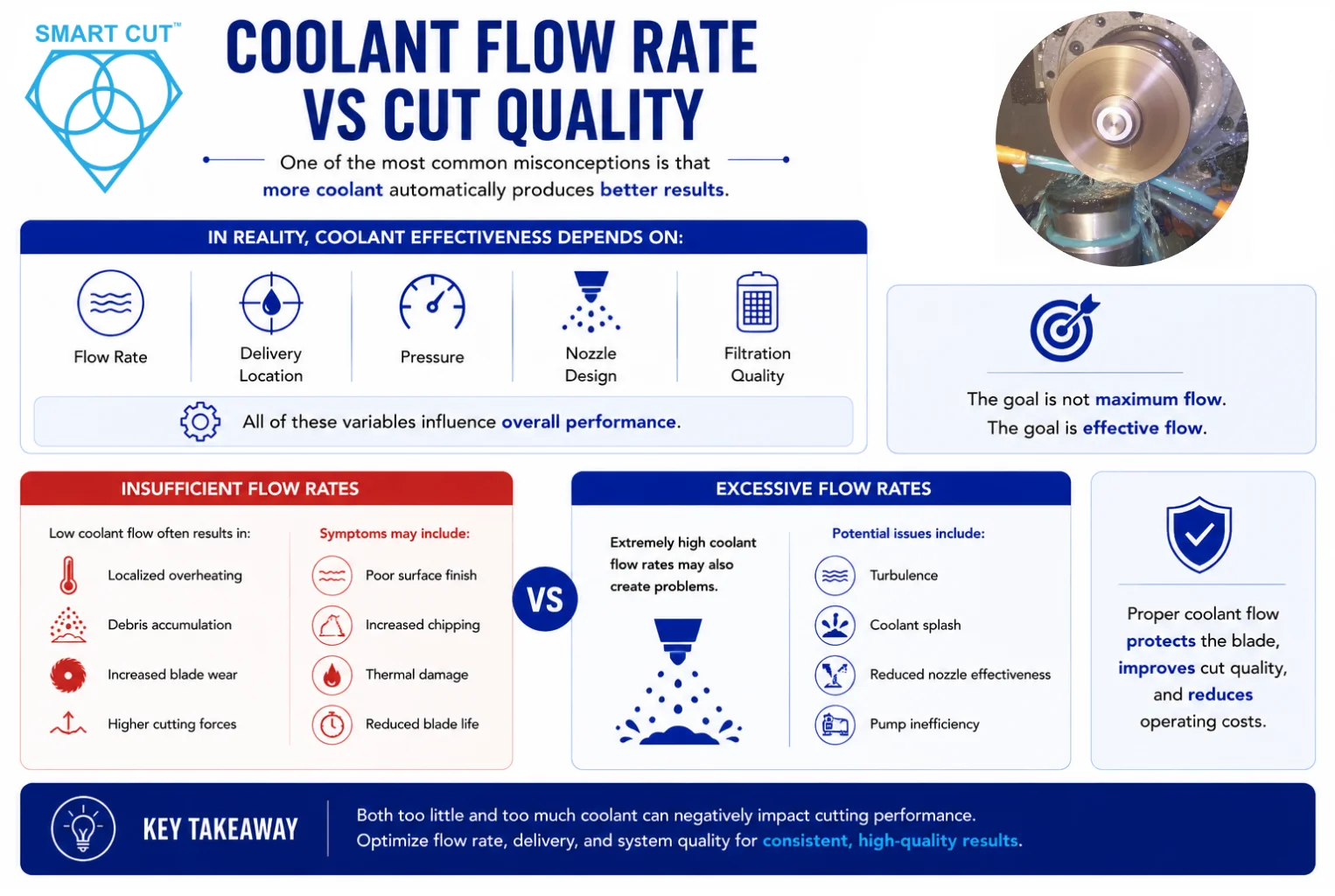

Coolant Flow Rate vs Cut Quality
One of the most common misconceptions is that more coolant automatically produces better results.
In reality, coolant effectiveness depends on:
Flow rate
Delivery location
Pressure
Nozzle design
Filtration quality
All of these variables influence overall performance.
Insufficient Flow Rates
Low coolant flow often results in:
Localized overheating
Debris accumulation
Increased blade wear
Higher cutting forces
Symptoms may include:
Poor surface finish
Increased chipping
Thermal damage
Reduced blade life
Excessive Flow Rates
Extremely high coolant flow rates may also create problems.
Potential issues include:
Turbulence
Coolant splash
Reduced nozzle effectiveness
Pump inefficiency
The goal is not maximum flow.
The goal is effective flow.
Coolant Delivery Location Matters
Even a high-flow coolant system may perform poorly if the coolant never reaches the cutting interface.
For maximum effectiveness, coolant should be directed toward:
Blade entry point
Primary cutting zone
Heat generation area
Proper nozzle positioning often produces greater improvements than increasing the flow rate alone.

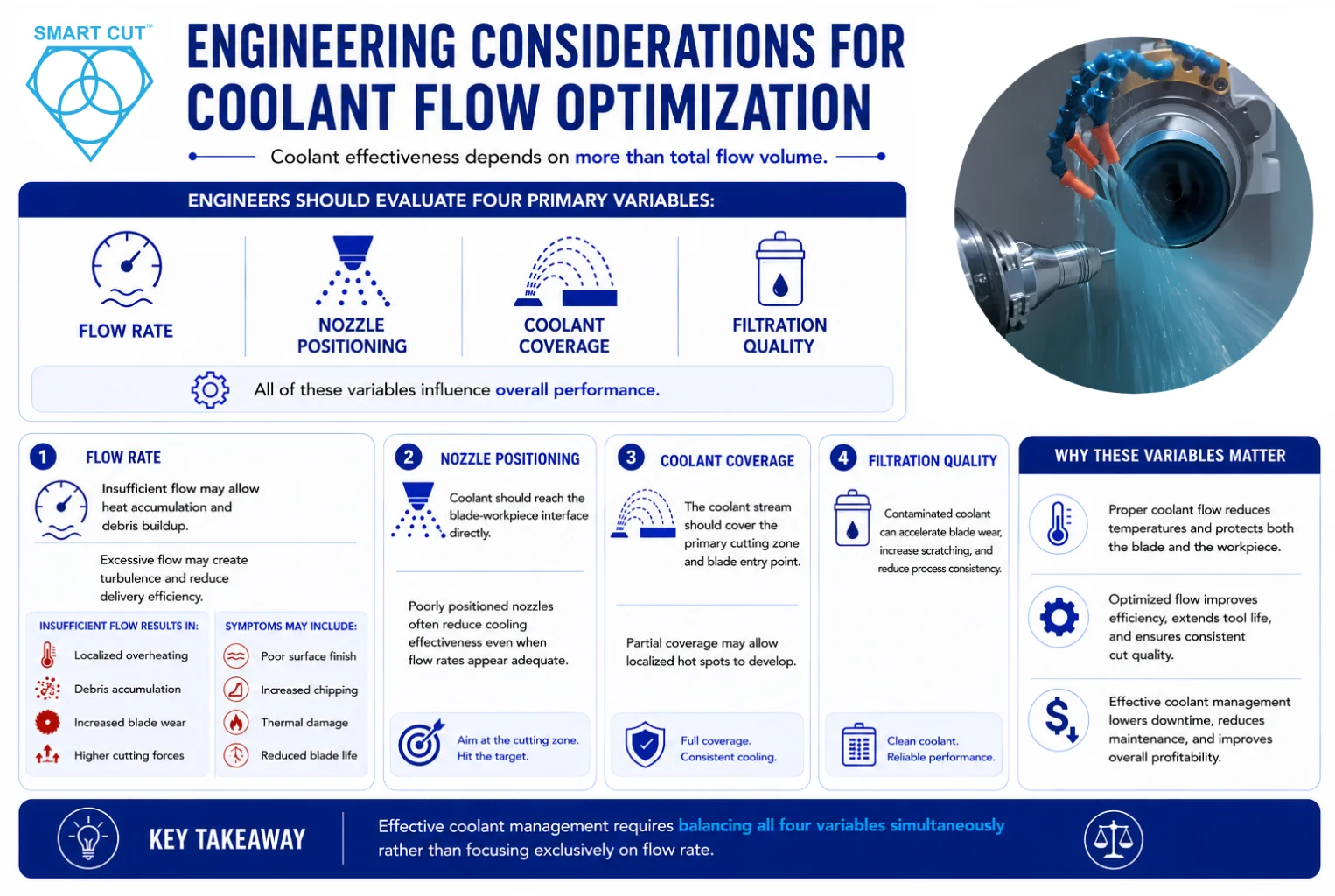

Engineering Considerations for Coolant Flow Optimization
Coolant effectiveness depends on more than total flow volume.
Engineers should evaluate four primary variables:
1. Flow Rate
Insufficient flow may allow heat accumulation and debris buildup.
Excessive flow may create turbulence and reduce delivery efficiency.
2. Nozzle Positioning
Coolant should reach the blade-workpiece interface directly.
Poorly positioned nozzles often reduce cooling effectiveness even when flow rates appear adequate.
3. Coolant Coverage
The coolant stream should cover the primary cutting zone and blade entry point.
Partial coverage may allow localized hot spots to develop.
4. Filtration Quality
Contaminated coolant can accelerate blade wear, increase scratching, and reduce process consistency.
Effective coolant management requires balancing all four variables simultaneously rather than focusing exclusively on flow rate.

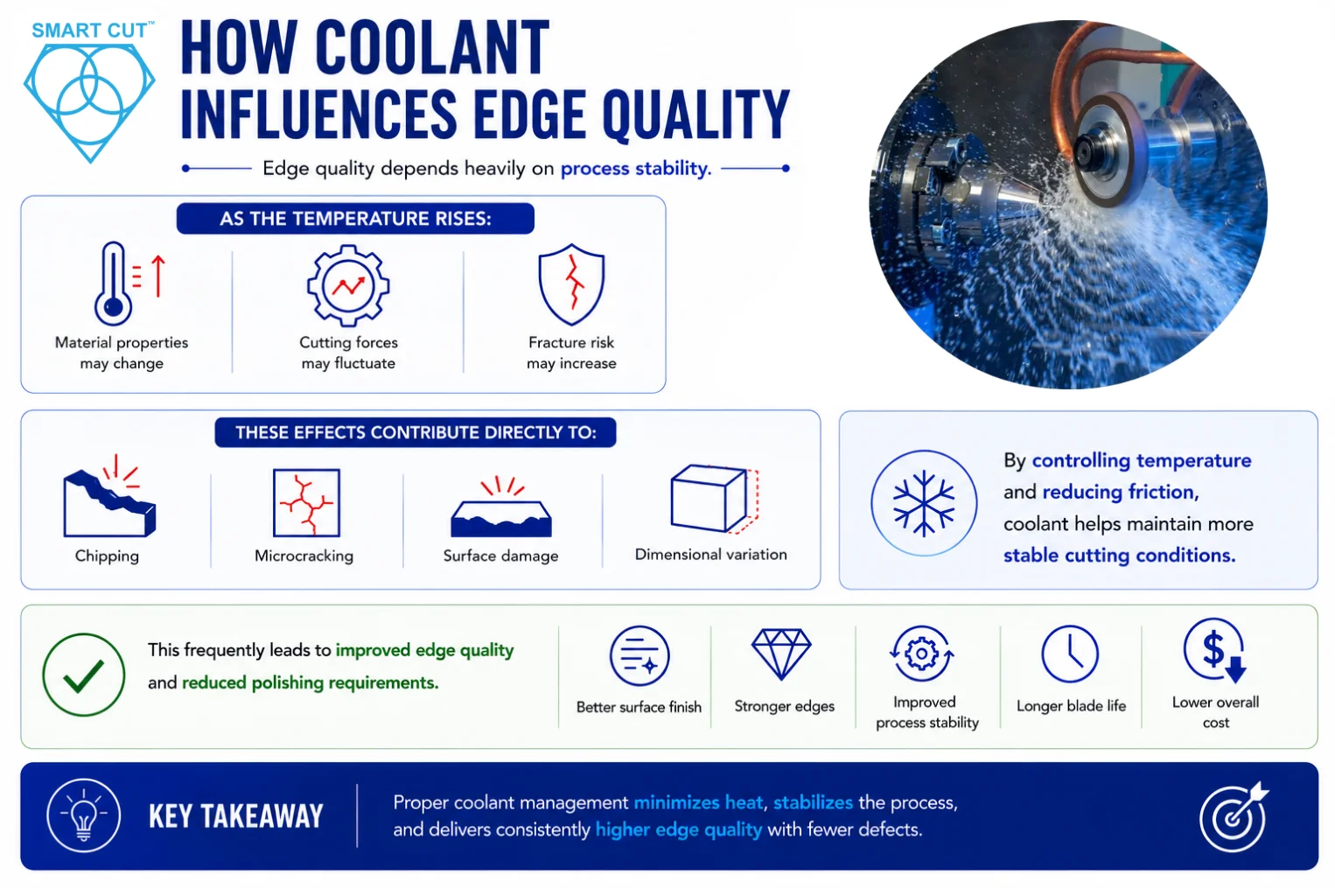

How Coolant Influences Edge Quality
Edge quality depends heavily on process stability.
As the temperature rises:
Material properties may change
Cutting forces may fluctuate
Fracture risk may increase
These effects contribute directly to:
Chipping
Microcracking
Surface damage
Dimensional variation
By controlling temperature and reducing friction, coolant helps maintain more stable cutting conditions.
This frequently leads to improved edge quality and reduced polishing requirements.

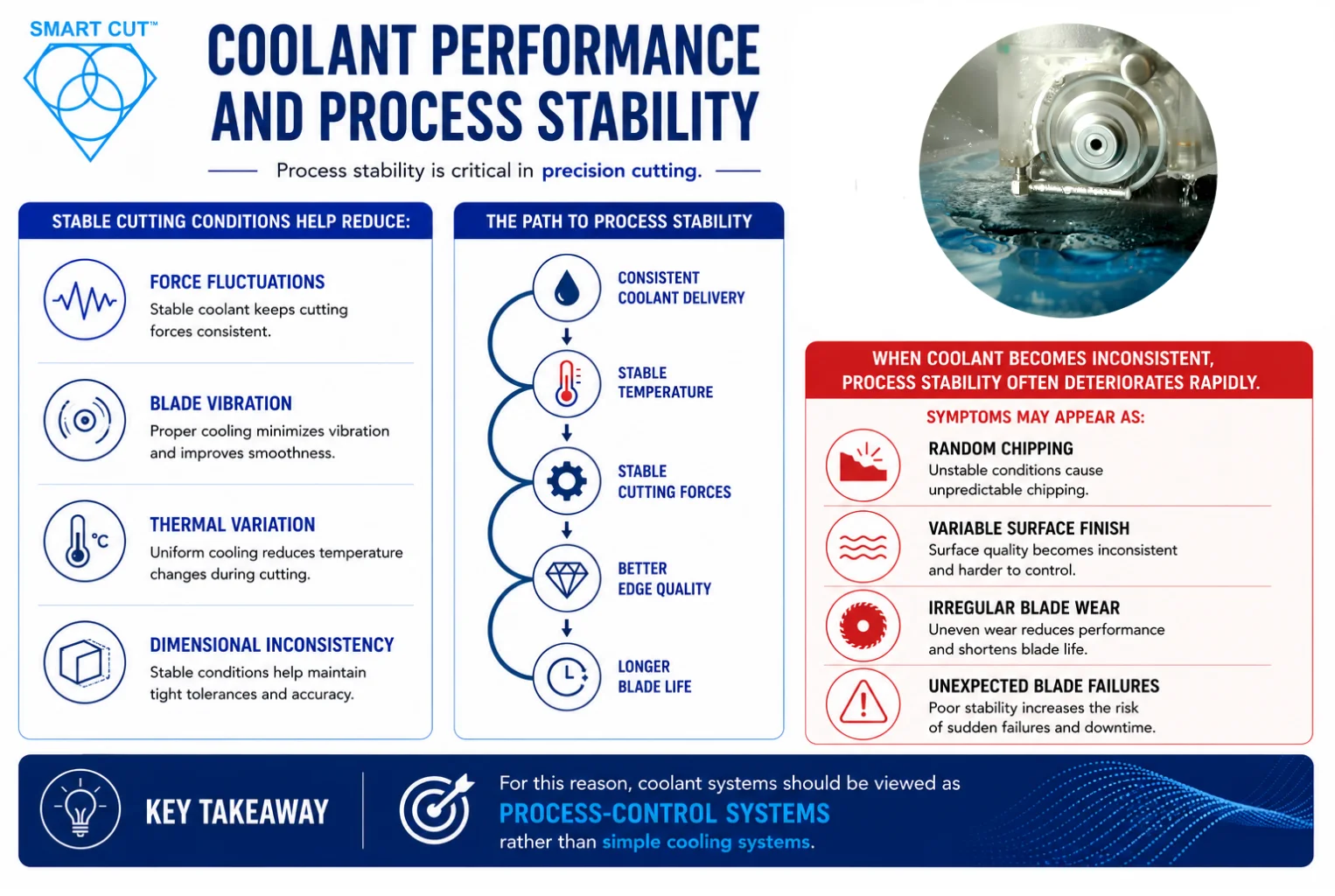

Coolant Performance and Process Stability
Process stability is critical in precision cutting.
Stable cutting conditions help reduce:
Force fluctuations
Blade vibration
Thermal variation
Dimensional inconsistency
When coolant delivery becomes inconsistent, process stability often deteriorates rapidly.
Symptoms may appear as:
Random chipping
Variable surface finish
Irregular blade wear
Unexpected blade failures
For this reason, coolant systems should be viewed as process-control systems rather than simple cooling systems.

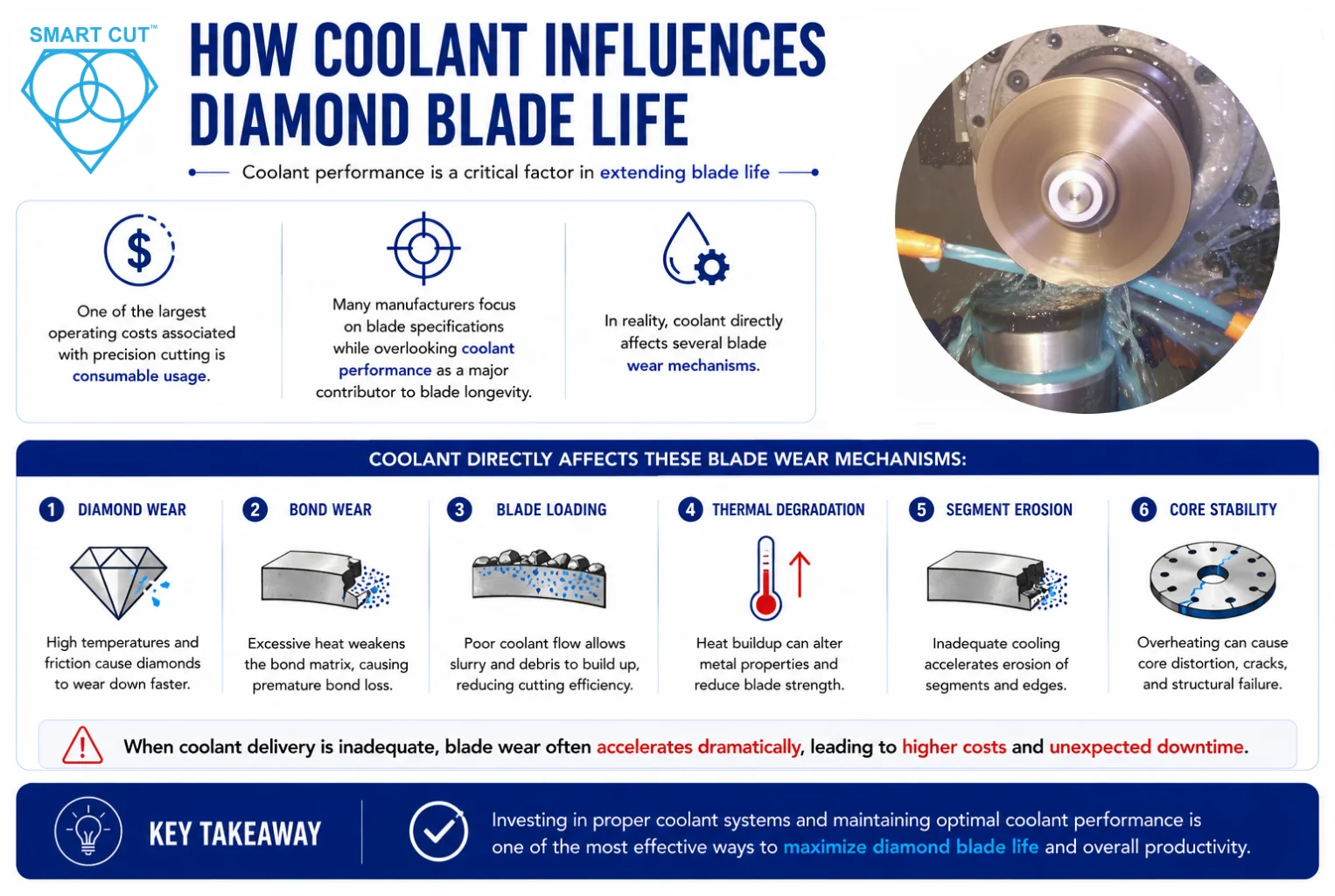

How Coolant Influences Diamond Blade Life
One of the largest operating costs associated with precision cutting is consumable usage.
Many manufacturers focus on blade specifications while overlooking coolant performance as a major contributor to blade longevity.
In reality, coolant directly affects several blade wear mechanisms.
These include:
Diamond wear
Bond wear
Blade loading
Thermal degradation
Segment erosion
Core stability
When coolant delivery is inadequate, blade wear often accelerates dramatically.

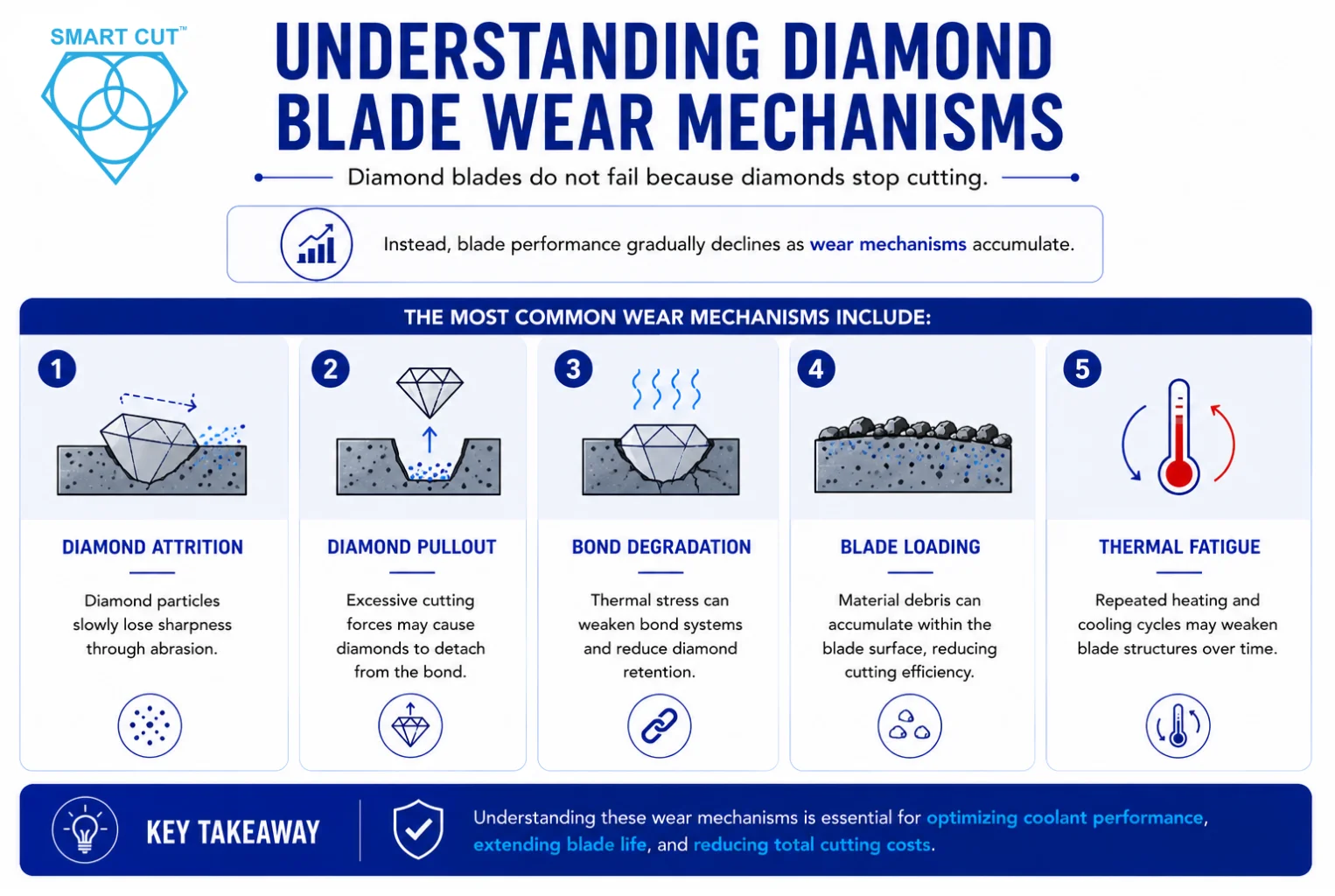

Understanding Diamond Blade Wear Mechanisms
Diamond blades do not fail because diamonds stop cutting.
Instead, blade performance gradually declines as wear mechanisms accumulate.
The most common wear mechanisms include:
Diamond Attrition
Diamond particles slowly lose sharpness through abrasion.
Diamond Pullout
Excessive cutting forces may cause diamonds to detach from the bond.
Bond Degradation
Thermal stress can weaken bond systems and reduce diamond retention.
Blade Loading
Material debris can accumulate within the blade surface, reducing cutting efficiency.
Thermal Fatigue
Repeated heating and cooling cycles may weaken blade structures over time.

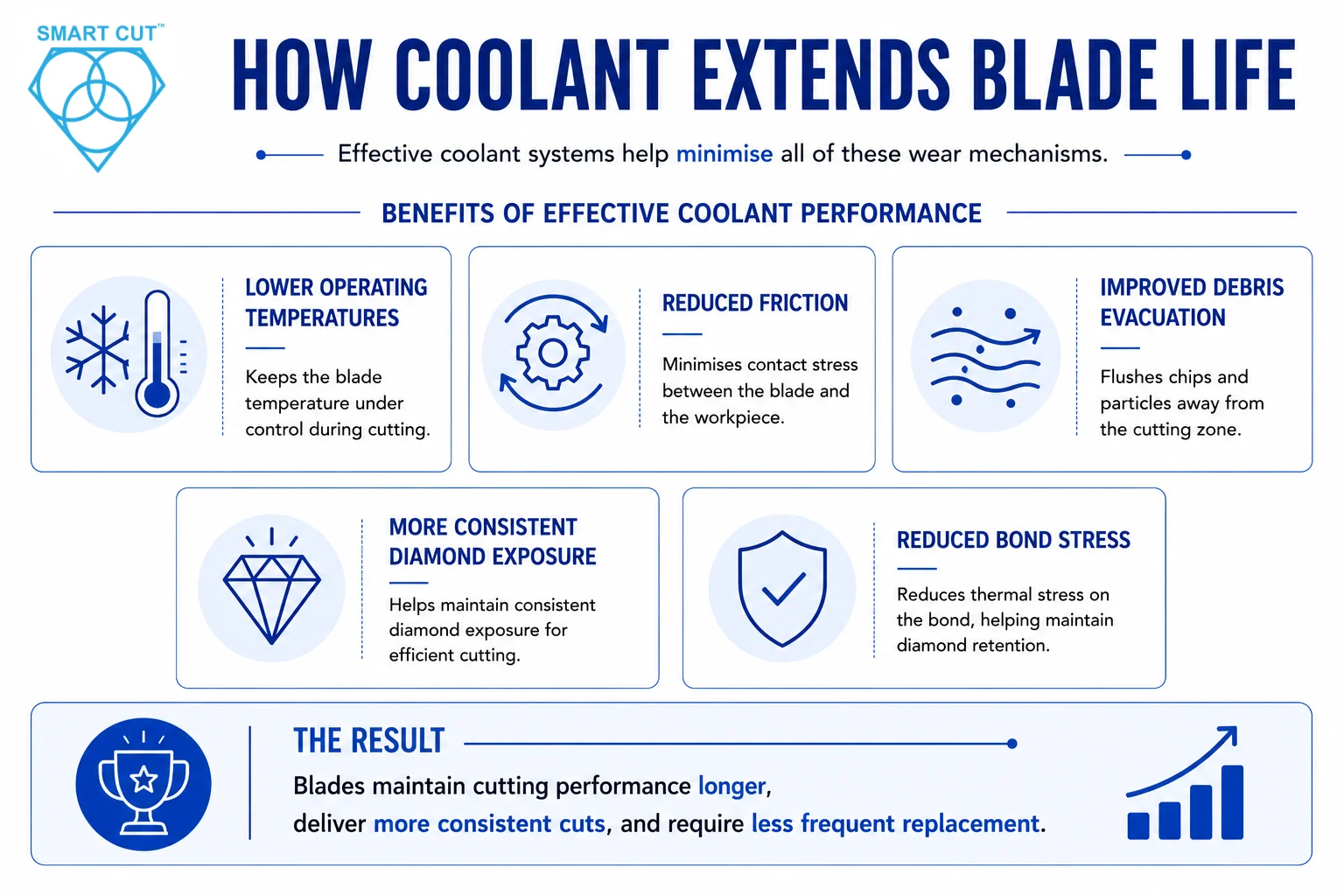

How Coolant Extends Blade Life
Effective coolant systems help minimise all of these wear mechanisms.
Benefits often include:
Lower operating temperatures
Reduced friction
Improved debris evacuation
More consistent diamond exposure
Reduced bond stress
As a result, blades typically maintain cutting performance longer.

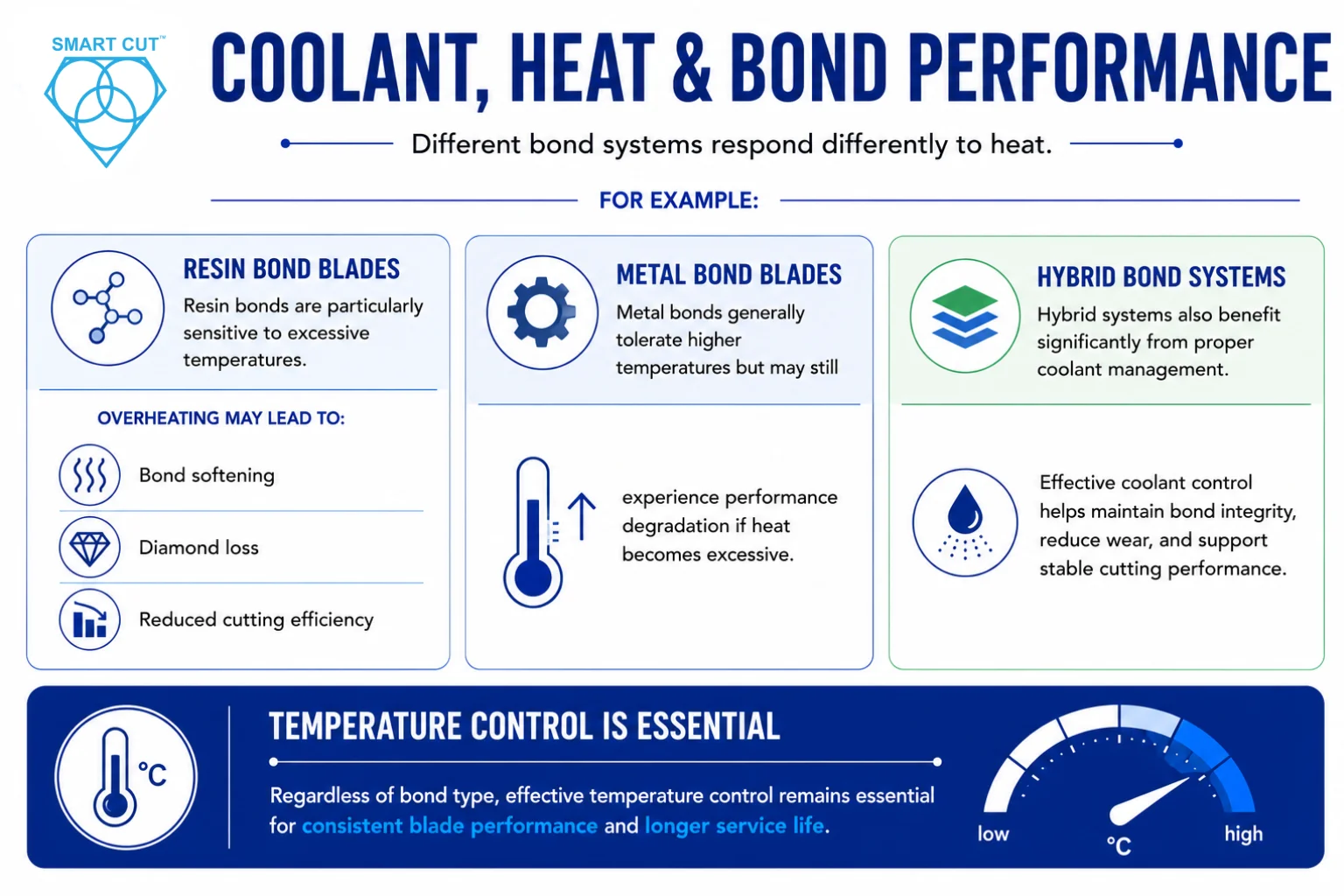

Coolant, Heat & Bond Performance
Different bond systems respond differently to heat.
For example:
Resin Bond Blades
Resin bonds are particularly sensitive to excessive temperatures.
Overheating may lead to:
Bond softening
Diamond loss
Reduced cutting efficiency
Metal Bond Blades
Metal bonds generally tolerate higher temperatures but may still experience performance degradation if heat becomes excessive.
Hybrid Bond Systems
Hybrid systems also benefit significantly from proper coolant management.
Regardless of bond type, temperature control remains essential.

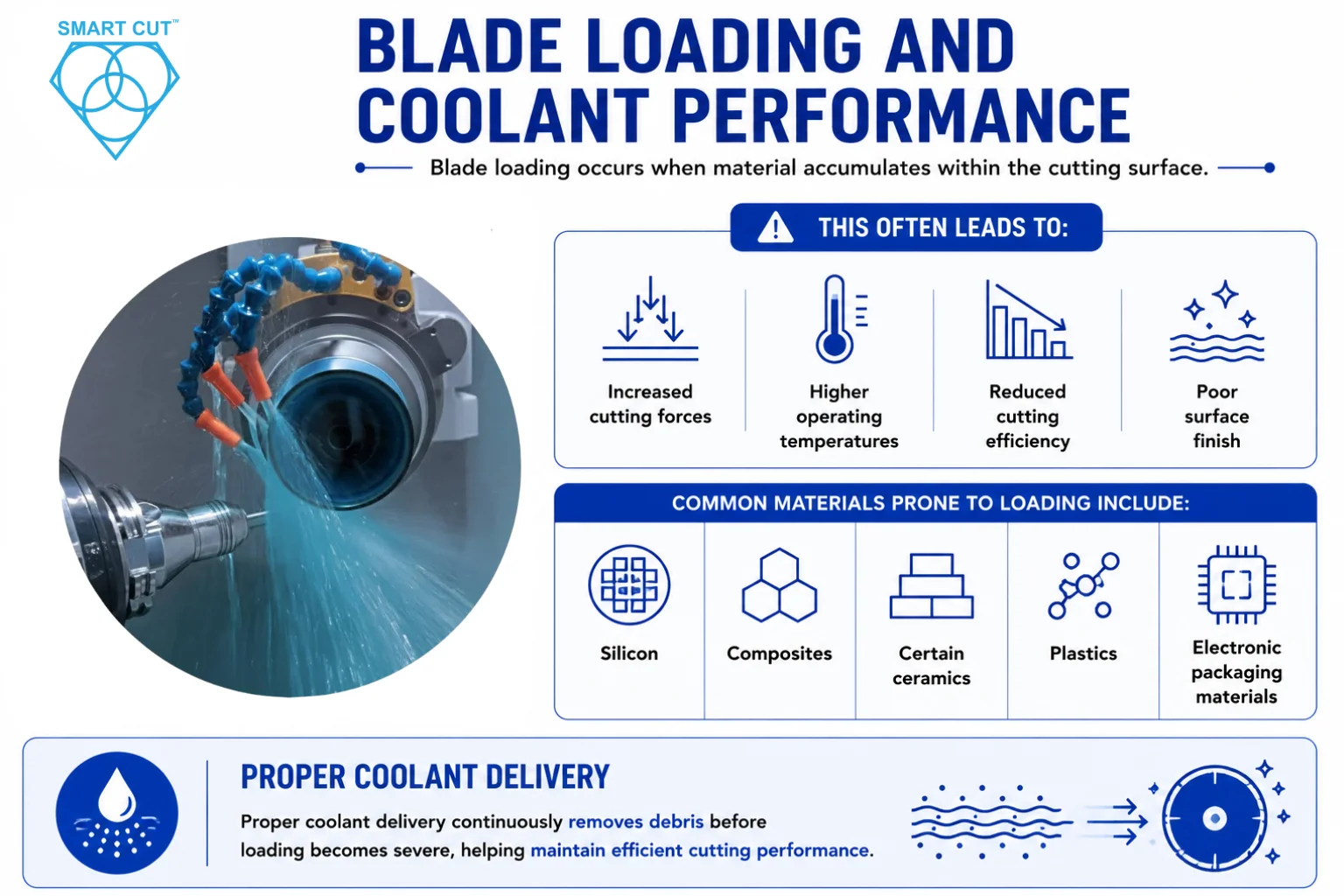

Blade Loading and Coolant Performance
Blade loading occurs when material accumulates within the cutting surface.
This often leads to:
Increased cutting forces
Higher operating temperatures
Reduced cutting efficiency
Poor surface finish
Common materials prone to loading include:
Silicon
Composites
Certain ceramics
Plastics
Electronic packaging materials
Proper coolant delivery helps remove debris before loading becomes severe.

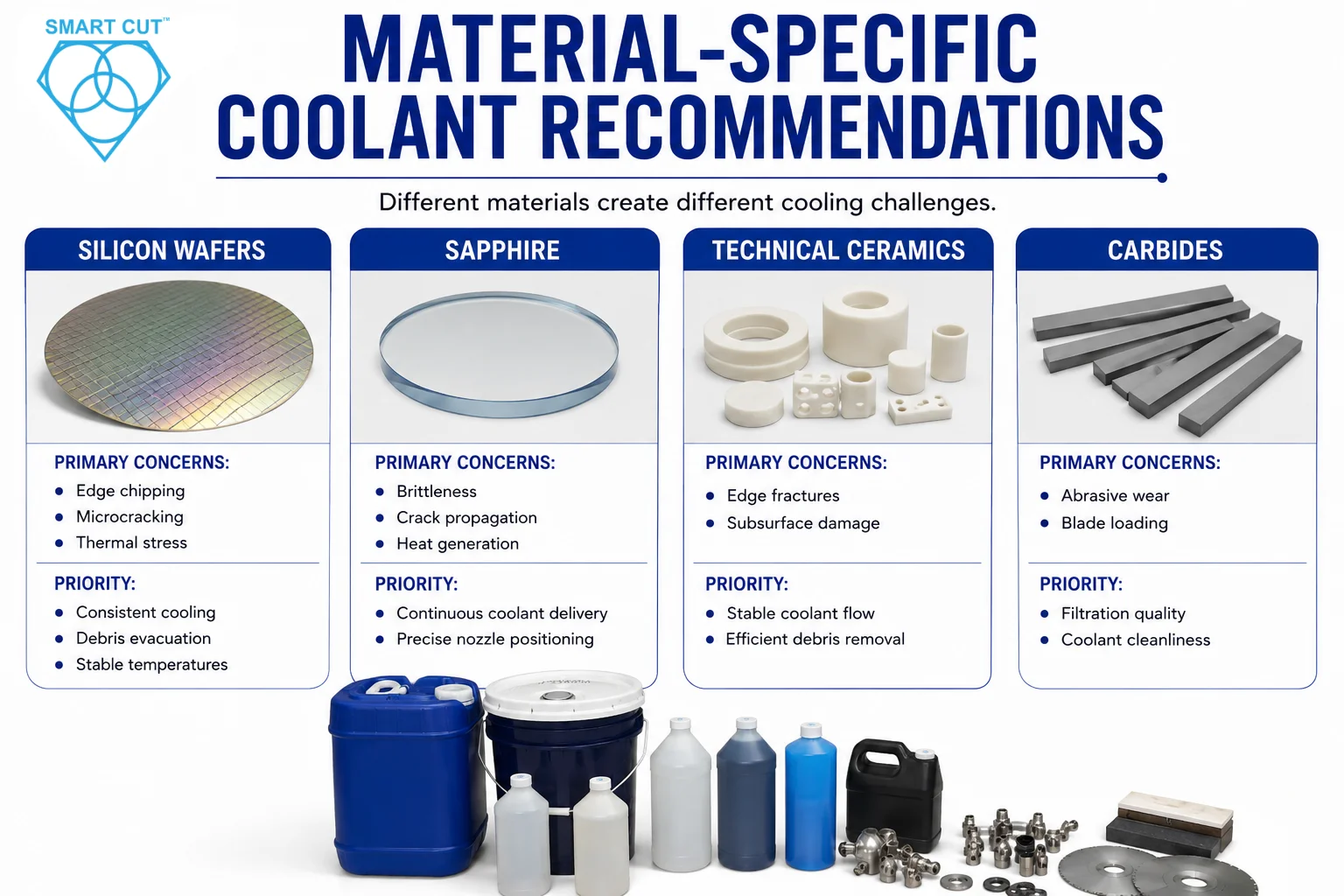

Material-Specific Coolant Recommendations
Different materials create different cooling challenges.
Silicon Wafers
Primary concerns:
Edge chipping
Microcracking
Thermal stress
Priority:
Consistent cooling
Debris evacuation
Stable temperatures
Sapphire
Primary concerns:
Brittleness
Crack propagation
Heat generation
Priority:
Continuous coolant delivery
Precise nozzle positioning
Technical Ceramics
Primary concerns:
Edge fractures
Subsurface damage
Priority:
Stable coolant flow
Efficient debris removal
Carbides
Primary concerns:
Abrasive wear
Blade loading
Priority:
Filtration quality
Coolant cleanliness
Composite Materials
Primary concerns:
Delamination
Fiber damage
Priority:
Temperature control
Reduced cutting forces

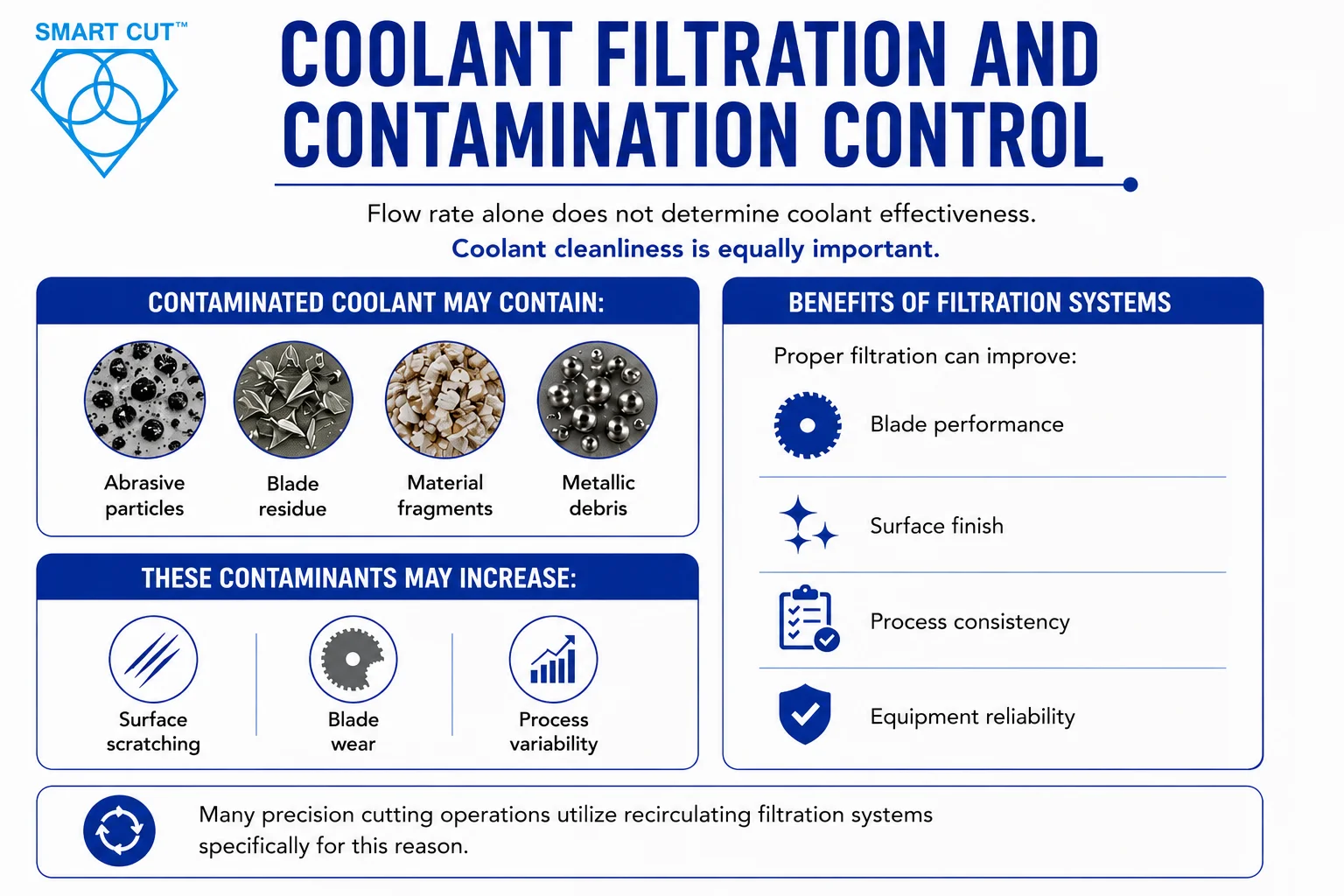

Coolant Filtration and Contamination Control
Flow rate alone does not determine coolant effectiveness.
Coolant cleanliness is equally important.
Contaminated coolant may contain:
Abrasive particles
Blade residue
Material fragments
Metallic debris
These contaminants may increase:
Surface scratching
Blade wear
Process variability
Benefits of Filtration Systems
Proper filtration can improve:
Blade performance
Surface finish
Process consistency
Equipment reliability
Many precision cutting operations utilize recirculating filtration systems specifically for this reason.

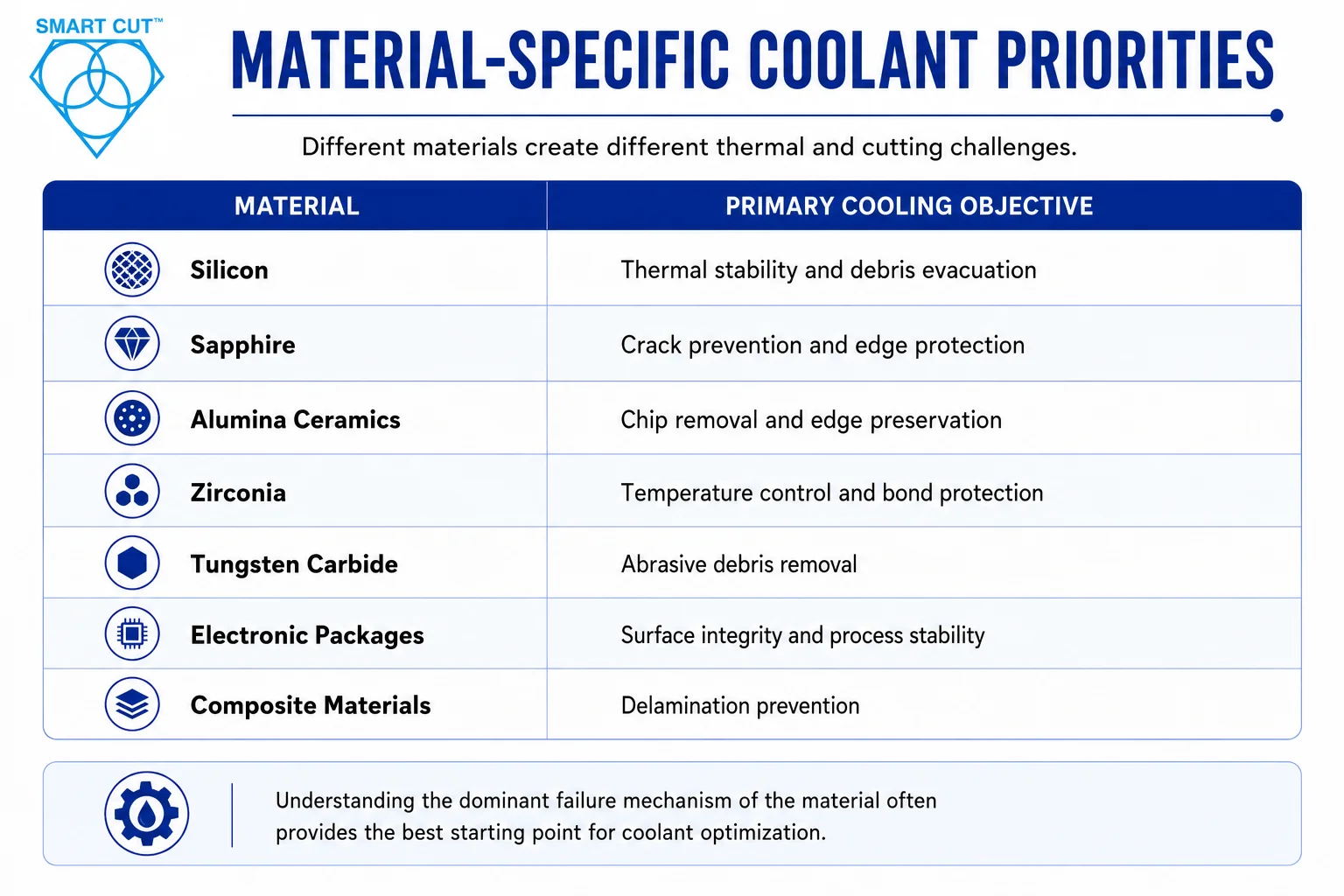

Material-Specific Coolant Priorities
Different materials create different thermal and cutting challenges.
| Material | Primary Cooling Objective |
|---|---|
| Silicon | Thermal stability and debris evacuation |
| Sapphire | Crack prevention and edge protection |
| Alumina Ceramics | Chip removal and edge preservation |
| Zirconia | Temperature control and bond protection |
| Tungsten Carbide | Abrasive debris removal |
| Electronic Packages | Surface integrity and process stability |
| Composite Materials | Delamination prevention |
Understanding the dominant failure mechanism of the material often provides the best starting point for coolant optimization.

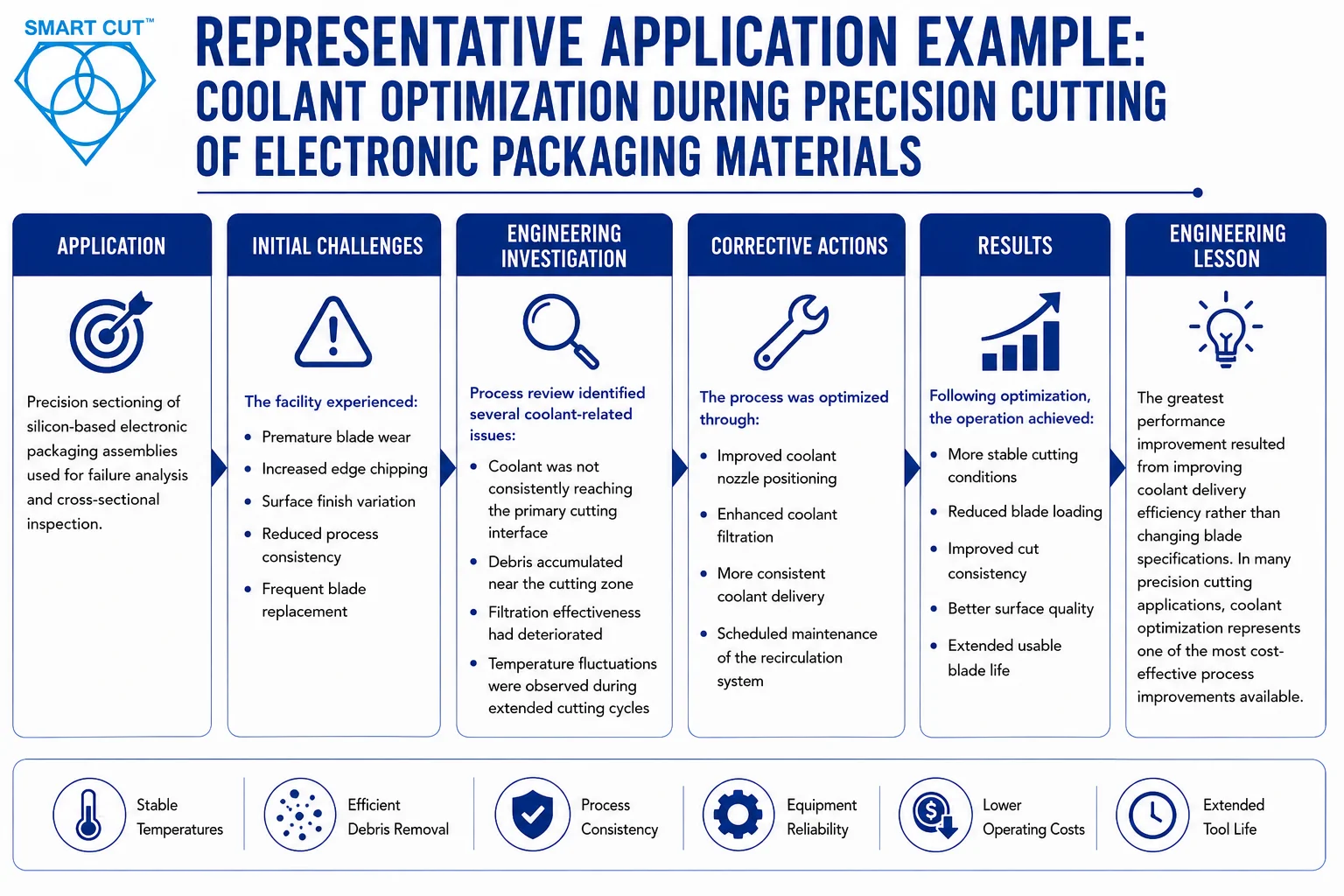

Representative Application Example: Coolant Optimization During Precision Cutting of Electronic Packaging Materials
Application
Precision sectioning of silicon-based electronic packaging assemblies used for failure analysis and cross-sectional inspection.
Initial Challenges
The facility experienced:
- Premature blade wear
- Increased edge chipping
- Surface finish variation
- Reduced process consistency
- Frequent blade replacement
Engineering Investigation
Process review identified several coolant-related issues:
- Coolant was not consistently reaching the primary cutting interface
- Debris accumulated near the cutting zone
- Filtration effectiveness had deteriorated
- Temperature fluctuations were observed during extended cutting cycles
Corrective Actions
The process was optimized through:
- Improved coolant nozzle positioning
- Enhanced coolant filtration
- More consistent coolant delivery
- Scheduled maintenance of the recirculation system
Results
Following optimization, the operation achieved:
- More stable cutting conditions
- Reduced blade loading
- Improved cut consistency
- Better surface quality
- Extended usable blade life
Engineering Lesson
The greatest performance improvement resulted from improving coolant delivery efficiency rather than changing blade specifications. In many precision cutting applications, coolant optimization represents one of the most cost-effective process improvements available.

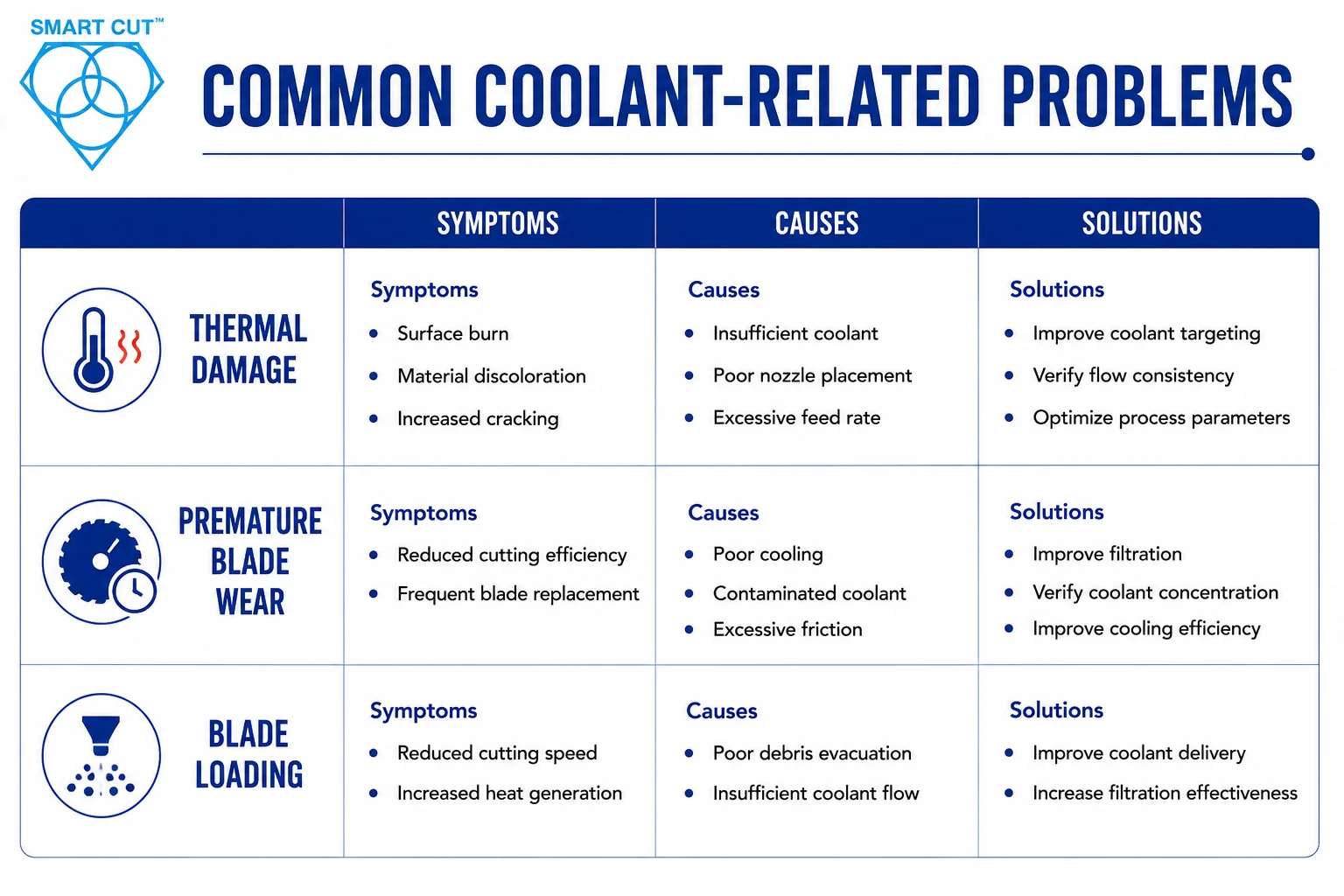

Common Coolant-Related Problems
Thermal Damage
Symptoms
Surface burn
Material discoloration
Increased cracking
Causes
Insufficient coolant
Poor nozzle placement
Excessive feed rate
Solutions
Improve coolant targeting
Verify flow consistency
Optimize process parameters
Premature Blade Wear
Symptoms
Reduced cutting efficiency
Frequent blade replacement
Causes
Poor cooling
Contaminated coolant
Excessive friction
Solutions
Improve filtration
Verify coolant concentration
Improve cooling efficiency
Blade Loading
Symptoms
Reduced cutting speed
Increased heat generation
Causes
Poor debris evacuation
Insufficient coolant flow
Solutions
Improve coolant delivery
Increase filtration effectiveness

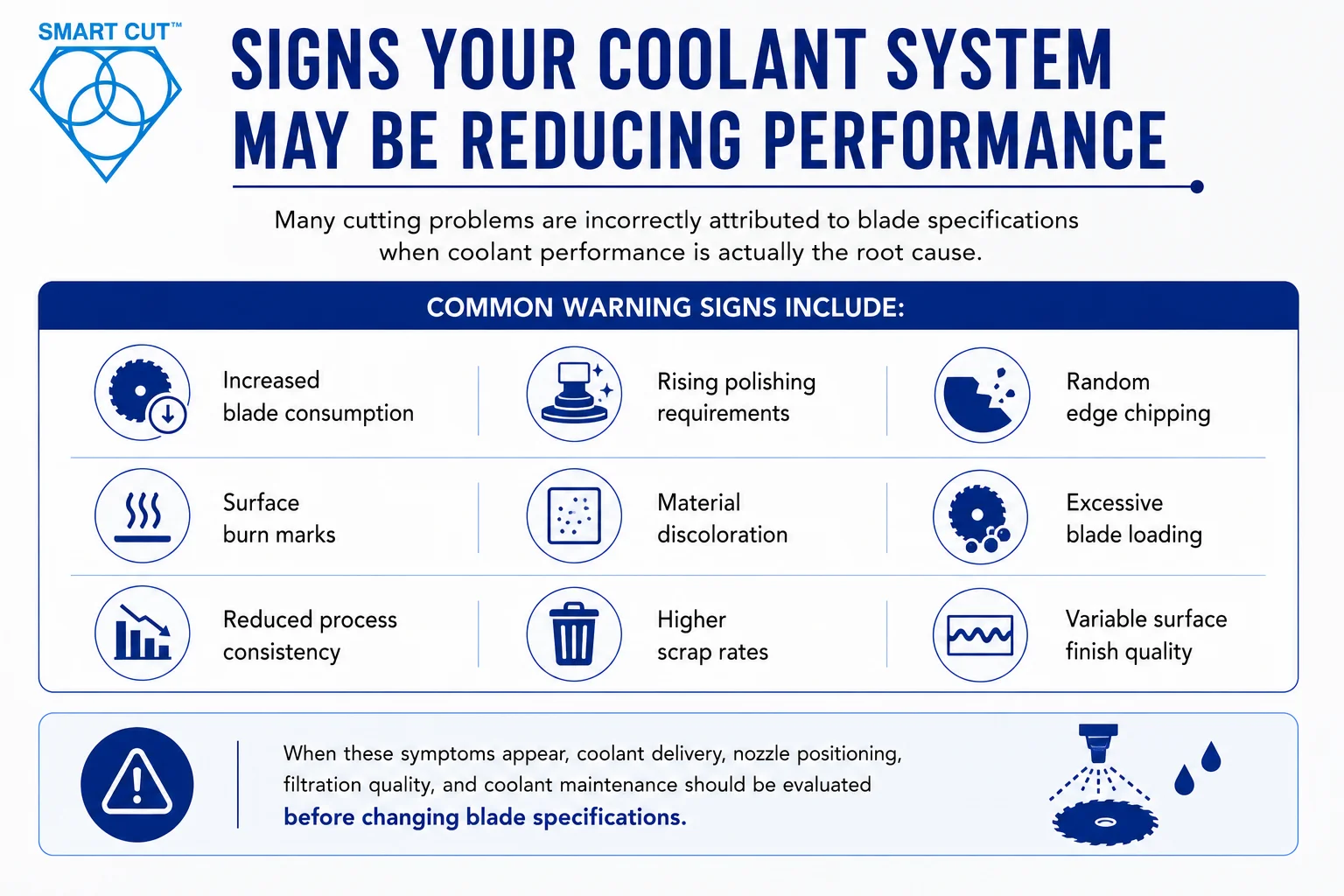

Signs Your Coolant System May Be Reducing Performance
Many cutting problems are incorrectly attributed to blade specifications when coolant performance is actually the root cause.
Common warning signs include:
- Increased blade consumption
- Rising polishing requirements
- Random edge chipping
- Surface burn marks
- Material discoloration
- Excessive blade loading
- Reduced process consistency
- Higher scrap rates
- Variable surface finish quality
When these symptoms appear, coolant delivery, nozzle positioning, filtration quality, and coolant maintenance should be evaluated before changing blade specifications.
Recommended UKAM Solutions
Optimizing coolant performance requires more than simply increasing flow rate.
The most successful precision cutting operations typically combine:
Precision Diamond Blades
Precision Cutting Saws
Proper Coolant Systems
Filtration Equipment
Application-Specific Process Optimisation
The correct solution depends on:
Material type
Blade specification
Production volume
Surface finish requirements
Quality objectives
UKAM’s applications engineering team can assist with selecting appropriate coolant strategies based on specific materials and cutting requirements.
Future Content Opportunities
This topic creates several opportunities for additional content assets.
Coolant Flow Calculator
Users input:
Blade diameter
Material
Feed rate
Output:
Recommended coolant flow range
Blade Life Calculator
Estimate:
Blade consumption
Cost per cut
Replacement frequency
Process Optimization Guide
Downloadable engineering guide covering:
Coolant setup
Blade selection
RPM optimization
Feed rate optimization
Engineering Quick Reference Guide
| Variable | Recommendation |
|---|---|
| Primary Objective | Maintain Stable Cutting Conditions |
| Most Common Coolant Issue | Poor Delivery Location |
| Blade Life Risk | Thermal Loading |
| Quality Risk | Edge Damage |
| Process Risk | Debris Accumulation |
| Most Important Factors | Flow, Positioning, Filtration |
| Optimization Goal | Consistent Cooling & Debris Remova |
Frequently Asked Questions
Coolant helps control heat, remove debris, reduce friction, improve blade life, and maintain process stability.
No. Coolant effectiveness depends on flow rate, delivery location, filtration quality, and process conditions.
Yes.Insufficient cooling may increase cutting forces and thermal stress, contributing to edge damage.
Absolutely. Proper cooling often reduces wear and extends blade life significantly.
Blade loading typically results from inadequate debris evacuation and poor coolant effectiveness.
Yes. Contaminated coolant can increase blade wear, scratching, and process variability.
Common examples include:
Silicon
Sapphire
Ceramics
Quartz
Composites
Electronic packaging materials
Regular inspection intervals should be based on operating hours, contamination levels, and process requirements.
Yes. Effective coolant delivery helps stabilize cutting conditions, reduce friction, improve debris removal, and minimize surface damage.
In many precision cutting applications, correct nozzle positioning can have a greater impact than increasing coolant volume alone.
Yes. Abrasive contaminants can increase blade wear, reduce cutting efficiency, and contribute to inconsistent process performance.
If operations experience persistent blade loading, thermal damage, excessive consumable usage, or inconsistent cut quality despite process optimization, coolant system improvements may be warranted.
Need Help Optimizing Coolant Performance?
Selecting the correct coolant strategy depends on:
Material type
Blade specification
Feed rate
RPM
Machine configuration
Conclusion
Coolant is far more than a cooling medium.
It is a critical process-control variable that directly influences blade life, cut quality, thermal stability, debris evacuation, and overall process performance.
Many cutting problems commonly attributed to blade specifications are actually the result of inadequate coolant delivery, poor filtration, or ineffective thermal management.
By optimizing coolant flow, nozzle placement, filtration quality, and overall coolant system performance, manufacturers can significantly improve:
Blade life
Edge quality
Surface finish
Process consistency
Production efficiency
Operating costs
For precision cutting applications involving silicon, ceramics, sapphire, composites, carbides, and advanced materials, coolant optimization remains one of the most effective ways to improve overall process performance.
Trusted by Tens of Thousands of Manufacturers, Laboratories,
Research Institutions Worldwide Since 1990
American Based Manufacturer
Established in 1990
Custom manufacturing
RELATED ARTICLES
Brian is an experienced professional in the field of precision cutting tools, with over 27 years of experience in technical support. Over the years, he has helped engineers, manufacturers, researchers, and contractors find the right solutions for working with advanced and hard-to-cut materials. He’s passionate about bridging technical knowledge with real-world applications to improve efficiency and accuracy.
As an author, Brian Farberov writes extensively on diamond tool design, application engineering, return on investment strategies, and process optimization, combining technical depth with a strong understanding of customer needs and market dynamics.
