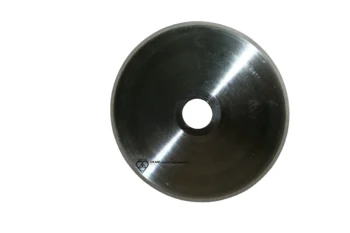

SMART CUT® Series 100N
NICKEL BOND, DIAMOND CONTINUOUS RIM
SMART CUT® Series 100N will provide finer cut quality than interrupted rim nickel bond wafering blades. Best suited for cutting soft and fragile crystals, silicon wafers & substrates, fiberglass, glass fibers. made with stainless steel core Standard arbor size inside diameter is ½” (12.7mm) (* we can modify arbor size of any blade to anything you want same day for a small additional fee, if needed) Nickel Bond Diamond Cut off blades Blades usually have a single layer of diamonds, held by a tough durable nickel alloy. diamond particles to protrude from the bond matrix, providing a free, faster cutting action with minimum heat generation.
Recommended for cutting softer and more gummy materials, where sintered (metal bond) diamond wafering blades load up or glaze over frequently. Unlike sintered (meal bond) cutting blades where diamond is impregnated inside metal binder matrix based on bronze, copper, nickel and other alloys. Nickle bond blades have diamond exposed right on surface of the blade. Hence they are able to provide more faster and freer cutting action than their sintered (metal bond) counterparts.
Nickel bond diamond wafering blades are particularly well suited for cutting thermosetting plastics, GRP, pre-sintered and pre-fired (green) materials, electro carbons, graphite, soft ferrites, farinaceous products, deep frozen fish, pones, pc boards, and etc.
Tab Content
Tab Content
INDUSTRIES USED IN:- Advanced Ceramics
- Composites
- Glass
- Geology
- Quartz
- Materials Research
- Medical Devices
- Metallography
- Photonics / Optics
- Semiconductor
FERROUS & NON-FERROUS METALS:- Plain Carbon Steels
- Electronic Packages
- stainless Steels Plastics
- Tool Steels Fasteners
- Aluminum Refractories
- Copper Base Alloys Integrated Circuits
- Magnesium Thermal Spray Coatings
- Titanium Metal Matrix Composites
- Biomedical Wafers
- Petrographic
Image | Name | COMPATIBILITY WITH DRILL SERIES | Price | Quantity | Add to cart |
|---|---|---|---|---|---|
 | Recommended for use in Diamond Tools 150 Grit Size (mesh… | $15.39 | |||
 | Recommended for coarser grits found in segment wheels, core drills… | $15.99 | |||
 | 5/8″-11″ thread. Fits into drill press chuck. Shank adapter threads… | $22.46 | |||
| 5/8″-11″ thread. Fits into drill press chuck. Shank adapter threads… | $26.72 | |||
 | SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $34.81 | |||
 | Recommended for use in Diamond Tools 150 Grit Size (mesh… | $39.47 | |||
 | Recommended for coarser grits found in segment wheels, core drills… | $39.47 | |||
 | SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $99.81 | |||
 | 105DE, 135DB, 115DM, 125DM, 130DMN, 140DM (up to 1-5/8″ OD) | $154.87 | |||
 | 105DE, 135DB, 115DM, 125DM, 130DMN, 140DM (up to 1-5/8″ OD) | $154.87 | |||
 | 105DE, 135DB, 115DM, 125DM, 130DMN, 140DM (up to 1-5/8″ OD) | $235.00 | |||
 | SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $317.41 | |||
 | SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $1,745.00 |
Diamond & CBN Wafering Blade Articles
How to Properly Use Precision Diamond & CBN Blades
Precision & Ultra Thin Diamond Blade Guide
Troubleshooting Diamond Sawing Problems
How to Improve & Optimize Your Diamond Sawing Operation
Evaluating & Comparing Diamond Blades
Selecting Right Wafering Blade for your application
Wafering Blade Usage Recommendations
Wafering Blade Case Studies
Diamond & CBN Wafering Blade Performance Metrics
Understanding & Comparing Diamond & CBN Wafering Blades
Diamond & CBN Wafering Blade Guide
Top 5 Diamond & CBN Cutting Blade Performance Metrics
Diamond & CBN Cutting Blade Performance Metrics that you Should Know
Total Cost of Ownership & Why its Important
Understanding & Calculating Return on Investment for Diamond & CBN Blades
Understanding Tradeoffs – Searching for Perfect Diamond Drill & Tool
Examples of cutting times for Sectioning of Specific Materials 0.25″ (6.4mm) diameter rod. Using various cutting speeds.
Material | Blade Type | Diamond Concentration | Speed (RPM’s) | Load (grams) | Estimated Cutting Time |
|---|---|---|---|---|---|
Hot Pressed Silicon Nitride Si3N4 | Series 20LCU | Low | 4,000 | 800 | 0:30 |
Boron Carbide B4C | Series 20LCU | Low | 3,500 | 700 | 0:15 |
Sapphire Al203 | Series 15LCU | Low | 1,500 | 300 | 0:40 |
Chromium Doped Sapphire Al203 | Series 15LCU | Low | 500 | 500 | 0:20 |
Partially stabilized Zirconia ZrO2 | Series 15LCu | Low | 2,500 | 500 | 0:38 |
Silicon Carbide, SiC | Series 15LCU | Low | 2,500 | 500 | 0:16 |
Case Hardened Steel | Series 15HCU | High | 2,500 | 500 | 0:16 |
Grey Cast Iron | Series 15HCU | High | 2,500 | 500 | 0:25 |
Titanium Alloy | Series 15HCU | High | 2,500 | 500 | 0:32 |
Zinc Alloy | Series 15HCU | High | 2,500 | 800 | 0:15 |
Tungsten Carbide 6% cobalt binder, wC | Series 15HCU | High | 4,500 | 900 | 0:15 |
Tungsten Carbide 25% cobalt binder, WC | Series 15HCU | High | 1,500 | 300 | 1:55 |
High Purity fused silica SiO2 | Series 15HCU | High | 2,500 | 500 | 0:40 |
Extruded Alumina, Al203 | Series 15HCU | High | 3,000 | 600 | 0:40 |
Aluminum Nitride AIN | Series 15HCU | High | 1,500 | 300 | 0:30 |
Nickel Zinc Ferrite | Series 15HCU | High | 1,500 | 300 | 0:30 |
Manganese Zinc Ferrite | Series 15HCU | High | Content | 5,000 | 0:30 |
Yttrium aluminum garnet, YAG | Series 15HCU | High | 3,000 | Content | 1:15 |
8 micron graphite fiber reinforced zirconium diboride/molybenum disilicide composite | Series 15HCU | Low | 2,500 | 300 | 0:20 |
White Cast Iron | Series Metacut CBN | High | 2,500 | 700 | |
Thermal Spray Coatings | Series 15HCU | High | 3,000 | 700 |
Advantages
- Freer cutting action
- Cut Faster
- More forgiving to operator errors
- Cut soft & gummy Materials
- May be used without coolant (for many applications
Materials Used On
- PCB boards
- Microelectronic packages
- Fiber reinforced composites
- Plastics
- Green Ceramics
- Mounted Samples
- Fiberglass
- Epoxy
- Silicon
- Bones
- Softer alloy metals
Image | Item No. | Diameter | Thickness | Diamond Size / Concentration | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|
| 4" (101.1mm) | .010" (0.15mm) | Fine / High | $125.00 | |||
| 5" (127mm) | .015" (0.4mm) | Fine / High | $135.00 | |||
| 5" (127mm) | .024" (0.6mm) | Medium / High | $135.00 | |||
| 6" (152mm) | .014" (0.35mm) | Fine / High | $140.00 | |||
| 6" (152mm) | .020" (0.5mm) | Fine / High | $145.00 | |||
| 6" (152mm) | .024" (0.6mm) | Medium / High | $150.00 |
How SMART CUT® Bond Works?
Sharpest And Finest Quality Diamonds

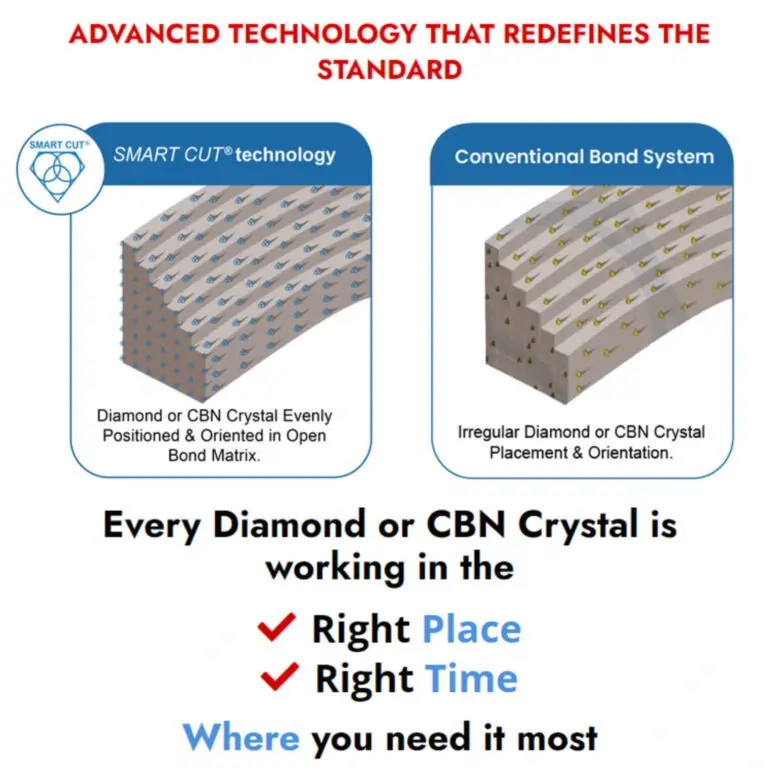

Diamonds or CBN Crystals are activated only at the exposed layer. As Bond Matrix layer begin to wear out, diamonds in a new Bond Matrix layer are immediately activated, substituting the already used up diamond layer. The SMART CUT® Bond Diamond Bond makes sure every diamond is in the right place. and at the right time, working where you need it most.
Diamonds or CBN Crystals
The newly exposed diamonds don’t effect diamonds already working on the material. Unlike many other diamond bonds, diamonds in a SMART CUT® remains sharp and grow sharper with each cut, prolonging product life and consistent performance.
Advanced Formulated Open Diamond Bond Design
This advanced formulated open diamond bond design insures minimal chipping, fast
cut, constant speed of cut, minimal cutting noise, and most important of all, consistent performance.
About Nickel Bond (Electroplated) Tools
Electroplated (nickel bond) diamond products usually have a single layer of diamonds, held by a tough durable nickel alloy. Nickel is frequently used as a base for plating diamond. Because of its excellent strength, toughness and flexibility during the plating process. Electroplated diamond products are able to retain their original shape and dimensions thought their working life. Unlike sintered (meal bond) or resin bond diamond products, where diamond particles are buried in bond and held together by metal or resin binder deep inside. Electroplating allows diamond particles to protrude from the bond matrix, providing a free, faster cutting action with minimum heat generation.
SMART CUT® Difference
How SMART CUT® Diamond & CBN Wafering Blades are Different in comparison to other Wafering blades.
Faster Cutting Action
Diamond & CBN Blades made utilizing SMART CUT® technology are much more aggressive than your conventional tools. They can cut faster, while still leaving behind a smooth finish free of material deformation.
Longer Life
In most cases tools manufactured utilizing SMART CUT® technology, will outlast other conventional Sintered (Metal Bond) diamond & CBN Blades . SMART CUT® diamond & CBN Blades are more sturdy than tools manufactured with conventional technologies. They are capable to retain their form and bond configuration all the way through the tools life.
More Consistent Performance
SMART CUT® Resin Bond, CBN Blades have hundreds of diamond layers impregnated inside the Resin Bond matrix. Unlike Many Other drill Types, they wear evenly, and are known for their consistency. You will get consistent cutting speed, and overall consistent performance, with minimum amount of dressing even on the hardest to cut materials
Manufactured Using The Highest Quality Raw Materials
Only the highest quality synthetic diamonds and raw materials are used in the manufacturing process. The highest quality standards and product consistency is maintained, using sophisticated inspection and measurement equipment.
Best Performance & Value on the Market
SMART CUT® Nickel Bond Diamond Wafering Blades are the best investment you can make! While the initial investment in Nickel Bond Diamond Wafering Blades may be higher, their long lifespan and efficiency often result in a lower cost per cut. This can provide to significant saving in time and money. Providing Best Cost of Ownership & Return on Investment.
Diamond Wafering Blade
Selection Variables
Diamond Concentration
Diamond Concentration – Diamond Concentration is still a factor in determining the life and cutting speed of your Diamond Sectioning/Wafering Blade. Higher diamond concentration is recommended and usually used for cutting softer and more abrasive types of materials. However, the trade off is significantly slower cutting speed. Low diamond concentration is recommended and widely used for cutting ultra hard and brittle materials.
Low Diamond Concentration - typically low concentration wafering blades should be for cutting ultra hard and brittle materials such as ceramics and glass. In Low Concentration Wafering Blades, diamond works by fracture process. Pressure on each diamond crystal/particle is higher which provides enough stress to chip off small flakes in the cut.
High Diamond Concentration - High concentration diamond wafering blades are recommended for cutting metals, plastics and polymers. In this application, materials cut by a plowing mechanism. In this applications diamond plough through the material, work hardened strips of materials become brittle and break off. The greater number of diamond by volume, the quicker the cutting action will be. Increasing the number of diamond s also lowers the per unit force. For metals where it is possible to induce deep deformation layers, a lower per unit force is desirable to reduce the deformation during the cut.
Blade Thickness
Wafering blade thickness typically ranges from .006” to .040” (1mm). Thinner and thicker wafering blade are available, frequently from stock upon request. Kef thickness typically increases with blade diameter (in proportion to diameter of the blade). Kerf is the amount of material removed from the material/sample due to the thickness of blade passing though the material/sample. Blade thickness is important for users requiring most minimal amount of material loss during sectioning
For example if the user requires precision position of the cutting plane relative to the detail on the sample (IC circuit for example), a thinner and smaller diameter blade would be best for this application. Blades ranging from 3” to 5” (75mm to 125mm) in diameter and thickness .006” to .015” (0.2mm to 0.4mm) would be bet suited for this purpose. There are large variety of factors that will contribute to optimal blade thickness for your material/application Including your desired cutting speed, load/feed rate, material diameter, thickness, hardness, density, and shape. As well as skill & experience of the operator. Thicker wafering blades are more stiff and can whistand higher loads/feed rates. Another advantage of thicker kerf blades is they are more forgiving to operator error and abuse. Thicker kerf blade are recommended for use in environment where large number of individuals will be sharing and using same equipment. Perfect for less experienced and novice saw operators, such as in University laboratory. .
Diamond Particle/Grit size
Diamond Mesh Size plays a major role in determining your cutting speed, cut quality/surface finish, level of chipping you will obtain, and material microstructure damage you will obtain. Diamond Mesh size does have considerable effect on cutting speed. Coarse Diamonds are larger than finer diamonds and will cut faster. However, the tradeoff is increase in material micro damage. If you are cutting fragile, more delicate materials then finer mesh size diamond wafering blades are recommended.
Bond Type
Metal bonding offers long life and durability, while resin bonding creates less heat, provides better surface finish and is well suited for cutting hard, delicate or brittle materials.
Blade Outside Diameter
typically wafering blade diameters range form 3” (75mm) to 8” (200mm). Wafering blade diameter should be selected based on material diameter and thickness being cut. Smaller diameter wafering blades are thinner than the larger diameter blades and are more prone to bending and warping. Although large diameter blades are thicker, they are typically used for cutting larger and heavier samples at higher loads and speeds than smaller blades
Feed Rates
load/feed rate applied to wafering blades typically vary from 10-1000 grams. Generally, harder specimens are cut at higher loads and speeds (e.g. ceramics and minerals) and more brittle specimens are cut at lower loads and speeds (e.g. electronic silicon substrates). The Speeds/RPM’s you are using, shape/geometry of the specimen, and how the specimen is being clamped/hold in place will affect the load that can be used for your application.
Bond Hardness
Ability of the bond matrix to hold diamonds. As the hardness of the bond is increased, its diamond retention capabilities increase as well. However the trade off is slower cutting speed. Life of the diamond blade is usually increased with hardness of its bond matrix. Bonds are designated on their scale of hardness from Soft, Medium, and Hard. There are dozens of variations and classification schemes based on bond degree of hardness or softness.
Using diamond blades with optimum bond hardness for your application is important to successful precision diamond sawing operation. Bond matrix that is too soft for the material being cut will release diamond particles faster than needed, resulting in faster wear and shorter diamond blade life. On other hand bond matrix that is too hard will result in much slower cutting speeds and require constant dressing to expose the next diamond layer. As rule of thumb, harder materials such as sapphire and alumina generally require a softer bond. Whereas softer and more brittle materials require a harder bond.
Blade Speeds/RPM’s
Most wafering blades are used between 50 to 6,000 RPM’s Typically harder and more denser materials such as Silicon Carbide, are cut at higher RPM’s/speeds Where more brittle materials such as silicon wafers and gallium arsenide are cutting at lower RPM’s. Low Speed saws RPM’s are typically limited from 0 to 600 RPM’s. Where high speed saws offer much large variety of cutting speeds from 0 to 6,000 RPM’s.
Why Choose Us?
- Unmatched Selection For Many Applications
- Unmatched Technical Support & Expertise
- Superior Quality & Consistency
- Super Technology & innovation
- Immediate Worldwide Delivery
- American Based Manufacturer
- Custom
Manufacturing - Better Value manufacturer Direct Price
Why Work With Us?
We produce diamond consumables for some of the leading world OEM manufacturers. We offer Manufacturers Direct Prices We have the largest variety of diamond & cbn wafering blades available in stock. As well as large inventory of diamond & abrasive consumables. We also custom manufacture diamond and cbn tools, consumables and machines to better fit customer specific needs. Just about any tools & consumables can be designed and manufactured per client drawing or specificrtion WE ARE A PARTNER IN YOUR SUCCESS Our proprietory diamond chemistory , precision , manufacturing metods , quality control methods allow us to control and regulate the dozens of variables to that affect consumable life , quality , and consistency. The more you understand about what we can do for you the better our partnership will be. Here you will find most comprehensive source of information and optimizing and improving your cutting , drilling , grinding and polishing on the web. find everything you ever wanted to know about diamond tools. AMERICAN MANUFACTURER "ONE OF THE MOST EXPERIENCED COMPANIES IN THE INDUSTRY" Save Money Save up to 650%
COMPARE TO: BUEHLER , STRUERS , LECO & MANY OTHERS Large Inventory & Custom Manufacturing
Umatched Technical Support
Developing close ties with our customers is the foundation of our business. At the core of
our company is a team of world class engineers, knowledgeable customer service personnel here to serve you. Whether is designing or manufacturing a special solution. We will go out of our way to optimizing your process to ultimate level of efficiency Superior Quality & Consistency
EXPECT MORE FROM YOUR TOOLS Comprehensive Source Of Information For Sample Preparation
Advanced Technology
As one of the few remaining independent U.S.Diamond Tool & machine builders. We have the experience & tradition to help you remain at frontier of technology Our experience has been further enhanced by acquiring assets and processes from some of the oldest American tool
manufacturers, along with their decades of experience and R& D. This has positioned us as one of the most experienced companies in the industry .Depend on us to bring you technology of tomorrow today. Experience Makes All The Differences
Over the years we have worked with some of the leading Fortune 500 companies , thousands of universities , government and private research labs , and small organisations. We have made thousands of custom tools , built custom machines , work-holding fixtures , etc for hundreds of applications. Many of our staff members have been working in their respective fields for over 50 years and have gained a wealth of knowledge over the yearsLet Us Help You
Related Products
SMART CUT® Ultra Thin Abrasive Cut off Blades
-
SMART CUT® Series 3000R Resin Bond, Diamond Cut Off Blade
-
Resin Bond Diamond Cut off blades (Fine Size Diamond) for use on manual tile saws
SMART CUT® Series 3000R are the highest quality & most commonly used Resin Bond Diamond Cut off Blades / Cut Off Wheels available today. Finer Diamond Grit Size, and Slightly Higher Diamond Content then the SMART CUT Series 2000R blades. They are used for cutting very thin wall tubing, more fragile material, that need best surface finish possible to achieve. Cutting speed would be slower then the 2000R series. These blades cut more slowly due to their finer grit size, which provides less aggressive material removal. They are better suited for precision tasks where cut quality is prioritized over speed. The finer grit results in a much smoother surface finish with minimal chipping, making them ideal when a high-quality, clean cut is needed, especially for delicate materials The resin bond diamond cut off blades / cut off wheels excel in delivering superior cut quality compared to other diamond cutting blade, making them ideal for applications where cut quality and surface finish is highly important. They are designed to operate at higher speeds to minimize heat generation and improve surface finishes.
SMART CUT® Series 400 Wafering Blade, Resin Bond
-
Resin Bond Diamond Wafering Blades for use on Precision & Laboratory type Cut off Saws
SMART CUT® Series 400 are Designed for Precision, Chip Free cutting of wide variety of materials These are very thin kerf blades and are very delicate. Must be used on high precision specialized laboratory cutting saws (not tile saws, trim saws, etc) The diamond section can be easily broken if the material moves while cutting, blade is dropped, material is feed to fast into the blade, material is not fed consistently straight into the blade (shifts position) etc. Diamond Size is Medium providing faster cutting speed, while still providing surface quality unmatched by 95% of other blades.
SMART CUT 105N Diamond, Nickel Bond Wafering Blades INTERRUPTED RIM
-
SMART CUT® Series 100N Wafering Blade, Nickel Bond
-
NICKEL BOND, DIAMOND CONTINUOUS RIM
