Drilling

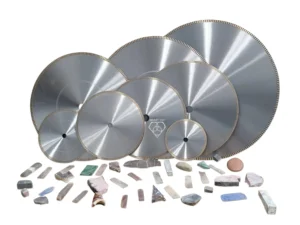

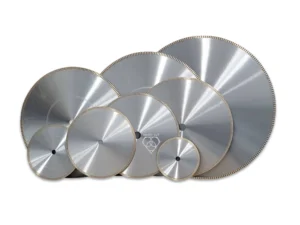

SMART CUT® SERIES 301M
SMART CUT® SERIES 301M lapidary blades have undergone significant enhancements to elevate their performance and durability. Engineered with an increased diamond concentration and a reinforced steel core enriched with higher carbon content, these blades exhibit improved tension memory. This structural enhancement ensures that the blades maintain their integrity and alignment during rigorous cutting operations, thereby extending their lifespan and reliability.
The incorporation of a solid diamond sintered kerf in the design not only enhances the cutting capability but also optimizes coolant flow across the blade. This feature is pivotal in maintaining the blade’s temperature, reducing wear, and facilitating smoother cuts. The enhanced design ensures superior performance, particularly when cutting challenging materials such as agate, petrified wood, or jade, where precision and smoothness are critical.
SMART CUT® 030DSM
METAL BOND (SINTERED) DIAMOND SOLID DRILLS
SMART CUT 030DSM, Metal Bond (Sintered) Diamond Solid Drills have hundreds of layers of diamond impregnated inside the metal matrix. Will last significantly longer than electroplated diamond solid drills. Recommended for drilling Ultra Hard Materials (harder than 8 on mohes scale or 60 on Rockwell Scale. Available in stock from 0.8mm to 6mm diameter. Sintered (Metal Bond) diamond solid miniature/thin drills – have hundreds of layers of diamond impregnated inside metal matrix. These miniature drills will last significantly longer than electroplated diamond solid drills. Recommended for drilling Ultra Hard Materials (harder than 8 on mohes scale or 60 on Rockwell Scale and clients that need very long life span. Varying with application and material, an average electroplated diamond sold drill drill will last you 10 to 15 holes. Metal Bond (Sintered) Diamond Solid Drill may last as much as 120+ holes (when used properly).
CVD Micro Drills
Micro Drills
SMART CUT® CVD diamond micro drills are used for drilling micro holes in large variety of hard and brittle materials such as sapphire, high density ceramics, micro-circuit substrates, glass, silicon, various wafers, substrates, tubes etc We offer large variety of standard stock & custom micro drills from 0.05mm diameter to 6mm. with 3mm and 3.2mm shanks, and various heald lengths from 0.5mm and up, and flute specifications.
PCD (Polycrystalline) Micro Drills
Diamond Micro Drills
SMART CUT® PCD (Polycrystalline Diamond) Micro Drills are precision-engineered tools designed for applications that demand exceptional hardness, wear resistance, and dimensional accuracy. They are available starting from 0.4 mm in diameter, with a wide selection of head lengths and standard shank diameters of 3 mm and 3.2 mm. Each drill features a sintered polycrystalline diamond tip bonded to a carbide or tungsten substrate, providing superior rigidity, heat resistance, and extended tool life. These micro drills are widely used in the semiconductor, electronics, EDM electrode manufacturing, and die and mold industries. In semiconductor production, they are used for machining monocrystalline silicon, inspection and cleaning jigs, and precision fixture fabrication. In EDM electrode manufacturing, they are ideal for drilling graphite electrodes and other hard-to-machine materials that quickly wear down conventional tools.

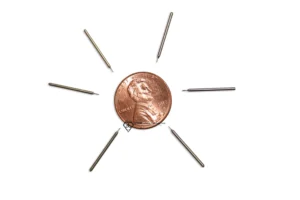

SMART CUT® 005DME MCDU
SMART CUT® 005DME Diamond Micro Drills represent a major advancement in precision micro-machining technology, specifically engineered to meet the challenges of drilling hard, brittle, and high-tech materials used across industries such as semiconductor, optics, advanced ceramics, aerospace, and medical device manufacturing.
These drills are widely used in electronics and semiconductor manufacturing for creating microscopic precision holes in wafers, essential for thermal management, electrical connectivity, and overall chip reliability. In optical engineering, they enable accurate hole placement in the assembly of lenses, mirrors, and optical components. In the medical field, they deliver consistent hole geometry and size control, which is vital for implant safety and precision assembly.
They are equally valuable in the aerospace and automotive industries, where components demand extremely tight tolerances and involve materials that are difficult to machine. The accuracy, stability, and repeatability of the SMART CUT® 005DME drills ensure defect-free holes in these critical applications, preventing system failures due to dimensional deviations.
SMART CUT® 010DME (SMCDU)
SMART CUT® 010DME Diamond Micro Drills represent a major advancement in precision micro-machining technology, specifically engineered to meet the challenges of drilling hard, brittle, and high-tech materials used across industries such as semiconductor, optics, advanced ceramics, aerospace, and medical device manufacturing.
These drills are widely used in electronics and semiconductor manufacturing for creating microscopic precision holes in wafers, essential for thermal management, electrical connectivity, and overall chip reliability. In optical engineering, they enable accurate hole placement in the assembly of lenses, mirrors, and optical components. In the medical field, they deliver consistent hole geometry and size control, which is vital for implant safety and precision assembly.
They are equally valuable in the aerospace and automotive industries, where components demand extremely tight tolerances and involve materials that are difficult to machine. The accuracy, stability, and repeatability of the SMART CUT® 010DME drills ensure defect-free holes in these critical applications, preventing system failures due to dimensional deviations.
SMART CUT® 015DSE
SMART CUT Series 015DSE Multi Layered Electroplated solid drills are flat cylinder shape with transition angle. These miniature diamond drills have high diamond concentration and give a smother, faster drilling action with minimum heat generation. The multiple layers of diamond coating which provides best diamond adhesion in the bond matrix. This provides longer life span, compared to standard and comparable electroplated miniature drills. Higher level of consistency and better surface finish. Most popular type of diamond drills for drilling small holes for jewelry (stone, glass, & many other materials). Multiple layers of diamond provide longer drilling life, faster & freer drilling. Available from stock from 0.75mm to 2.5mm
SMART CUT® 020DHE
MINATURE ELECTROPLATED DIAMOND HOLLO CORE DRILLS
SMART CUT® 020DHE Electroplated miniature hollow core drills are precision-engineered tools designed for drilling small, holes in a wide range of materials. These drills consist of a steel tube with a diamond coating applied to the tip, ensuring superior cutting ability even in the hardest and most brittle materials. Available from stock in diameters ranging from 1 mm to 3.5 mm OD. SMART CUT® 020DHE hollow core plays an important role in enhancing stability, particularly in deep drilling applications. This feature allows for precise control, ensuring the drill remains aligned throughout the process. It also minimizes deflection and bending, common issues when using solid drills for small-diameter, deep holes. As a result, users can achieve more accurate and clean-cut drilling with reduced risks of damage to both the tool and the material.
SMART CUT® 025DTE
MINATURE TWISTED ELECTROPLATED DIAMOND SOLID DRILLS
SMART CUT® 025DTE Miniature Twisted Electroplated Diamond Solid Drills are high-performance precision tools designed for micro-drilling and reaming applications in a wide variety of materials. These drills are especially well-suited for drilling pearls, where material sensitivity and surface integrity are critical. Their twisted flute design promotes faster material removal and improved chip evacuation, enabling significantly higher drilling speeds compared to standard diamond drills. This advanced geometry also contributes to smoother hole finishes and reduced risk of cracking or chipping, making them ideal for delicate materials such as natural and cultured pearls, beads, ceramics, glass, composites, shells, and even certain metals and hardened materials in niche applications. The electroplated diamond layer is applied directly onto a solid steel shank, exposing sharp diamond particles that enhance cutting efficiency and tool longevity.
