SMART CUT® 2005 GEO

SMART CUT® 2005 GEO works as a platform for both cutting and grinding of samples with water cooling system.

Two different areas for Cutting and Grinding in the same machine give additional advantage of using a compact system for both processes instead of going for two different machines. Base and Cover corrosion proof Stainless-Steel construction.

Measurable manual X Movement system (Cross Movement for Cutting area) Built in Micrometer with Digital Readout system comes with the basic machine to measure the Grinding thickness of the sample.

SMART CUT® Thin GEO is a Table Top Cutting cum Grinding Machine. Used in areas of application where advanced Thin Section Preparatory method is required

Thin section preparation requires highly advanced preparatory equipment. Thin Geo works as a platform for both Cutting and Grinding of samples up to 30 microns or less.

Get A Quote

Trusted by Tens of Thousands of Manufacturers, Laboratories,
Research Institutions Worldwide Since 1990

U.S. Based Manufacturer & Engineering

Established in
1990

Expert technical support

Custom manufacturing

Lower Cost of Ownership

Lower Consumable Cost

Features:

  • Dual Functionality: Combines both cutting and grinding capabilities in a single machine, allowing users to perform both tasks without the need for separate machines.
  • Corrosion-Proof Construction: Built with a stainless-steel base and cover for durability and resistance to corrosion.
  • Precise Cutting and Grinding: Accommodates diamond cutting wheels from 6″ to 10″ and cup grinding wheels from 6″ to 8″, offering flexibility for various applications.
  • Manual X Movement System: Features a measurable manual X movement system (longitudinal) for precise cutting, with a built-in micrometer and digital readout to measure grinding thickness accurately.
  • Thin Section Preparation: Ideal for preparing thin sections of materials, with the ability to grind to thicknesses as fine as 30 microns or less.
  • Vacuum Chuck with Pump: Includes a vacuum chuck and pump to securely hold glass slides of various sizes for cutting and grinding.
  • Grinding Thickness Control: The built-in micrometer ensures precise thickness control of the sample, essential for uniform thickness across glass slides.
  • Versatile Wheel Sizes: Accepts 8″ to 10″ diamond cutoff wheels for cutting and 6″ to 8″ cup grinding wheels for grinding tasks.
  • Variable Speed: The motor runs at variable speeds from 100 to 3,000 RPM, allowing customization of the cutting and grinding speed based on material and application.
  • Cutting Capacity: Capable of cutting materials up to 60 mm in diameter.
  • 1 HP Motor: The machine is powered by a 1 HP (0.75 kW) 3-phase motor, providing sufficient power for efficient cutting and grinding.
  • Compact Design: The machine's compact size (24" x 16" x 24") makes it suitable for table-top use in laboratories or small workspaces.
  • Cooling System: Comes with a choice of SMART CUT™ Water Soluble Coolant or Mineral Oil to reduce thermal stress, improve cut quality, and extend blade & cup wheel life.
  • Precision Grinding: Achieves precise grinding thicknesses with the micrometer's digital readout system, ensuring high-quality, thin samples.
  • Easy Maintenance: Designed for easy maintenance with an external recirculating tank for water cooling, making it simple to keep the machine in optimal condition.
  • Custom Blade & Cup Wheel Options: Free diamond wafering blade & cup wheel included with purchase, with a wide selection of available specifications for various applications.

Cutting

Grinding

Control Panel

Measurable Manual X Movement System

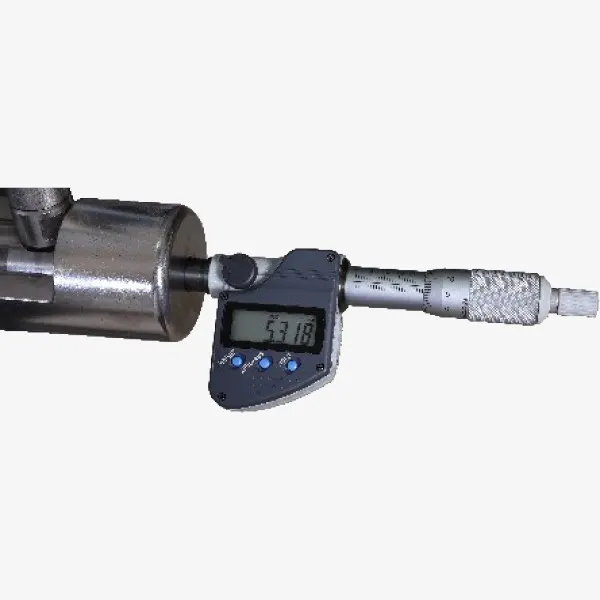

Built in Micrometer

Grinding

SMART CUT® Coolants

Your choice of one (1) quart of SMART CUT® Water Soluble Coolant or Mineral Oil is included with machine. SMART CUT® Water Soluble Coolant Reduces material thermal stress, edge damage, and internal cracking, increases blade life, provides better cut quality, preserves material micro structure

Hence, assuring long-term integrity of material being sectioned. Since SMART CUT coolant is both a coolant and lubricant, both the wafering blade and material benefit. Mix ratio is 1:20 (1 part coolant, 20 parts water) on very hard and dense materials and 1:40 (1 part coolant, 40 parts water) on softer materials. Depending on mix ratio 1 quart will produce 5.7 to 9 gallons of coolant when mixed with water. As a coolant, SMART CUT KOOL reduces heat caused by friction. As a lubricant, SMART CUT KOOL lowers friction and surface tension, which increases swarf dispersion.
