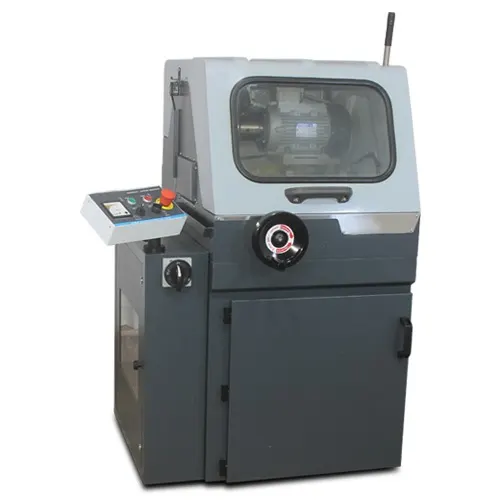

SMART CUT® 1050

SMART CUT® 1050 Cutting action: Automatic “Y” movement (Table) with servo system. PLC with graphical Touch screen display, Pre set Programming & data storage upto 25 programs.

Get A Quote

Trusted by Tens of Thousands of Manufacturers, Laboratories,
Research Institutions Worldwide Since 1990

U.S. Based Manufacturer & Engineering

Established in
1990

Expert technical support

Custom manufacturing

Lower Cost of Ownership

Lower Consumable Cost

Key Features

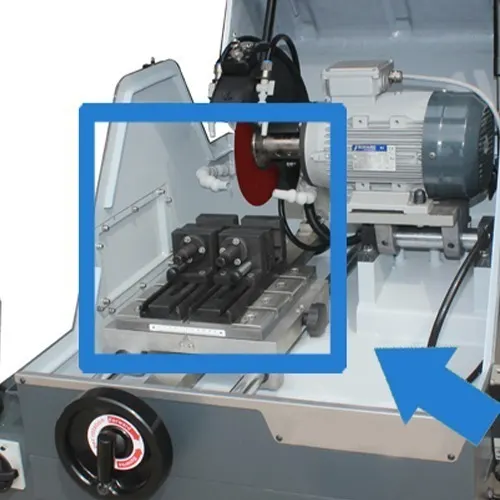

Three axis movement ( X,Y and Z)

X and Y table movement , Z Cutoff wheel Vertical movement

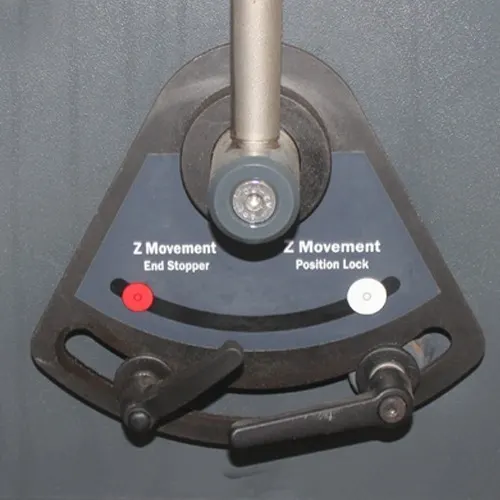

"Z" Movement Stopper

We can limit the Z movement (handle )

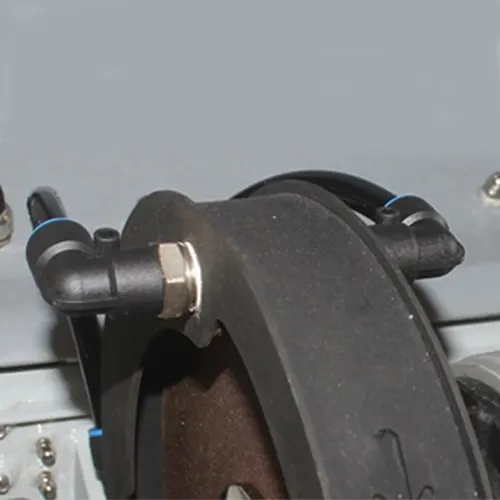

Cut off wheel coolant system

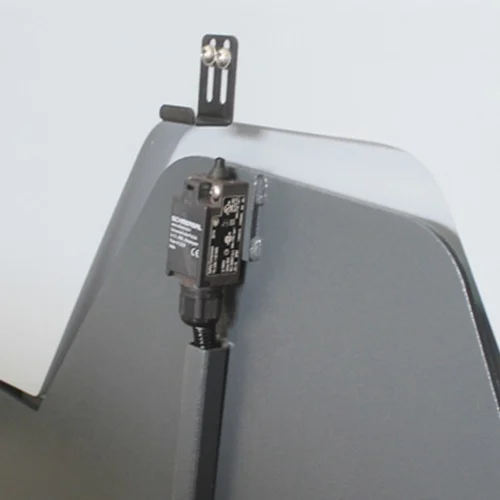

Door limit switch

Door will be locked, while cutting operation takes place

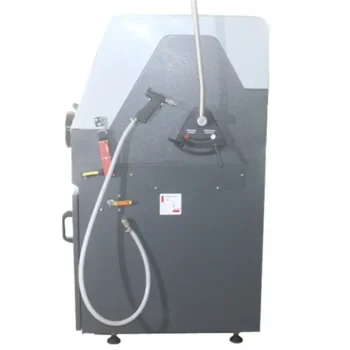

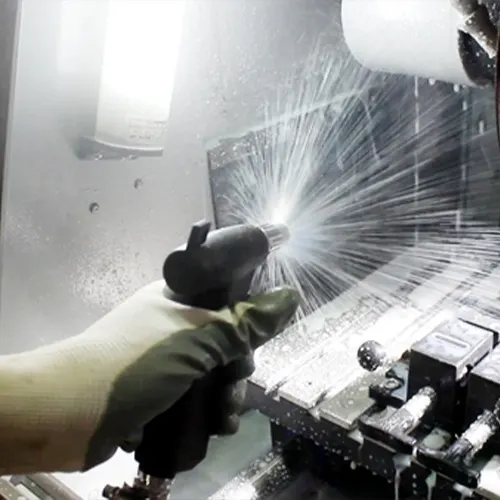

Washing jet

To clean the Entire cutting area after cutting operation

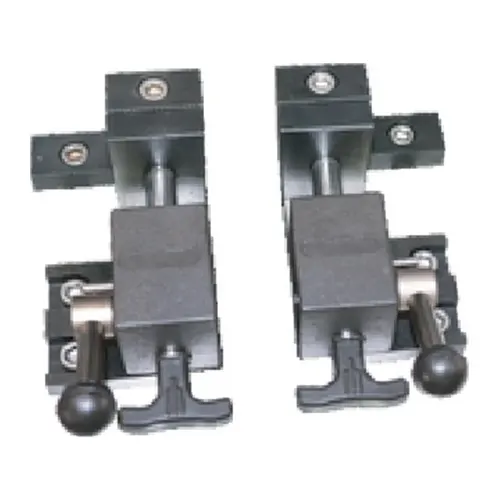

Quick Clamping Devices

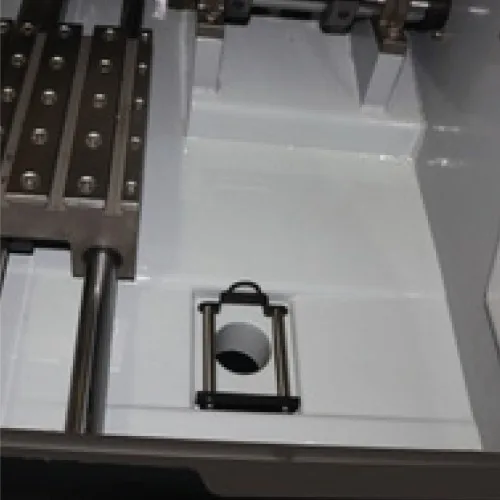

Epoxy Coated Chamber

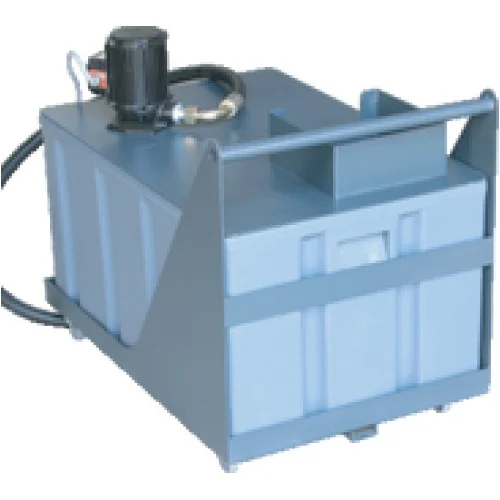

Circulating Tank

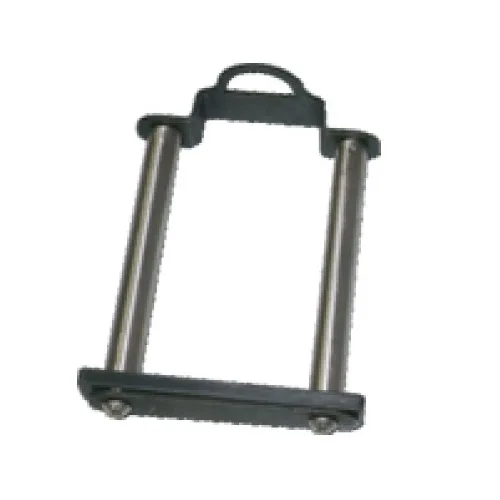

Coolant Magnetic Holder Stick

SMART CUT® Coolants

Your choice of one (1) quart of SMART CUT® Water Soluble Coolant or Mineral Oil is included with machine. SMART CUT® Water Soluble Coolant Reduces material thermal stress, edge damage, and internal cracking, increases blade life, provides better cut quality, preserves material micro structure

Hence, assuring long-term integrity of material being sectioned. Since SMART CUT coolant is both a coolant and lubricant, both the wafering blade and material benefit. Mix ratio is 1:20 (1 part coolant, 20 parts water) on very hard and dense materials and 1:40 (1 part coolant, 40 parts water) on softer materials. Depending on mix ratio 1 quart will produce 5.7 to 9 gallons of coolant when mixed with water. As a coolant, SMART CUT KOOL reduces heat caused by friction. As a lubricant, SMART CUT® KOOL lowers friction and surface tension, which increases swarf dispersion.

Find out More
image-019
Diamond & CBN
IMG_2444-copy2-1-scaled-1
DSC_1572
DSC_1632-1

LARGEST SELECTING OF DIAMOND & CBN WAFERING BLADES AVAIALBLE

one (1) diamond wafering blade any specification is included FREE OF CHARGE with purchase of any machine (any specification). we have almost unlimited number of diamond & CBN wafering blade specifications in stock available for immediate delivery. Available in different sizes, thickness, arbor sizes, diamond concentrations, diamond mesh sizes, and bond hardness’s. With several thousand unique blade specification in stock not listed on our standard stock program. This insures you will receive the best blade specification possible for your specific application.

Read our guide For your Perfect Blade

THE RIGHT DRESSING STICK FOR YOUR APPLICATION

One (1) dressing stick is included with the purchase of any machine free of charge. The dressing stick we supply is similar to the diamond size of the wafering blade you have chosen (or we recommended) for your application. Wafering Blades must be diamonds particles/crystals exposed properly through frequent dressing. Otherwise, the diamond tool will glaze over. They will begin to tear rather than grind which is very destructive. Tearing caused from unexposed diamonds creates friction. This causes uneven wear and/or heat cracks in the wafering blade and/or material being cut. Resulting in premature blade wear, blade tensioning problems, and will eventually destroy the blade. The more frequently the blade is dressed the freer and cooler it will cut with lot more consistency.

Read more about dressing sticks
