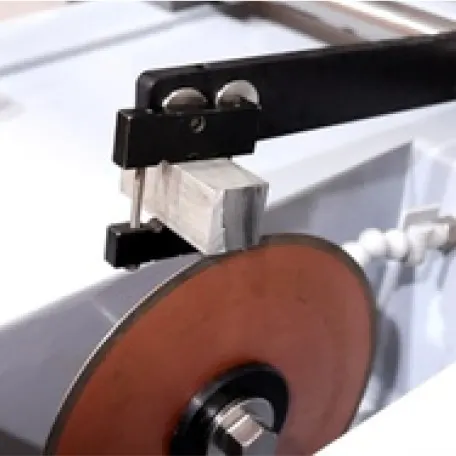

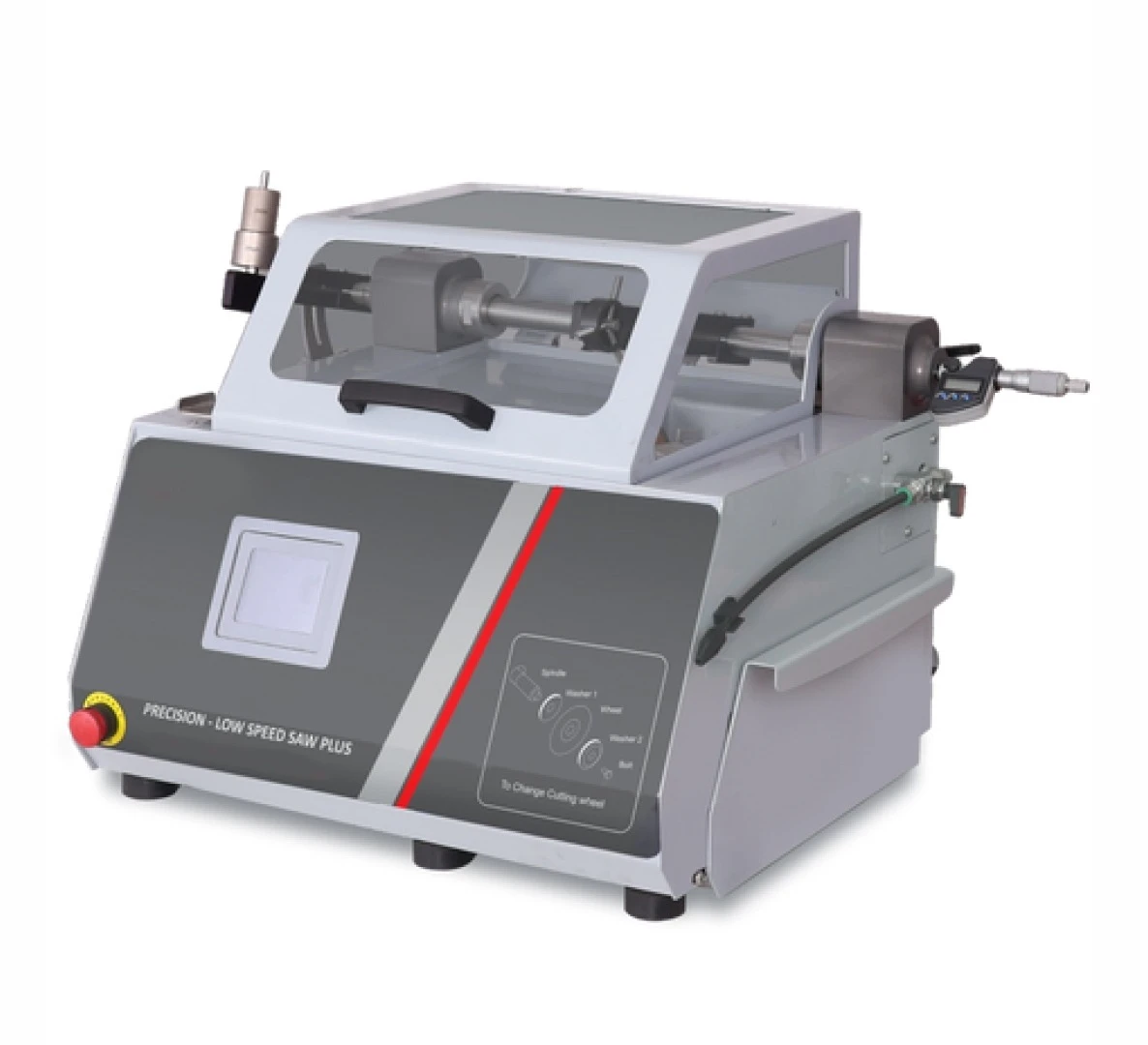

SMART CUT® 6050 A precision section saw designed for cutting all types of materials with ease. Low-Speed Precision cutter is applicable to accurate cutting of hard materials, especially to high-value fragile artificial crystal. The Spindle has high accuracy of operation, the horizontal feed position of the processed work piece can slightly be adjusted, and the machine can be power-off automatically after cutting is finished.
SMART CUT® 6050 precision section saw represents a state-of-the-art solution for cutting a broad spectrum of materials, tailored especially for applications requiring high precision and careful handling of hard, high-value materials such as fragile artificial crystals. This machine is not only adept at maintaining operational accuracy but also emphasizes user safety and operational convenience.

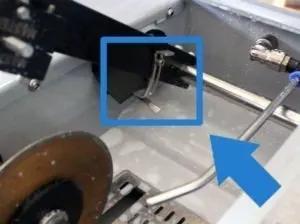

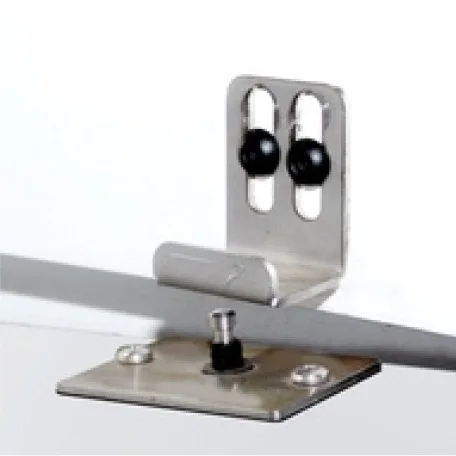

SMART CUT® 6050 saw features a robust construction with an aluminum base and stainless steel door, ensuring durability and reliability in various industrial environments. It is equipped with a precision spindle that offers exceptional accuracy, enabling slight adjustments in the horizontal feed position of the workpiece for optimal cutting precision. The machine’s design includes an automatic power-off function that activates once cutting is complete, which adds an extra layer of safety while also conserving energy.

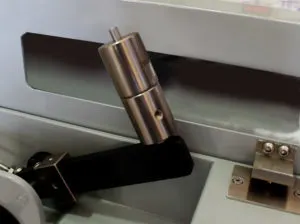

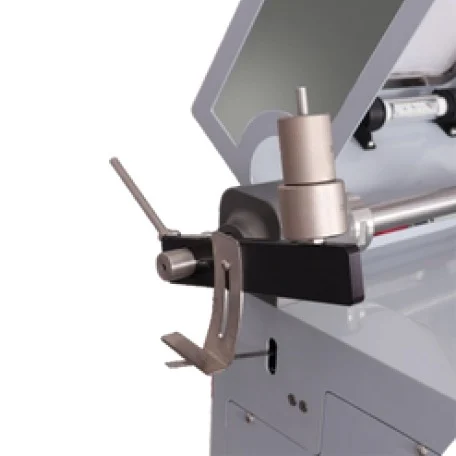

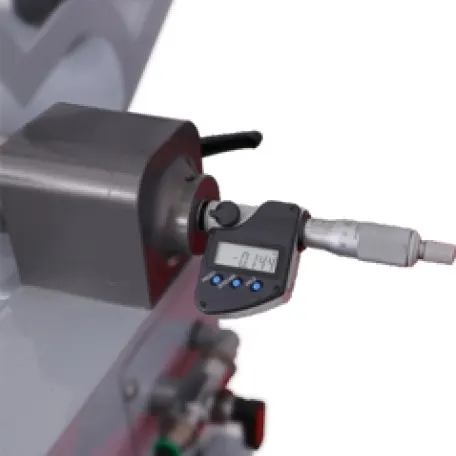

Key operational features include a micrometer for precise cross-feed adjustments up to 25mm and a down-feed facility capable of accommodating different weights up to 400 grams, allowing for versatile handling of various materials and sizes. SMART CUT® 6050 operates over a speed range of 60 to 1000 RPM, adjustable to suit specific material requirements and cutting conditions.

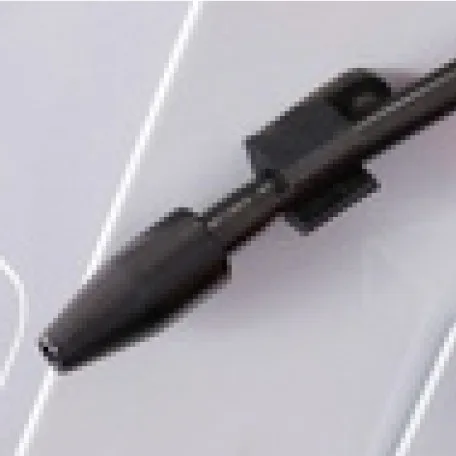

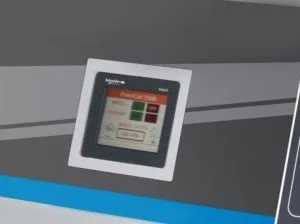

For fluid management, the saw integrates a recirculating tank and a built-in, easily movable stainless steel coolant tray, complemented by a transparent coolant splash guard that enhances visibility and safety. The control interface of the machine is a color touch screen HMI, which simplifies the operation and increases the interactivity for the operator.
With its compact dimensions of 30″ x 19″ x 18″ and weighing 121 lbs, the SMART CUT® 6050 is designed for efficient use of workspace while providing the capabilities needed for precise, safe, and efficient cutting operations. SMART CUT® 6050 is an invaluable asset in settings that demand precision and reliability in the cutting of delicate and valuable materials.
Tab Content
INDUSTRIES USED IN:
Ferrous & Non-Ferrous Metals:
Tab Content
Tab Content
Tab Content
Your choice of one (1) quart of SMART CUT® Water Soluble Coolant or Mineral Oil is included with machine. SMART CUT® Water Soluble Coolant Reduces material thermal stress, edge damage, and internal cracking, increases blade life, provides better cut quality, preserves material micro structure
Hence, assuring long-term integrity of material being sectioned. Since SMART CUT coolant is both a coolant and lubricant, both the wafering blade and material benefit. Mix ratio is 1:20 (1 part coolant, 20 parts water) on very hard and dense materials and 1:40 (1 part coolant, 40 parts water) on softer materials. Depending on mix ratio 1 quart will produce 5.7 to 9 gallons of coolant when mixed with water. As a coolant, SMART CUT KOOL reduces heat caused by friction. As a lubricant, SMART CUT KOOL lowers friction and surface tension, which increases swarf dispersion.
one (1) diamond wafering blade any specification is included FREE OF CHARGE with purchase of any machine (any specification). we have almost unlimited number of diamond & CBN wafering blade specifications in stock available for immediate delivery. Available in different sizes, thickness, arbor sizes, diamond concentrations, diamond mesh sizes, and bond hardness’s. With several thousand unique blade specification in stock not listed on our standard stock program. This insures you will receive the best blade specification possible for your specific application.
One (1) dressing stick is included with the purchase of any machine free of charge. The dressing stick we supply is similar to the diamond size of the wafering blade you have chosen (or we recommended) for your application. Wafering Blades must be diamonds particles/crystals exposed properly through frequent dressing. Otherwise, the diamond tool will glaze over. They will begin to tear rather than grind which is very destructive. Tearing caused from unexposed diamonds creates friction. This causes uneven wear and/or heat cracks in the wafering blade and/or material being cut. Resulting in premature blade wear, blade tensioning problems, and will eventually destroy the blade. The more frequently the blade is dressed the freer and cooler it will cut with lot more consistency.
Proper testing procedures and methodologies must be set up and used to obtain accurate as well as repeatable testing results. This article will discuss several simple procedures which have been used under actual field conditions, verifying their feasibility for testing diamond cut off wheels.
Diamond & CBN Wafering Blade Case Studies This study evaluates the cutting performance of SMART CUT® Diamond & CBN Wafering Blades compared to Conventional Wafering Blades under identical test conditions. The objective was to measure differences in cutting speed, surface finish, dimensional accuracy, and blade durability when processing a range of materials commonly used in metallography, materials research, and precision sectioning.
Diamond wafering blades are designed for sectioning a large variety of materials and sample types. In order to identify the best diamond wafering blade for your specific material/application, we have implemented a grading system that spans diamond mesh/particle sizes from 5 (the finest) to 30 (the coarsest). This scale helps users select the appropriate blade for their specific sectioning requirements. A blade designated as number 10, for instance, will feature larger diamond particles than one rated at No. 5; however, the increase in particle size is not directly proportional, meaning they are not simply twice as large. Furthermore, we have provided cross-references to Buehler, Struers, and Leco part numbers, allowing you to easily find the equivalent diamond or CBN wafering blade for your needs.
All you need to know about wafering blades (understanding variables & specifications) This guide is designed to help you navigate the various variables and possibilities associated with diamond wafering blades, crucial for precision sectioning and sample preparation. By gaining a deeper understanding of these variables and principles, you will be better equipped to identify which factors are most relevant to your specific metallography or sample preparation needs. This knowledge will enable you to make informed decisions about blade selection, ensuring optimal results and efficiency in your cutting operations.
Introduction In the realm of precision cutting, the SMART CUT® 6005 Low Speed Diamond Saw stands out for its capability to handle a variety of materials with high accuracy. To better understand its performance and optimize its usage, a detailed study was conducted using sapphire material. This study aims to provide valuable insights into the operational parameters of the saw, such as wheel diameter, load, wheel speed, and arm position, and their effects on cutting time. The findings will be incorporated into user manuals to enhance consumer knowledge and usage efficiency.
When evaluating diamond and cubic boron nitride (CBN) cutting blades, it’s crucial to consider key performance metrics and criteria. Different applications have varying goals, making it important to understand these factors to determine a blade’s effectiveness and impact on result quality. There are many metrics that are important in optimizing your cutting operation to ultimate level of efficiency.
When evaluating diamond and cubic boron nitride (CBN) cutting blades, it’s crucial to consider key performance metrics and criteria. Different applications have varying goals, making it important to understand these factors to determine a blade’s effectiveness and impact on result quality. There are many metrics that are important in optimizing your cutting operation to ultimate level of efficiency. In a previous article we discussed the main top 5 Key metrics include surface finish, blade life, cost, and consistency.
Diamond and CBN cutting blades are available in a myriad of specifications, with virtually limitless options. The industry is saturated with numerous manufacturers, each professing to offer the optimal solution. However, in reality, only a select few possess the requisite expertise and experience necessary to fabricate blades that not only ensure optimal performance for each client but also deliver the most advantageous return on investment and the lowest total cost of ownership.
Choosing the right blade diamond or cbn blade can significantly impact efficiency, cost, and quality. However, this is not simple and clear cut process. Selecting the optimal blade involves navigating a complex landscape of trade-offs, where factors such as cutting speed, surface finish, blade longevity, and cost must be carefully balanced. This article explores the critical performance trade-offs associated with diamond and CBN blades, providing insights to help you make informed decisions that align with your specific cutting requirements and operational goals. Understanding these trade-offs is essential for optimizing your processes, enhancing productivity, and achieving superior results in your cutting applications.
