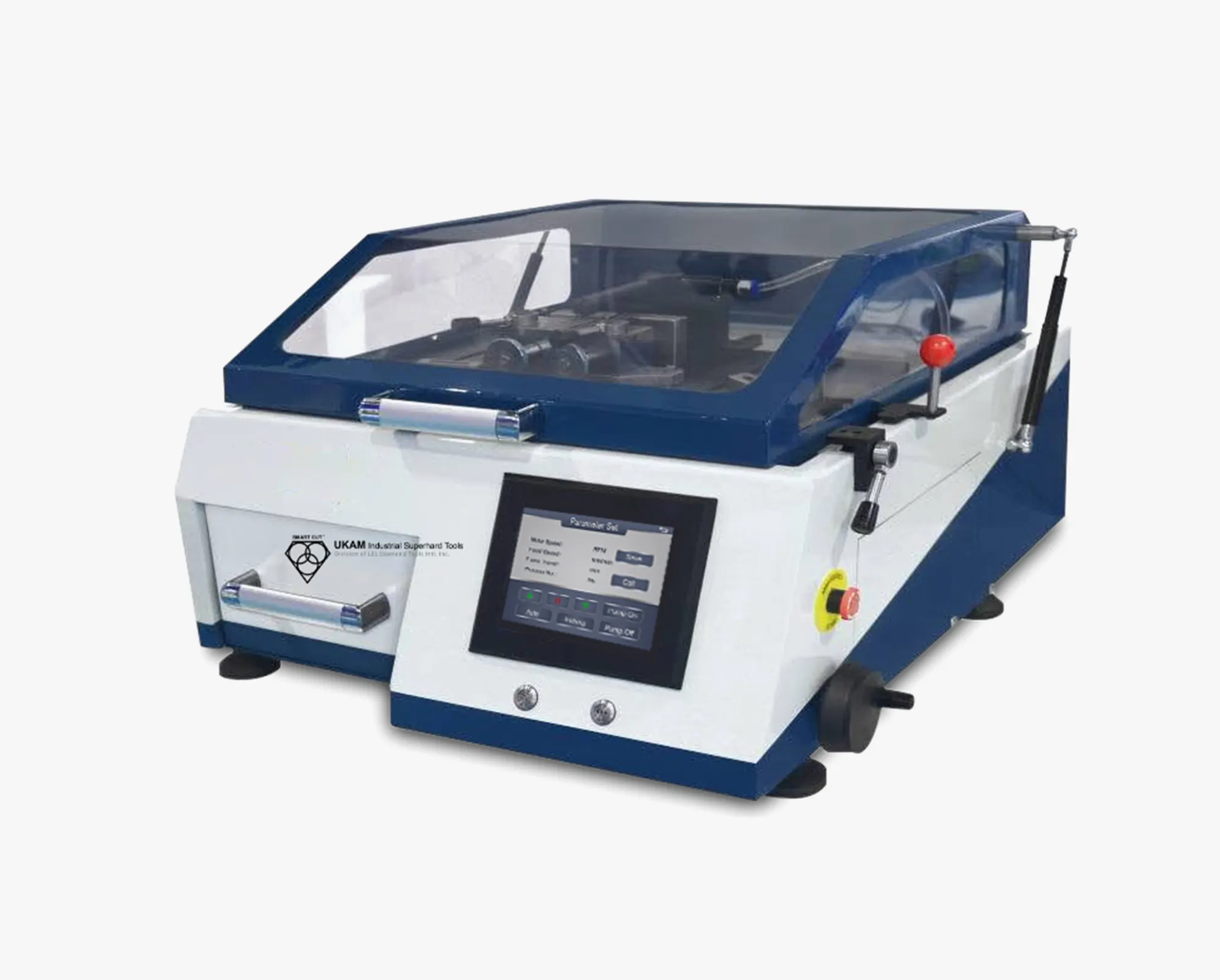

SMART CUT® 6018 Automatic Laboratory Precision Saw is a highly advanced cutting machine designed to deliver precise, efficient results for a variety of materials. With a variable speed range from 500 to 3,000 RPM, this saw can be adjusted to suit the specific requirements of the material being cut. Whether working with PCB boards, glass, ceramics, composites, or metals up to 30mm OD, electronic components, or mounting samples, the machine offers exceptional versatility and performance.
The machine features an intuitive touch screen control that provides a clear display with an organized layout for easy navigation. This user-friendly interface allows for full control over settings, making it simple to adjust parameters for different applications. The cutting feed can be controlled either through the blade feed or cutting table feed, depending on the material being processed or user preference. This flexibility ensures optimal cutting performance for various types of samples.
Equipped with programmable parameters, the SMART CUT® 6018 allows users to set the machine to cut automatically according to the predefined settings. This feature eliminates the need for constant supervision, ensuring consistent results with every cut.
The machine also features an advanced cooling system, an external stainless steel circulating filter cooling water tank that combines 80% water and 20% cutting fluid. This system helps prevent overheating of the sample surface while protecting critical components like the rail and ball screw from rust and damage.
Safety is a top priority with the SMART CUT® 6018, as it includes a built-in safety feature that automatically shuts off the motor if the cover is opened, ensuring that the operator remains safe during operation. The working area is fully enclosed, protecting both the user and the machine, while the transparent cover allows for easy observation of the cutting process without the need to open the machine.
The cutting table is compatible with a variety of clamping tools that can be easily disassembled and cleaned, offering flexibility for different cutting tasks. The powerful 1.6HP motor ensures the saw can cut through a range of materials with ease, providing reliable performance for both simple and complex cutting tasks.
SMART CUT® 6018 is designed to be straightforward and easy to operate, making it suitable for both experienced users and those new to precision cutting. Its combination of versatility, safety features, and powerful performance ensures efficient and high-quality results for a variety of laboratory applications.
INDUSTRIES USED IN:
Ferrous & Non-Ferrous Metals:
The SMART CUT™ 6018 is an automatic laboratory precision saw designed for variable speed cutting with adjustable RPMs and feed rates tailored to the material being sectioned
The machine operates at variable speeds ranging from 500 to 3,000 RPM.
Yes, the machine is equipped with a clear 5.7-inch touch screen control display, ensuring a logical function layout for ease of use.
The cutting feed can be regulated either by controlling the blade feed or by adjusting the cutting table feed, depending on material requirements or user preference.
Absolutely. The SMART CUT™ 6018 can cut automatically based on programmed parameters.
It uses an independent stainless steel circulating filter cooling water tank. The recommended coolant mixture is 80% water and 20% cutting fluid.
The machine is equipped with an automatic motor shutoff function when its cover is opened. The working area is also entirely enclosed with a transparent cover for safe observation during the cutting process.
The machine can effectively cut PCB boards, metals (up to 30mm OD), electronic parts, mounting samples, and more.
The table is designed for both ultra-precision and flexibility. It can accommodate a broad range of sizes and shapes and allows for sectioning large and deep workpieces.
Materials ranging from 5mm to 30mm in thickness can be sectioned. The cutting table dimensions support workpieces up to 415(L) x 30(W) x 30(H) mm.
The machine comes with a vertical clamp and a standard vice, both of which are included in the machine’s price.
Yes, the feed rate is adjustable from 1-36mm/min, in increments of 0.1mm/min. RPMs can be set anywhere between 500-3000r/min.
The SMART CUT™ 6018 operates on a 220V, 50Hz, 8A power supply. Power converter will allow machine to operate in different voltages.
The net weight of the machine is approximately 80 kg or 176 lbs.
The machine comes with most of the necessary accessories. Depending on your specific cutting needs, you might want to explore other clamping tools that can be used with the machine’s T-slot table.
The cutting table and clamping tools are designed to be easily disassembled and cleaned. Ensure regular cleaning to maintain the machine’s longevity and precision.
Yes, the machine supports both manual and automatic cutting methods. You can switch between spindle feeding or table feeding as required.
The SMART CUT™ 6018 offers a balance of precision, versatility, and safety features, making it a valuable asset in laboratories.
Replacement parts or additional accessories are readily available
The machine uses a cut-off wheel measuring 180mm × 0.8mm × 22mm.
The integrated stainless steel circulating filter cooling water tank, combined with the recommended mixture of 80% water and 20% cutting fluid, ensures the sample surface remains cool, reducing heat-induced deformations and preventing rail and ball screw rust.
Absolutely. The SMART CUT™ 6018 is designed to handle a range of materials, from PCB boards to metals and electronic parts.

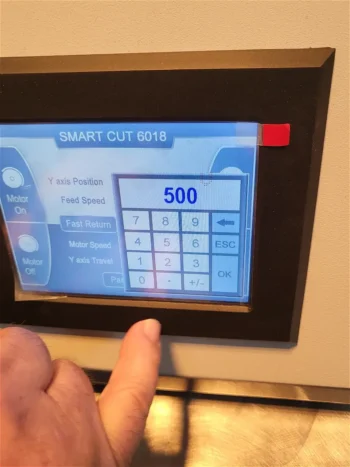

Using the 5.7-inch touch screen, users can input desired parameters for the cutting process. The intuitive interface ensures a user-friendly programming experience.
No. The machine has a max spindle travel of 140mm and a table travel of 230mm to ensure safe operations.
Always ensure that the transparent cover is closed during operation. Additionally, avoid reaching into the machine when it’s running, and always use the recommended coolant mixture for optimal results and safety.
The frequency depends on usage and the materials being cut. Regularly check the mixture for contamination and replace as needed to ensure optimal cooling and cutting performance.
The machine is designed for laboratory use and is ideal for sectioning materials like PCB boards, metals, electronic components, and other mounting samples.
The enclosed working area helps to contain and minimize the spread of dust and debris. Moreover, the built-in cooling system flushes away particles from the cutting area.
While the machine operates on a 220V, 50Hz, 8A power supply, using alternative power sources like generators is possible, provided they meet the machine’s power requirements.
Regularly inspect the machine for signs of wear or any irregularities in operation.
Ensure that the machine is placed on a stable surface, the coolant mixture is maintained, and the machine is cleaned regularly. Avoid overloading the machine or using it beyond its specified capacities.
Yes, we provide over the phone, email and video confrencing
The SMART CUT™ 6018 is engineered with advanced features like variable RPMs, adjustable feed rates, and a state-of-the-art cooling system, all of which contribute to its high precision cutting capabilities.
Image | Name | Price | Quantity | Add to cart |
|---|---|---|---|---|
 | $0.00 | Max: Min: 1 Step: 1 |
Download Operating Manuals
1. Cut-off wheel
2. Spray nozzle
3. Cutting table
4. Quick clamp
5. Water tank
6. Touch screen
7. Hand wheel
8. Emergency stop button
9. Locking handle
10. Pushing rod
11. Cover
12. Power
13. Power switch
14. Limit switch

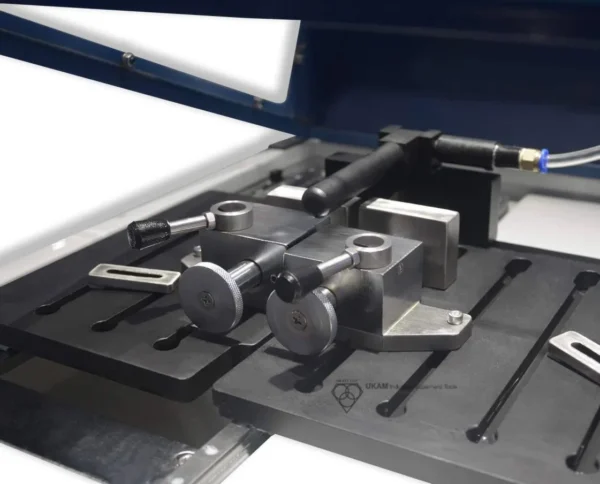

SMART CUT® 6018 has a wide range of sizes and shapes with ultra-flexible and movable T-slot table.
The cutting table in this machine allows you both ultra-precision and flexibility for a wide range sizes and shapes. You are able to section large and deep workpieces 415(L) x 30(W) x30(H)mm. minimum material thickens: 5mm
maximum material thickness: 30mm The table has 8 mm t-slots and you can choose between a wide range of clamping tools to find just the right fit for your cut and the highest degree of precision. The machine comes with vertical clamp and standard vice as pictured here already included into the price of the machine
Suited for large variety of materials and applications
Machine comes with built in recirculating stainless steel filter and coolant tank
coolth comes through the nozzles here, providing right point of contact between coolant and blade and material being cut
Your choice of one (1) quart of SMART CUT® Water Soluble Coolant or Mineral Oil is included with machine. SMART CUT® Water Soluble Coolant Reduces material thermal stress, edge damage, and internal cracking, increases blade life, provides better cut quality, preserves material micro structure
Hence, assuring long-term integrity of material being sectioned. Since SMART CUT coolant is both a coolant and lubricant, both the wafering blade and material benefit. Mix ratio is 1:20 (1 part coolant, 20 parts water) on very hard and dense materials and 1:40 (1 part coolant, 40 parts water) on softer materials. Depending on mix ratio 1 quart will produce 5.7 to 9 gallons of coolant when mixed with water. As a coolant, SMART CUT KOOL reduces heat caused by friction. As a lubricant, SMART CUT KOOL lowers friction and surface tension, which increases swarf dispersion.
one (1) diamond wafering blade any specification is included FREE OF CHARGE with purchase of any machine (any specification). we have almost unlimited number of diamond & CBN wafering blade specifications in stock available for immediate delivery. Available in different sizes, thickness, arbor sizes, diamond concentrations, diamond mesh sizes, and bond hardness’s. With several thousand unique blade specification in stock not listed on our standard stock program. This insures you will receive the best blade specification possible for your specific application.
One (1) dressing stick is included with the purchase of any machine free of charge. The dressing stick we supply is similar to the diamond size of the wafering blade you have chosen (or we recommended) for your application. Wafering Blades must be diamonds particles/crystals exposed properly through frequent dressing. Otherwise, the diamond tool will glaze over. They will begin to tear rather than grind which is very destructive. Tearing caused from unexposed diamonds creates friction. This causes uneven wear and/or heat cracks in the wafering blade and/or material being cut. Resulting in premature blade wear, blade tensioning problems, and will eventually destroy the blade. The more frequently the blade is dressed the freer and cooler it will cut with lot more consistency.
