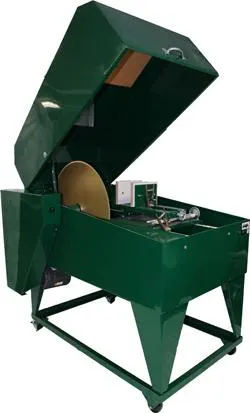

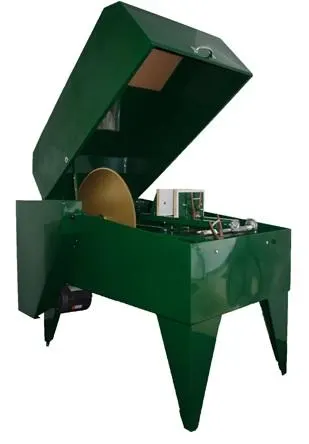

SMART CUT® 1201 are entry level laboratory cutting saw that are very affordably priced, Fast & Accurate sectioning of large variety materials. Coolant is stored below and applied to sample by rotating the blade. Saw table has a large working area and no inhibiting lip. Bull dog grip vise holds all material shapes and swings back out of the way for hand sectioning.
Cross feed slabs for 3 1/2″. Just pull the vise back and set to scale to get the slab thickness you want. Hold down hook (patent pending) runs under table top so rock can’t climb the blade or jam. Front shield protects operator from cutting waste.
Heavy welded steel chassis with separately welded inner frame to eliminate warp. One piece vise carriage is mounted on a solid key stock with channel iron guide to provide rigidity and strength for fast cuts with heavy loads. Quick return system which allows carriage to be manually returned to any position. Over-running clutch which automatically adjusts to hard rock and changes length of cut as blade cuts through specimen. Cross feed which permits 8″ of material to be slabbed without reclamping Made in U.S.A.
INDUSTRIES USED IN:
Ferrous & Non-Ferrous Metals:
The SMART CUT® 12001 is an entry-level laboratory cutting saw designed for fast and accurate sectioning of a wide variety of materials.
Coolant is stored below and is applied to the sample by rotating the blade.
The Bull dog grip vise is designed to hold all material shapes securely. Additionally, it can swing back out of the way, facilitating manual sectioning.
You can adjust the slab thickness by pulling the vise back and setting it to the desired scale, enabling cross feed slabs up to 3 1/2 inches.
The patent-pending “Hold down hook” runs under the table top, preventing the rock or material from climbing the blade or jamming during the cutting process.
The saw boasts a heavy welded steel chassis and a separately welded inner frame to eliminate warping.
This system allows the carriage to be manually returned to any position swiftly.
The clutch automatically adjusts to hard rock and changes the length of the cut as the blade progresses through the specimen.
The RECIRCULATING COOLANT SYSTEM is priced at $350.00.
Saw Dollys are designed to facilitate easy movement of the saw. They come with two locking swivel wheels and two stationary wheels. Prices range from $145.00 to $275.00 based on the machine size.
Yes, the saw includes features like a six-speed power feed with automatic shut-off, a one-piece arbor and flange mounted in housing, and heavy-duty ball bearings that are neoprene sealed and greased for life.
Yes, apart from the standard 110V, it is also available in 220V, 50Hz.
Yes, the saw is completely assembled with a vise and a powerful motor.
The machine boasts a large vise capacity, suitable for various materials and sizes.
Absolutely. The over-running clutch is designed to automatically adjust from soft to hard materials.
The SMART CUT® 12001 features a front shield that protects the operator from cutting waste and debris during operation.
The one-piece vise carriage, mounted on a solid key stock with a channel iron guide, is designed to provide both rigidity and strength, especially during fast cuts with heavy loads.
Yes, the cross feed feature allows up to 8 inches of material to be slabbed without the need to reclamp the material.
While specific blade types aren’t mentioned, it’s essential to choose blades compatible with the saw’s specifications and intended materials. Always refer to the user manual or manufacturer recommendations.
This feature ensures the saw’s durability, robustness, and resistance to wear and tear, ensuring a longer lifespan and efficient operation.
The patented “Hold down hook” system prevents material from climbing the blade or causing jams.
The saw comes with an automatic shut-off feature as part of its six-speed power feed, ensuring safety and precision during operations.
Vise sizes range from 5 inches to 26 inches. Choosing the right size depends on the size and shape of the materials you’re working with. For larger projects or diverse material sizes, consider investing in larger vise sizes.
This system allows for faster and manual repositioning of the carriage, reducing downtime and increasing productivity, especially during repetitive cuts.
The tank of the coolant system holds approximately 17.5 gallons.
The Saw Dollys are specifically designed for easy movement of the saw. Depending on the machine size, select the appropriate dolly, which comes with swivel wheels for easy maneuverability.
While not explicitly mentioned, it’s standard for manufacturers to offer replacement parts. Contact the manufacturer or authorized dealers for specific parts.
Regularly check and clean the saw components, ensure the coolant system is clean, and replace blades and parts as necessary. Always refer to the product’s manual for detailed maintenance instructions.
Download Operating Manuals
The Complete Submersible Pump/Tank is a self-contained pump system that can eliminate city water hook-up for grinding units or supply mixed coolant and light mineral oil to these saws. This unit has a large capacity tank with two graduated dividers to separate sediment, and 10′ of 3/8″ vinyl tubing. Wheels on the tank make moving it easy. All pumps operate on 110V, are supplied with 3 prong grounded plug and cord (CSP805), and pump 200GPH at 1 ft., 105GPH at 5 ft. The tank holds approximately 17.5 gallons.
$350.00Add to cart
This book-end type vise holds work pieces of any shape tightly, but quick-release feature allows an easy, no-bind return. The steel jaw tongue contacts the full length of the vise, holding the jaw square so it can’t bind. The end grips have a hardwood facing. A cross shaft is included with each vise.
| Item No. | Vise Size | Weight | Price |
| 3003 | 5″ | 20 lbs. | $259.00 |
| 3004 | 6″ | 22 lbs. | $269.00 |
| 3005 | 7″ | 24 lbs. | $279.00 |
| 3006 | 9″ | 35 lbs. | $425.00 |
| 3007 | 10″ | 40 lbs. | $475.00 |
| 3008 | 12″ | 45 lbs. | $525.00 |
| 3009 | 18″ | 55 lbs. | $575.00 |
| 3010 | 26″ | 75 lbs. | $900.00 |

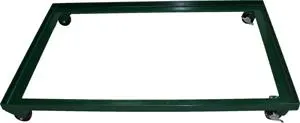

Saw Dollys are designed for easy movement of saw. They come with two locking swivel wheels and two stationary wheels for easy saw manipulation
| Item No | Description | Dimensions | Weight | Price |
| 3013 | Dolly for 18″ machine | 37″ x 26″ x 8″ | 25 lbs. | $145.00 |
| 3013 | Dolly for 20″ machine | 41″ x 39″ x 10″ | 45 lbs. | $170.00 |
| 3013 | Dolly for 24″ machine | 43″ x 39″ x 10″ | 55 lbs. | $175.00 |
| 3013 | Dolly for 24″ machine | 60″ x 39″ x 10″ | 75 lbs. | $200.00 |
| 3013 | Dolly for 30″ machine | 67″ x 40″ x 10″ | 100 lbs. | $220.00 |
| 3013 | Dolly for 36″ machine | 89″ x 48″ x 20″ | 140 lbs. | $275.00 |
Your choice of one (1) quart of SMART CUT™ Water Soluble Coolant or Mineral Oil is included with machine. SMART CUT™ Water Soluble Coolant Reduces material thermal stress, edge damage, and internal cracking, increases blade life, provides better cut quality, preserves material micro structure
Hence, assuring long-term integrity of material being sectioned. Since SMART CUT coolant is both a coolant and lubricant, both the wafering blade and material benefit. Mix ratio is 1:20 (1 part coolant, 20 parts water) on very hard and dense materials and 1:40 (1 part coolant, 40 parts water) on softer materials. Depending on mix ratio 1 quart will produce 5.7 to 9 gallons of coolant when mixed with water. As a coolant, SMART CUT KOOL reduces heat caused by friction. As a lubricant, SMART CUT KOOL lowers friction and surface tension, which increases swarf dispersion.
one (1) diamond wafering blade any specification is included FREE OF CHARGE with purchase of any machine (any specification). we have almost unlimited number of diamond & CBN wafering blade specifications in stock available for immediate delivery. Available in different sizes, thickness, arbor sizes, diamond concentrations, diamond mesh sizes, and bond hardness’s. With several thousand unique blade specification in stock not listed on our standard stock program. This insures you will receive the best blade specification possible for your specific application.
One (1) dressing stick is included with the purchase of any machine free of charge. The dressing stick we supply is similar to the diamond size of the wafering blade you have chosen (or we recommended) for your application. Wafering Blades must be diamonds particles/crystals exposed properly through frequent dressing. Otherwise, the diamond tool will glaze over. They will begin to tear rather than grind which is very destructive. Tearing caused from unexposed diamonds creates friction. This causes uneven wear and/or heat cracks in the wafering blade and/or material being cut. Resulting in premature blade wear, blade tensioning problems, and will eventually destroy the blade. The more frequently the blade is dressed the freer and cooler it will cut with lot more consistency.
