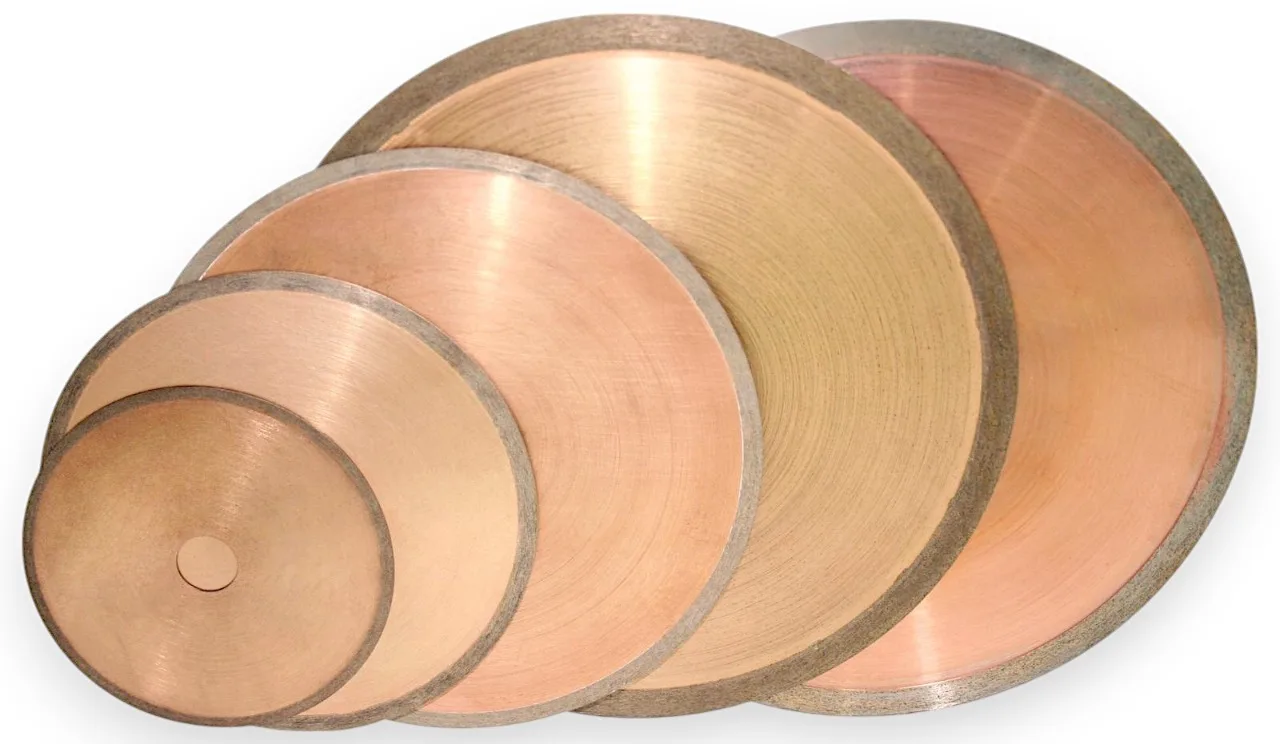

SMART CUT® Precision Diamond & CBN Wafering Blades are designed and specially selected to provide the maximum possible blade life for your desired cut quality, and speed.
Compare to any other brand name Diamond Wafering Blades such as:
COMPARABLE QUALITY – SIGNIFICANTLY LOWER
(Manufacturers Direct Prices)

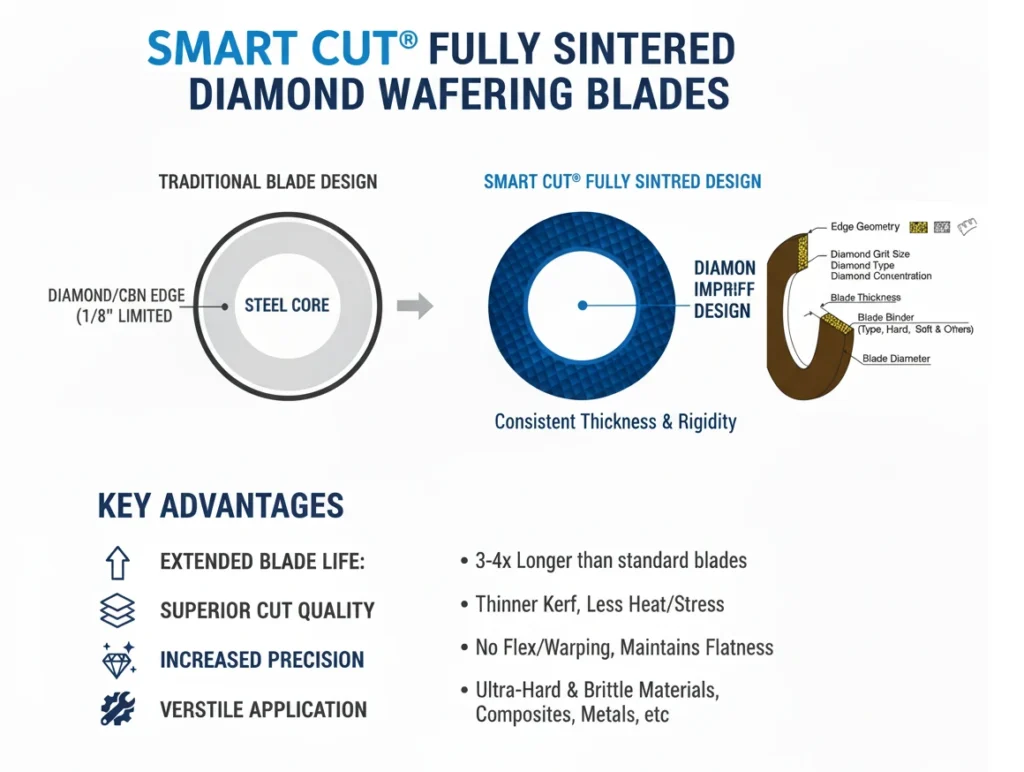

SMART CUT® Precision New Generation Sintered (metal bonded) Diamond & CBN Wafering Blades are the highest overall performance blades available today. Designed specifically for Sample Preparation & Materials Research. Manufactured utilizing SMART CUT® technology, giving you consistent results you can count on everyday. Wafering Blades are available from inventory in many different diamond concentrations, mesh sizes, bond hardness, & inside diameters. Available from stock for any manufacturers low or high speed sectioning/wafering saw. We will work with you to determine your needs, and recommend the right parameters for your specific material/application.
Compare to any other brand name Diamond Wafering Blades such as: BUEHLER, STRUERS, LECO & Many Others. If you are not using these blades, you are paying too much & missing out on incredible performance.
Diamond wafering blades are available with large variety of diamond mesh / particle sizes using a scale from 5 (finest) to 30 (coarsest). A diamond wafering blade with number 10 will have larger diamond particles than wafering blade with rating of No. 5. yet they are not necessarily twice as large. A general rule of thumb is the smaller the diamond particles/crystals the lower the resulting deformation. However this is not always the case and depends on material being sectioned. A number of materials require larger diamond particle size to be cut effectively and economically. Using smaller size diamonds would not be economical and create large material deformation.
INDUSTRIES USED IN:
Ferrous & Non-Ferrous Metals:
SMART CUT® Precision Diamond & CBN Wafering Blades are specially designed and selected to provide maximum blade life while maintaining desired cut quality and speed. They are manufactured using SMART CUT™ technology, ensuring consistent and reliable results for sample preparation and materials research. These blades offer exceptional performance and are available in various diamond concentrations, mesh sizes, bond hardness levels, and inside diameters.
SMART CUT® Diamond & CBN Wafering Blades are designed for laboratory-grade precision and are comparable to other leading brands like BUEHLER, STRUERS, and LECO. If you are not using these blades, you may be paying more without benefiting from their incredible performance and cost-effectiveness.
Several factors should be considered when choosing a diamond wafering blade, including diamond concentration, particle size (mesh), blade thickness, diameter, bond hardness, bond type (metal or resin), loads/feed rates, and blade speeds (RPMs). These factors depend on the material being cut and the desired cutting speed and quality.
Higher diamond concentration is recommended for cutting softer and more abrasive materials, while lower diamond concentration is suitable for cutting ultra-hard and brittle materials. The choice depends on the material you are working with and your desired cutting speed.
Diamond particle size (mesh) affects cutting speed, surface finish, chipping, and material microstructure damage. Coarse diamonds (larger mesh sizes) cut faster but may cause more damage, while finer mesh sizes are suitable for delicate materials.
Blade thickness affects material loss during sectioning. Thinner blades are ideal for precision cutting, especially when maintaining specific cutting planes is essential. Thicker blades are more robust and forgiving for less experienced operators.
Blade diameter should be chosen based on the material’s diameter and thickness. Smaller blades are more prone to bending, while larger blades are suitable for cutting larger and heavier samples at higher loads and speeds.
Bond hardness affects the ability of the bond matrix to hold diamonds. Softer bonds release diamond particles faster, leading to faster wear, while harder bonds result in slower cutting speeds. The choice depends on the material being cut.
Metal bonds offer durability, while resin bonds create less heat and provide a better surface finish. Metal bonds are suitable for a wide range of materials, while resin bonds are ideal for hard, delicate, or brittle materials.
Load/feed rates depend on the material’s hardness and brittleness. Harder materials are cut at higher loads and speeds, while more brittle materials are cut at lower loads and speeds. Factors like specimen shape and clamping also influence the load.
RPMs typically range from 50 to 6,000, with harder materials cut at higher speeds and more brittle materials at lower speeds. The material’s properties, shape, and clamping method determine the ideal RPM.
Cutting times depend on factors like material type, blade type, diamond concentration, speed, and load. To estimate cutting times accurately, refer to the provided examples or contact us for personalized guidance.
These blades can be used with plain water, synthetic coolant, or oil. They are easy to use and require minimal dressing, making them convenient for various cutting applications.
We provide an item number cross-reference chart for our SMART CUT® Diamond Wafering Blades, making it easy to match them with the blades you’ve used from other vendors. Contact us for immediate quotes and assistance.
Yes, we offer a wide range of sizes and specifications beyond those listed. Feel free to inquire about your specific requirements, and we will provide you with the available options.
Contact us directly to receive an immediate quote and further assistance with selecting the right blades for your needs. We are here to help you save money while achieving optimal results.
Yes, we offer a 100% quality guarantee, ensuring that you receive high-quality blades that meet your cutting requirements and expectations.
Visit our website for comprehensive information on these topics, including selection guides, usage recommendations, case studies, customer testimonials, and more. We are committed to helping you succeed in your cutting operations.
Diamond & CBN Wafering Blades are primarily used for precision cutting and sectioning of various materials in applications such as materials research, sample preparation, and materials analysis. They are designed to provide clean, precise cuts with minimal material deformation.
SMART CUT® Diamond & CBN Wafering Blades are known for their superior performance and longevity. They are designed using SMART CUT® technology, ensuring consistent results. These blades are often compared to well-known brands like BUEHLER, STRUERS, LECO, and many others. SMART CUT® blades offer comparable quality at significantly lower prices.
When choosing a wafering blade, you should consider factors such as the material you’re cutting, the material’s hardness, blade thickness, diamond concentration, mesh size, bond hardness, and the desired cutting speed. It’s essential to match the blade’s specifications to your specific application for optimal results.
Yes, these blades are versatile and suitable for cutting a wide range of materials, including metals, ceramics, glass, composites, and more. They offer excellent performance on various materials, making them a more universal choice.
Some advantages of using SMART CUT® blades include reducing or eliminating the need for additional post-cutting steps, preserving the material’s microstructure with minimal deformation, excellent performance even on materials with high metallic content, and longer blade life (up to 2.2 times longer). They are also competitively priced compared to other brand name blades.
Yes, SMART CUT® Diamond & CBN Wafering Blades can be used with various cutting fluids, including plain water, synthetic coolant, or oil, depending on your specific needs and preferences.
Yes, these blades are designed to work with both low and high-speed sectioning/wafering saws, making them adaptable to various equipment setups.
The diamond depth/height of 4mm (.157″) indicates the thickness of the diamond layer on the wafering blades. This specification is important because it affects the blade’s cutting performance and lifespan. A thicker diamond layer generally allows for longer blade life and more efficient cutting.
SMART CUT® Diamond & CBN Wafering Blades are versatile and can be used for wet cutting with cutting fluids like water, synthetic coolant, or oil. However, dry cutting without a lubricant is generally not recommended for extended blade life and performance.
SMART CUT® Diamond & CBN Wafering Blades are designed to be compatible with a wide range of cutting equipment, including both low and high-speed sectioning/wafering saws. They are versatile and can adapt to different machine setups.
These wafering blades are designed for minimal maintenance. However, it’s essential to clean and inspect the blades regularly to ensure they are free of debris and damage. If needed, they can be dressed or sharpened to maintain cutting performance.
SMART CUT® Diamond & CBN Wafering Blades are suitable for cutting a wide range of materials, including composite materials like carbon fiber-reinforced composites. They offer excellent performance on such materials.
Cutting speeds should be optimized based on the material being cut, blade specifications, and the specific equipment being used. The manufacturer can provide guidance on recommended cutting speeds for different materials and blade types.
Yes, SMART CUT® Diamond & CBN Wafering Blades are suitable for cutting extremely hard materials like sapphire and ceramics. They offer different blade specifications to match the hardness and characteristics of various materials, ensuring efficient cutting.
Yes, SMART CUT® Diamond & CBN Wafering Blades are specifically designed for precision cutting in research and laboratory applications. They are known for their exceptional performance and reliability in achieving precise cuts for materials analysis.
Selecting the right blade involves considering factors such as material hardness, thickness, shape, and other application-specific requirements. The manufacturer can provide expert guidance to help you choose the most suitable blade for your needs.
SMART CUT® blades offer several advantages, including comparable quality at significantly lower prices, longer blade life (up to 2.2 times more), no material deformation or smearing, and compatibility with a wide range of materials. They are a cost-effective alternative to conventional brand name blades.
Yes, SMART CUT® offers different series of wafering blades designed for various material types and applications. The choice of series depends on the material you plan to cut. Blades are designated in different series. The higher the Series Number the coarser the diamond, the lower the series the finer the diamond size. There are both low and high concentrations available for each blade family. If you have any questions please contact our technical support team to assist you in selecting the appropriate series based on your needs.
Yes, SMART CUT® Diamond & CBN Wafering Blades are known for their excellent performance, even on hard-to-machine materials. They can significantly reduce cutting times, making them suitable for efficient sectioning of challenging materials.
SMART CUT® Diamond & CBN Wafering Blades are designed to be compatible with various low and high-speed sectioning/wafering saws. The Standard arbor size is ½” (12.7mm). The arbor size can be changed to almost any thing you want usually same day for a small fee to fit any other equipment.
Yes, SMART CUT® Diamond & CBN Wafering Blades are suitable for cutting thermal spray coatings. They provide precise cutting capability even on challenging materials, such as thermal spray coatings.
Yes, we provide in our KNOWLEDGE CENTER a range of articles and resources on our website that cover topics such as selecting the right wafering blade, usage recommendations, case studies, customer testimonials, and more. These resources can be valuable for understanding blade selection and usage.
Yes, these blades are suitable for cutting composite materials with fine reinforcing media, including carbon composites. They are designed to provide precise cutting even on challenging materials like these.
Proper maintenance includes regular cleaning and inspection of the blades, as well as ensuring they are appropriately lubricated during use. Follow the manufacturer’s guidelines for blade care to optimize their lifespan.
Yes, these blades can be used for sectioning glass materials. Depending on the specific type of glass and your cutting requirements, you may find different series suitable. It’s advisable to consult with the manufacturer for personalized recommendations.
Safety is essential when using these blades. Always follow safety protocols, wear appropriate personal protective equipment (PPE), and ensure that the equipment is properly set up and maintained. The manufacturer may provide specific safety guidelines for their products.
Yes, these blades are designed to minimize material deformation, even when cutting brittle materials like ceramics. They are precision-engineered to preserve the true material microstructure.
SMART CUT® offers a range of arbor sizes, including 1/2″, 5/8″, 1″, 1-1/4″, and 32mm. Additionally, custom arbor sizes may be available upon request. Contact the manufacturer for specific arbor size requirements.
SMART CUT® Diamond & CBN Wafering Blades are known for their excellent performance on materials with high metallic content. They can provide precise cuts without smearing or material deformation. Follow the manufacturer’s guidelines for optimal results.
Yes, these blades can be used for cutting tough, gummy materials like lead alloys. The CBN – METACUT series is recommended for cutting iron, carbon steels, high alloy steels, cobalt alloys, nickel superalloys, and lead alloys. Consult with the manufacturer for specific recommendations based on your application.
Selecting the right wafering blade involves considering several factors, including the material you’re cutting, its hardness, size, and desired surface finish. You should also factor in your equipment’s capabilities and the specific cutting parameters you intend to use.
The material’s hardness, abrasiveness, and brittleness are crucial. Harder materials like ceramics may require a blade with a softer bond, while softer materials may benefit from a harder bond. Brittle materials may require a blade that minimizes chipping.
Metal bonds offer durability and long life, while resin bonds create less heat and are ideal for hard, delicate, or brittle materials. Select the bond type that best matches your material and desired cutting speed.
Diamond concentration affects cutting speed and blade life. Higher concentration is suitable for cutting softer materials, while lower concentration is better for harder materials. It’s a balance between speed and blade longevity.
Blade thickness affects material loss during cutting. Thinner blades are more precise but may bend or warp with heavy loads. Thicker blades are sturdier and withstand higher loads.
Blade diameter should match the size of the material you’re cutting. Larger blades are suitable for bigger samples and provide higher cutting speeds, while smaller blades are better for precision work on smaller specimens.
Bond hardness impacts diamond retention and cutting speed. Choose a bond hardness that complements your material’s hardness. Softer bonds work well for hard materials, while harder bonds are suitable for softer materials.
The material’s hardness, shape, and how it’s clamped affect the load/feed rate. Harder materials can handle higher loads, while brittle ones need lower loads to prevent damage.
Blade speeds depend on the material. Hard, dense materials like silicon carbide may require higher RPMs, while more brittle materials like silicon wafers need lower RPMs. Choose speeds that minimize material damage.
Yes, we offer customization options for wafering blades, including diamond concentration, bond hardness, and blade thickness. Contact us to inquire about custom solutions.
While some universal blades can work with various materials, it’s often best to have specialized blades for different materials. This ensures optimal performance, longer blade life, and superior cut quality.
Monitor the cutting process. If you notice excessive chipping, slow cutting speeds, or premature blade wear, it may indicate that you’re not using the right blade. Consult with us for recommendations.
while there are not specific standards related to diamond and cbn wafering blades for laboratory application. We follow the industry standard and cross reference our blades to most popular brand names such as BUEHLER, STRUERS, LECO & others
It’s generally best to use different blades for rough and precision cuts. Rough cuts may require blades with coarser diamond particles, while precision cuts benefit from finer diamonds and a softer bond.
Arbor size should match your equipment’s spindle. We offer the flexibility to customize arbor sizes to fit your equipment, we can machine the arbor size/inside diameter to anything you want usually same day.
Proper cooling methods, such as using coolants or lubricants, can help prevent blade overheating. Ensure your equipment is set up for effective cooling.
Yes, following the manufacturer’s guidelines for blade use, RPM, and maintenance is crucial to maximize blade life and maintain cut quality.
Used wafering blades should be disposed of according to local regulations and guidelines for handling hazardous materials. Consult your local waste management authorities for guidance.
Yes its possible, but there may be other blade specifications more suited for this application. Laboratory-grade wafering blades are designed for specific materials used in research and sample preparation. For industrial applications, consult with us to find a blade suited to your needs.
The diamond concentration depends on the hardness of the material you’re cutting. Softer materials typically require lower diamond concentration, while harder materials need higher concentrations. Consult our technical support for guidance.
Blade life depends on various factors, including material hardness, cutting speed, load, and blade specifications. Manufacturers may provide estimated blade life based on these factors, but actual results may vary.
sintered (metal bond) diamond wafering blades are not designed for dry cutting. Some Nickel bond wafering blades can be used dry (without coolant) in some cases and certain applications
Metal bond blades offer durability, while resin bond blades provide better surface finish. Consider the material and desired finish when deciding between the two bond type and rpm’s. Resin bond diamond wafering blades cannot be used on low speed cutting machines.
You can optimize your cutting operation by following manufacturer recommendations for blade use, using appropriate coolants or lubricants, maintaining proper machine settings, and regularly inspecting the blade for wear.
If you encounter issues, first check if you’re using the right blade for the material and application. If problems persist, please our illustrated trouble shooting guide and consult our technical support team for troubleshooting and recommendations.
Store wafering blades in a clean, dry, and secure environment to prevent damage and contamination. Follow manufacturer guidelines for proper storage.
Switching between blades may require adjustments in cutting parameters and may result in different cutting characteristics. It’s essential to recalibrate your cutting process when changing blades.
Non-magnetic alloy cores help prevent magnetic materials from adhering to the blade, reducing the risk of contamination during cutting.
Image | Item No. | Description | Price | Quantity | Add to cart |
|---|---|---|---|---|---|
 | 1 Gallon Blue SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $99.81 | Max: Min: 1 Step: 1 | ||
 | 1 Quart Blue SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $34.81 | Max: Min: 1 Step: 1 | ||
 | 5 Gallons Blue SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $317.41 | Max: Min: 1 Step: 1 | ||
 | 55 Gallons Blue SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $1,745.00 | Max: Min: 1 Step: 1 | ||
 | 1/2″ x 1/2″ x 6.0″ White Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. | $8.65 | Max: Min: 1 Step: 1 | ||
| 1.0″ x 1.0″ x 6.0″ White Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. | $15.99 | Max: Min: 1 Step: 1 | ||
| 1/2″ x 1/2″ x 6.0″ White For use on diamond tools 150 to 220 Grit Size. | $8.65 | Max: Min: 1 Step: 1 | ||
 | 1.0″ x 1.0″ x 6.0″ Black Recommended for use in Diamond Tools 150 Grit Size (mesh size) or finer. | $15.39 | Max: Min: 1 Step: 1 | ||
 | 2.0″ x 2.0″ x 6.0″ Black Recommended for use in Diamond Tools 150 Grit Size (mesh size) or finer. | $39.47 | Max: Min: 1 Step: 1 | ||
| 1.0″ x 1.0″ x 6.0″ Black Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. | $15.99 | Max: Min: 1 Step: 1 | ||
| 2.0″ x 2.0″ x 6.0″ Black Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. | $39.47 | Max: Min: 1 Step: 1 |
|
Material |
Blade Type |
Diamond Concentration |
Speed (RPM’s) |
Load (grams) |
Estimated Cutting Time |
|---|---|---|---|---|---|
|
Hot Pressed Silicon Nitride Si3N4 |
Series 20LCU |
Low |
4,000 |
800 |
0:30 |
|
Boron Carbide B4C |
Series 20LCU |
Low |
3,500 |
700 |
0:15 |
|
Sapphire Al203 |
Series 15LCU |
Low |
1,500 |
300 |
0:40 |
|
Chromium Doped Sapphire Al203 |
Series 15LCU |
Low |
500 |
500 |
0:20 |
|
Partially stabilized Zirconia ZrO2 |
Series 15LCu |
Low |
2,500 |
500 |
0:38 |
|
Silicon Carbide, SiC |
Series 15LCU |
Low |
2,500 |
500 |
0:16 |
|
Case Hardened Steel |
Series 15HCU |
High |
2,500 |
500 |
0:16 |
|
Grey Cast Iron |
Series 15HCU |
High |
2,500 |
500 |
0:25 |
|
Titanium Alloy |
Series 15HCU |
High |
2,500 |
500 |
0:32 |
|
Zinc Alloy |
Series 15HCU |
High |
2,500 |
800 |
0:15 |
|
Tungsten Carbide 6% cobalt binder, wC |
Series 15HCU |
High |
4,500 |
900 |
0:15 |
|
Tungsten Carbide 25% cobalt binder, WC |
Series 15HCU |
High |
1,500 |
300 |
1:55 |
|
High Purity fused silica SiO2 |
Series 15HCU |
High |
2,500 |
500 |
0:40 |
|
Extruded Alumina, Al203 |
Series 15HCU |
High |
3,000 |
600 |
0:40 |
|
Aluminum Nitride AIN |
Series 15HCU |
High |
1,500 |
300 |
0:30 |
|
Nickel Zinc Ferrite |
Series 15HCU |
High |
1,500 |
300 |
0:30 |
|
Manganese Zinc Ferrite |
Series 15HCU |
High |
Content |
5,000 |
0:30 |
|
Yttrium aluminum garnet, YAG |
Series 15HCU |
High |
3,000 |
Content |
1:15 |
|
8 micron graphite fiber reinforced zirconium diboride/molybenum disilicide composite |
Series 15HCU |
Low |
2,500 |
300 |
0:20 |
|
White Cast Iron |
Series Metacut CBN |
High |
2,500 |
700 |
|
|
Thermal Spray Coatings |
Series 15HCU |
High |
3,000 |
700 |
for soft & gummy materials. Use with plastics, polymers, rubber & etc.
Image | Item No | Diameter | Thickness | Arbor Size | BUEHLER NO | STRUERS NO | LECO NO. | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
 | 5"(127mm) | .030"(0.76mm) | 1/2"(12.7mm) | 11-4239 | $184.00 2 pcs - $179.00 ea 3pcs -$174.00 ea | Max: Min: 1 Step: 1 | ||||
| 8"(203mm) | .035"(0.9mm) | 1/2"(12.7mm) | 11-4242 | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 | ||||
| 7"(178mm) | .030"(0.76mm) | 1/2"(12.7mm) | 11-4241 | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 |
for aggressive general sectioning of metals (ferrous and non ferrous materials including titanium alloys).
Image | Item No | Diameter | Thickness | Arbor Size | BUEHLER NO | STRUERS NO | LECO NO. | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
 | 5"(127mm) | .020"(0.5mm) | 1/2"(12.7mm) | 11-4215 | 331CA 357CA 456CA | $184.00 2 pcs - $179.00 ea 3pcs -$174.00 ea | Max: Min: 1 Step: 1 | |||
| 6"(152mm) | .020"(0.5mm) | 1/2"(12.7mm) | 356CA 370CA 457CA 459CA 45UCA | $194.00 2 pcs - $189.00 ea 3pcs -$184.00 ea | Max: Min: 1 Step: 1 | ||||
| 7"(178mm) | .025"(0.6mm) | 1/2"(12.7mm) | 11-4237 | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 | ||||
| 8"(203mm) | .025"(0.6mm) | 1/2"(12.7mm) | 11-4238 | 655CA 657CA 659CA | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 |
For general use with ferrous and non ferrous alloys, copper, aluminum, metal matrix, composites, PC boards, thermal spray coatings, and titanium alloys
Image | Item No | Diameter | Thickness | Arbor Size | BUEHLER NO | STRUERS NO | LECO NO. | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
| 3"(76mm) | .015"(0.35mm) | 1/2"(12.7mm) | 100CA | $159.00 2 pcs - $154.00 ea 3pcs-$149.00 ea | Max: Min: 1 Step: 1 | ||||
| 4"(101.1mm ) | .012" (0.3mm) | 1/2"(12.7mm) | 11-4244 | 230CA 40000043 M0D10 | $159.00 2 pcs - $154.00 ea 3pcs-$149.00 ea | Max: Min: 1 Step: 1 | |||
| 3"(76mm) | .006"(0.15mm) | 1/2"(12.7mm) | 11-10066 11-4243 | 121CA 40000041 M0D08 | $165.00 2 pcs - $160.00 ea 3pcs-$155.00 ea | Max: Min: 1 Step: 1 | |||
| 5"(127mm) | .015"(0.4mm) | 1/2"(12.7mm) | 11-4245 | 330CA 355CA 357CA 40000038 M0D13 | $184.00 2 pcs - $179.00 ea 3pcs -$174.00 ea | Max: Min: 1 Step: 1 | |||
| 6" (152mm) | .020" (0.5mm) | 1/2"(12.7mm) | 11-4246 | 4000054 430CA 459CA M0D15 | $194.00 2pcs -$189.00 ea 3pcs -$184.00 ea | Max: Min: 1 Step: 1 | |||
| 7" (178mm) | .025" (0.6mm) | 1/2"(12.7mm) | 11-4247 | 40000046 M4D18 | $214.00 2pcs -$209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 | |||
| 8"(203mm) | .035"(0.9mm) | 1/2"(12.7mm) | 11-4248 | 40000084 657CA M020 | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 |
for use with hard/tough materials structural ceramics, boron carbide, boron nitride, and silicon carbides
Image | Item No | Diameter | Thickness | Arbor Size | BUEHLER NO | STRUERS NO | LECO NO. | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
| 4"(101.1mm) | .012"(0.3mm) | 1/2"(12.7mm) | 452CA | $159.00 2 pcs - $154.00 ea 3pcs-$149.00 ea | Max: Min: 1 Step: 1 | ||||
| 5" (127mm) | .020" (0.5mm) | 1/2"(12.7mm) | 11-4225 | 352CA | $184.00 2 pcs - $179.00 ea 3pcs -$174.00 ea | Max: Min: 1 Step: 1 | |||
| 7"(178mm) | .025"(0.6mm) | 1/2"(12.7mm) | 11-4227 | $214.00 2pcs -$209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 | ||||
| 8"(203mm) | .035"(0.9mm) | 1/2"(12.7mm) | 11-4228 | 652CA | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 |
for use with hard / brittle materials such as Glass, Al203, Zr203, Concrete, & many others
Image | Item No | Diameter | Thickness | Arbor Size | BUEHLER NO | STRUERS NO | LECO NO. | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
| 3"(76mm) | .015"(0.35mm) | 1/2"(12.7mm) | 100CA | $159.00 2 pcs - $154.00 ea 3 pcs - $149.00 ea | Max: Min: 1 Step: 1 | ||||
| 4"(101.1mm) | .012"(0.3mm) | 1/2"(12.7mm) | 11-4254 | 230CA 40000070 M1D10 | 801-137 | $159.00 2 pcs - $154.00 ea 3 pcs - $149.00 ea | Max: Min: 1 Step: 1 | ||
| 3"(76mm) | .006"(0.15mm) | 1/2"(12.7mm) | 11-10067 | 40000069 M1D08 | $165.00 2 pcs - $160.00 ea 3 pcs - $155.00 ea | Max: Min: 1 Step: 1 | |||
| 5"(127mm) | .015"(0.4mm) | 1/2"(12.7mm) | 11-4255 | 330CA 40000071 M1D13 | 802-439 | $184.00 2 pcs - $179.00 ea 3pcs -$174.00 ea | Max: Min: 1 Step: 1 | ||
| 6"(152mm) | .020"(0.5mm) | 1/2"(12.7mm) | 11-4276 | 40000068 430CA M1D15 | $194.00 2 pcs - $189.00 ea 3 pcs - $184.00 ea | Max: Min: 1 Step: 1 | |||
| 7"(178mm) | .025"(0.6mm) | 1/2"(12.7mm) | 11-4277 | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 | ||||
| 8" (203mm) | .035" (0.9mm) | 1/2"(12.7mm) | 11-4279 | 40000072 M1D20 | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 |
for use with medium to soft ceramics, electronic packages, unmounted in targeted circuits, GaAs, AIN and glass fiber reinforced composites
Image | Item No | Diameter | Thickness | Arbor Size | BUEHLER NO | STRUERS NO | LECO NO. | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
| 3"(76mm) | .015"(0.35mm) | 1/2"(12.7mm) | $159.00 2 pcs - $154.00 ea 3 pcs - $149.00 ea | Max: Min: 1 Step: 1 | |||||
| 3"(76mm) | .006"(0.15mm) | 1/2"(12.7mm) | 11-10068 11-4283 | $165.00 2 pcs - $160.00 ea 3 pcs - $155.00 ea | Max: Min: 1 Step: 1 | ||||
| 5"(127mm) | .015"(0.4mm) | 1/2"(12.7mm) | 11-4285 | $184.00 2 pcs - $179.00 ea 3pcs -$174.00 ea | Max: Min: 1 Step: 1 | ||||
| 7"(178mm) | .025"(0.6mm) | 1/2"(12.7mm) | 11-4287 | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 | ||||
| 8" (203mm) | .035" (0.9mm) | 1/2"(12.7mm) | 11-4288 | $214.00 2 pcs - $209.00 ea 3pcs -$204.00 ea | Max: Min: 1 Step: 1 |
for use with softfriable ceramics, electronic packages, unmounted integrated circuits, composites with fine reinforcing media, CaF2, MgF2, and carbon composites
Image | Item No | Diameter | Thickness | Arbor Size | BUEHLER NO | STRUERS NO | LECO NO. | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
| 3"(76mm) | .006"(0.15mm) | 1/2"(12.7mm) | 11-4288 11-4298 | $165.00 2 pcs - $160.00 ea 3 pcs - $155.00 ea | Max: Min: 1 Step: 1 | ||||
| 5"(127mm) | .015"(0.4mm) | 1/2"(12.7mm) | 11-4295 | $184.00 2 pcs - $179.00 ea 3pcs -$174.00 ea | Max: Min: 1 Step: 1 |
23-4870ME(3053001), 23-4872ME(3083204), 23-4871ME(3073002), 23-4873ME(3052008), 23-4874ME(3062014), 23-4875ME(3072510), 23-4876ME(3083220), 23-4877ME(3031204), 23-4878ME(3041201), 23-5159ME(3030605), 23-4879ME(3051502), 23-4880ME(3062006), 23-4881ME(3072501), 23-4882ME(3083202), 23-4883ME(3041207), 23-4884ME(3052010), 23-4885ME(3072509), 23-4886ME(3083218), 23-4887ME(3031001), 23-4888ME(3041202), 24-4887ME(3030606), 23-4889ME(3051504), 23-4890ME(3062011), 23-4891ME(3072502), 23-4892ME(3083219), 23-4891ME(3031201), 23-5160ME(3030604), 23-4892ME(3051506), 23-4893ME(3072503), 23-4894ME(3083217), 23-4895ME(3031202), 24-4895ME(3030608), 23-4896ME(3051507)
For iron, carbon steels, high alloy steels, cobalt alloys, nickel super alloys, and lead alloys. CBN is recommended for cutting had metals, specially iron and steel. Since carbon in steel reacts with carbon in diamond, quickly dulling the diamond crystal and slowing the material removal. CBN blades provide significantly reduced cutting times for tough, gummy materials, such as lead and titanium. However, CBN are not recommended for ceramics and other non metallic materials. These blades will provide precise cutting capability on difficult to cut samples/materials. These CBN blades will significantly reduce your cutting time on ferrous materials compared to convention al diamond wafering blades. Standard arbor size inside diameter is ½” (12.7mm) (* we can modify arbor size of any blade to anything you want same day for a small addition al fee, if needed)
Image | Item No | Diameter | Thickness | Arbor Size | BUEHLER NO | STRUERS NO | LECO NO. | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
| 4"(101.1mm) | .012"(0.3mm) | 1/2"(12.7mm) | 11-4264 11-5264 | 235CA | $174.00 2 pcs - $169.00 ea 3pcs -$164.00 ea | Max: Min: 1 Step: 1 | |||
| 3"(76mm) | .006"(0.15mm) | 1/2"(12.7mm) | 11-10070 11-10071 11-4263 | $180.00 2pcs -$175.00 ea 3pcs-$170.00 ea | Max: Min: 1 Step: 1 | ||||
| 5"(127mm) | .015"(0.4mm) | 1/2"(12.7mm) | 11-4265 11-5265 | 355CA | $199.00 2 pcs - $194.00 ea 3pcs -$189.00 ea | Max: Min: 1 Step: 1 | |||
| 6"(152mm) | .020"(0.5mm) | 1/2"(12.7mm) | 11-4266 11-5266 | 455CA | $209.00 2 pcs - $204.00 ea 3pcs -$199.00 ea | Max: Min: 1 Step: 1 | |||
| 8"(203mm) | .035"(0.9mm) | 1/2"(12.7mm) | 11-4268 11-5268 | 655CA | $240.00 2 pcs - $235.00 ea 3pcs -$230.00 ea | Max: Min: 1 Step: 1 | |||
| 7"(178mm) | .025"(0.6mm) | 1/2"(12.7mm) | 11-4267 11-5267 | $245.00 2 pcs - $240.00 ea 3pcs -$235.00 ea | Max: Min: 1 Step: 1 |
23-4898ME (3041205), 23-016CBN(3030601), 23-4899ME(3051501), 23-4900ME(3062007), 23-4902ME(3083208), 23-4901ME (3072504)
Sintered (Metal Bond) diamond tools have multiple layers of diamonds impregnated inside the metal matrix. Diamonds are furnaces sintered in a matrix made of iron, cobalt, nickel, bronze, copper, tungsten, alloys of these powders or other metals in various combinations. Metal bonded diamond tools are “impregnated” with diamonds. This means that selected diamonds are mixed and sintered with specific metal alloys to achieve the best cutting performance possible on any materials such as sapphire, advanced ceramics, optics, glass, granite, tile and etc. The metal bond surrounding the diamonds must wear away to continuously keep re-exposing the diamonds for the diamond tool to continue cutting. Sintered (metal bonded) diamond tools are recommended for machining hard materials from 45 to 75 on rockwell scale (5 to 9.5 on mohe’s scale of hardness).
The newly exposed diamonds don’t effect diamonds already working on the material. Unlike many other diamond bonds, diamonds in a SMART CUT® Bond remains sharp and grow sharper with each cut, prolonging product life and consistent performance.
Diamonds or CBN Crystals are activated only at the exposed layer. As Bond Matrix layer begin to wear out, diamonds in a new Bond Matrix layer are immediately activated, substituting the already used up diamond layer. The SMART CUT® Diamond Hybrid Bond makes sure every diamond is in the right place and at the right time, working where you need it most.
This advanced formulated open diamond bond design insures minimal chipping, fast cut, constant speed of cut, minimal cutting noise, and most important of all, consistent performance.
Diamond & CBN Wafering Blades with SMART CUT® technology require minimum dressing, the bond renews itself.
Diamond & CBN Wafering Blades are produced using only the highest quality raw materials are used in manufacturing process. Utilizing world class quality control, inspection, and measurement equipment. Highly Experienced Engineers constantly monitor and control all material input & output at all stages of manufacturing process. Insuring product consistency for use in demanding & sensitive applications SMART CUT® DIAMOND & CBN wear evenly, and are known for their consistency. You will get consistent cutting speed, and overall consistent performance, with minimum amount of dressing.
Diamond & CBN Wafering Blades made utilizing SMART CUT® technology are much more aggressive than your conventional tools. They can cut faster, while still leaving behind a smooth finish free of material deformation.
In most cases Wafering Blades manufactured utilizing SMART CUT® technology, will outlast other conventional material (sintered), resin, and nickel bonded diamond & CBN Wafering Blades. SMART CUT® diamond & CBN Wafering Blades are more sturdy than Wafering Blades manufactured with conventional technologies. They are capable to retain their form and bond configuration all the way through the tools life.
SMART CUT® Diamond & CBN Wafering Blades are the best investment you can make! Although we may not always be the lowest cost solution provider. Our Diamond & CBN Wafering Blades can provide the best ROI. Designed for users that understand and appreciate quality. They will more than pay for themselves in terms of overall performance and provide best Return on Investment.
Only the highest quality synthetic diamonds and raw materials are used in the manufacturing process. The highest quality standards and product consistency is maintained, using sophisticated inspection and measurement equipment.
Optimize your application to ultimate level of efficiency
Diamond Concentration – Diamond Concentration is still a factor in determining the life and cutting speed of your Diamond Sectioning/Wafering Blade. Higher diamond concentration is recommended and usually used for cutting softer and more abrasive types of materials. However, the trade off is significantly slower cutting speed. Low diamond concentration is recommended and widely used for cutting ultra hard and brittle materials.
Low Diamond Concentration - typically low concentration wafering blades should be for cutting ultra hard and brittle materials such as ceramics and glass. In Low Concentration Wafering Blades, diamond works by fracture process. Pressure on each diamond crystal/particle is higher which provides enough stress to chip off small flakes in the cut.
High Diamond Concentration - High concentration diamond wafering blades are recommended for cutting metals, plastics and polymers. In this application, materials cut by a plowing mechanism. In this applications diamond plough through the material, work hardened strips of materials become brittle and break off. The greater number of diamond by volume, the quicker the cutting action will be. Increasing the number of diamond s also lowers the per unit force. For metals where it is possible to induce deep deformation layers, a lower per unit force is desirable to reduce the deformation during the cut.
Wafering blade thickness typically ranges from .006” to .040” (1mm). Thinner and thicker wafering blade are available, frequently from stock upon request. Kef thickness typically increases with blade diameter (in proportion to diameter of the blade). Kerf is the amount of material removed from the material/sample due to the thickness of blade passing though the material/sample. Blade thickness is important for users requiring most minimal amount of material loss during sectioning
For example if the user requires precision position of the cutting plane relative to the detail on the sample (IC circuit for example), a thinner and smaller diameter blade would be best for this application. Blades ranging from 3” to 5” (75mm to 125mm) in diameter and thickness .006” to .015” (0.2mm to 0.4mm) would be bet suited for this purpose. There are large variety of factors that will contribute to optimal blade thickness for your material/application Including your desired cutting speed, load/feed rate, material diameter, thickness, hardness, density, and shape. As well as skill & experience of the operator. Thicker wafering blades are more stiff and can whistand higher loads/feed rates. Another advantage of thicker kerf blades is they are more forgiving to operator error and abuse. Thicker kerf blade are recommended for use in environment where large number of individuals will be sharing and using same equipment. Perfect for less experienced and novice saw operators, such as in University laboratory.
.
Diamond Mesh Size plays a major role in determining your cutting speed, cut quality/surface finish, level of chipping you will obtain, and material microstructure damage you will obtain. Diamond Mesh size does have considerable effect on cutting speed. Coarse Diamonds are larger than finer diamonds and will cut faster. However, the tradeoff is increase in material micro damage. If you are cutting fragile, more delicate materials then finer mesh size diamond wafering blades are recommended.
Metal bonding offers long life and durability, while resin bonding creates less heat, provides better surface finish and is well suited for cutting hard, delicate or brittle materials.
typically wafering blade diameters range form 3” (75mm) to 8” (200mm). Wafering blade diameter should be selected based on material diameter and thickness being cut. Smaller diameter wafering blades are thinner than the larger diameter blades and are more prone to bending and warping. Although large diameter blades are thicker, they are typically used for cutting larger and heavier samples at higher loads and speeds than smaller blades
load/feed rate applied to wafering blades typically vary from 10-1000 grams. Generally, harder specimens are cut at higher loads and speeds (e.g. ceramics and minerals) and more brittle specimens are cut at lower loads and speeds (e.g. electronic silicon substrates). The Speeds/RPM’s you are using, shape/geometry of the specimen, and how the specimen is being clamped/hold in place will affect the load that can be used for your application.
Ability of the bond matrix to hold diamonds. As the hardness of the bond is increased, its diamond retention capabilities increase as well. However the trade off is slower cutting speed. Life of the diamond blade is usually increased with hardness of its bond matrix. Bonds are designated on their scale of hardness from Soft, Medium, and Hard. There are dozens of variations and classification schemes based on bond degree of hardness or softness.
Using diamond blades with optimum bond hardness for your application is important to successful precision diamond sawing operation. Bond matrix that is too soft for the material being cut will release diamond particles faster than needed, resulting in faster wear and shorter diamond blade life. On other hand bond matrix that is too hard will result in much slower cutting speeds and require constant dressing to expose the next diamond layer. As rule of thumb, harder materials such as sapphire and alumina generally require a softer bond. Whereas softer and more brittle materials require a harder bond.
Most wafering blades are used between 50 to 6,000 RPM’s Typically harder and more denser materials such as Silicon Carbide, are cut at higher RPM’s/speeds Where more brittle materials such as silicon wafers and gallium arsenide are cutting at lower RPM’s. Low Speed saws RPM’s are typically limited from 0 to 600 RPM’s. Where high speed saws offer much large variety of cutting speeds from 0 to 6,000 RPM’s.
We produce diamond consumables for some of the leading world OEM manufacturers. We offer Manufacturers Direct Prices
COMPARE TO: BUEHLER , STRUERS , LECO & MANY OTHERS
We have the largest variety of diamond & cbn wafering blades available in stock. As well as large inventory of diamond & abrasive consumables. We also custom manufacture diamond and cbn tools, consumables and machines to better fit customer specific needs. Just about any tools & consumables can be designed and manufactured per client drawing or specificrtion
WE ARE A PARTNER IN YOUR SUCCESS
Developing close ties with our customers is the foundation of our business. At the core of
our company is a team of world class engineers, knowledgeable customer service personnel here to serve you. Whether is designing or manufacturing a special solution. We will go out of our way to optimizing your process to ultimate level of efficiency
Our proprietory diamond chemistory , precision , manufacturing metods , quality control methods allow us to control and regulate the dozens of variables to that affect consumable life , quality , and consistency.
EXPECT MORE FROM YOUR TOOLS
The more you understand about what we can do for you the better our partnership will be. Here you will find most comprehensive source of information and optimizing and improving your cutting , drilling , grinding and polishing on the web. find everything you ever wanted to know about diamond tools.
AMERICAN MANUFACTURER
As one of the few remaining independent U.S.Diamond Tool & machine builders. We have the experience & tradition to help you remain at frontier of technology Our experience has been further enhanced by acquiring assets and processes from some of the oldest American tool
manufacturers, along with their decades of experience and R& D. This has positioned us as one of the most experienced companies in the industry .Depend on us to bring you technology of tomorrow today.
"ONE OF THE MOST EXPERIENCED COMPANIES IN THE INDUSTRY"
Over the years we have worked with some of the leading Fortune 500 companies , thousands of universities , government and private research labs , and small organisations. We have made thousands of custom tools , built custom machines , work-holding fixtures , etc for hundreds of applications. Many of our staff members have been working in their respective fields for over 50 years and have gained a wealth of knowledge over the years
Signup for email offers, updates, and more
25205 & 25201 Avenue Tibbits Valencia CA 91355 USA
Phone : (661) 257-2288
FAX : (661) 257 -3833
lel@ukam.com
UKAM Industrial Superhard Tools is a U.S. High Technology, Specialty Diamond Tool & Equipment manufacturer. We specialize in producing ultra thin & high precision cutting blades and precision cutting machines diamond drills, diamond micro tools, standard & custom advanced industrial diamond tools and consumables.
Shipping Methods
Safe & Secure Payments
© Copyright 1990-2024. UKAM Industrial Superhard Tools – Terms of Use
Signup for email offers, updates, and more
25205 & 25201 Avenue Tibbits Valencia CA 91355 USA
Phone : (661) 257-2288
FAX : (661) 257 -3833
lel@ukam.com
UKAM Industrial Superhard Tools is a U.S. High Technology, Specialty Diamond Tool & Equipment manufacturer. We specialize in producing ultra thin & high precision cutting blades and precision cutting machines diamond drills, diamond micro tools, standard & custom advanced industrial diamond tools and consumables.
Shipping Methods
Safe & Secure Payments
© Copyright 1990-2024. UKAM Industrial Superhard Tools – Terms of Use
No products in the Quote Basket.
No account yet?
Create an AccountSign up to receive exclusive usage recommendations, Illustrated Trouble Shooting Guides & Sales
