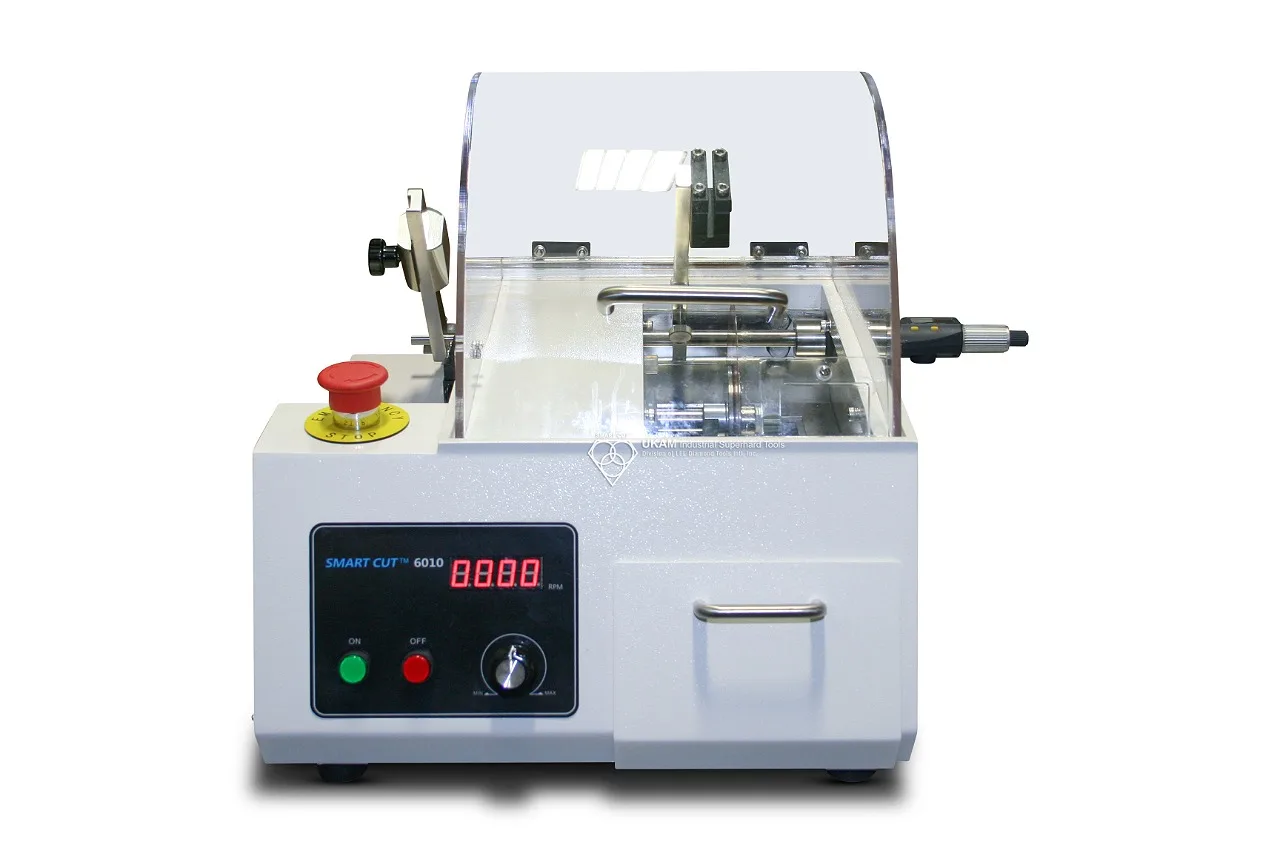

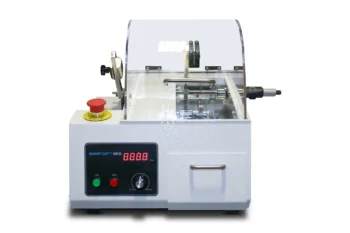

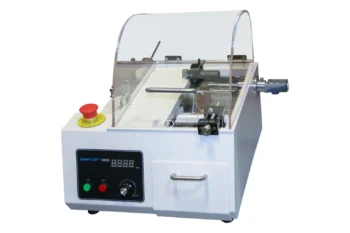

SMART CUT® 6010 is an versatile low to medium speed laboratory cutting saw that comes with a lot of options and is very affordably priced, Designed for Precision sectioning of ceramics, minerals, metals, printed circuit boards, bones, composite substrates, electronic packages, and many other materials up to 2.0″ (50mm) in diameter. The saw has powerful 1/4 HP motor, running at variable speed of 50 to 1,500 RPM’s allow for most samples to be sectioned faster then most low speed saws, with low rpm’s for fragile samples. SMART CUT 6010 has large variety of working holding fixtures to hold almost any material/sample which is already included in the price of machine.

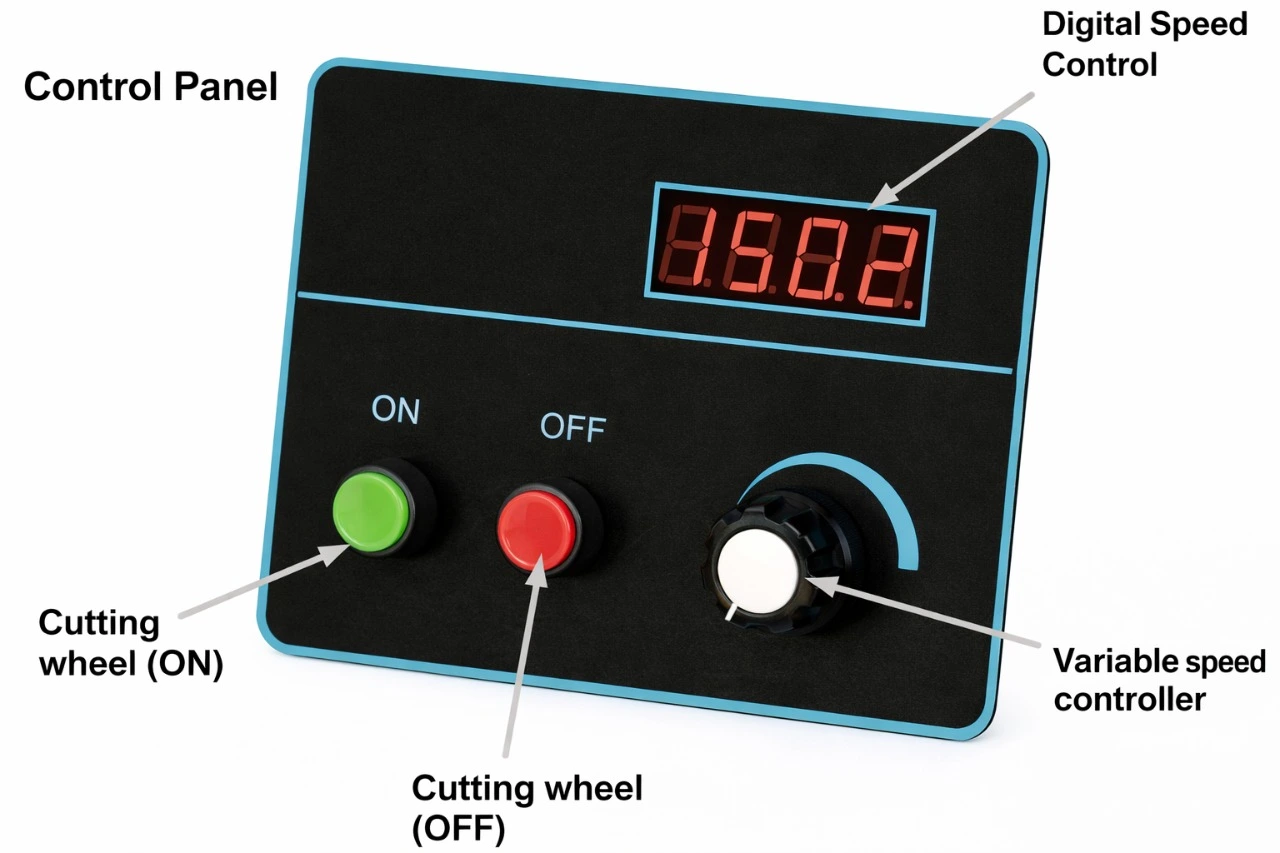

Allowing the user to adjust RPM’s to better fit sample/material being cut. Motor is designed to insure that selected speed remains constant at any load. Sectioning is done in closed environment by utilizing Plexiglas Cover. Gravity Weight Feed allows samples to be sectioned unattended (without operator presence). Most Samples / Materials can be sectioned in seconds or few minutes, with no material deformation, & preserving sample/material True Micro Structure.
The larger Speed range allows utilization of significantly larger blade specifications that can obtain equivalent or better cut quality within much shorter time period, compared to lows peed saws today. Compare to any other low or high speed brand name Sectioning / Wafering Saw.

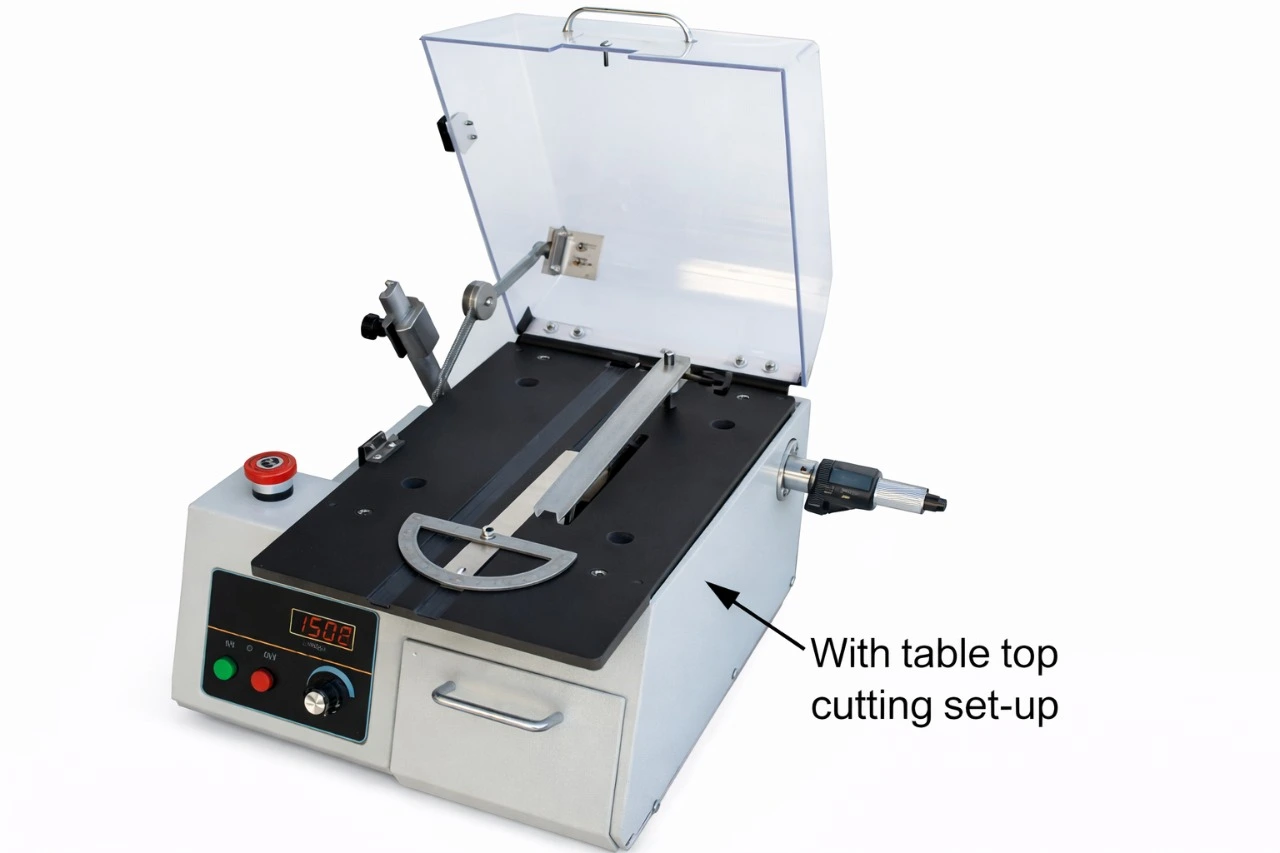

The machine comes with over 9 chucks/vices (work holding fixtures, table tope cutting set up for cutting flat samples such as pcb boards. The large variety of chucks, rpm’s range, and wafering blade specs available for this machine, makes one of the most universal and affordable cutting machines on the market.
SMART CUT® 6010 is very easy to use compared to most low or medium speed saws. No complex programs or controls to learn or restrict your sectioning operation. The larger variety of chucks and vices and cutting table that is included as standard with the price of machine makes it currently The Best Value on the Market Today.
Cutting Action: Gravity & Linear Feed
Motor Power: 1/4 HP (125 w – 50/60 hz)
RPM’s (Variable Speed) : 50-1,500 rpm
Wafering & Abrasive Blade Diameters: 3” (75mm) to 7” (175mm)
Blade Thickness: .004″ (0.10mm) to .075″ (1.9mm)
Coolant Capacity: 1/2″ gallon (1.9 liters)
Load Capacity: 0 to 1,500 grams
Micrometer Feed: 0 to 1” (0 to 25.4mm)
Electrical Specifications: 110v/220v single phase
Cutting Capacity: 2” (50.8mm)
Arbor: ½” (12.7mm)
Shipping Weight: 66 lb
Dimensions: 16″ x 16″ x 13″
INDUSTRIES USED IN:
Ferrous & Non-Ferrous Metals:
The SMART CUT® 6010 is designed for precision sectioning of various materials including ceramics, minerals, metals, PCBs, bones, electronic packages, and more.
It offers a more extensive speed range and accommodates larger blade specifications, allowing for faster sectioning with equal or better cut quality.
The saw runs at a variable speed of 50 to 1,500 RPM.
Yes, it has low RPM settings specifically designed for sectioning fragile samples without causing deformation.
The machine comes with over 9 different chucks/vices for holding various material and sample types.
The saw can section materials up to 2.0″ (50mm) in diameter.
Yes, besides the SMART CUT Diamond Wafering Blades, it is compatible with other manufacturers’ diamond wafering blades and abrasive cut-off blades.
It can use wafering and abrasive blade diameters ranging from 3” (75mm) to 7” (175mm).
Sectioning is done in a closed environment with a Plexiglas Cover. The Gravity Weight Feed allows for unattended sectioning.
Yes, it has a coolant capacity of 1/2″ gallon (1.9 liters).
The SMART CUT 6010 is designed to be user-friendly with no complex programs or controls, making it suitable for both beginners and experienced users.
It operates on 110v/220v single phase.
Yes, the machine utilizes both Gravity & Linear Feed for the cutting action.
The saw ensures that most samples can be sectioned within seconds or a few minutes without material deformation, preserving the sample’s true microstructure.
The shipping weight is 66 lb.
Yes, there are various chucks and vices available, and you can contact the manufacturer or distributor for specific requirements.
The motor is designed to ensure that the selected speed remains constant, irrespective of the load.
The document doesn’t mention a specific warranty, but it’s advisable to contact the manufacturer or distributor for warranty and service details.
Regular cleaning after use and checking the coolant levels are essential. For detailed maintenance procedures, it’s best to refer to the user manual.
Depending on the size and the chuck used, it’s possible to section multiple smaller samples simultaneously.

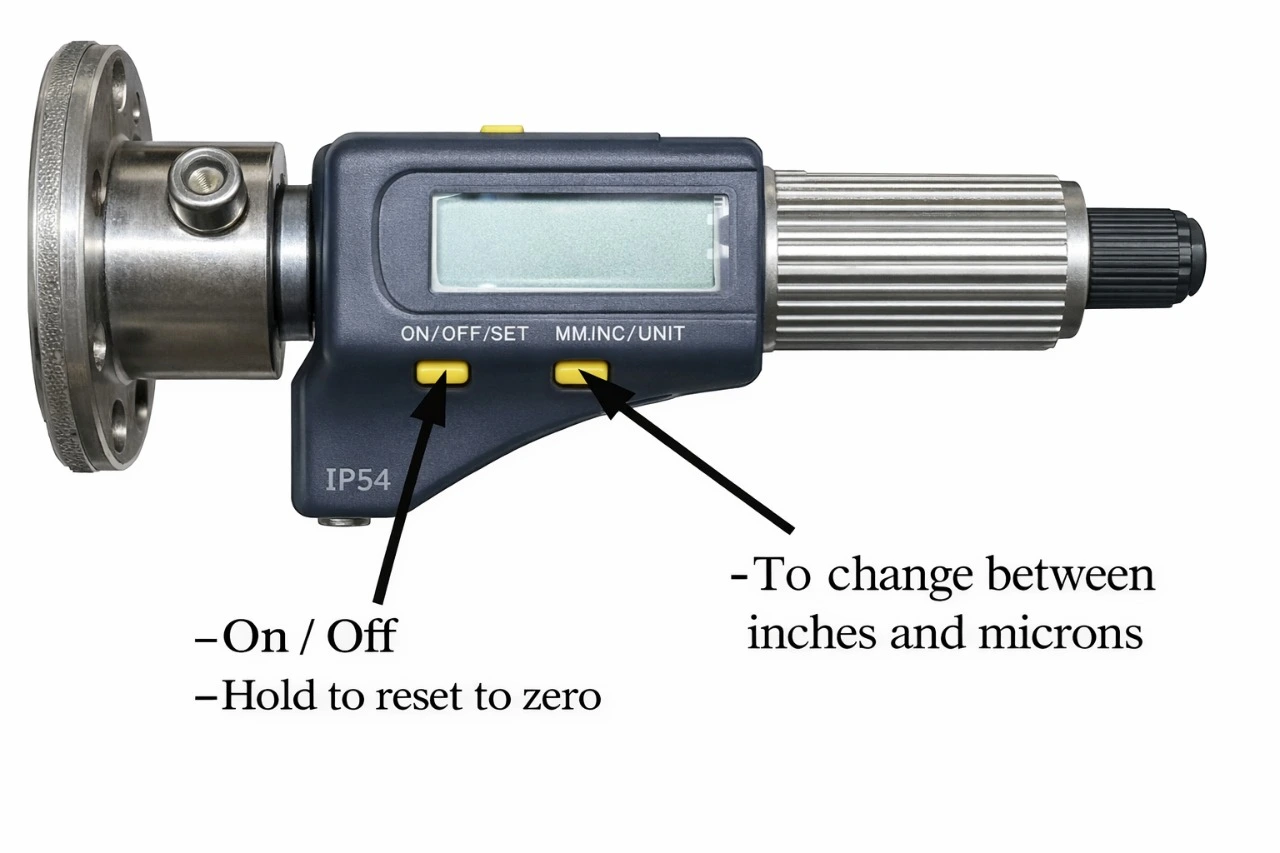

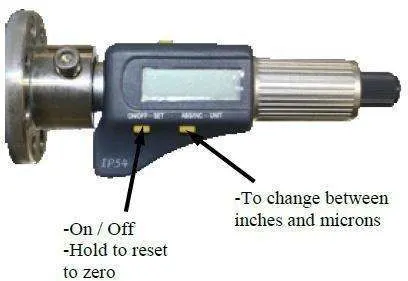

The Micrometer Feed allows for precision adjustments in the cutting depth, ranging from 0 to 1” (0 to 25.4mm), ensuring accurate and consistent sectioning.
The SMART CUT® 6010 comes equipped with specialized chucks, like the specimen vise for irregular shaped specimens, to cater to a variety of shapes and sizes.
Due to its versatile design and rapid sectioning capabilities, the SMART CUT® 6010 is suitable for both high-volume labs and occasional usage.
Yes, the machine sections in a closed environment using a Plexiglas Cover, ensuring user safety during the cutting process.
The choice of RPM will depend on the material’s hardness and fragility. Typically, harder materials might require higher RPMs, while fragile samples might need a lower RPM setting. It’s always best to refer to the user manual or consult with experts for specific recommendations.
While the document does not specify a particular coolant, it’s essential to use coolants compatible with the materials being cut. Checking the user manual or consulting the manufacturer can provide clearer guidelines.
The SMART CUT® 6010 is designed to work with blade diameters ranging from 3” (75mm) to 7” (175mm). Using blades outside of this range is not recommended.
 Item No: Prize: $0.00 |
Download Operating Manuals

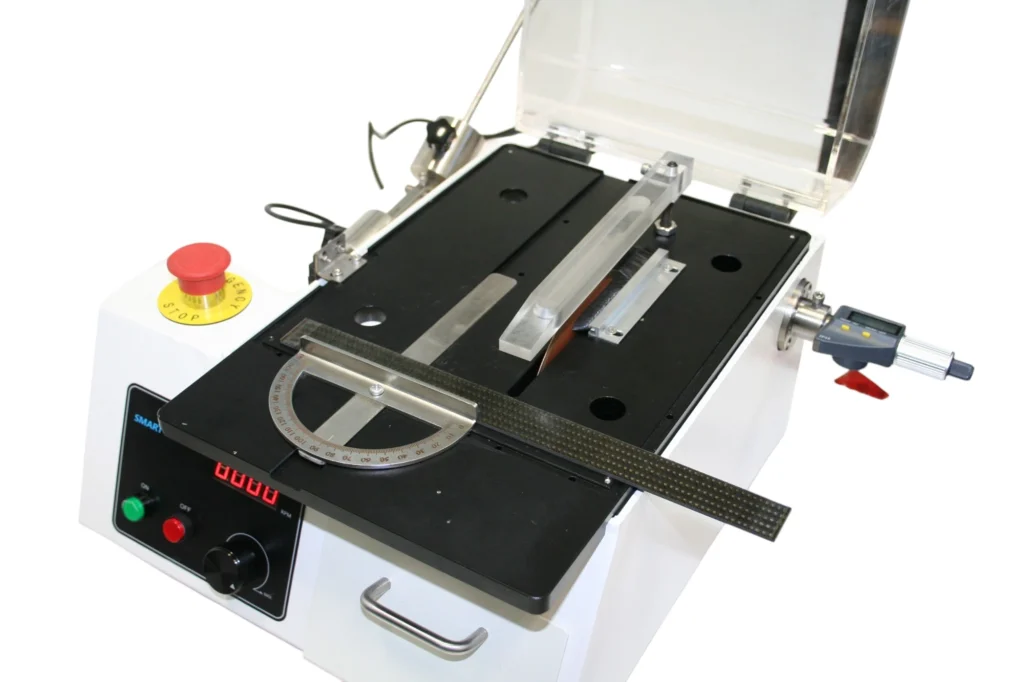

The Table Saw Attachment is a precision workholding accessory designed for use with low to medium-speed diamond saws. It enables controlled sectioning, trimming, and angled cutting of larger flat workpieces such as printed circuit boards, ceramic substrates, composite panels, and other hard or brittle materials. The attachment provides a stable, flat cutting surface that ensures straight, repeatable cuts with high accuracy.
Made from corrosion-resistant materials, it offers rigid support that minimizes vibration and chatter. It features an integrated guide or adjustable fence system for clean, parallel or angled cuts. The large work area supports samples up to 1″ in size, including PCBs, ceramic tiles, and glass substrates.
Designed for manual trimming applications, this attachment is easy to use and requires minimal setup. It’s ideal for jobs that demand operator control and flexibility, especially when cutting fragile or miniature parts.
Installation is quick and tool-friendly, with a bolt-on design that fits most saws. It requires no machine modifications. The attachment helps reduce breakage and chipping by fully supporting the sample during the cut.
This tool is widely used in R&D, prototyping, and light production for trimming, cross-sectioning, and sample preparation in microelectronics, MEMS, and materials research.
Best of all, the Table Saw Attachment is offered at a fraction of the cost of similar machines in its class, making it a cost-effective solution for achieving precision cuts in hard materials.
| Item Number | Description | Picture |
| 8054010 | Sectioning Saw with 0.5 inch arbor, 0.25 hp motor, integral coolant reservoir, gravity & manual table feed, 110V & 220v includes, (9) nine chucks (1) micrometer, (1) dressing fixture, (1) one Wafering Blade any specification, one (1) dressing stick, one (1) quart of SMART CUT water soluble coolant or mineral oil |  |
| Ukam60010-1 | Universal single saddle vise Universal single saddle vise to securely hold samples during cutting operations. This vise provides stable clamping and accurate positioning, helping improve cut precision and repeatability. |  |
| Ukam60010-2 | 1.25-inch Round holder The 1.25 inch round holder is used to securely clamp round or cylindrical samples during sectioning operations. It holds rods, tubes, and round specimens firmly in place to maintain alignment and prevent movement during cutting. |  |
| Ukam60010-3 | Specimen vise for adhering specimens The specimen vise for adhering specimens is used to securely hold small samples that are bonded or mounted onto a surface during sectioning. It provides stable support and alignment, helping ensure accurate and controlled cuts without shifting of the specimen. |  |
| Ukam60010-4 | Specimen vise for irregular shaped specimens The specimen vise for irregular shaped specimens is used to securely hold samples with uneven or non uniform shapes during cutting. Adjustable clamping elements allow the specimen to be firmly stabilized to prevent movement and maintain accurate alignment |  |
| Ukam60010-5 | Tear Drop chuck The tear drop chuck is used to secure very small or delicate specimens that cannot be clamped with a standard vise. The teardrop shaped recess supports the sample, often using wax or mounting compound to hold it in place. This allows stable positioning and accurate cutting of fragile or thin materials. |  |
| Ukam60010-6 | Fastener vise for longitudinal sectioning for fasteners, tubes etc The fastener vise is used to securely hold small cylindrical components such as fasteners, pins, rods, and small tubes for longitudinal (axial) sectioning. The fixture aligns the part along the cutting direction to maintain stability and prevent movement during cutting. |  |

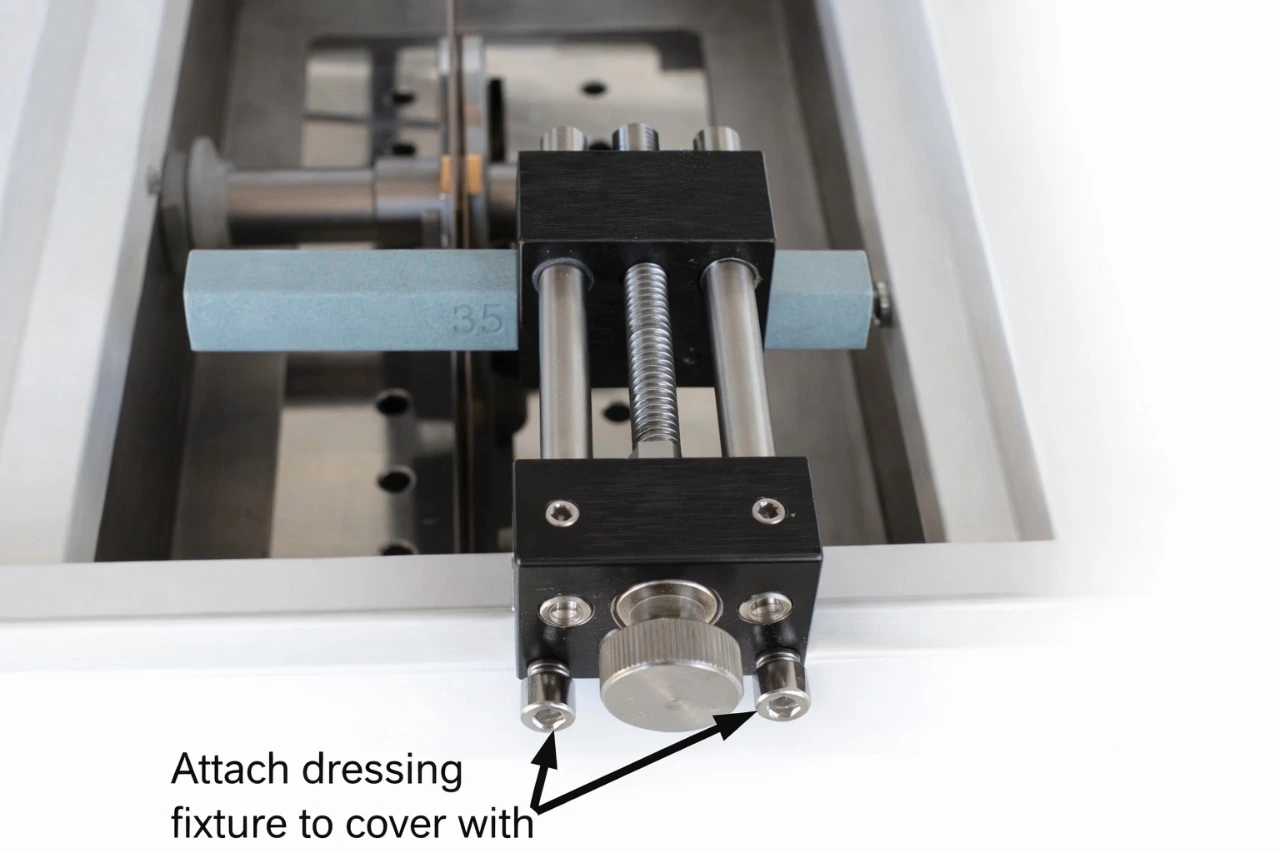

| Ukam60010-7 | Wafering blade dressing fixture The wafering blade dressing fixture is used to dress and condition diamond wafering blades. It holds a dressing stick that is gradually fed into the rotating blade to remove loaded bond material and expose fresh diamond particles. |  |
| Ukam60010-8 | Large single saddle Universal Vise The large single saddle vise is used to securely hold cylindrical or irregular shaped samples during cutting. The V-shaped saddle supports the specimen and prevents it from rolling while the blade passes through. This fixture provides stable alignment and is commonly used for rods, pins, tubes, fasteners, and other round samples during precision sectioning. |  |
| Ukam60010-9 Ukam60010-10 | Flanges 50mm and Flanges 100mm The 50 mm & 100 mm flanges are used to securely mount wafering blades onto the saw spindle. These precision flanges provide uniform clamping pressure across the blade surface to maintain blade stability and minimize runout during cutting. |  |
| UKAMLS016 | Water Soluble Coolant or Mineral Oil (1 quart) 1 quart of SMART CUT water soluable coolant (advanced materials) formula or Mineral Oil (your choice) mix ration 1:20 (1 part coolant, 20 parts water) will make 5.7 gallons of coolant |  |
| Select Right Wafering Blade for your application | Diamond or CBN or Abrasive Wafering Blade (your choice) 6″ x .020″ x 1/2″ Diamond or CBN Wafering Blade. Sintered (metal bond) any specification. How to select the Right Diamond Wafering Blade for your application >>> |  |
Dressing Stick for any blade specification Dressing Stick (1/2″ x 1/2″ x 6″) alumina oxide white color 120, 220, or 320 grit (depending on your blade selection) |  |
Your choice of one (1) quart of SMART CUT® Water Soluble Coolant or Mineral Oil is included with machine. SMART CUT® Water Soluble Coolant Reduces material thermal stress, edge damage, and internal cracking, increases blade life, provides better cut quality, preserves material micro structure
Hence, assuring long-term integrity of material being sectioned. Since SMART CUT® coolant is both a coolant and lubricant, both the wafering blade and material benefit. Mix ratio is 1:20 (1 part coolant, 20 parts water) on very hard and dense materials and 1:40 (1 part coolant, 40 parts water) on softer materials. Depending on mix ratio 1 quart will produce 5.7 to 9 gallons of coolant when mixed with water. As a coolant, SMART CUT® KOOL reduces heat caused by friction. As a lubricant, SMART CUT® KOOL lowers friction and surface tension, which increases swarf dispersion.
one (1) diamond wafering blade any specification is included FREE OF CHARGE with purchase of any machine (any specification). we have almost unlimited number of diamond & CBN wafering blade specifications in stock available for immediate delivery. Available in different sizes, thickness, arbor sizes, diamond concentrations, diamond mesh sizes, and bond hardness’s. With several thousand unique blade specification in stock not listed on our standard stock program. This insures you will receive the best blade specification possible for your specific application.
One (1) dressing stick is included with the purchase of any machine free of charge. The dressing stick we supply is similar to the diamond size of the wafering blade you have chosen (or we recommended) for your application. Wafering Blades must be diamonds particles/crystals exposed properly through frequent dressing. Otherwise, the diamond tool will glaze over. They will begin to tear rather than grind which is very destructive. Tearing caused from unexposed diamonds creates friction. This causes uneven wear and/or heat cracks in the wafering blade and/or material being cut. Resulting in premature blade wear, blade tensioning problems, and will eventually destroy the blade. The more frequently the blade is dressed the freer and cooler it will cut with lot more consistency.
