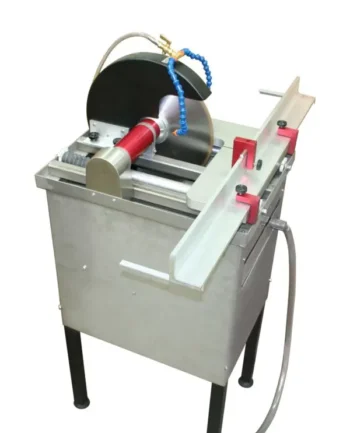

SMART CUT® 2001 Designed for precision cutting at an affordable price. Many years of experience of cutting tubes and rods made from glass, quartz, ceramics, carbides, semiconductor materials, composites, hard metals, stainless steels and other materials led to the development of this machine.
wheels. Proven to be durable, reliable and economical. Can be used with thin diamond slicing blades for delicate cutting with minimum chipping. 12” diameter diamond slicing blades can be as thin as 0.040″ TH. Accepts Diamond Slicing Blades and Abrasive Cut off Wheels up to 14″ (350mm) in diameter. Stainless steel catch tray beneath the cutting wheel is easily removable. Work Fence easily adjusted to angle cuts an also easily moved closer to spindle housing to allow cutting of tubing, rods, and irregular shape materials when diamond wheel wears down to smaller diameter. Made in USA
INDUSTRIES USED IN:
Ferrous & Non-Ferrous Metals:
The SMART CUT® 2001 is designed for precision cutting of various materials, including glass, quartz, ceramics, carbides, and stainless steels, among others.
Professionals working with tubes and rods made of various materials, particularly those in the semiconductor, ceramics, and metals industries, will find this machine beneficial.
It offers precision cutting capabilities at an affordable price point, making it a valuable tool for both industrial and laboratory applications.
Yes, when paired with thin diamond slicing blades, the machine can perform delicate cuts with minimal chipping.
It accepts Diamond Slicing Blades and Abrasive Cut off Wheels up to 14″ (350mm) in diameter.
The machine can use diamond slicing blades as thin as 0.040″ TH.
Yes, there’s a stainless steel catch tray beneath the cutting wheel, which is easily removable for cleaning and maintenance.

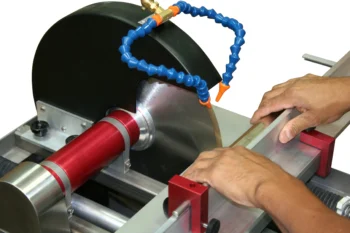

Yes, the Work Fence can be easily adjusted for angle cuts, allowing for varied cutting profiles.
The Work Fence can be moved closer to the spindle housing, enabling the cutting of tubing, rods, and irregularly shaped materials even as the diamond wheel diminishes in size.
It can handle wheels ranging from 12” to 14” (300mm to 350mm).
The machine offers a maximum depth of cut of 5.0” (125mm).
The table has a stroke of 5”.
It uses a 1 HP motor with 11vac (TEFC).
Yes, the machine comes with adjustable legs, allowing for a table height ranging from 36” to 42”.
It’s essential to regularly clean the stainless steel catch tray and inspect the blades for wear. Further maintenance details would be available in the machine’s user manual.
Yes, the machine is compatible with both Diamond Slicing Blades and Abrasive Cut off Wheels.
While the machine is designed for ease of use, initial training or a detailed review of the user manual is advisable for optimal and safe operation.
With its design rooted in many years of experience, the machine is proven to be durable, reliable, and economical for regular heavy-duty tasks.
The machine is equipped with a 1 HP motor, rated at 11vac (TEFC).
The machine comes with safety features standard to precision cut-off machines.
The table stroke, at 5”, indicates the range of movement for the table. It’s essential for understanding the flexibility and range of the machine when handling different materials.
The SMART CUT® 2001 is specially designed from years of experience with materials like glass, quartz, ceramics, and more. Its ability to use thin diamond slicing blades offers precise cuts with minimal chipping.
Regularly cleaning the stainless steel catch tray and checking the blade for wear are basic maintenance tasks. For a detailed maintenance schedule, it’s advised to consult the operating manual.
While precision equipment usually performs best in controlled environments, specific requirements should be detailed in the operating manual.
Yes, the table height is adjustable with legs ranging from 36” to 42”.
Download Operating Manuals
Your choice of one (1) quart of SMART CUT™ Water Soluble Coolant or Mineral Oil is included with machine. SMART CUT™ Water Soluble Coolant Reduces material thermal stress, edge damage, and internal cracking, increases blade life, provides better cut quality, preserves material micro structure
Hence, assuring long-term integrity of material being sectioned. Since SMART CUT coolant is both a coolant and lubricant, both the wafering blade and material benefit. Mix ratio is 1:20 (1 part coolant, 20 parts water) on very hard and dense materials and 1:40 (1 part coolant, 40 parts water) on softer materials. Depending on mix ratio 1 quart will produce 5.7 to 9 gallons of coolant when mixed with water. As a coolant, SMART CUT KOOL reduces heat caused by friction. As a lubricant, SMART CUT KOOL lowers friction and surface tension, which increases swarf dispersion.
one (1) diamond wafering blade any specification is included FREE OF CHARGE with purchase of any machine (any specification). we have almost unlimited number of diamond & CBN wafering blade specifications in stock available for immediate delivery. Available in different sizes, thickness, arbor sizes, diamond concentrations, diamond mesh sizes, and bond hardness’s. With several thousand unique blade specification in stock not listed on our standard stock program. This insures you will receive the best blade specification possible for your specific application.
One (1) dressing stick is included with the purchase of any machine free of charge. The dressing stick we supply is similar to the diamond size of the wafering blade you have chosen (or we recommended) for your application. Wafering Blades must be diamonds particles/crystals exposed properly through frequent dressing. Otherwise, the diamond tool will glaze over. They will begin to tear rather than grind which is very destructive. Tearing caused from unexposed diamonds creates friction. This causes uneven wear and/or heat cracks in the wafering blade and/or material being cut. Resulting in premature blade wear, blade tensioning problems, and will eventually destroy the blade. The more frequently the blade is dressed the freer and cooler it will cut with lot more consistency.
