SMART CUT® 6040
PRECISION CUTTING SAW
SMART CUT® 6040 is a Modern Precision Laboratory Cutting Saw that can accommodate large variety of material shapes, sizes and applications. A wide range of material sample holding fixtures/chucks and rotating vises included as standard with each machine and table cutting attachment, allow the SMART CUT® 6040 to provide proper fixturing of large variety of samples and materials.
DESCRIPTION
SPECIFICATIONS
ADVANTAGES
INDUSTRIES USED IN
FAQ
OPERATING MANUALS
ACCESSORIES
DESCRIPTION
SMART CUT® 6040 is an versatile low to medium speed laboratory cutting saw that comes with a lot of options and is very affordably priced, Designed for Precision sectioning of ceramics, minerals, metals, printed circuit boards, bones, composite substrates, electronic packages, and many other materials up to 2.0″ (50mm) in diameter. The saw has powerful (400W) 0.53 HP motor, running at variable speed of 50 to 1,500 RPM’s allow for most samples to be sectioned faster then most low speed saws, with low rpm’s for fragile samples. The HMI display allows the operator to adjust the RPMs.
SMART CUT® 6040 is very easy to use compared to most low or medium speed saws. No complex programs or controls to learn or restrict your sectioning operation. The larger variety of chucks and vices and cutting table that is included as standard with the price of machine makes it currently The Best Value on the Market Today
SMART CUT® 6040 The machine comes with 8 chucks/vices and table top cutting set up for cutting flat samples such as pcb boards. The large variety of chucks, rpm’s range, and wafering blade specs available for this machine, makes one of the most universal and affordable cutting machines on the market
SMART CUT® 6040 has a fully enclosed cutting compartment. The transparent hood can be removed and replaced when sectioning larger material lengths that require greater clearance the removable coolant tray is accessible from the side of the machine for fast cleaning and easy retrieval of cut samples.
The machines large RPM range from 50 to 1,500 RPM. Allow sectioning of larger variety of materials and use for more diamond wafering blade “Bond Types” & Specifications then normally possible on similar type precision cutting saws. In addition to the standard “Sintered (metal bond) Wafering Blades” that are normally used for most sectioning applications. The higher RPM range allows use for nickel bond & resin bond wafering blades (abrasive blades as well).
SPECIFICATIONS
SMART CUT® 6040 allows for most Samples / Materials can be sectioned in seconds or few minutes, with no material deformation, & preserving sample/material True Micro Structure. The larger Speed range allows utilization of significantly larger blade specifications that can obtain equivalent or better cut quality within much shorter time period, compared to lows peed saws today. Compare to any other low or high speed brand name Sectioning / Wafering Saw
- Arbor Size: 1/2″ (12.7mm)
- Min Display: 0.01mm
- Weight: 30 kgs
- Horse Power of Motor: 400W
- Machine Dimensions (W x D x H): 575mm x 530mm x 400mm
- Effective operating speed (RPM’s): 50 to 1,500 RPM
- Power Supply: 110v / 220v
- Micrometer Feed: 0 to 25mm
- Cutting Action: Gravity Weight Feed & Manual Linear Feed
- Load Pressure: 0 to 700 g
- Blade Diameter: 5″ (125mm) to 6″ (150mm)
- Blade Thickness: .010″ (0.254mm) to .060″ (1.52mm)
- Blade Bond Types: Sintered (metal bond), Resin Bond, Nickel bond
ADVANTAGES
- Accommodates Diverse Materials: Designed to handle a vast range of materials, including ceramics, minerals, metals, printed circuit boards, bones, and more, ensuring versatility in application.
- Extensive Fixturing Options: The machine comes standard with various sample holding fixtures/chucks and rotating vises, ensuring secure and proper fixturing of different shapes and sizes of samples.
- Affordable & Comprehensive: Despite its array of features and capabilities, it’s very affordably priced, delivering high value for its cost.
- Powerful & Efficient: The 0.53 HP motor (400W) offers a wide RPM range (50 to 1,500 RPM), ensuring faster sectioning for most samples and accommodating delicate samples with lower RPMs.
- Intuitive HMI Display: Adjusting the RPMs and operating the machine is made easier with a user-friendly HMI display, ensuring straightforward operations.
- Flexibility in Blades: The machine can utilize various wafering blade specifications, including sintered (metal bond), nickel bond, and resin bond wafering blades, providing flexibility in cutting different materials.
- Rapid & Precise Sectioning: Materials can be sectioned quickly without deformation, preserving their true microstructure. This rapid cutting ability is enhanced by its extensive speed range and blade specifications.
- Safe & Convenient Design: A fully enclosed cutting compartment with a removable transparent hood allows for safe operation and accommodates larger materials. Plus, the side-accessible coolant tray ensures easy cleaning and sample retrieval.
- Broad Specifications Range: The machine supports a wide range of blade diameters, thicknesses, and bond types, catering to various sectioning requirements.
- Simplicity & Versatility: The SMART CUT® 6040 offers easy operations without needing to learn complex controls or programs. Its inclusive range of chucks, vices, and RPM options positions it as one of the most versatile and cost-effective cutting machines available.
INDUSTRIES USED IN
INDUSTRIES USED IN:
- Advanced Ceramics
- Composites
- Glass
- Geology
- Quartz
- Materials Research
- Medical Devices
- Metallography
- Photonics / Optics
- Semiconductor
Ferrous & Non-Ferrous Metals:
- Plain Carbon Steels
- Electronic Packages
- Stainless Steels Plastics
- Tool Steels Fasteners
- Aluminum Refractories
- Copper Base Alloys Integrated Circuits
- Magnesium Thermal Spray Coatings
- Titanium Metal Matrix Composites
- Biomedical Wafers
- Petrographic
- PCB.s Ceramics
FAQ
It’s a Modern Precision Laboratory Cutting Saw designed for sectioning a wide range of materials with high precision.
Its versatile low to medium speed, affordability, and the variety of included chucks, vices, and cutting table make it a unique choice on the market.
The machine is suitable for ceramics, minerals, metals, printed circuit boards, bones, composite substrates, electronic packages, and more, up to 2.0″ (50mm) in diameter.
It has a robust 400W (0.53 HP) motor.
Yes, the machine runs at a variable speed from 50 to 1,500 RPMs, allowing both fast cutting and low RPMs for fragile samples.
Absolutely, it’s straightforward to use with no complex programs or controls to navigate.
The machine includes 8 chucks/vices and a table top cutting set-up suitable for flat samples like PCB boards.
Yes, it has a fully enclosed cutting area with a removable transparent hood for accommodating larger material lengths.
The coolant tray is accessible from the side, making it easy for cleaning and retrieval of cut samples.
Yes, in addition to the standard sintered (metal bond) wafering blades, the machine is compatible with nickel bond & resin bond wafering blades.
The arbor size is 1/2″ (12.7mm).
The machine weighs 30 kgs.
Its dimensions are 575mm x 530mm x 400mm (W x D x H).
The HMI touch screen control provides an intuitive interface for managing all machine functions.
Yes, it features an automatic cut-off switch for safety and precision.
It comes with a pair of flanges, a diamond wafering blade of your choice, a dressing stick, and a quart of SMART CUT water-soluble coolant.
Regular use of the included dressing stick can help maintain the blade’s performance.
While primarily designed for laboratory precision cuts, the machine can be used for lager variety of industrial applications
Basic training is recommended for optimal and safe operation, but its user-friendly design makes it easily accessible to most users.
Regular cleaning of the removable coolant tray and checking of the blade and fixtures will ensure long-lasting performance. Always refer to the user manual for detailed maintenance instructions.
The machine comes with an enclosed cutting compartment, a transparent removable hood for visibility, and an automatic cut-off switch for enhanced safety during operations.
Yes, the HMI display provides a digital readout, allowing operators to adjust and monitor the RPMs accurately.
The machine includes a quart of SMART CUT water-soluble coolant. It’s advisable to use this recommended coolant for optimal performance.
Utilize the wide RPM range to match the material’s hardness, ensure proper blade selection, and adjust the load pressure as per the sample’s requirements.
Yes, depending on the size of the samples and the chosen fixture/chuck, you can section multiple samples at once. Always ensure samples are securely fixed to prevent any damage.
Regular blade dressing using the included stick will help maintain the blade. If damage occurs, consult the manufacturer’s guidelines for replacement.
The machine allows a load pressure ranging from 0 to 700 g.
Absolutely, with its versatile blade thickness range from .004″ (0.1mm) to .060″ (1.52mm), it can manage both thin and thick samples effectively.
The machine comes with a pair of flanges for blade mounting. Ensure you follow safety guidelines and instructions from the manual during blade replacement.
The choice of blade bond type (Sintered, Resin, Nickel) often depends on the material you’re sectioning. Consult the user manual or manufacturer’s guidelines for recommendations.
The machine can operate on both 110v and 220v power supplies, making it versatile for various regions.
Yes we provide technical support over email, phone, and video conferencing
The machine already includes a range of accessories, replacement parts are readily available.
The SMART CUT® 6040 is known for its affordability, versatility, and inclusion of various fixtures and chucks. Perfect for organizations on a Budget.
OPERATING MANUALS
ACCESSORIES
Tab Content

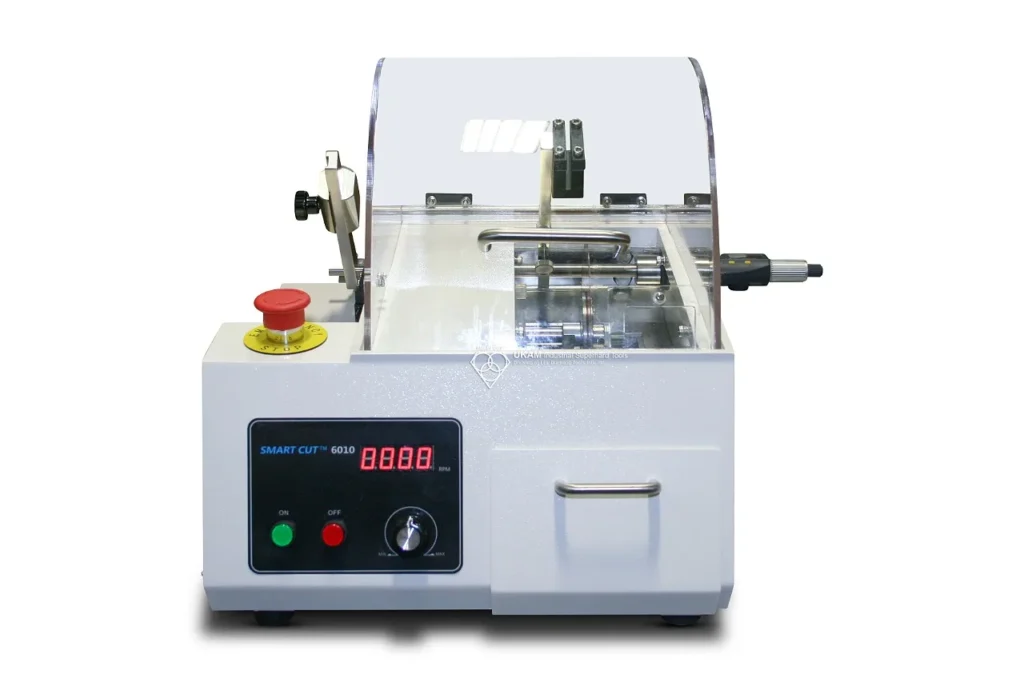

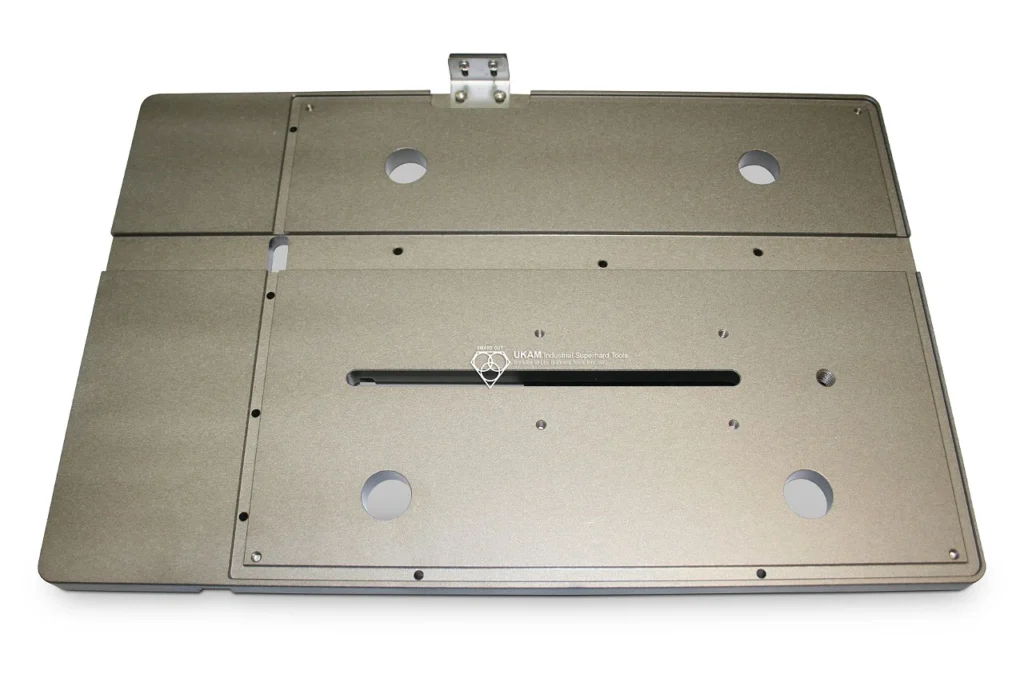

8 chucks/holding fixtures and table saw cutting attachment is included with each machine

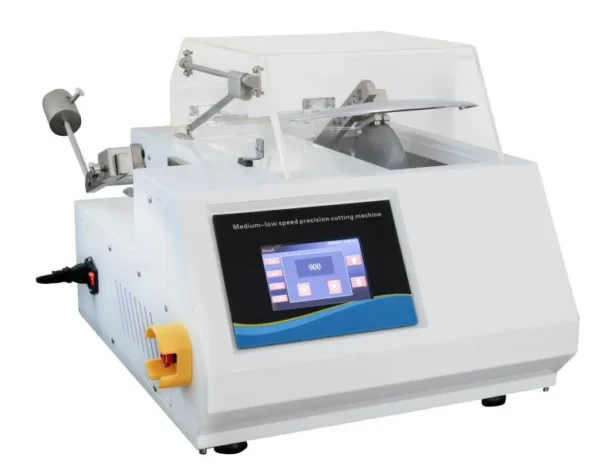

SMART CUT® 6040 Precision Laboratory Saw, with automatic cut off switch, counterbalanced sliding load weight system 0 to 700 gm, with HMI touch screen control, removable coolant tray, 400w DC motor with variable speed 50 to 1,500 RPM. includes one (1) pair of flanges, diamond wafering blade any specification (your choice), pair of flanges, one (1) dressing stick, one (1) quart of SMART CUT water
SMART CUT® Coolants
Your choice of one (1) quart of SMART CUT® Water Soluble Coolant or Mineral Oil is included with machine. SMART CUT® Water Soluble Coolant Reduces material thermal stress, edge damage, and internal cracking, increases blade life, provides better cut quality, preserves material micro structure
Hence, assuring long-term integrity of material being sectioned. Since SMART CUT coolant is both a coolant and lubricant, both the wafering blade and material benefit. Mix ratio is 1:20 (1 part coolant, 20 parts water) on very hard and dense materials and 1:40 (1 part coolant, 40 parts water) on softer materials. Depending on mix ratio 1 quart will produce 5.7 to 9 gallons of coolant when mixed with water. As a coolant, SMART CUT KOOL reduces heat caused by friction. As a lubricant, SMART CUT KOOL lowers friction and surface tension, which increases swarf dispersion.
Largest Selecting Of Diamond & Cbn Wafering Blades Avaialble
one (1) diamond wafering blade any specification is included FREE OF CHARGE with purchase of any machine (any specification). we have almost unlimited number of diamond & CBN wafering blade specifications in stock available for immediate delivery. Available in different sizes, thickness, arbor sizes, diamond concentrations, diamond mesh sizes, and bond hardness’s. With several thousand unique blade specification in stock not listed on our standard stock program. This insures you will receive the best blade specification possible for your specific application.
The Right Dressing Stick For Your Application
One (1) dressing stick is included with the purchase of any machine free of charge. The dressing stick we supply is similar to the diamond size of the wafering blade you have chosen (or we recommended) for your application. Wafering Blades must be diamonds particles/crystals exposed properly through frequent dressing. Otherwise, the diamond tool will glaze over. They will begin to tear rather than grind which is very destructive. Tearing caused from unexposed diamonds creates friction. This causes uneven wear and/or heat cracks in the wafering blade and/or material being cut. Resulting in premature blade wear, blade tensioning problems, and will eventually destroy the blade. The more frequently the blade is dressed the freer and cooler it will cut with lot more consistency.
