SMART CUT® 6001
Sectioning Saw

The saw can section a wide variety of materials including PCB Boards, Copper Lead Frames, Silicon Wafers, Optical Glass, Ferrite Chunks, and many more.

The SMART CUT® 6001 XP Saw is very affordably priced and is considered the most affordable entry-level laboratory cutting saw on the market today.

It can section materials up to 1.75″ (44.45mm) in diameter.

The saw boasts a 1/4 HP motor.

The speed can be varied from 400 to 3,000 RPM.

The SMART CUT® 6001 XP offers longer sample sectioning capabilities than typically available for saws of the same footprint, especially when compared to low-speed saws.

The coolant is stored below and is applied to the sample by rotating the blade.

The saw table measures 15″ x 9″ and has no inhibiting lip.

1. • The motor is specially designed to ensure that the selected speed remains constant at any load.

This feature allows samples to be sectioned unattended, without the presence of an operator. The gravity weight propels the sample positioned in the vise into the rotating blade, and the weight can be adjusted based on the material’s properties.

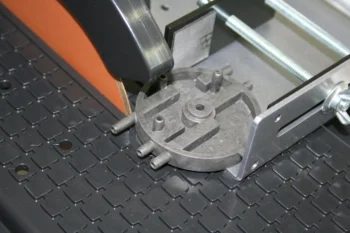

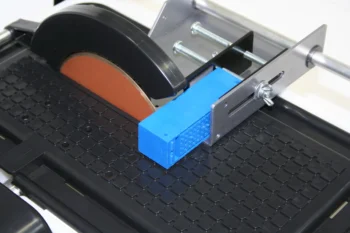

The vice assembly is an adjustable guide that clamps the workpiece securely in place. It allows for accurate precision cuts and can be easily adjusted to accommodate a variety of material sizes and shapes.

The adjustable table rip fence is suitable for repeatable, guided sectioning of all types of materials in manual free-hand cutting applications.

The polycarbonate polymer cover is designed to keep the cutting area fully enclosed while allowing the operator to monitor the cutting process.

The flanges provide support and stiffness to the blade, preventing it from losing tension and flatness.

The saw can accommodate Wafering & Abrasive Blade Diameters of 4″, 5″, 6″, and 7″.

Yes, besides SMART CUT Diamond Wafering Blades, blades from other manufacturers can also be used.

The shipping weight is 24 lbs, and the dimensions are 20″ x 20″ x 12”.

The saw is affordable, easy to use, versatile for various materials, compact, has a powerful motor, and a straightforward design that allows the operator to focus on sectioning rather than operating the machine.

The housing is made from unbreakable cross-linked polyethylene and is guaranteed for life.

With the largest work surface area in its class and a cutting table measuring 6″ x 10″, this saw is well-suited for larger samples that may not fit into standard fixtures.

The design of the SMART CUT® 6001 XP is straightforward, reducing operator error and extensive training. However, for optimal performance and safety, familiarizing oneself with the user manual is recommended.

The saw is designed to withstand extensive use and requires minimal maintenance. However, regular cleaning and inspection are advisable to ensure its longevity.

The size of the table and vice assembly allows for sectioning of large samples. However, sectioning multiple samples simultaneously depends on their size and the required precision.

The housing, made from unbreakable cross-linked polyethylene, is guaranteed for life. For other parts and service terms, please check the product warranty details.

The saw’s gravity weight feed feature, combined with its versatile speed settings, ensures materials are sectioned without deformation while preserving their true microstructure.

Yes, the saw comes with a full enclosure (cover) to protect the operator from debris during cutting, and the Plexiglas cover allows for monitoring while ensuring safety.

The SMART CUT® 6001 XP Saw provides equal or better cut quality on most applications compared to fully automatic sectioning saws, but at a fraction of the cost.

The specific type of coolant recommended will depend on the material being cut. Always refer to the user manual for recommendations.

The provided flanges support the blade to prevent any loss of tension or flatness, reducing the risk of blade wobble.

Absolutely! Its precise sectioning capabilities combined with its affordability make it an excellent choice for both manufacturing and R&D organizations, especially those on a budget.

Yes, there are several attachments and accessories, like flanges and rip fence attachment, to enhance the saw’s capabilities. Please check with the manufacturer or supplier for a comprehensive list.

The vice assembly is adjustable, allowing samples to be securely clamped and accurately positioned for precision cuts.

If the blade becomes dull or damaged, it’s advisable to replace it with a compatible blade to ensure optimal performance and safety.

With its variable speed range of 400 to 3,000 RPM, the saw offers versatility for both high-speed and low-speed sectioning requirements.

The weight/pressure of the gravity feed can be regulated based on material diameter, hardness, and density, ensuring optimal sectioning results.

The saw can accommodate blade thicknesses ranging from .009″ (0.22mm) to .075″ (1.9mm).

The saw has a coolant capacity of ¼ (the exact unit should be referenced in the product specifications), which is designed for efficient operation.

Yes, the saw can accommodate arbors of sizes 5/8″ or ½” (15.8 or 12.7mm).

The slot for the blade is 0.124″ (3.15mm).

The design and features of the saw allow for up to a 400% reduction in consumables cost.

Yes, the durable housing is made from unbreakable cross-linked polyethylene, which cannot rust.

Absolutely! The SMART CUT® 6001 XP is perfect for both manufacturing and R&D organizations, especially those on a budget.

Its design and features, including gravity weight feed and adjustable speed, ensure no material deformation while preserving the true material microstructure.

The saw is designed without complex programs or controls, allowing operators to focus on sectioning samples rather than learning to operate the machine.

It offers equal or better cut quality on most applications compared to fully automatic sectioning saws but at a fraction of the cost.

The saw is very easy to use, which reduces operator error and minimizes training requirements.

The saw is designed to withstand more exploitation than conventional precision sectioning saws, and its housing and plastic parts come with a guarantee.

The larger speed range allows users to choose from a vast number of blade specifications to achieve the desired results, which might not be possible with other saws.

The table of the saw can be easily removed, cleaned, and adjusted. Furthermore, its design reduces the need for frequent maintenance.

Yes, the housing and all plastic parts of the saw are guaranteed for life.

Yes, aside from the SMART CUT Diamond Wafering Blades, the saw is compatible with diamond wafering blades and abrasive cut-off blades from other manufacturers.

The polycarbonate polymer cover is designed to fully enclose the cutting area, ensuring safety while still allowing operators to monitor the cutting process. An opening on the right side allows for adjustments without having to remove the cover.

The 40mm Diameter flanges provide support and stiffness to the blade, preventing the blade from losing its tension and flatness. They are made of durable alloy steel and are hard anodized to withstand wear from extended use.

Absolutely! The saw is equipped with a powerful 1/4 HP motor designed to handle materials ranging from very hard to soft.

The gravity weight feed allows samples to be sectioned without constant operator supervision. Weights push the vice assembly holding the sample towards the rotating blade. This ensures each sample is cut with the exact force needed, freeing up the operator to attend to other tasks.

The vice assembly of the SMART CUT® 6001 XP is highly adjustable. It securely clamps workpieces and can be easily adjusted to accommodate various material sizes, thicknesses, shapes, and configurations.

The adjustable table rip fence can handle all types of materials, guiding them for repeatable sectioning in manual freehand cutting applications.

While the SMART CUT® 6001 XP is labeled as an entry-level lab cutting saw, its robust features and capabilities make it suitable for certain industrial applications as well.

The saw is designed for efficient operation, but for extended continuous use, it’s recommended to monitor coolant levels and give the machine periodic breaks to ensure longevity.

Its features such as adjustable speed, gravity weight feed, and the vice assembly allow for precise and uniform cuts across a variety of materials.

The saw is designed with efficiency in mind. However, as with any machinery, it’s essential to monitor for signs of overheating during extended use.

The design allows for straightforward blade changes, but users should always consult the user manual and adhere to safety protocols during the process.
