SMART CUT® 4002
Sectioning Saw

SMART CUT® 4002 is an versatile entry level laboratory cutting saw that is very affordably priced, Designed for Fast & Precision sectioning of printed circuit boards, ceramic substrates, electronic packages, and many other materials up to 1.0″ (25.4mm) in diameter. The saw has powerful 1/4 HP motor, running at variable speed of 400 to 3,400 RPM allow for most samples to be sectioned/cut in less then a minute.

Get A Quote
image-008

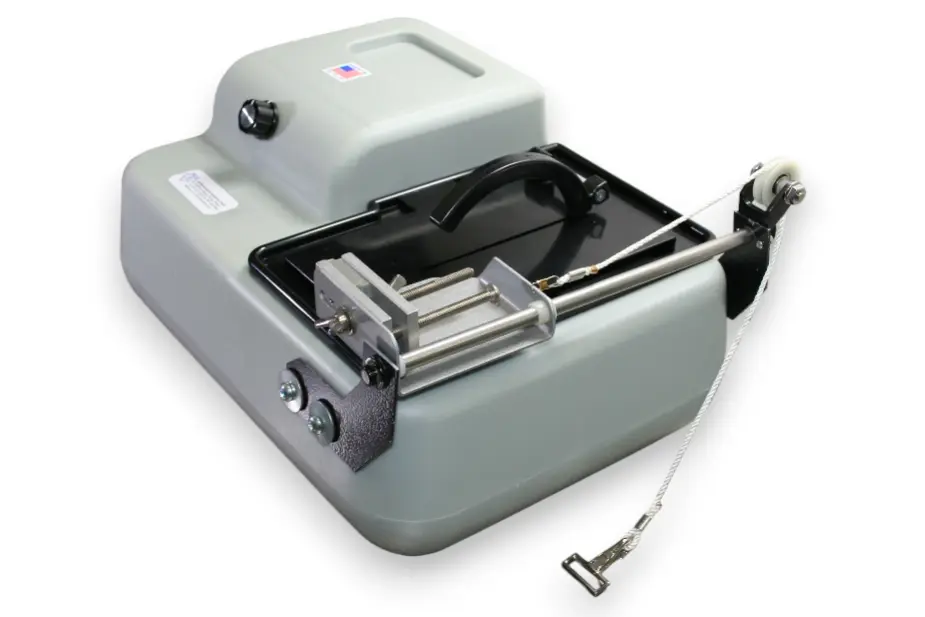

Gravity Weigh Feed

Allows samples / material to be sectioned unattended (without operator presence). The gravity weight feed propels sample / material firmly positioned in the vise into the rotating blade. Weight can be adjusted depending on material diameter, hardness, & density. Weight / pressure can be regulated depending on user objectives of preserving true material micro structure, or faster sectioning speed.

The weights shown above available from 6 oz to 16 oz denominations, are attached to the bracket shown also shown above. The machine is placed near edge of the table and the weight pushes the vice assembly holding the sample towards the rotating blade on a rail. As the cut is completed the vice assembly stops. This allows each sample to be cut with exact amount of force (feed rate), without the operator having to supervise the cutting operation. Meanwhile the operator is free to do other work while the cutting continues.

image-028
IMG_9987

Vice Assembly

Vice Specifications/Material Capacity:

Width: 1.1430” (29.032mm) Height: 2.2075” (56.071mm) Length: 2.50” (63.5mm)

SMART CUT® 4002 Vise Assembly is an adjustable guide that allows for accurate precision cuts. Wing nuts are tightened to clamp the work piece securely in place. The carriage advances slowly to feed material evenly into the blade. Easily installed by bolting into place. Samples can be accurately positioned in vice. Vise can be easily adjusted to accommodate a large variety of material sizes, thickness, shapes, and configurations.

Flanges To Support The Blade

35mm Diameter flanges are available to provide support and stiffness to the blade. helps to prevent the blade from losing its tension and flatness. Flanges are made from alloy steel that is heat treated for maximum strength and hard anodized to prevent any wear from extended use. All surfaces ground flat and parallel to assure maximum uniform wheel contact. Precision Ground OD and ID for optimum concentricity and balance. As well as recessed to produce equal and opposite bearing surfaces, keeping stress away from the blade arbor. Find more about our Flanges

IMG_6874-scaled
IMG_9983

Unbeatable Low Prices

You will find our prices are very affordable. What you will save on the cost of consumables in short and long run will pay for this equipment within a relatively short period of time.

Extremely Easy & Straight Forward To Use

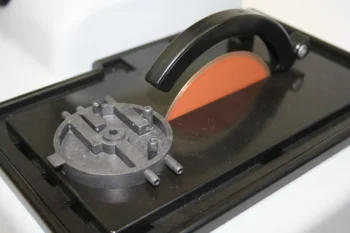

Table shown may easily be removed, cleaned and adjusted. Blade guard may be adjusted and raised to accommodate larger samples and better fit any particular diamond wafering blade. Coolant is stored below and applied to material / sample by rotating the blade.

Durable molded plastic construction prevents corrosion. It’s straight forward design allows the operator to concentrate on sectioning samples, not operating the machine.

smart-cut-4002-4

Larger Work Surface Area For Cutting Longer Samples

SMART CUT® 4002 has largest work surface area than any other saw in its class. The cutting table measures 6″ x 10″ (114.3mm x 222.25mm). This much larger work area then normally available on low speed saw and provides an excellent solution to manual sectioning of oversize samples.

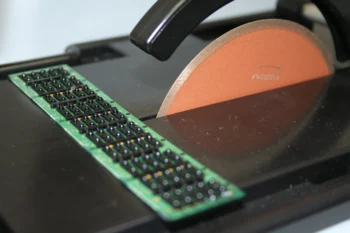

For this reason SMART CUT® 4002 is well suited for cutting larger and longer sample coupons such as PCB Boards, FR4 composite panels, ceramic substrates, electronic packages, plate material, composites, optical or flat glass pieces, ultra hard material tiles, and other glass, carbon fiber, honeycomb, and many other materials. That are too big to fit into any of the available work holding fixtures/chucks.

image-022-1

Size of working table: 4.50″ x 8.75″ (114.3mm x 222.25mm)

Maximum size of material that can be cut on table:

Length: 3.625″ (92.075mm) Width: 4.25″ (107.95mm) Thickness: 0.180″ to 0.80. (SMART CUT® 4002 can accommodate material thickness more than .180″, but no more than 0.80″.

Maximum cutting thickness: 0.80″ (20.32mm)

Exposure over table: 1.121″ (28.473mm)

Smart Cut® Coolants

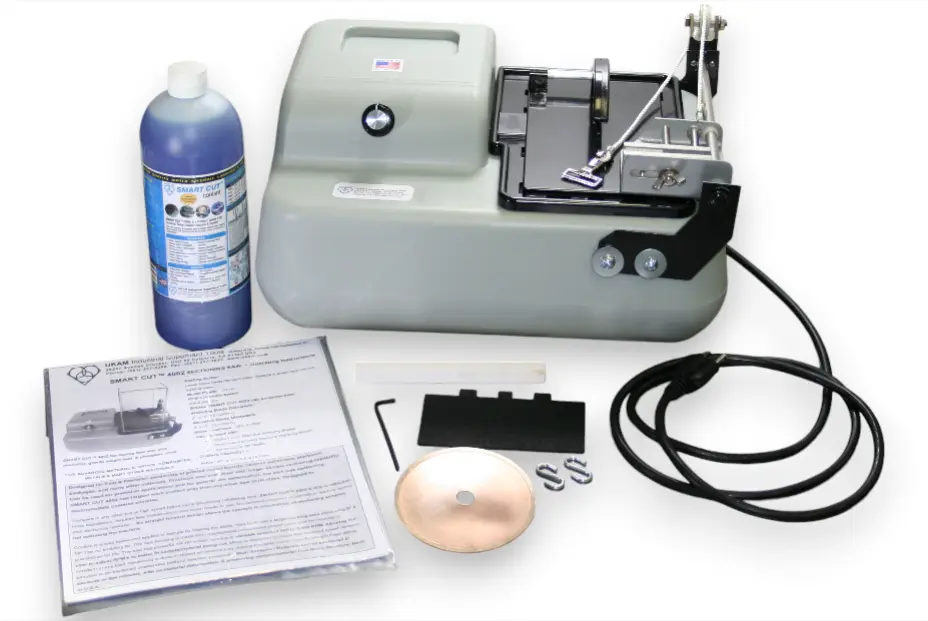

Your choice of one (1) quart of SMART CUT® Water Soluble Coolant or Mineral Oil is included with machine. SMART CUT® Water Soluble Coolant Reduces material thermal stress, edge damage, and internal cracking, increases blade life, provides better cut quality, preserves material micro structure

Hence, assuring long-term integrity of material being sectioned. Since SMART CUT coolant is both a coolant and lubricant, both the wafering blade and material benefit. Mix ratio is 1:20 (1 part coolant, 20 parts water) on very hard and dense materials and 1:40 (1 part coolant, 40 parts water) on softer materials. Depending on mix ratio 1 quart will produce 5.7 to 9 gallons of coolant when mixed with water. As a coolant, SMART CUT KOOL reduces heat caused by friction. As a lubricant, SMART CUT KOOL lowers friction and surface tension, which increases swarf dispersion

Largest Selecting Of Diamond & Cbn Wafering Blades Avaialble

one (1) diamond wafering blade any specification is included FREE OF CHARGE with purchase of any machine (any specification). we have almost unlimited number of diamond & CBN wafering blade specifications in stock available for immediate delivery. Available in different sizes, thickness, arbor sizes, diamond concentrations, diamond mesh sizes, and bond hardness’s. With several thousand unique blade specification in stock not listed on our standard stock program. This insures you will receive the best blade specification possible for your specific application.

The Right Dressing Stick For Your Application

One (1) dressing stick is included with the purchase of any machine free of charge. The dressing stick we supply is similar to the diamond size of the wafering blade you have chosen (or we recommended) for your application. Wafering Blades must be diamonds particles/crystals exposed properly through frequent dressing. Otherwise, the diamond tool will glaze over. They will begin to tear rather than grind which is very destructive. Tearing caused from unexposed diamonds creates friction. This causes uneven wear and/or heat cracks in the wafering blade and/or material being cut. Resulting in premature blade wear, blade tensioning problems, and will eventually destroy the blade. The more frequently the blade is dressed the freer and cooler it will cut with lot more consistency.

Case Studies & Application Examples

SMART CUT® Precision Diamond Sectioning Saws & Diamond Wafering Blades have been successfully implemented and proven in hundreds of advanced materials and applicationsSMART CUT® Precision Manual and Semi-Automatic Saws provide Advanced Material Laboratories and Manufacturing Facilities consistent performance as fully automatic saws, fraction of the cost. With ever increasing budget cuts, many facilities find the use of Precision Sawing/Sectioning Equipment and Consumables cost prohibitive.

Fully automatic Precision Sawing machines usually cost thousands of dollars. Yet, most advanced material facilities very rarely require the functionality of high cost, automatic sectioning saws. SMART CUT® series of Precision Diamond Saws have been designed to provide the material researcher or engineer the same capabilities they would expect from high cost automatic sectioning saws, at fraction of the price. Start Saving Money Today!

Below is a small example of applications, on witch SMART CUT® Precision Diamond Saws are used day to day:

CASE STUDY 1 - METHODOLOGY

Sectioning / Wafering Saw: SMART CUT® 4002

Application: sectioning alumina oxide gas cups.

Material Shape/Type: Advanced Ceramic Tubing. (ultra hard& brittle)

Material Length: 1.8″  Material Diameter: 1.21″

Customer Objective: Precisely section 0.400″ of material tubing without damaging structure of material. Customer originally believed a low speed saw was the only viable solution.

Sectioning Method Used: Manual

Coolant Used: Synthetic, water soluble coolant

RPM’s Used: 3,200

Cutting Speed: customers advanced ceramic tubing was sectioned at approximately 27 seconds.

Surface Finish: a smooth cut was produced, with no visible chipping on edges, structure of ceramic tubing remaining in tact. Diamond wafering blade with 220 mesh was used for this application.

Conclusion: Customer saved several minutes per cut, utilizing SMART CUT® 4002 Precision Diamond Sectioning Saw. Compared to sectioning this specimen using a conventional low speed Sectioning Saw.

Play Video

CASE STUDY 2 - METHODOLOGY

Sectioning / Wafering Saw: SMART CUT® 4002

Application: sectioning irregular shape polyethylene samples of various sizes

Material Shape/Type: polyethylene, similar to plastic (very gummy)

Material Length: various  Material Diameter: various

Customer Objective: Precisely section samples in half for quality control / sample preparation without damaging structure of material. Without burring.

Sectioning Method Used: Manual

Coolant Used: Synthetic, water soluble coolant

RPM’s Used: 2,600

Diamond Wafering Blade Used: Electroplated with interrupted coating, core steel with memory.

Cutting Speed: customers polyethylene sample was sectioned at approximately 20 seconds.

Surface Finish: a smooth cut was produced, with almost no burs on edges.

Conclusion: SMART CUT® 4002 can meet customers objectives in sectioning various size hard to machine plastic samples in matter of seconds, while still preserving material true micro structure.

sectionedconnector3

CASE STUDY 3 - METHODOLOGY

Sectioning / Wafering Saw: SMART CUT® 4002

Application: sectioning polyethylene plug sample

Material Shape/Type: polyethylene plug, similar to plastic (very gummy)

Material Length: 2.3″  Material Thickness: .125″

Customer Objective: Precisely section samples in half for quality control / sample preparation without damaging structure of material. Without burring.

Sectioning Method Used: Manual

Coolant Used: Synthetic, water soluble coolant

RPM’s Used: 2,600

Diamond Wafering Blade Used: Electroplated with interrupted coating, core steel with memory.

Cutting Speed: customers polyethylene sample was sectioned at approximately 20 seconds.

Surface Finish: a smooth cut was produced, with almost no burs on edges.

Conclusion: SMART CUT® 4002 can meet customers objectives in sectioning various size hard to machine plastic samples in matter of seconds, while still preserving material true micro structure.

Play Video

CASE STUDY 4 - METHODOLOGY

Sectioning / Wafering Saw: SMART CUT® 4002

Application: sectioning polyethylene irregular shape samples

Material Shape/Type: polyethylene, similar to plastic (very gummy)

Material Diameter: 3.15″

Customer Objective: Precisely section samples in half for quality control / sample preparation without damaging structure of material. Without burring.

Sectioning Method Used: Manual

Coolant Used: Synthetic, water soluble coolant

RPM’s Used: 2,600 and 3,100

Diamond Wafering Blade Used: Electroplated with interrupted coating, core steel with memory.

Cutting Speed: customers polyethylene sample was sectioned at approximately 1:43 minutes.

Surface Finish: a smooth cut was produced, with almost no burs on edges.

Conclusion: SMART CUT® 4002 can meet customers objectives in sectioning various size hard to machine plastic samples in matter of seconds, while still preserving material true micro structure.
