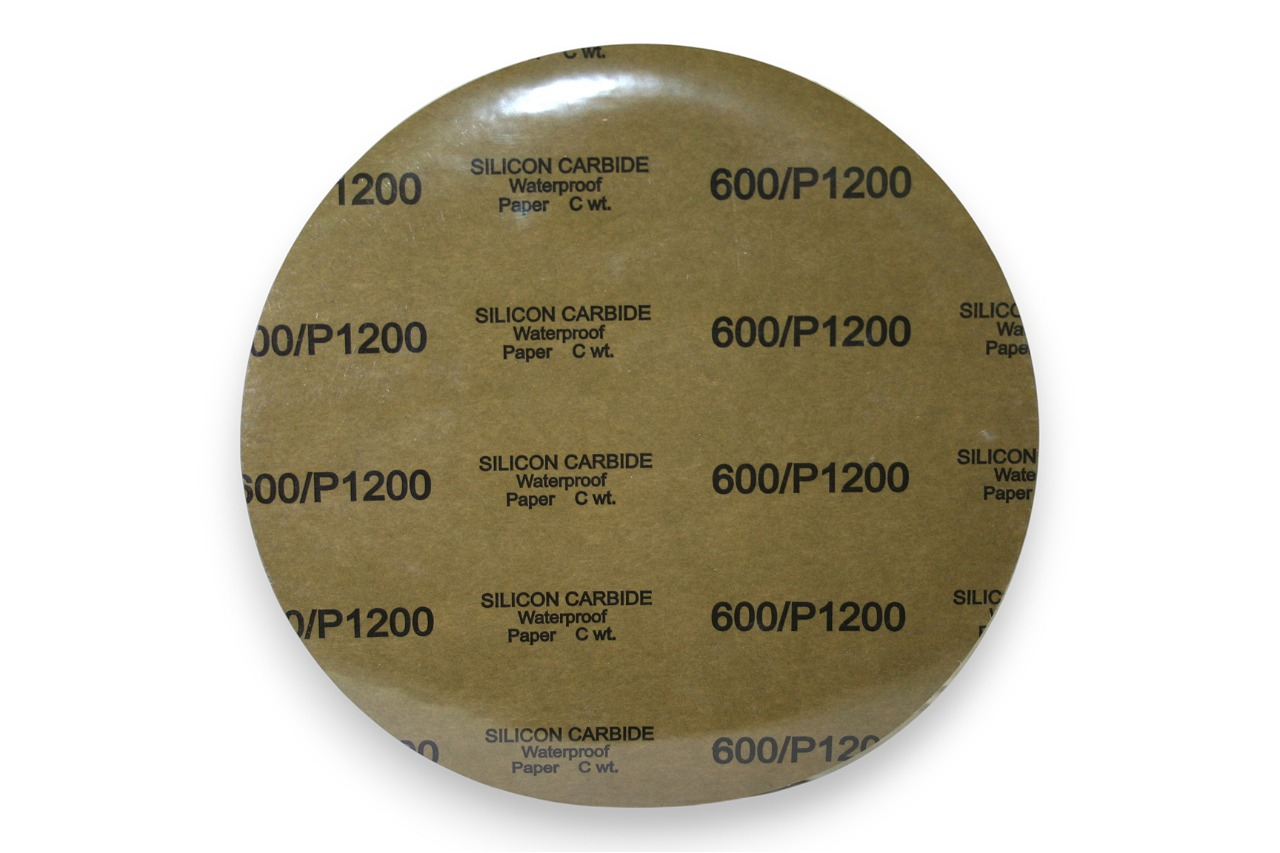

Silicon Carbide Paper

Silicon carbide paper is a type of abrasive paper that is primarily used in metallography for the surface preparation of metals and alloys. Due to its high hardness and brittleness, silicon carbide is an ideal abrasive for cutting and polishing metals. It helps to produce a smooth, flat surface necessary for microscopic examination of the metal’s microstructure.

Silicon carbide papers are available in a range of grit sizes, from coarse (around 60-120 grit) to fine (up to 4000 grit). Coarser grits are typically used for the initial stages of sample preparation to remove significant material or surface roughness. Finer grits are used for subsequent polishing stages to refine the surface, resulting in minimal scratches and more precise metallurgical analysis.

Selecting the right grit size of silicon carbide paper depends on the hardness and initial condition of the sample. Start with a coarser grit for harder materials or those with significant surface imperfections. Gradually move to finer grits as the surface becomes smoother. This stepwise refinement helps in achieving a mirror-like finish necessary for detailed microscopic analysis.

SMART CUT® silicon carbide paper includes unique features such as a water-resistant backing and a non-clogging formulation that enhances performance and usability in both wet and dry conditions. These features are specifically designed to meet the demanding needs of modern metallurgical labs. SMART CUT® silicon carbide grinding paper provide same or higher level of performance to well known brands, at more affordable cost. We invite you to test and compare. We can cross reference almost any competitor part number of specification.
SMART CUT® silicon carbide paper is engineered with a proprietary blend of abrasive grains that offers superior durability and cutting efficiency. SMART CUT® papers feature an advanced bonding technology that ensures the grains stay in place longer, providing a consistent scratch pattern and prolonged usage life, which is critical for high-throughput laboratories and industrial environments.

Yes, silicon carbide paper can be used with both manual and automatic polishing machines. When used with automatic equipment, it is important to ensure that the paper is securely fixed and that the machine settings (such as speed and pressure) are appropriately adjusted to avoid tearing the paper or damaging the sample.

The lifespan of silicon carbide paper depends on the material being polished and the amount of pressure applied during preparation. It should be replaced when it no longer effectively removes material from the sample or when it becomes clogged with debris, which can impair the polishing process and affect the quality of the surface finish.

Using a lubricant such as water, oil, or specialized polishing fluids can help prevent the sample from overheating, reduce the wear on the abrasive surface, and facilitate the removal of debris. This results in a better finish and prolongs the life of the silicon carbide paper.

Safety is paramount when using abrasive papers. Always wear protective gear, including gloves and eye protection, to guard against particles and debris. Ensure that the work area is well-ventilated, especially if dry polishing, to avoid inhaling dust. Additionally, check that the sample is securely mounted and that the paper is properly affixed to avoid slippage during the polishing process.

Silicon carbide paper should be used and disposed of responsibly to minimize environmental impact. Used abrasive papers can contribute to landfill waste. Whenever possible, opt for recyclable or partially recycled materials to reduce waste. Also, consider the impact of lubricants used during polishing; biodegradable lubricants are preferable for reducing environmental harm.

Silicon carbide is harder and sharper than aluminum oxide, making it more suitable for processing harder materials such as metals and hard alloys. Its sharpness provides a faster cutting action and generally produces a finer finish than aluminum oxide. However, aluminum oxide is more durable and is preferable for softer metals or materials that require a more delicate approach.

Yes, silicon carbide paper is versatile and can be used for both wet and dry polishing. Wet polishing is recommended to reduce dust, minimize heat buildup on the sample surface, and extend the life of the abrasive paper. Dry polishing may be suitable for quick jobs or when using equipment that does not support wet polishing.

To achieve uniform preparation:

• Apply consistent pressure throughout the polishing process.
• Use a figure-eight or circular motion to avoid creating grooves or patterns in the sample.
• Ensure each step progresses to a finer grit to gradually eliminate scratches from the previous stage.
• Frequently clean the sample and the paper to remove any accumulated debris.

The speed and pressure applied during polishing can significantly impact the effectiveness of silicon carbide paper. High speeds can generate excessive heat, leading to sample damage. High pressure can cause rapid wear of the paper and uneven sample surface. It’s crucial to find a balance that achieves efficient material removal without damaging the sample or the abrasive paper.

Common mistakes include:

• Using too coarse a grit for the final stages, which can leave deep scratches.
• Insufficient cleaning between grit changes, leading to contamination and suboptimal finishes.
• Applying uneven pressure, resulting in an uneven surface.
• Using worn-out paper, which can increase polishing time and reduce the quality of the finish.

Many international standards and guidelines, such as those from ASTM and ISO, provide detailed recommendations on the proper use of abrasives in metallography. These standards often specify the type of abrasive, grit size, polishing motion, pressure, speed, and lubrication to achieve reliable and reproducible results.

Silicon carbide paper comes with different types of backing materials, such as paper, cloth, or polyester film. Paper backings are flexible and suitable for irregular surfaces but are less durable. Cloth backings offer greater durability and tear resistance, making them ideal for high-pressure applications. Polyester film backings provide the best uniformity and surface finish, especially beneficial for precision applications requiring minimal surface imperfections.

Reusing silicon carbide paper depends on the condition of the abrasive surface after initial use. If the grit is not worn out and the paper is not clogged with debris, it can be used for another sample. However, for optimal results and to avoid cross-contamination, it is recommended to use fresh abrasive for critical or precision applications.

Silicon carbide paper should be stored in a cool, dry environment to prevent moisture absorption and warping of the backing material. Proper storage ensures the abrasive maintains its effectiveness and is protected from environmental factors that could degrade its quality.

A systematic progression through increasing grit sizes is crucial for effective sample preparation. Start with a coarse grit to remove larger imperfections and material quickly. Progress through medium to fine grits, each step refining the surface by removing scratches from the previous grit size. Typically, jumping more than one grit size can leave residual scratches that are difficult to remove in later stages.

For final polishing stages, silicon carbide paper may be substituted with other finer abrasives, such as diamond pastes or alumina suspensions, especially when a highly reflective surface is required. Silicon carbide paper is typically used up to very fine grits but may not achieve the ultra-fine finish provided by these other abrasives.

When using silicon carbide paper, especially in dry polishing:

• Always wear respiratory protection to avoid inhaling abrasive dust.
• Use eye protection to guard against flying particles.
• Ensure adequate ventilation in the workspace.
• Handle the abrasive paper carefully to avoid cuts from the sharp edges.

Consider both the initial cost and the operational cost (including usage life and the need for replacements). Higher quality or specialized abrasive papers may cost more upfront but could offer better performance and longer life, reducing the overall cost per sample prepared.

Disposal methods for used silicon carbide paper should comply with local environmental regulations. Consider recycling if the abrasive paper is free of hazardous materials. Otherwise, follow standard industrial waste disposal practices to minimize environmental impact.

The particle shape of silicon carbide in abrasive papers can significantly impact its cutting efficiency. Silicon carbide particles are generally angular in shape, which helps in creating a more aggressive cutting action compared to rounder grains. This angular nature makes silicon carbide ideal for initial material removal and rough polishing phases, where rapid stock removal is necessary.

While primarily used for metals and alloys, silicon carbide paper is also effective on a variety of non-metal materials such as ceramics, glass, and mineral samples. Its hardness makes it suitable for these materials, providing efficient material removal and fine surface finishes necessary for detailed examination.

When using silicon carbide paper with wet polishing techniques, managing the slurry (a mixture of abrasive particles and liquid) is crucial. Ensure that the slurry is evenly distributed across the surface to maintain effective abrasion. Regularly clean the sample and work surface to prevent the slurry from drying out, which can cause scratching and damage to the sample surface.

High-grade silicon carbide paper should exhibit uniform grain distribution, strong bonding of the abrasive grains to the backing material, and consistent cutting performance. The backing should be sturdy yet flexible enough to conform to various sample shapes without tearing. High-quality silicon carbide paper also resists clogging, maintains its abrasive properties throughout its use, and produces consistent finishes.

The orientation of silicon carbide grains on the paper can affect the abrasive efficiency. Ideally, the grains should be randomly oriented to maximize the cutting points and reduce the likelihood of grooving or pattern formation on the sample surface. This random orientation helps ensure a more uniform material removal and a smoother final surface.

Silicon carbide paper used in metallography may adhere to standards set by organizations such as the American Society for Testing and Materials (ASTM) or the International Organization for Standardization (ISO). These standards can specify parameters like grit size, backing material, and abrasive density, ensuring consistency and reliability in metallographic preparations.

Before adopting a specific brand or type of silicon carbide paper for large-scale use, conduct preliminary tests on sample materials to evaluate its performance. Factors to assess include the rate of material removal, surface finish quality, grain shedding, and paper durability. Comparison tests against known standards or previously used abrasives can provide a benchmark for performance.

The thickness of the backing material impacts the flexibility and durability of the abrasive paper. Thicker backings offer greater durability and are less likely to tear during use, making them ideal for heavy-duty applications. Conversely, thinner backings provide greater flexibility, which is beneficial for polishing intricate or curved surfaces without creasing or tearing the paper.

Yes, silicon carbide paper can be custom-sized or modified to meet specific application needs. Yes we offer cutting services to create custom dimensions or shapes of abrasive paper. Additionally, holes or patterns can be added to the paper to accommodate specific polishing machines or to improve slurry flow during wet polishing.

Best practices for transitioning between different grit sizes involve using a gradual progression to avoid deep scratches that are difficult to remove. After using a coarser grit, the surface should be thoroughly inspected and cleaned before moving to a finer grit. This ensures that any remaining coarse abrasive particles do not scratch the surface during subsequent polishing steps.

Temperature can significantly affect the performance of silicon carbide paper. High temperatures can soften the bonding agent, leading to premature grain shedding and reduced abrasive life. It is important to use appropriate lubrication or cooling methods to manage the temperature and preserve the integrity of the abrasive paper during intensive polishing sessions.

If silicon carbide paper is not performing as expected, consider the following troubleshooting tips:

• Check if the paper is suited for the material being polished. Some materials require specific types of abrasives.
• Inspect the paper for uniformity in grain distribution. Inconsistent grain size can lead to uneven abrasion.
• Ensure that the paper is properly attached to the polishing tool to avoid slipping or creasing.
• Evaluate the polishing parameters, such as speed and pressure, to ensure they are optimal for the type of abrasive and the material.
• Replace the paper if it shows signs of clogging, as clogged abrasives can become ineffective and cause damage to the sample.

The performance of silicon carbide paper can be objectively measured by evaluating several key parameters:

• Material Removal Rate (MRR): This measures the amount of material removed per unit of time, providing a quantifiable measure of the abrasive’s efficiency.
• Surface Finish Quality: Using profilometers or similar instruments to measure the surface roughness after polishing provides insights into the smoothness achieved.
• Abrasive Lifespan: Tracking how long a piece of abrasive paper remains effective before needing replacement helps determine its durability.
• Consistency: Assessing the uniformity of the finish across multiple uses and batches of paper can indicate quality control in manufacturing.

While silicon carbide is a popular choice for many applications due to its hardness and cost-effectiveness, alternatives like diamond, aluminum oxide, and cerium oxide offer specific advantages:

• Diamond: Provides superior hardness and longevity, ideal for very hard materials.
• Aluminum Oxide: Less aggressive than silicon carbide, making it suitable for softer or more ductile materials.
• Cerium Oxide: Excellent for chemical mechanical polishing where both mechanical action and chemical reactions are desired for achieving ultra-smooth surfaces.

Proper handling of silicon carbide paper involves several safety precautions to protect users:

• Dust Management: Always use dust extraction or wear a suitable respirator to prevent inhalation of fine particles.
• Protective Equipment: Wear gloves and eye protection to safeguard against accidental cuts or particles entering the eyes.
• Proper Disposal: Dispose of used silicon carbide paper and accumulated debris according to local regulations, particularly if contaminated with hazardous materials.

Water quality can significantly impact the effectiveness of silicon carbide paper in wet polishing scenarios. Hard water can lead to the buildup of mineral deposits on both the sample and the abrasive, which may reduce the cutting efficiency and potentially scratch the sample. Using deionized or distilled water can prevent these issues, ensuring consistent abrasive performance and prolonging the life of the silicon carbide paper.

For large quantities of silicon carbide paper, proper storage is crucial to maintain its effectiveness. Store the paper in a cool, dry place away from direct sunlight to prevent degradation of the bonding agents and the backing material. Additionally, keeping the paper flat or properly rolled (without sharp bends or creases) will ensure that it remains in good condition for use, preventing curling or other deformities that could impact performance.

Automation in the use of silicon carbide paper, particularly in industrial and research settings, can lead to greater consistency and reproducibility in sample preparation. Automated polishing machines can precisely control speed, pressure, and movement patterns, which are often challenging to replicate manually. This not only ensures uniform application of the abrasive across the sample but also significantly reduces the potential for human error, enhances throughput, and can lower long-term operational costs.

Silicon carbide paper is suitable for precision applications, especially in the initial stages of material removal and coarse polishing. However, its limitations become apparent as the need for an ultra-fine finish increases. In such cases, transitioning to micro-grit abrasives or other types of polishing compounds (like diamond paste or alumina suspension) might be necessary to achieve the desired surface smoothness required for high-precision analyses.

The particle size distribution (PSD) of the grit in silicon carbide paper is critical for its performance. A narrow PSD ensures that the abrasive particles are of uniform size, which leads to a more consistent scratch pattern and a smoother finish. Conversely, a broad PSD can result in a mixed scratch depth, which might be undesirable for high-precision polishing but beneficial for rapid material removal in earlier stages.

The flexibility of the backing material used in silicon carbide paper plays a crucial role in its effectiveness. Flexible backings, such as paper or cloth, allow the abrasive to conform to the SMART CUT®s of complex or irregularly shaped samples, ensuring even contact and consistent abrasion. Rigid backings like polyester or mylar are better suited for flat surfaces where uniform material removal is needed. The choice of backing depends on the specific requirements of the sample preparation process.

Optimizing the use of silicon carbide paper in a cost-effective manner involves several strategies:

• Maximize Use: Employing both sides of the abrasive paper if possible, or using segmented patches to fully utilize the material before disposal.
• Proper Maintenance: Cleaning the abrasive surface regularly to prevent clogging and extend its usability.
• Bulk Purchasing: Acquiring silicon carbide paper in bulk from suppliers can reduce costs, especially for high-volume laboratories and industrial settings.
• Recycling Programs: Participating in recycling programs can reduce waste and potentially lower costs associated with waste disposal.

The life cycle of silicon carbide paper generally compares favorably with other abrasives, especially when used appropriately for its intended materials and conditions. Silicon carbide is harder and sharper than many other abrasives like aluminum oxide, which allows it to maintain its cutting ability longer. However, its brittleness can lead to quicker wear in some applications. Life cycle considerations should include not only the durability of the abrasive but also the quality of finish it provides over time.
