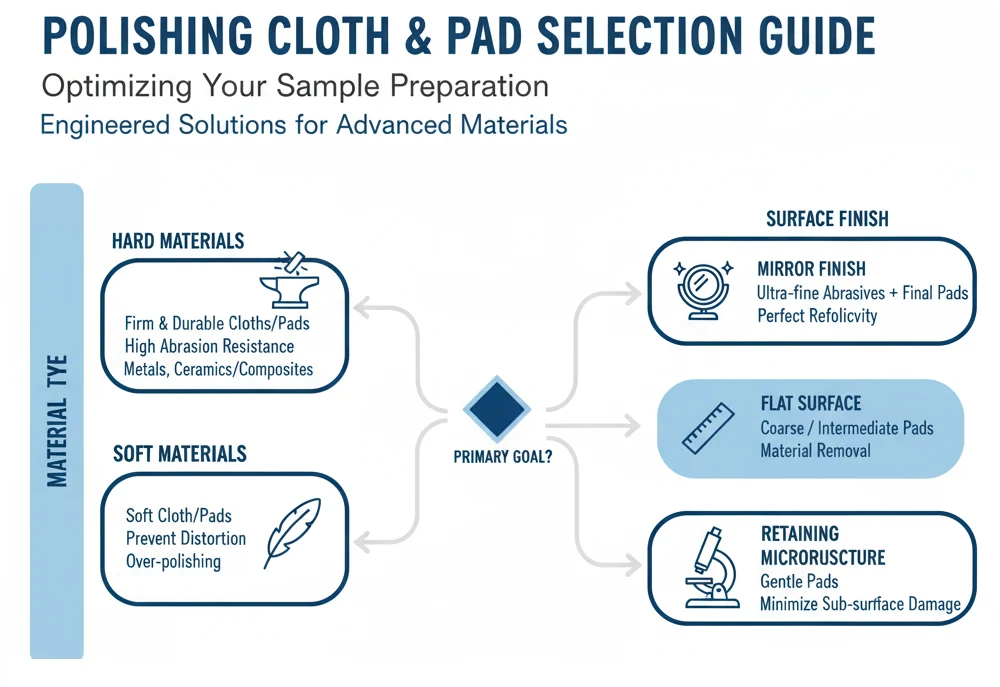

Guide to Selecting the Right SMART CUT® Metallographic / Metallurgical Polishing Cloth & Pads for Your Application
Understand Types of Polishing Cloths/Pads
A. Non-Woven Synthetic Cloths
B. Woven Cloths
C. Composite Pads
D. Specialty Cloths/Pads
E. Foam and Felt Pads
Comparison table of various types of polishing cloths and pads used in metallography, highlighting their properties, optimal uses, and ideal applications:
|
Type |
Material |
Ideal for Stage |
Surface Finish |
Ideal Materials |
Common Abrasives Used |
|---|---|---|---|---|---|
|
Non-Woven Synthetic Cloths |
Synthetic fibers bonded (not woven) |
Rough and intermediate |
Effective at removing scratches, leveling surfaces |
Hard materials (steel, titanium, ceramics) |
Coarse (diamond, alumina) |
|
Woven Cloths |
Silk, nylon, polyester (tightly woven) |
Intermediate and final |
Smooth, consistent, high-quality, scratch-free |
Soft metals (aluminum, copper); medium-hard materials |
Fine (colloidal silica, oxide slurries) |
|
Composite Pads |
Synthetic fibers, foams, abrasives |
Both intermediate and final stages |
Consistent performance across different stages |
Metals, ceramics, composites |
Varies widely, suited to material |
|
Specialty Cloths/Pads |
Various materials, often with embedded abrasives |
Specific applications, exact requirements |
Controlled, consistent, precise for challenging materials |
Superalloys, hardened steels |
Specific to material and application |
|
Foam and Felt Pads |
Foam, felt |
Final polishing stages |
Mirror-like finish, removes fine scratches |
Soft materials (aluminum, magnesium, copper) |
Fine abrasives or polishing suspensions |

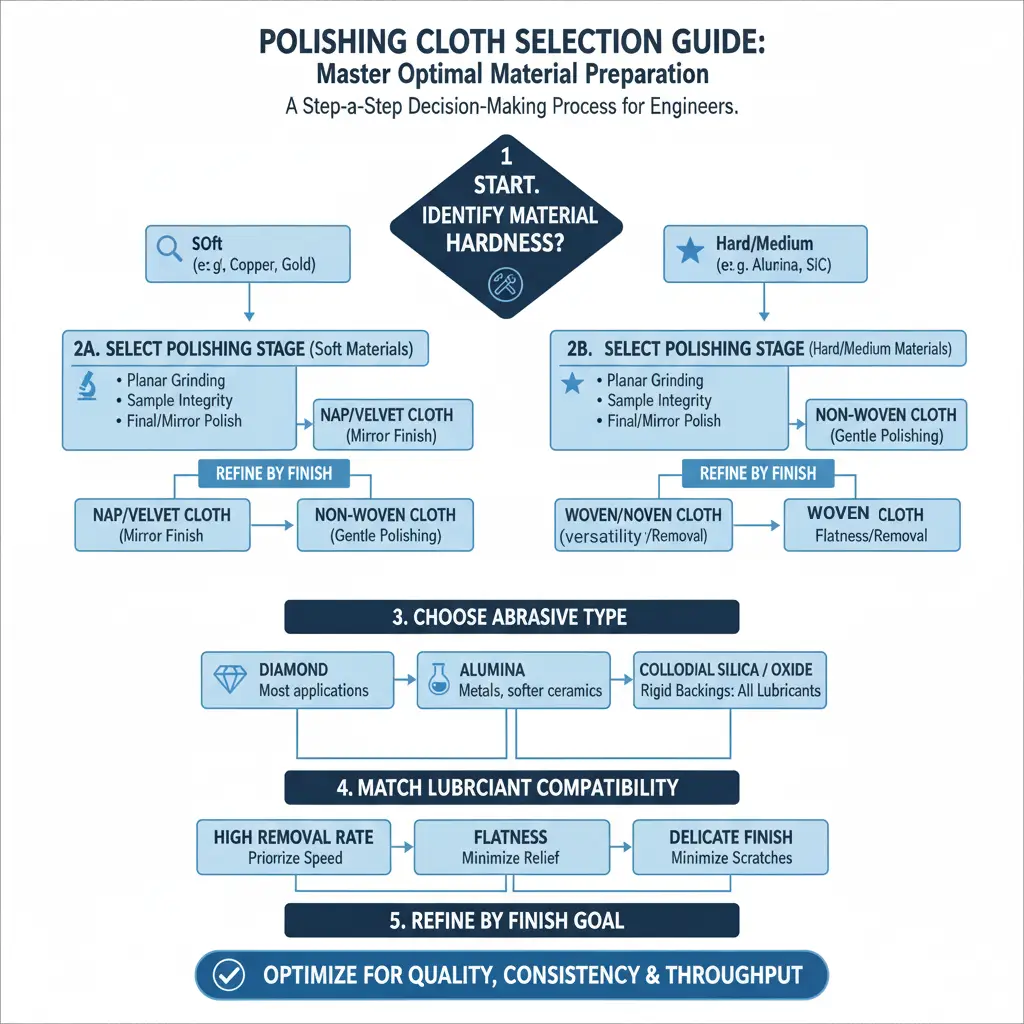

Understand Your Application Needs
Match the Cloth/Pad to the Polishing Stage & Desired Finish
Coarse Polishing
Intermediate Polishing
Final Polishing
Comparison table for different stages of polishing, outlining the focus, cloth/pad types, abrasive compatibility, key benefits, and typical applications for each stage:
|
Polishing Stage |
Focus |
Cloth/Pad Type |
Abrasive Compatibility |
Key Benefits |
Typical Applications |
|---|---|---|---|---|---|
|
Coarse Polishing |
Aggressive removal of material to level surface and remove defects. |
Strong, tough polishing pads |
Coarser abrasives like diamond suspensions or larger grit particles |
Efficient removal of excess material, maintains uniform surface profile |
Suitable for materials like steel, titanium, ceramics |
|
Intermediate Polishing |
Refining and preparing the surface for final finishing. |
Medium-hardness polishing cloth |
Medium-grit abrasives or fine diamond pastes |
Balances material removal with surface smoothing |
Used for a variety of metals and hard materials |
|
Final Polishing |
Achieving a smooth, polished reflection suitable for microscopic examination. |
Soft, high-performance polishing cloth/pad |
Sub-micron abrasives or colloidal silica |
Delivers exceptional fine finishing, ensures scratch-free surface |
Critical for applications involving microscopy or high-precision requirements |

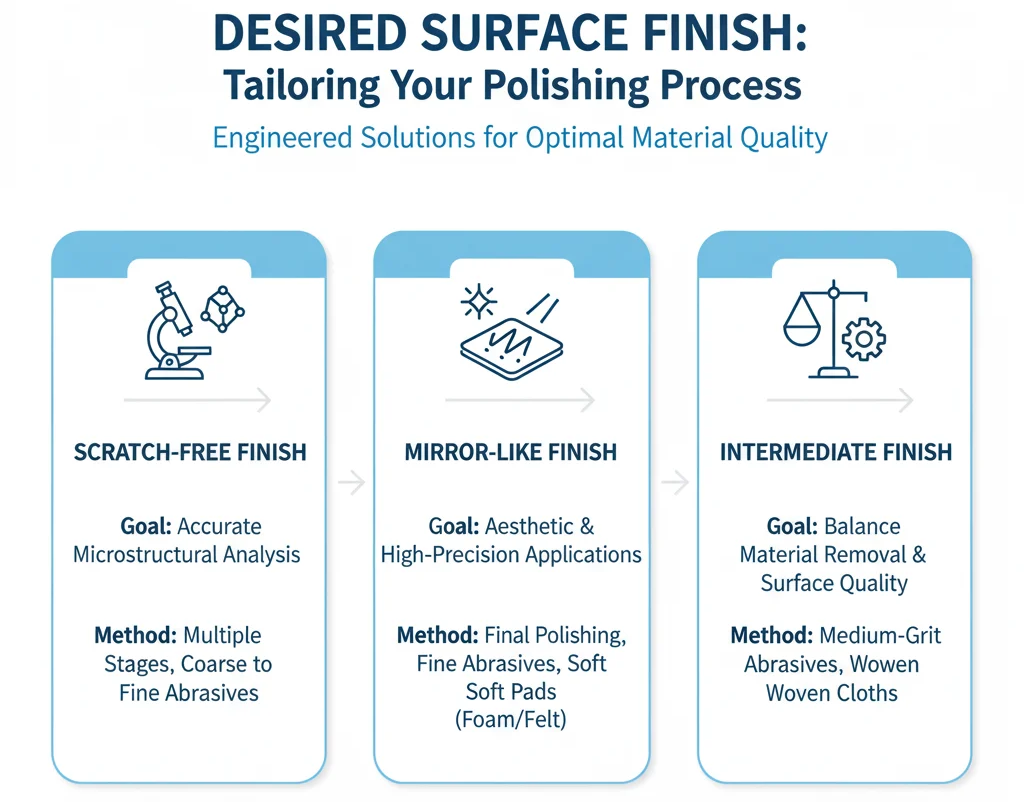

Desired Surface Finish

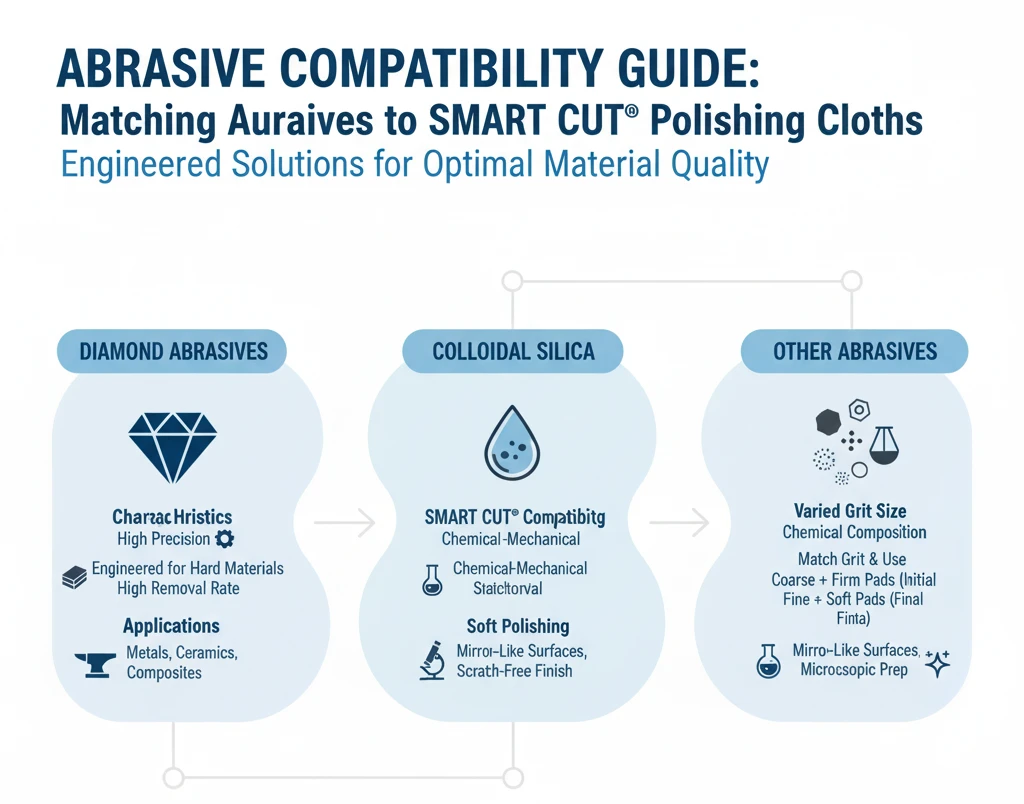

Consider Abrasive Compatibility
Diamond Abrasives
Colloidal Silica
Other Abrasives
Consideration of Abrasive Grit Size
Impact of Abrasive Grit Size
Matching Abrasive Grit Size with Polishing Cloths/Pads
Best Practices for Abrasive Grit Selection
Polishing Cloth / Pad Lubricant Compatibility
Importance of Lubricant Compatibility
Enhancing Polishing Efficiency
Improving Polishing Quality
Extending Cloth Life
Best Practices for Lubricant Use
Understanding Cloth/Pad Hardness and Resilience
Selecting the Right Polishing Cloth / Pad Backing/Mounting
Adhesive Backing
Magnetic Backing
Plain Backing
Key Considerations for Backing Selection
Comparison table for different types of polishing cloth/pad backing/mounting systems, outlining their characteristics, ideal applications, benefits, and considerations:
|
Backing Type |
Description |
Ideal for |
Benefits |
Considerations |
|---|---|---|---|---|
|
Adhesive Backing |
Equipped with a peel-and-stick layer for quick, secure attachment to platen or polishing plate. |
Users who prioritize ease of setup and need reliable hold during polishing. |
Quick setup, secure attachment, ideal for single-use or short-term applications. |
Typically disposed after use; check for minimal residue designs. |
|
Magnetic Backing |
Features a magnetic layer that securely attaches to a compatible magnetic base plate. |
Applications requiring frequent pad changes, such as multi-stage polishing workflows. |
Facilitates quick pad swaps, saves time and effort, beneficial in high-throughput environments. |
Requires a compatible magnetic base plate for effective use. |
|
Plain Backing |
Designed for use with systems utilizing clamping rings or double-sided tape. |
Maximum versatility in mounting based on specific equipment or application needs. |
Allows customization of mounting solutions, suited for specialized polishing setups. |
Flexible in use but may require additional accessories for mounting. |
Evaluate Durability and Reusability
Assess Polishing Cloth/Pad Size
When selecting polishing pads for your equipment, carefully assessing the size and mounting requirements is crucial for compatibility with your polishing machinery and for optimal performance results. Here’s how you can make informed choices regarding pad size and mounting needs:
Choosing the Right polishing cloth / Pad Size
Common Sizes and Their Applications
Factor in Environmental and Safety Considerations
Maintaining a Controlled Work Environment
Ensuring Adequate Ventilation
Safety Measures

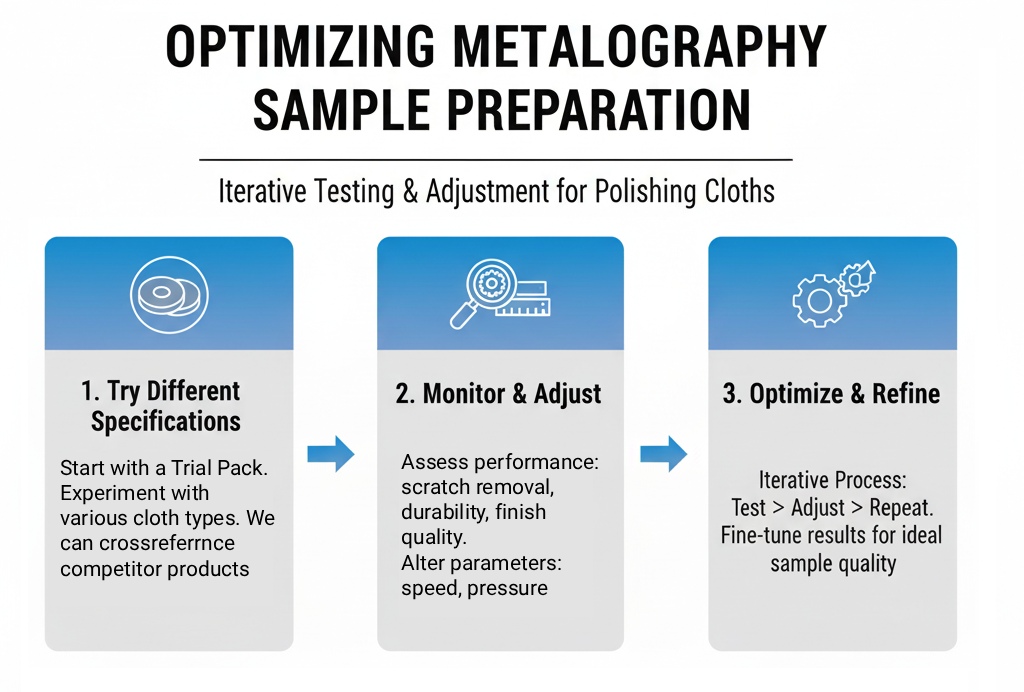

Test and Adjust as Needed
Try Different Polishing Cloth / Pad Specifications
Monitor and Adjust
