SMART CUT® Diamond & CBN Micro Drills, Sintered (Metal Bond)


Showing 1 – 6 of 6 results Showing all 6 results Showing the single result No results found
Sort by Price low to high
Filters Sort results
Reset Apply
Item No
Head Length
Overall Length
Shank Diameter
Diamond Size
Drill Neck Diameter
Neck Length
Get Quote

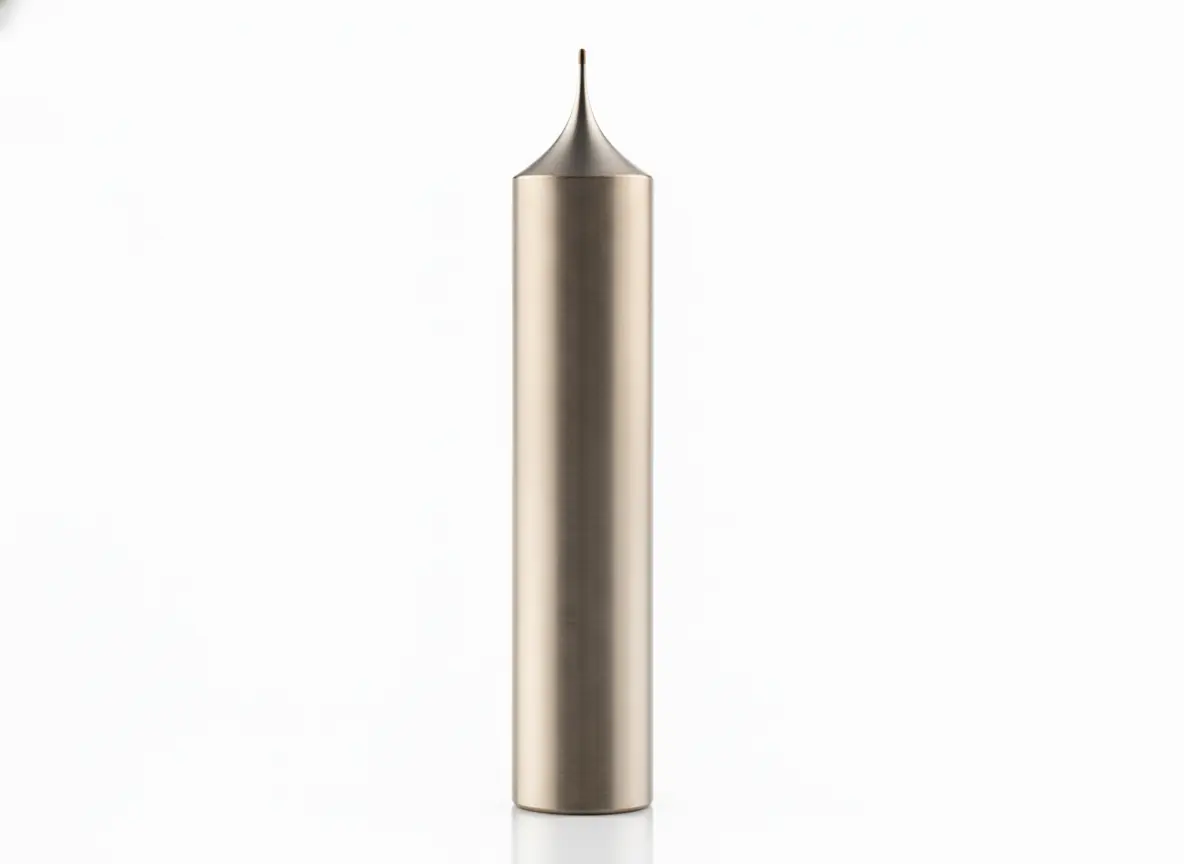

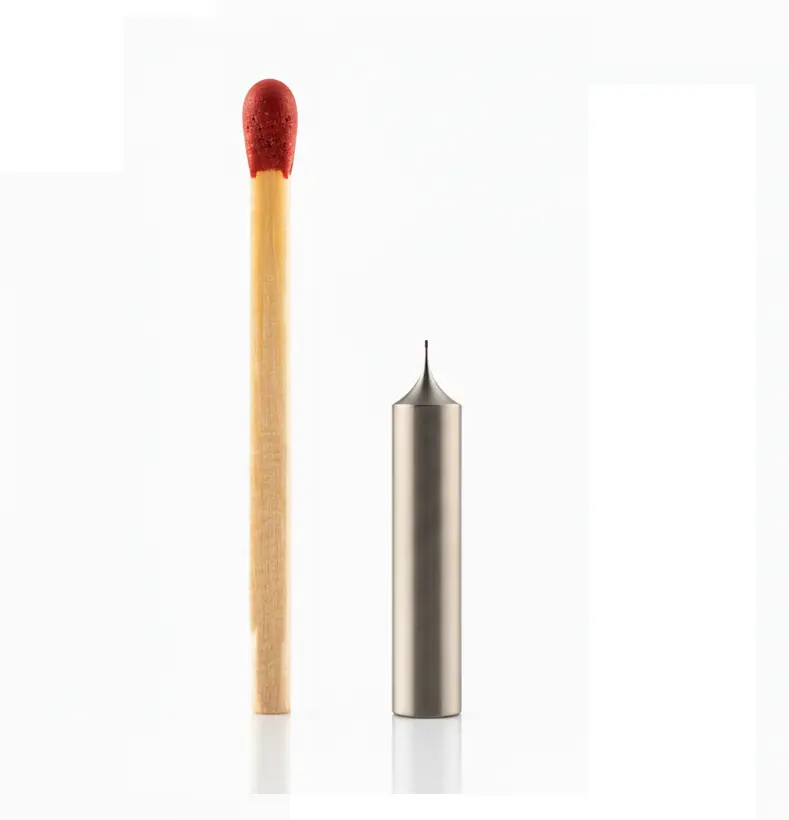

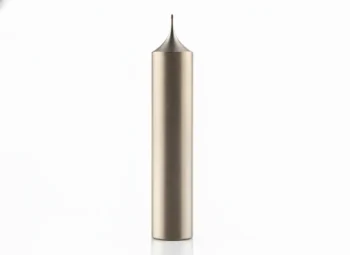

Diamond & CBN Micro Drills, Sintered (Metal Bond)
.007" (0.2mm)
.020” (0.5mm)
1.57” (40mm)
.118” (3mm)
600 mesh
Min: 1
Step: 1
Diamond & CBN Micro Drills, Sintered (Metal Bond)
.008″ (0.3mm)
.031” (0.8mm)
1.57” (40mm)
.118” (3mm)
600 mesh
Min: 1
Step: 1
Diamond & CBN Micro Drills, Sintered (Metal Bond)
.016″ (0.4mm)
.040” (1.0mm)
1.57” (40mm)
.118” (3mm)
600 mesh
Min: 1
Step: 1
Diamond & CBN Micro Drills, Sintered (Metal Bond)
.020″ (0.5mm)
1.57” (40mm)
.118” (3mm)
600 mesh
Min: 1
Step: 1
Diamond & CBN Micro Drills, Sintered (Metal Bond)
.023″ (0.6mm)
1.57” (40mm)
.118” (3mm)
600 mesh
Min: 1
Step: 1
Diamond & CBN Micro Drills, Sintered (Metal Bond)
.027″ (0.7mm)
1.57” (40mm)
.118” (3mm)
600 mesh
Min: 1
Step: 1


  • Unmatched Durability & Life Span: SMART CUT Diamond Micro Drills outlast conventional drilling options by a remarkable margin. Compared to traditional drilling options, they provide exceptional life span, making them a cost-effective choice for production applications or applications where long life is needed specially for deeper drilling of ultra hard materials. The exceptionally long life span will save time and money on frequent drill/tool replacements.
  • Edge Retention: The edge form and geometry of SMART CUT Diamond Micro Drills remain intact throughout their extended lifespan. This means you can consistently achieve precise results without worrying about tool degradation.
  • Consistent Performance: With SMART CUT, you can count on consistent drilling, milling, & grinding performance every time.
  • Minimum Chipping: These tools minimize chipping, ensuring that your materials remain intact and free from unwanted damage during the drilling process. This is particularly crucial when working with delicate or brittle materials like glass and sapphire.
  • Universal Application: Beyond drilling microscopic holes, SMART CUT Diamond Micro Drills can also be employed for milling and grinding applications. This versatility streamlines your toolset and enhances your workflow efficiency.
  • Broad Material Compatibility: SMART CUT series Sintered (Metal Bond) Micro Diamond Drills excel in a wide variety of materials, from ultra hard ceramics such alumina, boron nitride to optical glass and everything in between. They are the go-to choice for precision work on diverse substrates.

Diamond Applications:

  • Quartz
  • Fused Silica
  • Glass
  • Wafers
  • Semiconductor materials
  • Compound semiconductor materials
  • Ceramic substrates
  • Piezo Ceramics
  • Hybrid substrate sawing
  • Capacitors
  • Sapphire
  • Metals
  • Ferrites
  • Bonded wafers
  • Special materials
  • Many Others

Diamond Applications:

  • High Speed Drill Press
  • High Speed Air Spindles
  • Mounted Hand Piece Drill (such as: Foredom & Dremel)
Diamond Micro Drilling Service

Whether you are making intricate jewelry, manufacturing cutting-edge electronics, or involved in any industry requiring precision drilling and shaping, SMART CUT Diamond Micro Drills with Sintered (Metal Bond) are your trusted solution. Experience longevity, precision, and reliability like never before.

Its What You Cant See That Makes All The Difference

SMART CUT® technology

How SMART CUT® Bond Works?

Step 1

Sharpest And Finest Quality Diamonds

The newly exposed diamonds don’t effect diamonds already working on the material. Unlike many other diamond bonds, diamonds in a SMART CUT ®  Bond remains sharp and grow sharper with each cut, prolonging product life and consistent performance.

Step 2

Diamonds or CBN Crystals

Diamonds or CBN Crystals are activated only at the exposed layer. As Bond Matrix layer begin to wear out, diamonds in a new Bond Matrix layer are immediately activated, substituting the already used up diamond layer. The SMART CUT Diamond Hybrid Bond makes sure every diamond is in the right place and at the right time, working where you need it most.

Step 3

Advanced Formulated Open Diamond Bond Design

This advanced formulated open diamond bond design insures minimal chipping, fast cut, constant speed of cut, minimal cutting noise, and most important of all, consistent performance.

About Sintered (Metal Bond)

Sintered (Metal Bond) diamond tools have multiple layers of diamonds impregnated inside the metal matrix. Diamonds are furnaces sintered in a matrix made of iron, cobalt, nickel, bronze, copper, tungsten, alloys of these powders or other metals in various combinations. Metal bonded diamond tools are “impregnated” with diamonds. This means that selected diamonds are mixed and sintered with specific metal alloys to achieve the best cutting performance possible on any materials such as sapphire, advanced ceramics, optics, glass, granite, tile and etc. The metal bond surrounding the diamonds must wear away to continuously keep re-exposing the diamonds for the diamond tool to continue cutting. Sintered (metal bonded) diamond tools are recommended for machining hard materials from 45 to 75 on rockwell scale (5 to 9.5 on mohe’s scale of hardness).

Faster Cutting Action

Diamond & CBN tools made utilizing SMART CUT® technology are much more aggressive than your conventional tools. They can cut faster, while still leaving behind a smooth finish free of material deformation.

More Consistent Performance

Diamond & CBN Wheels are produced using only the highest quality raw materials are used in manufacturing process. Utilizing world class quality control, inspection, and measurement equipment. Highly Experienced Engineers constantly monitor and control all material input & output at all stages of manufacturing process. Insuring product consistency for use in demanding & sensitive applications SMART CUT® DIAMOND & CBN wear evenly, and are known for their consistency. You will get consistent cutting speed, and overall consistent performance, with minimum amount of dressing.

Longer Life

In most cases tools manufactured utilizing SMART CUT® technology, will outlast other conventional material (sintered), resin, and nickel bonded diamond & CBN tools. SMART CUT® diamond & CBN tools are more sturdy than tools manufactured with conventional technologies. They are capable to retain their form and bond configuration all the way through the tools life.

Minimize Chipping & Improve Surface Finish​

SMART CUT Multi Layered Electroplated Diamond Drills have diamonds oriented and evenly distributed in a bond matrix. Providing faster, freer cutting action with minimum heat generation. This translates in improved surface finish and minimum chipping.

Best Performance & Value on the Market​

SMART CUT® Diamond & CBN Wheels are the best investment you can make! Although we may not always be the lowest cost solution provider. Our Diamond & CBN wheels can provide the best ROI. Designed for users that understand and appreciate quality. They will more than pay for themselves in terms of overall performance and provide best Return on Investment.

Manufactured Using The Highest Quality Raw Materials

Only the highest quality synthetic diamonds and raw materials are used in the manufacturing process. The highest quality standards and product consistency is maintained, using sophisticated inspection and measurement equipment.

Variables that Influence

Diamond Micro Drill Specification

Steel Body Composition

The steel body using is usually high speed steel ranging in hardness from 40 to 50 Rockwell scale C. Standard configuration of standard stock diamond micro tools is flat end cylinder but the angle and radius can also be customized if needed.

Diamond / CBN Particle Sizes Used

Diamond sizes used range form 6 microns to 120 microns. Diamond grit size used is in proportion to diameter of the drill tip and can range form 3 to 70 microns.

Head Lengths

Head length made in proportion to diameter of the tool. Usually it cannot exceed 15 times the diameter of the tool.

Recommended RPM’s

diamond & CBN micro drills are used at high speeds ranging from 150,000 to 35,000 RPM’s. The smaller the diameter the tool the higher the recommended speed for optimal performance. The drills may work at lower rpm’s with significantly shorter drill life and possible drill breakage. Optimum RPM's will vary depending on desired cut quality, drill depth, material hardness, density, shape & porosity. Please consult our technical support team or engineering department to determine the best solution or your specific application.

Shank Diameter

shank size is usually 1/8” (3.2mm) or .040” (1mm) to fit most collets. The shank diameter is designed to be in proportion to diameter of the drill/tool. Very small diamond & cbn micro drills .001” to .015” will have shank diameter of .040” (1mm). Larger diameter micro drills .016” to .040” will have shank diameter of 1/8” (3.2mm). Smaller diameter micro drills/tools can be produced with 1/8” (3.2mm) shank and larger micro drills/tools can be made with .040” (1mm) shank. Other shank diameters can be made upon request.

Recommend Coolants

We recommend using with our SMART CUT water soluble coolant for optimal results. using proper coolant type at the right velocity, angle at drilling zone will improve the life & performance of your tool and help reduce drill breakage.

Why Choose Us?

Optimize your application to ultimate level of efficiency

Why Work With Us?

Comprehensive Source of Information on Diamond & CBN Blades

The more you understand about what we can do for you, the better our partnership will be. On our website you will find the Most Comprehensive Source of Information on Everything you wanted to know about diamond dicing blades & industrial diamond tools.

Large Inventory & Custom Manufacturing

Largest Inventory of Precision & Ultra Thin Diamond Dicing Blades in the U.S. Available in different sizes, thickness, arbor sizes, diamond concentrations, diamond mesh sizes, and bond hardness's.

Experience makes all the Difference

Over the years we have enjoyed working with all types if clients, regardless of size. Proprietary dicing blade chemistry, precision manufacturing methods, modern quality control methods, allow us to control and regulate the dozens of variables that affect blade life, quality of cut, surface finish. Reducing and often eliminating additional steps often required after cutting.

Umatched Technical Support

We Are a Partner In Your Success
Developing close ties with our customers is the foundation of our business. At the core of our company is a team of world class engineers, knowledgeable customer service personnel here to serve you. Whether is designing or manufacturing a special solution. We will go out of our way to optimizing your process to ultimate level of efficiency.


American Manufacturer
As one of the few remaining independent U.S.Diamond Tool & machine builders. We have the experience & tradition to help you remain at frontier of technology Our experience has been further enhanced by acquiring assets and processes from some of the oldest American tool manufacturers, along with their decades of experience and R& D. This has positioned us as one of the most experienced companies in the industry.

Superior Quality &

Our unique bond formulations, tool designs, stringent requirements, and utilization of exceptionally high-quality diamonds and raw materials ensure top-notch products that adhere to strict ISO 9000 standards.

Our proprietary technology allow us to control and regulate the dozens of variable that affect toolife, quality, & consistency
