Drilling Life: 650+ holes* on most materials. 30% more Diamond than conventional drills. Diamond Drill life will vary depending on material, drilling depth, coolant & drilling equipment used as well as operator experience.
SMART CUT™ Diamond Core Bits are premium-quality, sintered (metal bond) core bits designed for drilling hard materials, including concrete with hard aggregate and heavy steel. What sets them apart is the high-grade diamond used and an advanced bond formulation specifically designed for hard materials. These core bits feature double-pointed diamond segments for quick and smooth drilling.
SMART CUT™ Diamond Core Bits are designed for a wide range of hard materials, including granite, marble, quartz, flagstone, sandstone, onyx, amethyst, travertine, garnet, concrete, agate, jasper, jade, petrified wood, and many other minerals.
Yes, you can use SMART CUT™ Diamond Core Bits with hand-held drills for diameters up to 1.5″. However, they are not suitable for use with drill presses or milling machines.

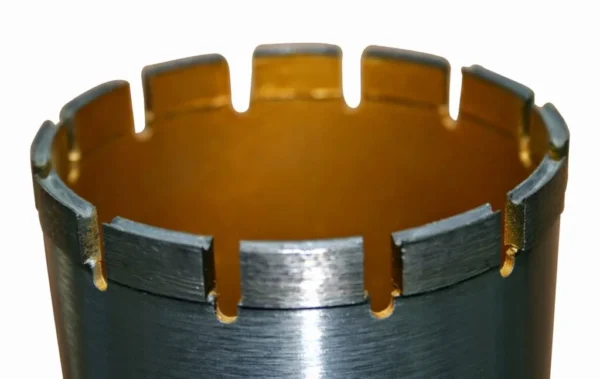

SMART CUT™ Diamond Core Bits have double-pointed diamond segments that provide faster drilling, reduced vibration, improved cooling, and efficient slurry removal. They are specially formulated with high-quality diamonds and advanced bond materials, making them almost indestructible when used with coolant.
Sintered (metal bond) diamond tools have multiple layers of diamonds impregnated inside the metal matrix, offering superior performance in cutting hard materials. Unlike other types, sintered diamond tools wear evenly and consistently, resulting in longer life and more reliable performance.
SMART CUT™ Diamond Core Bits offer numerous advantages, including longer life, more consistent performance, minimized chipping, and improved surface finish. They are manufactured using the highest quality raw materials, ensuring the best performance and value.
To maximize the lifespan and performance, follow recommended RPMs (speed) based on core bit diameter, and consider factors like drilling depth, drilling pressure, material abrasiveness, material hardness, and aggregate size. Using coolant and proper maintenance will also help extend their life.
Yes, these core bits are suitable for industrial applications and are compatible with various drilling equipment, including core drilling machines, hydraulic drilling machines, and more.
SMART CUT™ Diamond Core Bits are designed for wet drilling. It is highly recommended to use them with mineral oil or a water-soluble coolant to ensure optimal cooling and lubrication during the drilling process.
Yes, these core bits are rebuildable, which means you can replace worn-out or damaged segments, extending their usable life and cost-effectiveness.
The double-pointed segments provide faster drilling speeds, reduced vibration, and improved cooling and slurry removal. They also help maintain a straight drilling path, reducing side drag and increasing drilling efficiency.
Yes, SMART CUT™ Diamond Core Bits are designed to handle concrete with heavy steel reinforcements. Their advanced bond formulation and high-quality diamonds allow them to drill through concrete with hard aggregate and heavy steel efficiently.
Core bit bond hardness can vary. Softer bond hardness provides faster drilling but may result in shorter core bit life. Harder bond hardness offers longer core bit life but may drill more slowly. The choice depends on the specific drilling requirements and materials.
SMART CUT™ Diamond Core Bits are suitable for both DIY enthusiasts and professionals. Their ease of use and superior performance make them a valuable tool for a wide range of projects.
To select the right core bit, consider factors such as the type of material you are drilling, the diameter of the hole needed, drilling depth, and the drilling equipment you are using. Our specifications tab provides guidance on RPM, core bit life, and drilling speed based on these factors.
These core bits are primarily designed for straight drilling paths. While they can be used on slightly curved surfaces, their optimal performance is achieved on flat and straight surfaces.
Always follow safety guidelines and wear appropriate protective gear when operating drilling equipment. Additionally, ensure the work area is well-ventilated when using coolant. Familiarize yourself with the safety recommendations provided by your equipment manufacturer.
SMART CUT™ Diamond Core Bits can be used for underwater drilling with the proper equipment and precautions. However, ensure that the drilling equipment and electrical components are suitable for underwater use and follow all safety guidelines for underwater operations.
While SMART CUT™ Diamond Core Bits are designed for hard materials, cutting glass or ceramics may not be their primary application. They are better suited for materials like granite, marble, concrete, and others mentioned in the product description.
Dry drilling with SMART CUT™ Diamond Core Bits is not recommended. Using them without proper lubrication and cooling can significantly reduce their lifespan and may result in less effective drilling.
SMART CUT™ Diamond Core Bits are recommended for materials with a hardness range of 30 to 65 on the Rockwell scale (4 to 8.00 on Mohs scale). For drilling tempered steel or industrial ceramics, specialized diamond tools may be required.
Regularly inspect the core bit for wear and damage. Keep the segments clean and free of debris. Follow recommended RPMs and use coolant as advised. When segments show signs of wear, consider rebuilding or replacing them for optimal performance.
SMART CUT™ Diamond Core Bits are versatile and can handle a variety of materials, including both hard and soft. However, for optimal performance, you may consider having specific core bits for each material type.
When handling core bits, wear protective gloves and follow proper lifting techniques to avoid injury. Store them in a dry, cool place away from direct sunlight and corrosive substances to prevent damage to the segments or bond.
Cutting speeds can vary depending on the material and specific project requirements. Refer to our specifications tab for RPM recommendations based on core bit diameter, and adjust the cutting speed as needed for different materials.
Yes, these core bits can be used for drilling holes in walls made of materials like concrete, granite, or marble for plumbing or electrical installations. Always follow safety guidelines and use the appropriate equipment for wall drilling.
SMART CUT™ Diamond Core Bits are designed to be compatible with drilling rigs from different manufacturers. However, always ensure that the core bit thread size matches the drilling rig’s specifications for a secure fit.
Yes, you can use SMART CUT™ Diamond Core Bits with a standard hand-held electric drill for smaller diameters (up to 1.5″). Ensure that the drill’s chuck can accommodate the core bit’s thread size for a secure fit.
While SMART CUT™ Diamond Core Bits are designed for hard materials, including some ceramics, they may not be the best choice for delicate ceramic tiles or porcelain. Specialized ceramic tile core bits are available for such applications.
Yes, SMART CUT™ Diamond Core Bits can be used for drilling holes in concrete or masonry walls to install anchor bolts or fasteners. They are well-suited for these applications, providing efficient and precise drilling.
SMART CUT™ Diamond Core Bits are primarily designed for hard natural materials, such as stone and concrete. While they may cut composite materials, it’s advisable to use specialized core bits designed for composites to achieve the best results.
After each use, clean the core bit’s segments of debris and slurry, and inspect for any signs of wear or damage. Dress the diamond core bit by drilling into dressing stick when needed. Store them in a dry, cool place. If segments are wornout, consider rebuilding or replacing them before the next use.
SMART CUT™ Diamond Core Bits can be used for drilling holes in refractory materials and firebricks. Their advanced design and high-quality diamonds make them effective in such applications, ensuring precision and durability.
When using SMART CUT™ Diamond Core Bits indoors or in confined spaces, ensure proper ventilation to dissipate any coolant fumes. Use appropriate personal protective equipment, and follow all safety guidelines for the equipment and materials being drilled.
Yes, SMART CUT™ Diamond Core Bits are suitable for creating holes in concrete slabs or floors for plumbing or electrical conduits. They offer efficient and precise drilling in these applications.
SMART CUT™ Diamond Core Bits are designed to operate at room temperature. Avoid exposing them to extreme temperatures or sudden temperature changes, as this can affect their performance and lifespan.
Yes, these core bits are ideal for drilling holes in natural stone countertops to accommodate faucets, appliances, or other fixtures. They provide clean and precise cuts in stone materials.
SMART CUT™ Diamond Core Bits can be used for drilling holes in engineered quartz countertops. However, for optimal results, ensure that the core bit is compatible with the specific type of engineered quartz you are working with.
To ensure proper alignment and stability, use a drill guide or template to mark the drilling location and maintain a straight drilling path. Secure the material to be drilled firmly to prevent shifting during the drilling process.
Yes, SMART CUT™ Diamond Core Bits are suitable for drilling holes in reinforced concrete walls and structures. Their design and advanced materials make them effective for such applications.
While SMART CUT™ Diamond Core Bits are designed for use with drilling rigs and hand-held drills, they are not typically used with rotary hammers or hammer drills. These core bits are better suited for standard drill systems. If using on rotary hammer drill use on rotation mode only
SMART CUT™ Diamond Core Bits can be used for drilling holes in terrazzo flooring or tiles. However, it’s essential to use the appropriate core bit size and RPM settings for the best results.
Yes, SMART CUT™ Diamond Core Bits are suitable for making holes in outdoor concrete or stone surfaces like patios or walkways. They are versatile and can be used in various outdoor applications.
Yes, these core bits can be used for making holes in concrete blocks or bricks. They provide efficient and precise drilling in these materials, making them suitable for a range of construction and masonry projects.
SMART CUT™ Diamond Core Bits may come with basic operating instructions. However, it’s advisable to refer to our website or contact our customer support for comprehensive guidance on proper usage and maintenance.
Yes, these core bits are suitable for creating holes in rock formations for geological exploration or sampling. Their advanced design and high-quality diamonds make them effective for such scientific applications. We offer extensions to extend their drilling depth.
Disposal of worn-out or damaged core bits should follow local regulations and guidelines for handling and disposing of diamond tools. Depending on your location, there may be specific waste disposal facilities or recycling options for such materials.
While SMART CUT™ Diamond Core Bits are versatile, they may not be the best choice for extremely fragile materials like porcelain tiles or ceramic pots. Specialized core bits designed for ceramics may provide better results in these cases.
Image | Item No. | Description | Price | Quantity | Add to cart |
|---|---|---|---|---|---|
 | 1 Gallon Blue SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $99.81 | Max: Min: 1 Step: 1 | ||
 | 1 Quart Blue SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $34.81 | Max: Min: 1 Step: 1 | ||
 | 5 Gallons Blue SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $317.41 | Max: Min: 1 Step: 1 | ||
 | 55 Gallons Blue SMART CUT® General Materials Formula Synthetic Water Soluble Coolant | $1,745.00 | Max: Min: 1 Step: 1 | ||
 | 1/2″ x 1/2″ x 6.0″ White Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. | $8.65 | Max: Min: 1 Step: 1 | ||
| 1.0″ x 1.0″ x 6.0″ White Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. | $15.99 | Max: Min: 1 Step: 1 | ||
| 1/2″ x 1/2″ x 6.0″ White For use on diamond tools 150 to 220 Grit Size. | $8.65 | Max: Min: 1 Step: 1 | ||
 | 1.0″ x 1.0″ x 6.0″ Black Recommended for use in Diamond Tools 150 Grit Size (mesh size) or finer. | $15.39 | Max: Min: 1 Step: 1 | ||
 | 2.0″ x 2.0″ x 6.0″ Black Recommended for use in Diamond Tools 150 Grit Size (mesh size) or finer. | $39.47 | Max: Min: 1 Step: 1 | ||
| 1.0″ x 1.0″ x 6.0″ Black Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. | $15.99 | Max: Min: 1 Step: 1 | ||
| 2.0″ x 2.0″ x 6.0″ Black Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. | $39.47 | Max: Min: 1 Step: 1 |
Image | Name | Description | Price | Quantity | Add to cart |
|---|---|---|---|---|---|
 | 105DE, 135DB, 115DM, 125DM, 130DMN, 140DM (up to 1-5/8″ OD) | $154.87 | Max: Min: 1 Step: 1 | ||
 | 105DE, 135DB, 115DM, 125DM, 130DMN, 140DM (up to 1-5/8″ OD) | $154.87 | Max: Min: 1 Step: 1 | ||
 | $154.87 | Max: Min: 1 Step: 1 | |||
 | 105DE, 135DB, 115DM, 125DM, 130DMN, 140DM (up to 1-5/8″ OD) | $235.00 | Max: Min: 1 Step: 1 |
| Core Bit Diameter | Max/Min RPM* | |
|---|---|---|
| 1″ – 2″ | (25mm – 51mm) | 1,200 – 1,000 |
| 2.25 ” – 5″ | (57mm – 127mm) | 1,000 – 500 |
| 5.25″ – 12″ | (134mm – 305mm) | 500 – 250 |
| Diamond Core Bit Characteristics | Core Bit Life | Drilling Speed | |
|---|---|---|---|
| Core Bit Bond Hardness | Softer Harder | Shorter Longer | Faster Slower |
| Diamond Quality | Lower Higher | Shorter Longer | Slower Faster |
| Diamond | Lower | Shorter | Slower |
| Concentration | Higher | Longer | Faster |
| Segment Thickness | Thinner Thicker | Shorter Longer | Faster Slower |
| The Job | Core Bit Life | Drilling Speed | |
|---|---|---|---|
| Drilling Depth | Shallow Deep | Usually Shorter Usually Longer | Faster Slower |
| Drilling Pressure | Lower Higher | Longer Shorter | Slower Faster |
| Abrasiveness of Material | More Less | Shorter Longer | Faster Slower |
| Material Harness | Higher Softer | Shorter Longer | Slower Faster |
| Aggregate Size | Larger Smaller | Shorter Longer | Slower Faster |
These core bits are designed to be used on drilling rigs and for smaller diameters up to 1.5" can also be used on hand held drills (not to be used on drill press or milling machine, we can produce other type of diamond core drills for that equipment).
Image | Item No | Old Item No. | Outside Diameter | Drilling Depth | Thread Size | Price | Quantity | Add to cart |
|---|---|---|---|---|---|---|---|---|
 | 40CA12SG | 1/2" | 14" | 5/8-11” | $105.86 | Max: Min: 1 Step: 1 | ||
| 40CA78SG | 7/8" | 14" | 5/8-11” | $109.32 | Max: Min: 1 Step: 1 | ||
| 40CA58SG | 5/8" | 14" | 5/8-11” | $110.43 | Max: Min: 1 Step: 1 | ||
| 40CA34SG | 3/4" | 14" | 5/8-11” | $112.81 | Max: Min: 1 Step: 1 | ||
| 40CA10SG | 1.0" | 14" | 5/8-11” | $115.64 | Max: Min: 1 Step: 1 | ||
| 40CA11SG | 1-1/8" | 14" | 5/8-11” | $120.72 | Max: Min: 1 Step: 1 | ||
| 40CA14SG | 1-1/4" | 14" | 5/8-11” | $123.98 | Max: Min: 1 Step: 1 | ||
| 40CA145SG | 1-3/8" | 14" | 5/8-11” | $129.83 | Max: Min: 1 Step: 1 | ||
| 40CA15SG | 1-1/2" | 14" | 5/8-11” | $134.68 | Max: Min: 1 Step: 1 | ||
| 40CA16SG | 1-5/8" | 14" | 1-1/4-7" | $139.44 | Max: Min: 1 Step: 1 | ||
| 40CA17SG | 1-3/4" | 14" | 1-1/4-7" | $143.68 | Max: Min: 1 Step: 1 | ||
| 40CA20SG | 2.0" | 14" | 1-1/4-7" | $185.00 | Max: Min: 1 Step: 1 | ||
| 40CA21SG | 2-1/4" | 14" | 1-1/4-7" | $191.00 | Max: Min: 1 Step: 1 | ||
| 40CA22SG | 2-1/2" | 14" | 1-1/4-7" | $199.00 | Max: Min: 1 Step: 1 | ||
| 40CA23SG | 2-3/4" | 14" | 1-1/4-7" | $206.00 | Max: Min: 1 Step: 1 | ||
| 40CA30SG | 3.0" | 14" | 1-1/4-7" | $213.00 | Max: Min: 1 Step: 1 | ||
| 40CA31SG | 3-1/4" | 14" | 1-1/4-7" | $218.00 | Max: Min: 1 Step: 1 | ||
| 40CA32SG | 3-1/2" | 14" | 1-1/4-7" | $227.00 | Max: Min: 1 Step: 1 | ||
| 40CA40SG | 4.0" | 14" | 1-1/4-7" | $242.00 | Max: Min: 1 Step: 1 | ||
| 40CA41SG | 4-1/4" | 14" | 1-1/4-7" | $278.00 | Max: Min: 1 Step: 1 | ||
| 40CA42SG | 4-1/2" | 14" | 1-1/4-7" | $314.00 | Max: Min: 1 Step: 1 | ||
| 40CA43SG | 4-3/4" | 14" | 1-1/4-7" | $365.00 | Max: Min: 1 Step: 1 | ||
| 40CA50SG | 5.0" | 14" | 1-1/4-7" | $373.00 | Max: Min: 1 Step: 1 | ||
| 40CA51SG | 5-1/4" | 14" | 1-1/4-7" | $416.00 | Max: Min: 1 Step: 1 | ||
| 40CA52SG | 5-1/2" | 14" | 1-1/4-7" | $444.72 | Max: Min: 1 Step: 1 | ||
| 40CA53SG | 5-3/4" | 14" | 1-1/4-7" | $455.33 | Max: Min: 1 Step: 1 | ||
| 40CA60SG | 6.0" | 14" | 1-1/4-7" | $460.00 | Max: Min: 1 Step: 1 | ||
| 40CA61SG | 6-1/4" | 14" | 1-1/4-7" | $488.00 | Max: Min: 1 Step: 1 | ||
| 40CA62SG | 6-1/2" | 14" | 1-1/4-7" | $519.00 | Max: Min: 1 Step: 1 | ||
| 40CA70SG | 7.0" | 14" | 1-1/4-7" | $558.00 | Max: Min: 1 Step: 1 | ||
| 40CA80SG | 8.0" | 14" | 1-1/4-7" | $614.00 | Max: Min: 1 Step: 1 | ||
| 40CA90SG | 9.0" | 14" | 1-1/4-7" | $689.00 | Max: Min: 1 Step: 1 | ||
| 41CA10SG | 10.0" | 14" | 1-1/4-7" | $899.00 | Max: Min: 1 Step: 1 | ||
| 41CA12SG | 12.0" | 14" | 1-1/4-7" | $1,072.00 | Max: Min: 1 Step: 1 | ||
| 41CA14SG | 14.0" | 14" | 1-1/4-7" | $1,281.00 | Max: Min: 1 Step: 1 |
Designed for drilling most types of ultra hard to soft materials. Drill the hardest materials available, where others will not work effectively. Series Drills designed for the Professional User, are produced with higher diamond concentration and higher grade, stronger, and more blocky shape diamond crystal then most diamond core bits you will find on the market today. Combined with unique pointed segment design Make our Series drills among top performers in the market place today.Count on our Unique Experience obtained from over 40 years of working in the Ultra Hard & Brittle Material Field to provide the right solution need for the more tougher and challenging applications

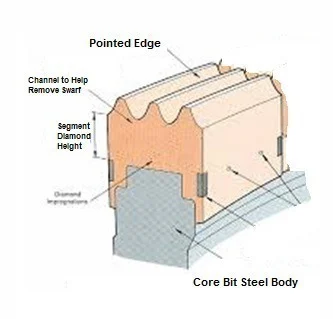

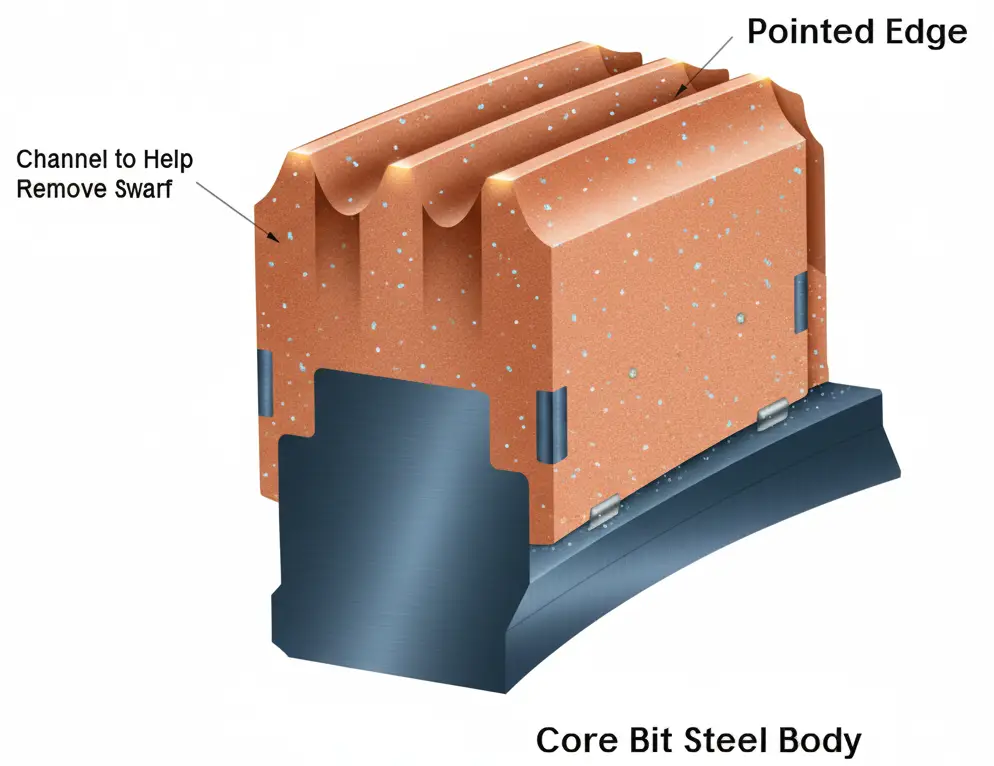

Series Drills are produced with unique Pointed Segment Design that offers the following advantages:
Segments are “Laser Welded” utilizing the latest technological process, that considers heavy loads and rugged conditions encountered in more challenging drilling applications, such as drilling heavily reinforced concrete or concrete with heavy amount of rebar. This makes sure that diamond segments will remain intact even in most difficult conditions and diamond core bit will not jam while in use.
Series Diamond Core Bits exhibit faster drilling speeds and more consistency then most other diamond core bits available today. Our proprietary bond chemistry, precision manufacturing methods, modern quality control methods, allow us to control and regulate the dozens of variables that affect core bit overall performance.
APPLICATION/TESTING EXAMPLE: We have tested these diamond core bit by drill into a 12″ thick test slab of 5,000 psi cure concrete with four 5/8″ rebar placed in the line of a cut. An rpm of 800 was used during this test. The time to drill a hole that included rebar was 5 minutes and 15 seconds. Without the rebar drilling time wasonly 3 minutes and 45 seconds.
Diamonds or CBN Crystals are activated only at the exposed layer. As Bond Matrix layer begin to wear out, diamonds in a new Bond Matrix layer are immediately activated, substituting the already used up diamond layer. The SMART CUT® Diamond Hybrid Bond makes sure every diamond is in the right place and at the right time, working where you need it most.
The newly exposed diamonds don’t effect diamonds already working on the material. Unlike many other diamond bonds, diamonds in a SMART CUT® Bond remains sharp and grow sharper with each cut, prolonging product life and consistent performance.
This advanced formulated open diamond bond design insures minimal chipping, fast cut, constant speed of cut, minimal cutting noise, and most important of all, consistent performance.
Sintered (Metal Bond) diamond tools have multiple layers of diamonds impregnated inside the metal matrix. Diamonds are furnaces sintered in a matrix made of iron, cobalt, nickel, bronze, copper, tungsten, alloys of these powders or other metals in various combinations. Metal bonded diamond tools are “impregnated” with diamonds. This means that selected diamonds are mixed and sintered with specific metal alloys to achieve the best cutting performance possible on any materials such as sapphire, advanced ceramics, optics, glass, granite, tile and etc. The metal bond surrounding the diamonds must wear away to continuously keep re-exposing the diamonds for the diamond tool to continue cutting. Sintered (metal bonded) diamond tools are recommended for machining hard materials from 45 to 75 on rockwell scale (5 to 9.5 on mohe’s scale of hardness).
Only the highest quality synthetic diamonds and raw materials are used in the manufacturing process. The highest quality standards and product consistency is maintained, using sophisticated inspection and measurement equipment.
SMART CUT® Dry Diamond Core Bits are the best investment you can make! Although they may cost more than Dry Diamond Core Bits They will more than pay for themselves in terms of overall performance and provide best Return on Investment.
In addition to the standard SMART CUT series Diamond Core Bits typically available from stock. We can produce large variety of custom diamond Core Bits and tools per your specification or drawing
