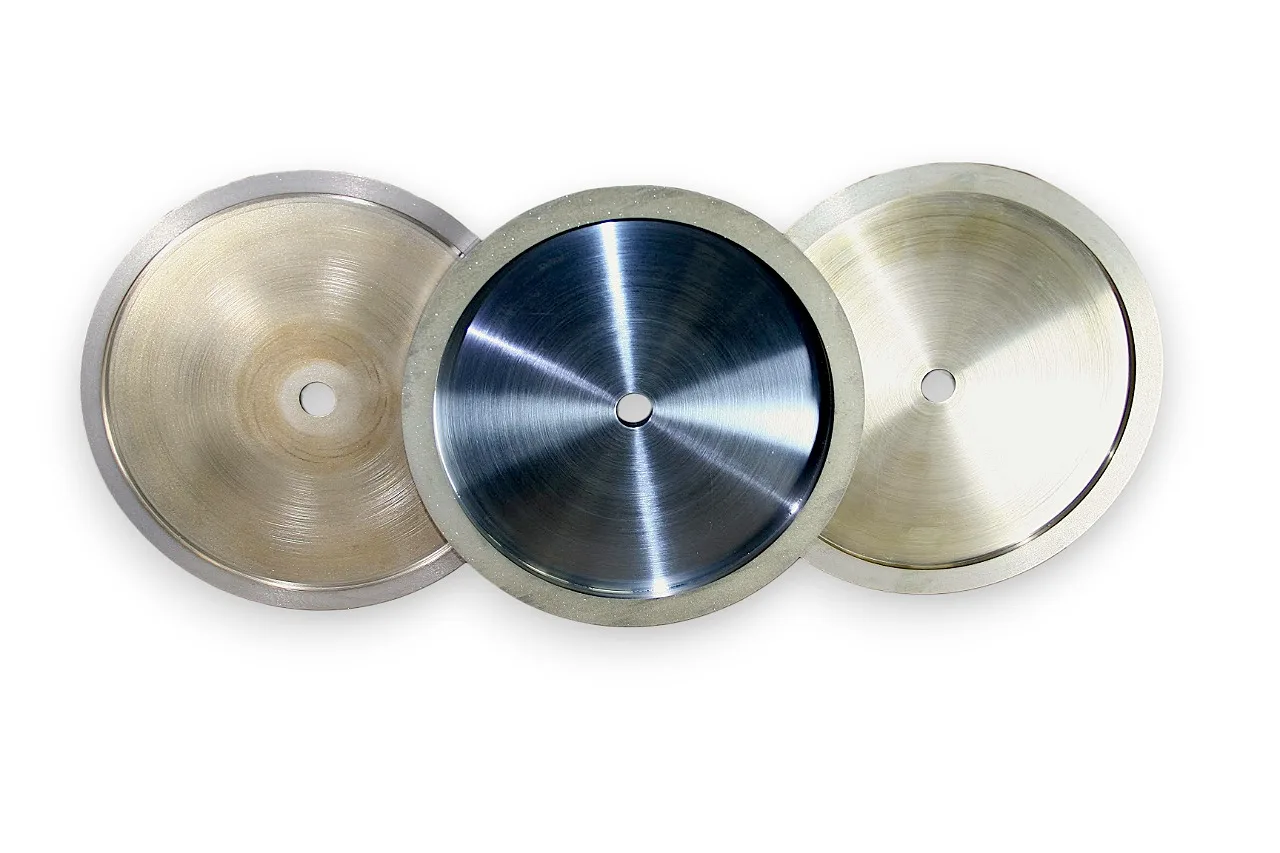

SMART CUT Diamond Cup wheels produced for Struers, Buehler, and many other thin section cutting/grinding machines. Are used for grinding/thinning large variety of materials ranging for geologic minerals to micro electronic packages. Any specification can be produced if needed. Below is cross-reference table of comparison to standard diamond cup wheels used today.
SMART CUT Diamond Cup wheels produced for Struers, Buehler, and many other thin section cutting/grinding machines. Are used for grinding/thinning large variety of materials ranging for geologic minerals to micro electronic packages. Any specification can be produced if needed. Below is cross-reference table of comparison to standard diamond cup wheels used today.
Tab Content
SMART CUT Diamond Cup Wheels are primarily used for sample preparation in materials science, geology, and metallurgy. They are designed to grind and polish samples to achieve precise and uniform surfaces for analysis.
Yes, these cup wheels are designed to be compatible with Struers, Buehler, and other Thin Section Machines commonly used in sample preparation applications. They are crafted to seamlessly integrate with your existing equipment.
SMART CUT Diamond Cup Wheels are versatile and can be used on a wide range of materials, including rocks, minerals, ceramics, metals, and more. They are suitable for both hard and soft materials, making them a versatile choice for various applications.
These cup wheels are built with exceptional durability in mind. They are designed to withstand the demands of rigorous sample preparation tasks, reducing the need for frequent replacements and saving you time and money.
Yes, precision is a key feature of SMART CUT Diamond Cup Wheels. They are engineered to deliver precise and uniform grinding results, ensuring that your samples meet the highest standards of accuracy.
Absolutely. These cup wheels are designed with a user-friendly approach, making installation and operation straightforward. Both novice and experienced operators can use them with ease.
By investing in SMART CUT Diamond Cup Wheels, you can expect consistent and reliable sample preparation results, reduced replacement costs, and improved efficiency. They are a cost-effective solution that enhances the quality of your research and analysis.
Yes, we offer a range of grit sizes to suit your specific sample preparation needs. You can choose the appropriate grit size depending on the material and finish requirements of your samples.
Proper maintenance is essential for extending the life of your SMART CUT Diamond Cup Wheels. We recommend regularly cleaning them with a suitable cleaning solution and ensuring that they are dry and free of debris before and after each use. Follow the manufacturer’s guidelines for specific cleaning and maintenance instructions.
SMART CUT Diamond Cup Wheels can be used for both wet and dry grinding, depending on your application requirements. Wet grinding is often preferred for heat-sensitive materials, while dry grinding may be suitable for others. Always consider the material and safety precautions when choosing your grinding method.
To maintain the quality and performance of your cup wheels, it’s advisable to store them in a dry and climate-controlled environment, away from direct sunlight and extreme temperatures. Ensure they are stored in a way that prevents any damage or deformation.
Customization options may be available depending on your specific needs. Contact our sales or customer support team to discuss any custom requirements you have, and we will do our best to accommodate your requests.
The lifespan of these cup wheels can vary depending on factors such as usage frequency, material type, and maintenance practices. However, with proper care and maintenance, you can expect them to have a relatively long service life, providing consistent performance over time.
Yes, these cup wheels are versatile and can be used for both rough grinding and fine polishing. They offer flexibility in achieving the desired surface finish for your samples, whether you need to remove material quickly or achieve a mirror-like polish.
While these cup wheels themselves do not have built-in safety features, it’s essential to follow safety protocols when using them. Ensure that your equipment and workspace are properly maintained, and always use appropriate safety measures to prevent accidents.
SMART CUT Diamond Cup Wheels are designed to provide precise control, making them suitable for delicate or fragile samples. However, it’s crucial to adjust grinding parameters carefully and use proper technique to minimize the risk of sample damage.
SMART CUT Diamond Cup Wheels can be used in controlled environments like cleanrooms, provided that you take appropriate precautions to prevent contamination. Ensure that all equipment and materials used in the cleanroom meet the required cleanliness standards.
Yes, SMART CUT Diamond Cup Wheels can be adapted for use in automated sample preparation systems or robotic setups. Custom mounting and automation solutions can be discussed to meet your specific automation needs.
The recommended RPM may vary depending on the machine and application. It is essential to consult the manufacturer’s guidelines for your specific Thin Section Machine or equipment to determine the appropriate RPM settings for optimal performance.
While these cup wheels are designed with precision and accuracy in mind, they are typically used in laboratory or controlled settings. Their performance may be affected by field conditions, and their primary application is in sample preparation for research and analysis.
The choice of grit size depends on the material you are working with and the desired finish. Smaller grit sizes (e.g., 80-120) are suitable for coarse grinding and removing material quickly, while larger grit sizes (e.g., 220-400) are better for finer polishing and achieving smoother surfaces. Consider your sample’s characteristics and the analysis requirements when selecting the grit size. For your reference we have made cross reference to most BUEHLER & STRUERS part numbers to make the selection process for you easier.
SMART CUT Diamond Cup Wheels can be used for both wet and dry grinding, but it’s a good practice to have separate cup wheels for each type of preparation. This helps prevent cross-contamination and ensures consistent results for both wet and dry applications.
While it is possible to reprofile or reshape cup wheels in some cases, it is a specialized task that requires expertise and the right equipment. This can be done by us for a fee if needed. It’s generally recommended to replace cup wheels when they become worn or damaged to ensure the highest level of performance and safety.
SMART CUT Diamond Cup Wheels are versatile and can be adapted for non-standard sample shapes or sizes. Custom tooling or adaptors can often be used to accommodate unique sample geometries or sizes. Contact our technical support team to discuss your specific requirements.
SMART CUT Diamond Cup Wheels are manufactured to high-quality standards, but specific safety certifications may vary depending on your location and application. It’s advisable to ensure that your laboratory or facility follows safety regulations and guidelines relevant to your industry and region when using these cup wheels.
its possible to reuse the steel body and braise new diamond section on it. However its often not financially feasible as it could be more work to refurbish your existing cup wheel then to produce a new one.
While these cup wheels can operate at room temperature, prolonged use at high speeds may generate heat. It’s advisable to monitor the operating temperature and, if necessary, use a cooling system to prevent overheating and maintain consistent performance.
It’s essential to clean the cup wheels thoroughly between dry and wet sample preparation to avoid cross-contamination. Using separate cup wheels for each type of preparation or ensuring thorough cleaning and drying between applications is recommended.
Yes, SMART CUT Diamond Cup Wheels can be integrated with automated sample loading and unloading systems to enhance productivity and efficiency in your sample preparation process. Customized solutions and adaptors can be discussed to facilitate automation.
Maintaining the condition of SMART CUT Diamond Cup Wheels may involve occasional dressing or truing to restore their cutting efficiency. Consult the product documentation or contact our technical support team for guidance on the recommended dressing methods and frequency.
SMART CUT Diamond Cup Wheels can be used for preparing samples for electron microscopy and other high-resolution imaging techniques. Their precision and ability to achieve fine surface finishes make them suitable for applications where sample quality is critical.
Disposing of worn-out or damaged cup wheels should be done in accordance with local regulations and environmental guidelines. Check with your local waste management authorities for proper disposal methods or recycling options for diamond abrasive tools.
When working with samples containing embedded or fragile components, it’s crucial to adjust grinding parameters and techniques to minimize the risk of damage. SMART CUT Diamond Cup Wheels provide precision control, allowing you to work with care around sensitive components.
SMART CUT Diamond Cup Wheels are available in various sizes to accommodate different sample sizes and equipment specifications. Contact our sales team to inquire about the available size options and select the ones that best suit your needs.
Depending on your requirements, we may offer accessories and supplementary products that complement the use of SMART CUT Diamond Cup Wheels. Contact our sales team to explore the available options, including coolant systems, safety gear, and more.
While these cup wheels are designed primarily for sample preparation, they can be used for routine maintenance of machinery or equipment surfaces in some cases. Their versatility makes them suitable for various precision grinding tasks.
To reduce vibration and noise during operation, ensure that your equipment is properly maintained and securely mounted. Using appropriate mounting hardware and ensuring the cup wheels are balanced can also help minimize vibrations and noise.
SMART CUT Diamond Cup Wheels do not have a specific shelf life, but proper storage is essential to maintain their performance. Store them in a dry, climate-controlled environment, away from direct sunlight and extreme temperatures, to ensure their longevity and quality.
SMART CUT Diamond Cup Wheels can be used for a range of sample thicknesses, but there may be limitations depending on the specific cup wheel size and equipment setup. Ensure that the cup wheel size and equipment are suitable for the sample thickness you intend to work with.
It’s time to replace a worn-out cup wheel when you notice a decline in grinding performance, reduced efficiency, or a deterioration in the quality of the prepared sample surfaces. Regularly inspect the cup wheel for signs of wear and replace it as needed to maintain consistent results.
Yes, these cup wheels are versatile and can be used for both manual and automated sample preparation processes. Whether you prefer a hands-on approach or automation, SMART CUT Diamond Cup Wheels can accommodate your needs.
SMART CUT Diamond Cup Wheels can be used for research and industrial applications involving composites and advanced materials. Their versatility and precision make them suitable for a wide range of materials used in various industries.
Yes, SMART CUT Diamond Cup Wheels are designed to provide consistent and repeatable results, ensuring that your sample preparation is reliable and meets the highest standards of accuracy and quality.
Proper alignment and mounting are crucial for optimal performance. Follow the manufacturer’s guidelines and instructions provided with your equipment to ensure that SMART CUT Diamond Cup Wheels are correctly aligned and securely mounted before use.
When working with hazardous materials, it’s essential to follow all safety protocols and guidelines established in your laboratory or facility. SMART CUT Diamond Cup Wheels themselves do not pose additional hazards, but the materials you are grinding may require specific safety precautions. Consult with your laboratory’s safety experts for guidance.
Yes, SMART CUT Diamond Cup Wheels can be used for delicate geological samples, including fossils and thin mineral sections. Their precision control allows for gentle material removal when working with fragile specimens.
Handling and disposing of coolant or abrasive slurry should be done in accordance with local environmental regulations. Proper containment, recycling, or disposal methods should be followed to minimize the environmental impact.
Yes, these cup wheels can be adapted for specialized applications like semiconductor wafer thinning and precision optics preparation. Customized solutions and tooling may be necessary, and we can work with you to meet these specific requirements.
SMART CUT Diamond Cup Wheels are versatile and can be used for samples with irregular shapes or challenging geometries. Their precision control and adaptability make them suitable for a wide range of sample configurations.
SMART CUT Diamond Cup Wheels can be used in controlled atmosphere or glovebox environments, provided that your equipment and workspace are properly adapted for such conditions. Ensure that all safety and containment measures are in place as needed.
SMART CUT Diamond Cup Wheels are generally resistant to many chemicals, but their performance may be affected by extremely harsh or corrosive chemical environments. It’s important to consider the specific chemicals involved in your application and consult with our technical support team for guidance on chemical compatibility.
Yes, we can provide guidance on optimal grinding parameters to help you achieve the best results with SMART CUT Diamond Cup Wheels. Factors such as material type, sample size, and desired surface finish can influence the selection of grinding parameters, and our technical support team can assist you in making informed choices.
SMART CUT Diamond Cup Wheels can be used for applications requiring high surface flatness and parallelism, including semiconductor wafer manufacturing. Their precision control and quality abrasives make them suitable for achieving the required surface characteristics.
SMART CUT Diamond Cup Wheels can be used for applications involving high-temperature materials, but their maximum temperature tolerance may vary depending on the specific cup wheel type. Contact our technical support team to determine the temperature limits for safe operation.
When working with samples containing embedded electronics or delicate microstructures, it’s essential to use precision and care to minimize the risk of damage. SMART CUT Diamond Cup Wheels can be used for such applications, but careful handling and adjustment of grinding parameters are necessary to protect embedded components.
We recommend using water-based coolants or lubricants for wet grinding with SMART CUT Diamond Cup Wheels. These coolants help dissipate heat, reduce friction, and improve the efficiency and quality of the grinding process. Ensure that the coolant is compatible with the materials you are working with and follow safety guidelines for handling coolants in your laboratory or facility.
The recommended RPM settings for SMART CUT Diamond Cup Wheels can vary depending on the cup wheel size, equipment, and application. It is crucial to consult the manufacturer’s guidelines for your specific Thin Section Machine or equipment to determine the appropriate RPM settings for optimal performance. Generally, a lower RPM may be suitable for finer grinding and polishing, while a higher RPM may be used for rough grinding.
Maintaining the condition of SMART CUT Diamond Cup Wheels may involve occasional dressing to restore their cutting efficiency. We recommend using a diamond dressing tool or a dressing stick designed for the purpose. Follow our guidelines for dressing, and ensure that the cup wheel is properly trued and conditioned before use. Dressing frequency may vary depending on usage and the specific cup wheel condition.
The recommended feed rates when using SMART CUT Diamond Cup Wheels depend on factors such as material type, cup wheel size, and desired surface finish. It’s important to start with a slower feed rate and gradually increase it while monitoring the quality of the sample surface. A slower feed rate is often preferred for achieving precise and controlled results, while faster feed rates may be suitable for rough grinding. Adjust the feed rate based on the specific requirements of your sample preparation task and the feedback you observe during the process.
We generally recommend using water-based coolants or lubricants with SMART CUT Diamond Cup Wheels for wet grinding. Oil-based coolants may not be as effective in dissipating heat and could potentially lead to less desirable results. It’s essential to consider the specific requirements of your application and consult with our technical support team for guidance if you are considering alternative coolants.
The maximum RPM that SMART CUT Diamond Cup Wheels can handle safely depends on various factors, including cup wheel size, material type, and equipment specifications. Always adhere to the manufacturer’s guidelines and recommendations for your specific Thin Section Machine or equipment to ensure safe operation. Exceeding the recommended RPM can lead to safety hazards and reduced cup wheel lifespan.
The frequency of dressing SMART CUT Diamond Cup Wheels can vary based on usage and cup wheel condition. In general, it is advisable to dress the cup wheel when you notice a decline in cutting efficiency, decreased surface quality, or uneven wear. Regular inspection and maintenance can help you determine the appropriate dressing intervals for your specific sample preparation tasks.
The recommended feed rates for SMART CUT Diamond Cup Wheels can vary depending on the material type and cup wheel size. Generally, lower feed rates are preferred for achieving precision when working with materials like ceramics and minerals. For metals or more robust materials, you may use slightly higher feed rates for efficient material removal. Always start with a slower feed rate and adjust it based on the material’s response and the desired finish. Reference material-specific guidelines if available, and consult with our technical support team for assistance in optimizing feed rates for your specific applications.
Yes, deionized or distilled water is suitable for use as a coolant with SMART CUT Diamond Cup Wheels. These types of water have low mineral content, reducing the risk of mineral deposits on your samples. Deionized or distilled water is commonly used for wet grinding to achieve high-quality results and maintain the integrity of your samples.
When switching between wet and dry grinding with SMART CUT Diamond Cup Wheels, it’s important to ensure that the cup wheel is properly dressed and conditioned for the specific grinding mode. Dry grinding may require a different dressing approach compared to wet grinding. Follow the dressing recommendations for each mode, and thoroughly clean and dry the cup wheel before transitioning to the other method to avoid cross-contamination.
Yes, you can use an automated dressing system with SMART CUT Diamond Cup Wheels to improve efficiency and consistency in the dressing process. Automated dressing systems can be customized to suit your specific equipment and requirements. Consult with our technical support team to explore the possibility of integrating an automated dressing solution into your sample preparation setup.
The recommended dressing parameters, including dressing speed and depth, can vary depending on the cup wheel type and material. Specific dressing parameters are typically provided by the manufacturer and can be found in the product documentation. Ensure that you follow these parameters for safe and effective dressing of your SMART CUT Diamond Cup Wheels.
SMART CUT Diamond Cup Wheels can handle higher feed rates for faster material removal; however, it’s important to strike a balance between speed and sample quality. While higher feed rates may expedite the process, they can lead to reduced precision and potentially lower surface quality. It’s advisable to adjust the feed rate within the recommended range for your specific application to achieve both efficiency and desired results.
Dressing SMART CUT Diamond Cup Wheels for applications involving advanced materials like composites or semiconductors may require special attention to prevent contamination and ensure precision. Consider using dedicated dressing tools and equipment to maintain the cup wheels’ integrity and quality. Additionally, take care to prevent cross-contamination when transitioning between different materials in sample preparation.
Over-dressing SMART CUT Diamond Cup Wheels can lead to the removal of too much abrasive material, reducing the cup wheel’s lifespan and effectiveness. Excessive dressing may result in a loss of the desired cup wheel profile and negatively impact the quality of the prepared samples. It’s essential to follow recommended dressing intervals and parameters to avoid over-dressing and maintain consistent performance.
When transitioning between different grit sizes of SMART CUT Diamond Cup Wheels in a multi-step sample preparation process, it’s important to ensure that the cup wheel is dressed to the appropriate profile for each step. Follow the dressing recommendations for each grit size to maintain the cup wheel’s efficiency and produce high-quality results at each stage of the process. Proper dressing helps optimize the performance of the cup wheels throughout the sample preparation workflow.
Yes, you can use a coolant recycling system with SMART CUT Diamond Cup Wheels. A coolant recycling system helps conserve water resources and reduces waste by continuously filtering and reusing the coolant. The benefits include cost savings, environmental sustainability, and maintaining consistent coolant quality during extended sample preparation sessions. Consult with our technical support team to explore the compatibility and advantages of incorporating a coolant recycling system into your setup.
When dressing SMART CUT Diamond Cup Wheels, it’s essential to wear appropriate personal protective equipment (PPE), which may include safety glasses, gloves, and a dust mask or respirator, depending on the dressing method and materials used. Additionally, ensure that the dressing process is carried out in a well-ventilated area, and follow safety protocols outlined in your laboratory or facility’s safety guidelines to prevent accidents and protect your health.
Depending on your specific requirements, there may be specialized dressing tools or accessories available for SMART CUT Diamond Cup Wheels. These tools can help optimize the dressing process and improve its efficiency. Contact our sales or technical support team to explore the availability of dressing-related accessories and tools that can enhance your sample preparation workflow.
Yes, SMART CUT Diamond Cup Wheels can be dressed to customize cup wheel profiles for specific sample preparation needs. The dressing process can be tailored to achieve desired profiles and shapes, allowing you to optimize the cup wheel’s performance for your unique applications. Consult with our technical support team for guidance on customizing cup wheel profiles to meet your specific requirements.
When dressing SMART CUT Diamond Cup Wheels for precision optics preparation or similar high-precision applications, attention to detail is crucial. Ensure that the dressing process is performed with precision and care to achieve the desired cup wheel profile and maintain consistency in the grinding and polishing stages. Use specialized dressing tools and follow recommended parameters to optimize performance for high-precision tasks.
The time to replace a dressing tool or dressing stick used with SMART CUT Diamond Cup Wheels is typically determined by wear and effectiveness. If you notice signs of wear, reduced dressing efficiency, or decreased quality in the dressing process, it may be time to replace the dressing tool. Regular inspection and maintenance of dressing tools are essential to ensure consistent and reliable dressing performance.
INDUSTRIES USED IN:
FERROUS & NON-FERROUS METALS:
 Item No:UKAMDRST4 Description: Recommended for use in Diamond Tools 150 Grit Size (mesh size) or finer. Price: $15.39 |
 Item No:UKAMDRST7 Description: Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. Price: $15.99 |
 Item No:SMARTC1G Description: SMART CUT® General Materials Formula Synthetic Water Soluble Coolant Price: $34.81 |
Item No:UKAMDRST5 Description: Recommended for use in Diamond Tools 150 Grit Size (mesh size) or finer. Price: $39.47 |
Item No:UKAMDRST8 Description: Recommended for coarser grits found in segment wheels, core drills, or Blanchard grinding. Excellent performance on 120 grit tools. Price: $39.47 |
 Item No:SMARTC2G Description: SMART CUT® General Materials Formula Synthetic Water Soluble Coolant Price: $99.81 |
 Item No:SMARTC4A Description: SMART CUT® General Materials Formula Synthetic Water Soluble Coolant Price: $317.41 |
 Item No:SMARTC7A Description: SMART CUT® General Materials Formula Synthetic Water Soluble Coolant Price: $1,745.00 |
Choose the grit size of the SMART CUT Diamond Cup Wheel based on your sample material and the desired finish. Smaller grit sizes (e.g., 80-120) are suitable for rough grinding, while larger grit sizes (e.g., 220-400) are ideal for finer polishing.
Ensure that the SMART CUT Diamond Cup Wheel is compatible with your Thin Section Machine or equipment. Consult the manufacturer’s guidelines for recommended cup wheel specifications and RPM settings. Verify that the SMART CUT Diamond Cup Wheel is compatible with the specific material you are preparing. Different materials may require adjustments in grinding parameters and coolant selection.
Properly mount and secure the cup wheel on your equipment according to the manufacturer’s instructions. Ensure that it is aligned correctly for safe and effective operation.
For wet grinding applications, use water-based coolants or lubricants to enhance cooling, reduce friction, and improve grinding efficiency. Deionized or distilled water is often recommended.
For wet grinding applications, it is recommended to use water-based coolants or lubricants. Deionized or distilled water is often preferred for its low mineral content Water-based coolants help dissipate heat, reduce friction, and improve grinding efficiency. They also aid in maintaining consistent sample quality.
Ensure a consistent and adequate flow of coolant over the SMART CUT Diamond Cup Wheel during the grinding process. Proper coolant flow helps maintain temperature control and prevents overheating.
Regularly monitor and maintain the concentration of the coolant solution. Ensure that the coolant concentration remains within the recommended range for efficient cooling and lubrication. If using water-based coolants, regularly monitor and maintain the concentration of the coolant solution. Ensure that the concentration remains within the recommended range for optimal cooling and lubrication.
Set the rotations per minute (RPM) of your equipment to the recommended level for the specific SMART CUT Diamond Cup Wheel size and application. Avoid exceeding the maximum RPM to ensure safety.
Begin with a slower feed rate and gradually increase it while observing the quality of the sample surface. Adjust the feed rate based on material response and desired results.
Maintain the condition of the cup wheel by dressing it regularly. Follow the manufacturer’s recommendations for dressing intervals and parameters, ensuring the cup wheel is properly trued and conditioned.
Dress the SMART CUT Diamond Cup Wheel regularly to maintain its cutting efficiency. The frequency of dressing may vary depending on usage and the cup wheel’s condition, but regular inspection is essential.
Follow the manufacturer’s guidelines for dressing parameters, including dressing speed and depth. Proper dressing ensures that the cup wheel maintains its effectiveness and shape. Maintain and replace dressing tools or sticks as needed. A well-maintained dressing tool is essential for maintaining the cup wheel’s effectiveness during the dressing process.
Prevent Cross-Contamination: If switching between wet and dry grinding, clean and dry the cup wheel thoroughly to prevent cross-contamination between different sample preparation methods.
Customize Dressing for Profiles: Customize the dressing process to achieve specific cup wheel profiles that meet your sample preparation needs, especially for applications requiring unique shapes or profiles.
Safety Measures: Prioritize safety during the entire process. Wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and respiratory protection as needed. Follow safety guidelines and protocols established in your laboratory or facility.
Quality Control: Regularly inspect the cup wheel for signs of wear and replace it when you notice reduced grinding efficiency or a decline in sample quality.
Material Handling: When preparing samples with embedded components or delicate features, exercise caution and precise control to minimize the risk of damage to these elements. Adjust grinding parameters to protect sensitive components.
Work Area Ventilation: Ensure proper ventilation in the workspace to dissipate any airborne dust or particles generated during the sample preparation process. A well-ventilated area enhances safety and air quality.
Contaminant Control: Regularly clean the sample preparation equipment, including the SMART CUT Diamond Cup Wheel, to prevent contamination between different sample batches and maintain consistent results.
Quality Inspection: Implement a quality control process to inspect and verify the quality of the prepared samples. Use microscopy or other analytical techniques to assess the sample’s surface finish and ensure it meets your requirements.
Record Keeping: Maintain detailed records of the sample preparation process, including grit sizes, RPM settings, feed rates, and any deviations from standard procedures. This documentation can aid in troubleshooting and process optimization.
Regular Maintenance: Perform routine maintenance on your equipment, including the Thin Section Machine and cup wheel, to ensure they remain in optimal working condition. Address any equipment issues promptly to minimize downtime.
Material Hardness Assessment: Consider the hardness of the material you are preparing and adjust the grinding parameters accordingly. Harder materials may require slower feed rates and finer grit sizes to achieve optimal results.
Documentation of Grinding Parameters: Document and log the specific grinding parameters used for each sample. This record-keeping helps maintain consistency in your sample preparation process and facilitates repeatability.
Sample Labeling: Clearly label each sample to track its origin, preparation date, and relevant details. This labeling system aids in sample identification and traceability.
Sample Cleaning: After grinding, thoroughly clean and rinse the prepared samples to remove any residual abrasive particles and contaminants. Proper cleaning ensures the accuracy of subsequent analyses or examinations.
Calibration Checks: Periodically calibrate your equipment, including the Thin Section Machine and any associated measurement devices, to maintain accuracy and consistency in your sample preparation and analysis.
Quality Inspection Interval: Implement a regular quality inspection interval to assess the surface finish and sample quality. Frequent inspections help identify any deviations from the desired results.
| Problem Description | Possible Causes | Troubleshooting Steps |
|---|---|---|
|
Uneven Sample Grinding |
1. Uneven feed rate |
1. Ensure a consistent and controlled feed rate during grinding. |
|
|
2. Worn or uneven cup wheel surface |
2. Dress the cup wheel to restore an even surface. |
|
|
3. Improper equipment alignment |
3. Verify that the cup wheel is securely mounted and correctly aligned on the equipment. |
|
|
4. Material instability |
4. Ensure proper material fixation or holding techniques to minimize vibrations and movement. |
|
|
5. Incorrect RPM settings |
5. Adjust the equipment’s RPM settings as per manufacturer guidelines. |
|
Excessive Sample Heat |
1. Inadequate coolant flow |
1. Check coolant flow and ensure an adequate and consistent supply over the cup wheel. |
|
|
2. High feed rate |
2. Reduce the feed rate to prevent excessive heat generation. |
|
|
3. Improper coolant type |
3. Use a suitable water-based coolant for effective cooling and lubrication. |
|
Sample Damage or Chipping |
1. Excessive pressure |
1. Reduce the applied pressure on the sample during grinding. |
|
|
2. Material incompatibility |
2. Ensure the SMART CUT Diamond Cup Wheel is appropriate for the material being prepared. |
|
|
3. Uneven feed rate |
3. Maintain a consistent feed rate to prevent material chipping. |
|
Cup Wheel Clogging |
1. Inadequate coolant flow |
1. Verify and adjust the coolant flow for effective debris removal. |
|
|
2. High material removal rate |
2. Reduce material removal rate to prevent debris accumulation. |
|
|
3. Incorrect grit size |
3. Ensure the grit size is appropriate for the specific material being prepared. |
|
Cup Wheel Wear |
1. Insufficient dressing |
1. Dress the cup wheel regularly to maintain its cutting efficiency. |
|
|
2. Overuse or excessive pressure |
2. Use appropriate pressure and do not overwork the cup wheel. |
|
|
3. Inadequate coolant |
3. Ensure proper coolant usage to minimize cup wheel wear. |
|
Cup Wheel Vibrations |
1. Equipment imbalance |
1. Check for equipment imbalance and correct it if necessary. |
|
|
2. Inadequate equipment maintenance |
2. Maintain equipment and cup wheel components regularly. |
|
|
3. Cup wheel damage or wear |
3. Inspect the cup wheel for damage and wear, and replace if necessary. |
|
Sample Contamination |
1. Improper cleaning |
1. Thoroughly clean samples to remove abrasive particles and contaminants after grinding. |
|
|
2. Cross-contamination |
2. Prevent cross-contamination by cleaning equipment and sample holders between different materials. |
|
|
3. Inadequate coolant filtration |
3. Ensure effective coolant filtration to minimize contamination. |
|
Loss of Cup Wheel Efficiency |
1. Excessive dressing |
1. Avoid over-dressing the cup wheel, which can lead to reduced effectiveness. Follow recommended dressing intervals. |
|
|
2. Incorrect dressing parameters |
2. Ensure that the dressing parameters, including speed and depth, are in line with manufacturer recommendations. |
|
|
3. Inadequate coolant flow |
3. Check and optimize coolant flow for efficient cooling and debris removal. |
|
Cup Wheel Loading |
1. Material properties |
1. Evaluate the material being ground; some materials are more prone to loading. Adjust grinding parameters accordingly. |
|
|
2. Inadequate coolant flow |
2. Ensure sufficient coolant flow to prevent loading. |
|
|
3. Inappropriate grit size |
3. Select a grit size that is less prone to loading for materials with this issue. |
|
Cup Wheel Glazing |
1. Low material removal rate |
1. Increase the material removal rate to prevent glazing. |
|
|
2. Inadequate coolant flow |
2. Optimize coolant flow to maintain effective cooling and prevent glazing. |
|
|
3. Incorrect grit size |
3. Select a coarser grit size if the cup wheel is prone to glazing with finer grits. |
|
Chatter Marks on Sample |
1. Uneven feed rate |
1. Maintain a consistent and controlled feed rate to prevent chatter marks. |
|
|
2. Equipment instability |
2. Ensure that the equipment is properly stabilized and secured to prevent vibrations. |
|
|
3. Worn or damaged cup wheel |
3. Inspect the cup wheel for wear or damage and replace if necessary. |
|
Excessive Cup Wheel Wear |
1. High material hardness |
1. Adjust the grinding parameters, such as feed rate and grit size, for materials with high hardness to minimize wear. |
|
|
2. Inadequate dressing |
2. Dress the cup wheel more frequently to maintain its cutting efficiency and reduce wear. |
|
|
3. Inadequate coolant flow |
3. Ensure that the coolant flow is sufficient to keep the cup wheel cool and minimize wear. |
|
Cup Wheel Residue on Sample |
1. Excessive pressure |
1. Reduce the pressure applied during grinding to prevent cup wheel residue transfer onto the sample. |
|
|
2. Inadequate coolant flow |
2. Optimize coolant flow to wash away debris and prevent residue buildup. |
|
|
3. Inadequate cleaning |
3. Thoroughly clean samples after grinding to remove any remaining residues. |
|
Loss of Sample Precision |
1. Equipment misalignment |
1. Verify that the equipment is properly aligned and secured to prevent inaccuracies. |
|
|
2. Cup wheel wear or damage |
2. Inspect the cup wheel for wear or damage and replace if necessary to maintain precision. |
|
|
3. Inconsistent feed rate |
3. Maintain a consistent and controlled feed rate to ensure sample precision. |
|
Cup Wheel Vibration |
1. Equipment imbalance |
1. Check for equipment imbalance and correct it as needed to reduce vibrations. |
|
|
2. Worn flanges or mounting hardware |
2. Inspect and replace any worn or damaged flanges or mounting hardware for stability. |
|
|
3. Excessive material removal rate |
3. Adjust the feed rate and material removal rate to minimize vibrations. |
|
Cup Wheel Clogging |
4. Incorrect RPM settings |
4. Ensure that the equipment’s RPM settings are appropriate for the cup wheel size and material. |
|
|
5. Inadequate coolant filtration |
5. Verify that the coolant system effectively filters out debris to prevent clogging. Clean or replace filters as needed. |
|
Cup Wheel Wear |
4. Inadequate coolant flow |
4. Confirm that the coolant flow rate is sufficient to cool and lubricate the cup wheel effectively. |
|
|
5. Inadequate dressing |
5. Maintain regular dressing of the cup wheel to prevent excessive wear. |
|
Loss of Cup Wheel Efficiency |
6. Material properties |
6. Adjust the grinding parameters, such as grit size and feed rate, to suit the specific material properties. |
|
|
7. Insufficient coolant concentration |
7. Monitor and maintain the coolant concentration within the recommended range for optimal performance. |
|
|
8. Incorrect dressing parameters |
8. Ensure that the dressing process follows manufacturer-recommended parameters for speed and depth. |
|
|
9. Equipment wear or damage |
9. Inspect the equipment and cup wheel components for wear or damage and replace as needed. |
|
Sample Contamination |
4. Contaminated coolant |
4. Regularly check and replace coolant to prevent contamination. Use a suitable coolant for your application. |
|
|
5. Cross-contamination |
5. Clean equipment and sample holders thoroughly between different materials to prevent cross-contamination. |
|
|
6. Inadequate coolant filtration |
6. Ensure that the coolant system effectively filters out contaminants. Clean or replace filters as necessary. |
|
Chatter Marks on Sample |
4. Equipment instability |
4. Address equipment stability issues, such as loose components or misalignment, to reduce chatter marks. |
|
|
5. Inadequate operator training |
5. Train operators to use the equipment correctly and maintain a consistent feed rate. |
|
Cup Wheel Glazing |
4. Inadequate dressing |
4. Ensure regular and proper dressing of the cup wheel to prevent glazing. |
|
|
5. Incorrect coolant type |
5. Use a suitable water-based coolant or lubricant for effective cooling and lubrication. |
|
|
6. Equipment misalignment |
6. Verify that the equipment is correctly aligned to prevent glazing due to uneven contact. |
|
Loss of Sample Precision |
4. Material instability |
4. For brittle or unstable materials, use gentle and controlled grinding to maintain precision. |
|
|
5. Inadequate operator skill |
5. Provide additional training to operators to improve their skills and precision. |
|
|
6. Inconsistent feed rate |
6. Ensure a consistent and controlled feed rate for precise sample preparation. |
|
Cup Wheel Vibration |
4. Inadequate equipment maintenance |
4. Perform regular equipment maintenance to address issues causing vibration. |
|
|
5. Material irregularities |
5. Inspect the sample for irregularities or inhomogeneities that may cause vibration during grinding. |
|
|
6. Incorrect equipment setup |
6. Confirm that the equipment setup, including mounting and alignment, is correct. |
|
|
7. Cup wheel imbalance |
7. Check for cup wheel imbalance and replace it if necessary to reduce vibrations. |
|
Sample Damage or Chipping |
4. Inadequate coolant flow |
4. Optimize coolant flow to ensure effective cooling and prevent sample damage or chipping. |
|
|
5. Inadequate material holding |
5. Use proper sample fixturing or clamping techniques to secure samples and prevent damage during grinding. |
|
|
6. Excessive pressure |
6. Reduce the applied pressure during grinding to prevent sample damage. |
|
Excessive Cup Wheel Wear |
6. Incorrect grit size |
6. Ensure you are using the correct grit size for the material to reduce wear. |
|
|
7. Inadequate coolant concentration |
7. Maintain the recommended coolant concentration to optimize cup wheel longevity. |
|
|
8. Insufficient dressing frequency |
8. Increase the frequency of dressing to maintain cup wheel efficiency and reduce wear. |
|
Cup Wheel Residue on Sample |
4. Contaminated coolant |
4. Regularly check and replace the coolant to prevent residue transfer onto the sample. |
|
|
5. Inadequate cleaning |
5. Thoroughly clean the samples after grinding to remove any remaining residues. |
|
Loss of Cup Wheel Efficiency |
10. Material misapplication |
10. Ensure that the selected SMART CUT Diamond Cup Wheel is suitable for the specific material and application. |
|
|
11. Inadequate RPM settings |
11. Verify and adjust the equipment’s RPM settings as per manufacturer guidelines for the cup wheel size and material. |
|
|
12. Inadequate feed rate |
12. Maintain an appropriate feed rate to optimize material removal and cup wheel efficiency. |
|
|
13. Inadequate operator training |
13. Provide additional training to operators to maximize cup wheel efficiency and overall sample preparation quality. |
|
Sample Contamination |
7. Inadequate coolant filtration |
7. Ensure that the coolant system effectively filters out contaminants. Regularly clean or replace filters. |
|
|
8. Inadequate material cleaning |
8. Implement a thorough material cleaning process to prevent contamination during sample preparation. |
|
|
9. Inadequate equipment maintenance |
9. Perform routine equipment maintenance to prevent contamination issues caused by wear or malfunction. |
|
Chatter Marks on Sample |
8. Material instability |
8. When working with unstable materials, take extra care to minimize chatter marks through controlled grinding. |
|
|
9. Inadequate equipment stabilization |
9. Securely stabilize the equipment to reduce vibrations and chatter marks. |
|
|
10. Equipment wear or damage |
10. Inspect equipment components for wear or damage and address any issues to eliminate chatter marks. |
Used on Accutom-50 and Discoplan-TS machines
 UKAM Item:6401501 Buehler Item no: Outside Diameter: 100mm (4") Dimond Gril Size: 91 um Price $698.00 |
UKAM Item:6401502 Buehler Item no: Outside Diameter: 100mm (4") Dimond Gril Size: 40 um Price $698.00 |
 UKAM Item:6401503 Buehler Item no: Outside Diameter: 150mm (6.0") Dimond Gril Size: 70 um Price $892.00 |
 UKAM Item:6401504 Buehler Item no: Outside Diameter: 150mm (6.0") Dimond Gril Size: 35 um Price $892.00 |
 UKAM Item:6401505 Buehler Item No: 40-4508 Outside Diameter: 8" (254mm) Diamond Grit Size: 70 um Price: $898.00 |
The newly exposed diamonds don’t effect diamonds already working on the material. Unlike many other diamond bonds, diamonds in a SMART CUT® Bond remains sharp and grow sharper with each cut, prolonging product life and consistent performance.
Diamonds or CBN Crystals are activated only at the exposed layer. As Bond Matrix layer begin to wear out, diamonds in a new Bond Matrix layer are immediately activated, substituting the already used up diamond layer. The SMART CUT® Diamond Hybrid Bond makes sure every diamond is in the right place and at the right time, working where you need it most.
This advanced formulated open diamond bond design insures minimal chipping, fast cut, constant speed of cut, minimal cutting noise, and most important of all, consistent performance.
Diamond & CBN tools with SMART CUT® technology make any work much faster & easier, Thousands of sharp and high quality diamond or CBN particles oriented and evenly distributed on both matrix, allow most jobs to be completed by applying little or only moderate amount of pressure even on the most toughest and challenging materials. Freeing the user from constantly having to dress and renew the diamond layer
Diamond & CBN tools with SMART CUT® technology require minimum dressing, the bond renews itself.
Diamond & CBN tools made utilizing SMART CUT® technology are much more aggressive than your conventional tools. They can cut faster, while still leaving behind a smooth finish free of material deformation.
In most cases tools manufactured utilizing SMART CUT® technology, will outlast other conventional material (sintered), resin, and nickel bonded diamond & CBN tools. SMART CUT® diamond & CBN tools are more sturdy than tools manufactured with conventional technologies. They are capable to retain their form and bond configuration all the way through the tools life.
Diamond & CBN Wheels are produced using only the highest quality raw materials are used in manufacturing process. Utilizing world class quality control, inspection, and measurement equipment. Highly Experienced Engineers constantly monitor and control all material input & output at all stages of manufacturing process. Insuring product consistency for use in demanding & sensitive applications SMART CUT® DIAMOND & CBN wear evenly, and are known for their consistency. You will get consistent cutting speed, and overall consistent performance, with minimum amount of dressing.
Only the highest quality synthetic diamonds and raw materials are used in the manufacturing process. The highest quality standards and product consistency is maintained, using sophisticated inspection and measurement equipment.
SMART CUT® Diamond & CBN Wheels are the best investment you can make! Although we may not always be the lowest cost solution provider. Our Diamond & CBN wheels can provide the best ROI. Designed for users that understand and appreciate quality. They will more than pay for themselves in terms of overall performance and provide best Return on Investment.
We produce diamond consumables for some of the leading world OEM manufacturers. We offer Manufacturers Direct Prices
We have the largest variety of diamond & cbn wafering blades available in stock. As well as large inventory of diamond & abrasive consumables. We also custom manufacture diamond and cbn tools, consumables and machines to better fit customer specific needs. Just about any tools & consumables can be designed and manufactured per client drawing or specificrtion
WE ARE A PARTNER IN YOUR SUCCESS
Our proprietory diamond chemistory , precision , manufacturing metods , quality control methods allow us to control and regulate the dozens of variables to that affect consumable life , quality , and consistency.
The more you understand about what we can do for you the better our partnership will be. Here you will find most comprehensive source of information and optimizing and improving your cutting , drilling , grinding and polishing on the web. find everything you ever wanted to know about diamond tools.
AMERICAN MANUFACTURER
"ONE OF THE MOST EXPERIENCED COMPANIES IN THE INDUSTRY"
Save Money Save up to 650%
COMPARE TO: BUEHLER , STRUERS , LECO & MANY OTHERS
Large Inventory & Custom Manufacturing
Umatched Technical Support
Developing close ties with our customers is the foundation of our business. At the core of
our company is a team of world class engineers, knowledgeable customer service personnel here to serve you. Whether is designing or manufacturing a special solution. We will go out of our way to optimizing your process to ultimate level of efficiency
Superior Quality & Consistency
EXPECT MORE FROM YOUR TOOLS
Comprehensive Source Of Information For Sample Preparation
Advanced Technology
As one of the few remaining independent U.S.Diamond Tool & machine builders. We have the experience & tradition to help you remain at frontier of technology Our experience has been further enhanced by acquiring assets and processes from some of the oldest American tool
manufacturers, along with their decades of experience and R& D. This has positioned us as one of the most experienced companies in the industry .Depend on us to bring you technology of tomorrow today.
Experience Makes All The Differences
Over the years we have worked with some of the leading Fortune 500 companies , thousands of universities , government and private research labs , and small organisations. We have made thousands of custom tools , built custom machines , work-holding fixtures , etc for hundreds of applications. Many of our staff members have been working in their respective fields for over 50 years and have gained a wealth of knowledge over the years
Let Us Help You
Signup for email offers, updates, and more
25205 & 25201 Avenue Tibbits Valencia CA 91355 USA
Phone : (661) 257-2288
FAX : (661) 257 -3833
lel@ukam.com
UKAM Industrial Superhard Tools is a U.S. High Technology, Specialty Diamond Tool & Equipment manufacturer. We specialize in producing ultra thin & high precision cutting blades and precision cutting machines diamond drills, diamond micro tools, standard & custom advanced industrial diamond tools and consumables.
Shipping Methods
Safe & Secure Payments
© Copyright 1990-2024. UKAM Industrial Superhard Tools – Terms of Use
Signup for email offers, updates, and more
25205 & 25201 Avenue Tibbits Valencia CA 91355 USA
Phone : (661) 257-2288
FAX : (661) 257 -3833
lel@ukam.com
UKAM Industrial Superhard Tools is a U.S. High Technology, Specialty Diamond Tool & Equipment manufacturer. We specialize in producing ultra thin & high precision cutting blades and precision cutting machines diamond drills, diamond micro tools, standard & custom advanced industrial diamond tools and consumables.
Shipping Methods
Safe & Secure Payments
© Copyright 1990-2024. UKAM Industrial Superhard Tools – Terms of Use
No products in the Quote Basket.
No account yet?
Create an AccountSign up to receive exclusive usage recommendations, Illustrated Trouble Shooting Guides & Sales
