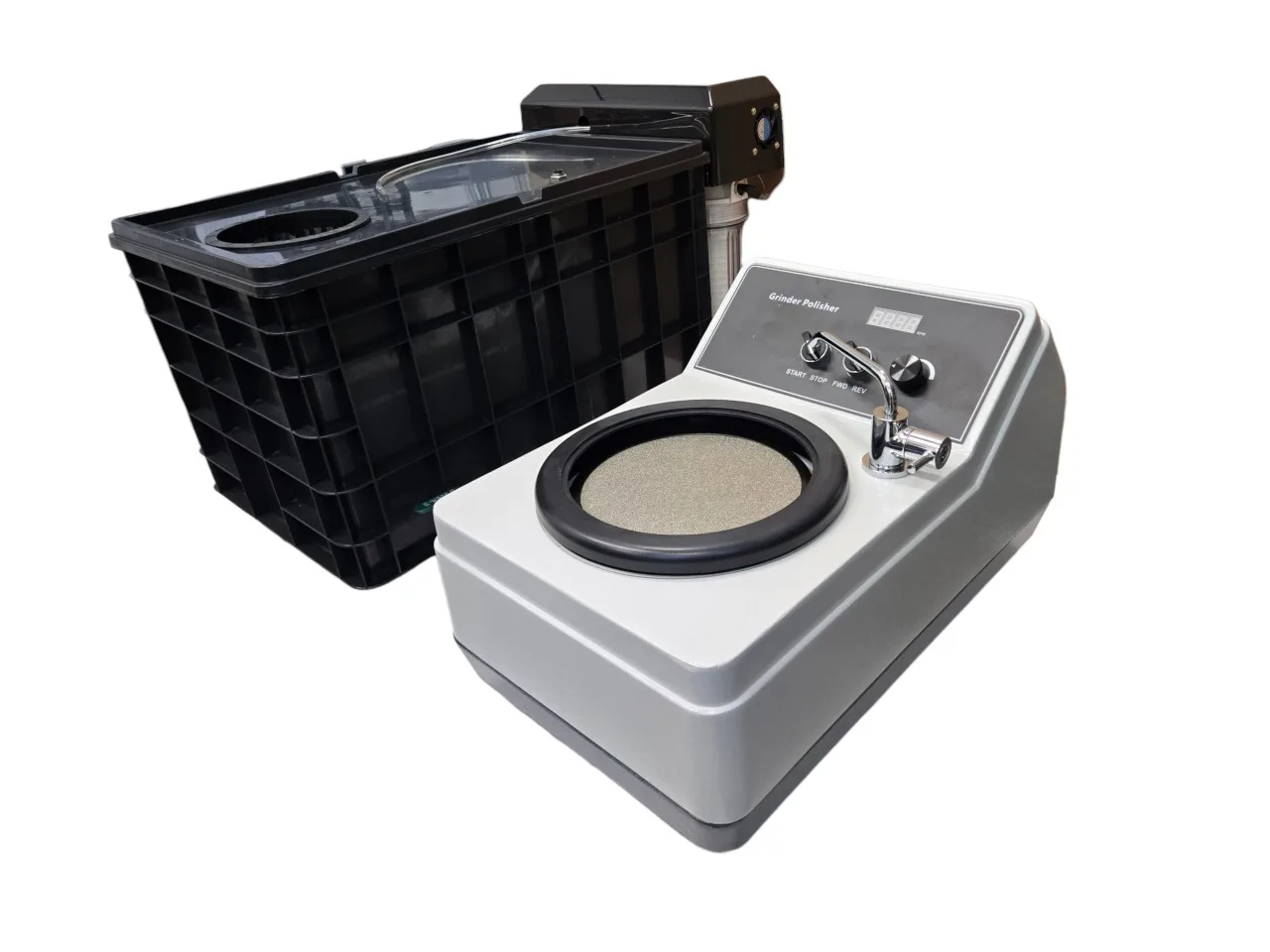

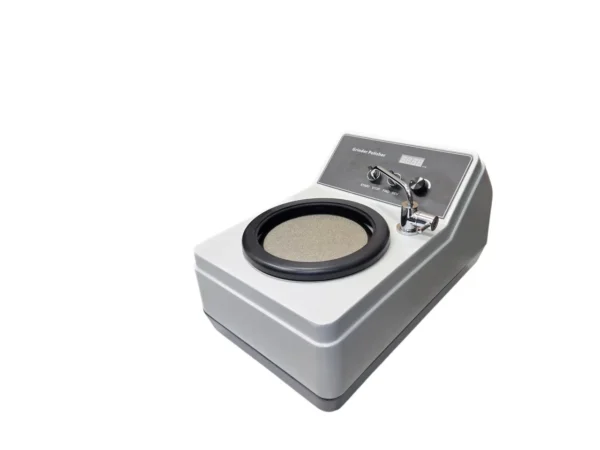

SMART CUT® MP-A

The SMART CUT® MP-A is designed specifically for metallographic sample preparation, offering precise and efficient grinding and polishing processes. It is ideal for use in laboratories, research & development, and industrial applications requiring high-quality sample preparation.

• Variable Speed Control: Offers adjustable speeds from 100 to 1,000 RPM, easily controlled through a rotating switch and displayed digitally for enhanced precision.
• Bi-Directional Rotation: Supports both clockwise (CW) and counterclockwise (CCW) rotation, offering flexibility for various grinding and polishing tasks.
• Durable Construction: Made with powder-coated and anodized aluminum for corrosion resistance and long-lasting durability.
• Easy Maintenance: Includes a plastic disposable bowl liner that ensures hassle-free cleaning.
• Universal Water Hose: Equipped with a water hose for efficient cleaning of the basin.

The SMART CUT® MP-A is available in three models with varying motor power:

• MP-A-1: 500W
• MP-A-2: 600W
• MP-A-3: 800W

The machine supports wheels of different sizes depending on the model:

• MP-A-1: 203 mm
• MP-A-2: 203 mm, 254 mm
• MP-A-3: 203 mm, 254 mm, 305 mm

Yes, the SMART CUT® MP-A is designed for both grinding and polishing processes. It offers precision and flexibility to handle both tasks efficiently.

Yes, the SMART CUT® MP-A features an intuitive design that makes it easy to operate. Its simple controls and digital speed display ensure users can easily adjust settings for various grinding and polishing requirements.

Maintenance for the SMART CUT® MP-A is minimal. The machine includes a disposable plastic bowl liner that can be easily replaced after use, ensuring that cleanup is quick and efficient.

Yes, the machine features a variable-speed drive system that allows users to adjust the RPM from 100 to 1,000, providing optimal control over grinding and polishing tasks.

The SMART CUT® MP-A operates on 110/220V, making it compatible with different power systems globally.

The SMART CUT® MP-A offers excellent value for money, providing similar results to higher-cost equipment but at a more affordable price. It delivers high-quality performance, making it a great option for organizations with budget considerations, such as small businesses or research labs.

The standard package includes:

• Grinding wheels (203 mm for MP-A-1, 203 mm & 254 mm for MP-A-2, and 203 mm, 254 mm & 305 mm for MP-A-3)
• Splash guard
• Paper ring
• Grinding paper
• Polishing cloth
• Recirculating tank

Optional accessories include:

• Diamond spray
• Diamond slurry
• Alumina powder

The SMART CUT® MP-A is widely used in industries such as:

• Metallography
• Material science
• Research and development
• Quality control
• Manufacturing and production environments

The SMART CUT® MP-A is designed for wet grinding and polishing applications. It includes a universal water hose that helps with cleaning and ensures the effective removal of debris, preventing overheating and maintaining the quality of the sample.

The SMART CUT® MP-A can achieve a maximum speed of 1,000 RPM. This high speed is ideal for fast and efficient grinding and polishing of materials, offering precise control over the process.

Yes, the SMART CUT® MP-A includes a splash guard that helps protect the operator and the surrounding workspace from debris, fluids, and contaminants. This feature ensures a safer and cleaner working environment.

The SMART CUT® MP-A is versatile and can be used on a variety of materials including metals, ceramics, glass, and other hard materials typically processed in metallographic sample preparation. It is commonly used for preparing samples for microstructural analysis.

While the SMART CUT® MP-A is an efficient machine, it is best suited for moderate to low-volume operations due to its manual nature. It provides precision and flexibility, but for high-volume or industrial-scale operations, a more automated system may be required.

The variable-speed control offers flexibility, allowing users to fine-tune the grinding and polishing process based on the material being processed. The ability to adjust speeds from 100 to 1,000 RPM ensures that delicate materials can be handled at lower speeds, while harder materials can be processed at higher speeds, ensuring optimal results.

Yes, the SMART CUT® MP-A is compatible with a range of wheel sizes, depending on the model:

• MP-A-1: 203 mm wheels
• MP-A-2: 203 mm and 254 mm wheels
• MP-A-3: 203 mm, 254 mm, and 305 mm wheels

This flexibility allows users to select the best wheel size for their specific application.

The bi-directional rotation (clockwise and counterclockwise) provides additional versatility by allowing the user to choose the most suitable rotation direction for specific grinding or polishing tasks. It is particularly useful when handling different materials or when an alternate direction helps achieve better results in certain situations.

Yes, the SMART CUT® MP-A can accommodate a variety of polishing techniques. Whether you need to use diamond spray, diamond slurry, or alumina powder, the machine’s variable speed and bi-directional rotation help ensure optimal polishing performance for a wide range of materials.

The SMART CUT® MP-A requires consumables such as:

• Grinding paper
• Polishing cloths
• Diamond spray, slurry, or alumina powder (optional)

The SMART CUT® MP-A requires minimal maintenance. Key maintenance steps include:

• Replacing the plastic disposable bowl liner when necessary.
• Ensuring the water hose remains clear and free of blockages.
• Checking the wheel condition and replacing them as needed.
• Cleaning the machine after each use to remove any debris or residue.

The SMART CUT® MP-A does not have a built-in angle adjustment for the grinding wheels. However, the machine’s variable speed and bi-directional rotation allow users to control the process effectively for a wide range of tasks.

The recirculating tank is included to collect and filter the water used during grinding and polishing, ensuring that the water remains clean and free of contaminants. This helps maintain a constant flow of clean water, improving both the efficiency and the longevity of the consumables.

Yes, the SMART CUT® MP-A is designed for easy installation. Once the machine is unpacked, you only need to install the grinding wheel and connect the water supply. Detailed instructions are included with the machine to guide you through the setup process.

Yes, the SMART CUT® MP-A is suitable for use in cleanrooms and controlled environments, provided it is set up with appropriate containment for water and debris. Its construction is designed to be easy to clean and maintain, ensuring minimal contamination in sensitive areas.

Yes, the SMART CUT® MP-A is equipped with essential safety features such as:

• Splash guard: This helps contain any flying debris and protects the operator from potential injuries.
• Secure operation: The machine’s design ensures stable and controlled operation during grinding and polishing, reducing the risk of accidents.
  While it is essential to follow the recommended safety practices, these features enhance the overall safety of the machine during use.

Yes, the SMART CUT® MP-A is well-suited for polishing delicate materials. With its adjustable speed control and precise handling, users can carefully polish fragile materials such as soft metals, ceramics, or glass without the risk of damaging them.

It is recommended to use room temperature water with the SMART CUT® MP-A. Hot water can cause excessive evaporation and increase wear on consumables, while cold water may reduce the efficiency of the polishing process. Maintaining a consistent water temperature ensures optimal results during grinding and polishing.

Yes, the SMART CUT® MP-A includes a comprehensive user manual that provides detailed instructions on setup, operation, maintenance, and troubleshooting. The manual also includes recommended procedures for specific applications to ensure optimal performance.

Yes, replacement parts for the SMART CUT® MP-A, including wheels, consumables, water hoses, and disposable liners, can be purchased directly from the manufacturer or authorized distributors.

The SMART CUT® MP-A is ideal for laboratories, research & development facilities, and small-scale manufacturing operations that require precise metallographic sample preparation. If you need a reliable and affordable machine for grinding and polishing various hard materials with flexibility and precision, the SMART CUT® MP-A is an excellent choice. Consider the types of materials you will be working with and the level of automation needed when making your decision.

Yes, customer support is available for all SMART CUT® products. If you have any questions about setup, operation, or troubleshooting, the customer support team can assist you via phone, email, or live chat. Additionally, SMART CUT® provides instructional videos and technical resources to help you get the most out of your machine.

The SMART CUT® MP-A comes with a standard 1 year warranty, which typically covers defects in material or workmanship.

If the SMART CUT® MP-A is not performing as expected, the first step is to check the setup, ensuring all components are properly installed and the water supply is functioning correctly. If the issue persists, refer to the troubleshooting section in the user manual, or contact customer support for further assistance. It’s also helpful to ensure that consumables such as grinding paper and polishing cloths are not worn out and are correctly mounted.

Yes, the SMART CUT® MP-A can be upgraded with additional accessories, such as:

• Magnetic polishing pad systems for more effective polishing
• Different wheel sizes for handling various material types and sizes
• Additional polishing compounds like diamond slurry or alumina powder to improve surface finish

These accessories allow the machine to be customized based on specific application needs.

While the SMART CUT® MP-A is designed to work optimally with SMART CUT® branded consumables, its also compatible with other high-quality consumables. However, to ensure the best performance, it is recommended to use consumables that are specifically designed or approved for use with the SMART CUT® MP-A.

Cleaning the SMART CUT® MP-A is simple and involves the following steps:

• Remove used consumables such as grinding paper and polishing cloths.
• Drain the recirculating tank and flush the water hose.
• Wipe down the machine with a damp cloth to remove any debris and slurry.
• Replace the disposable bowl liner if necessary to maintain cleanliness and avoid contamination in future uses.

With proper maintenance and care, the SMART CUT® MP-A can last for many years. Its durable construction, including the powder-coated and anodized aluminum components, ensures a long operational life. Regular maintenance, such as cleaning and replacing consumables, will help maximize the lifespan of the machine.
