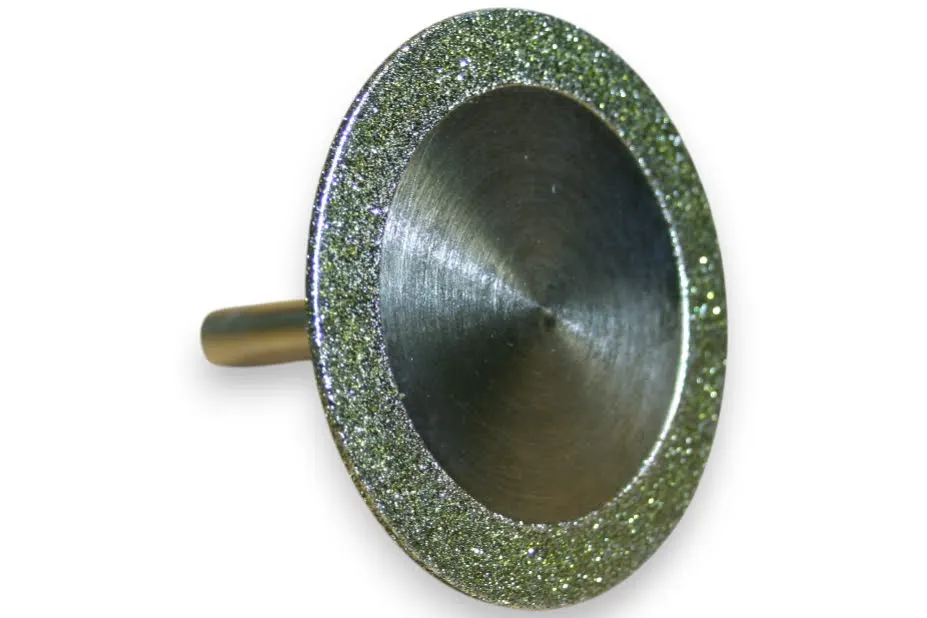

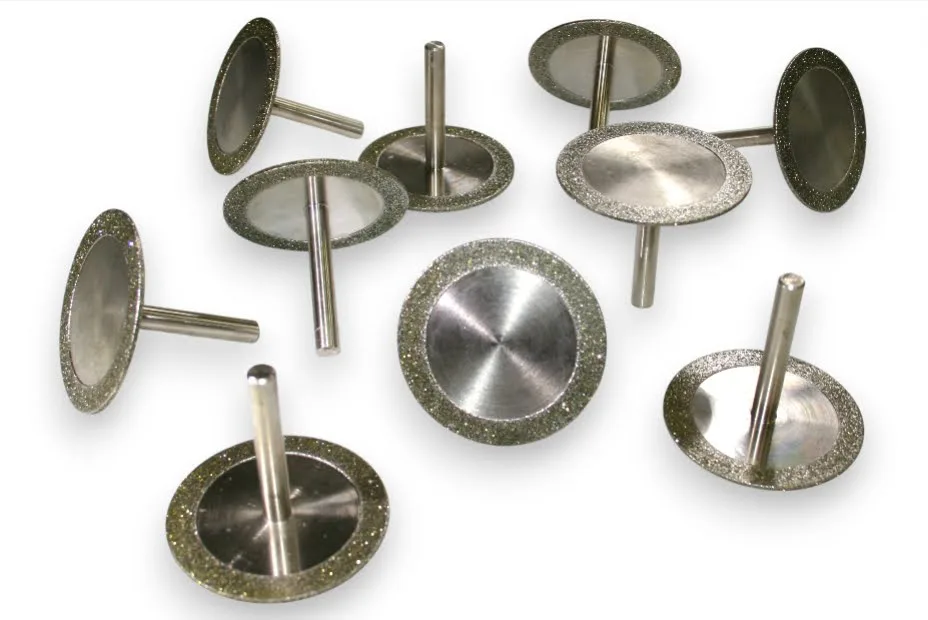

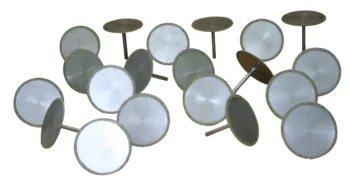

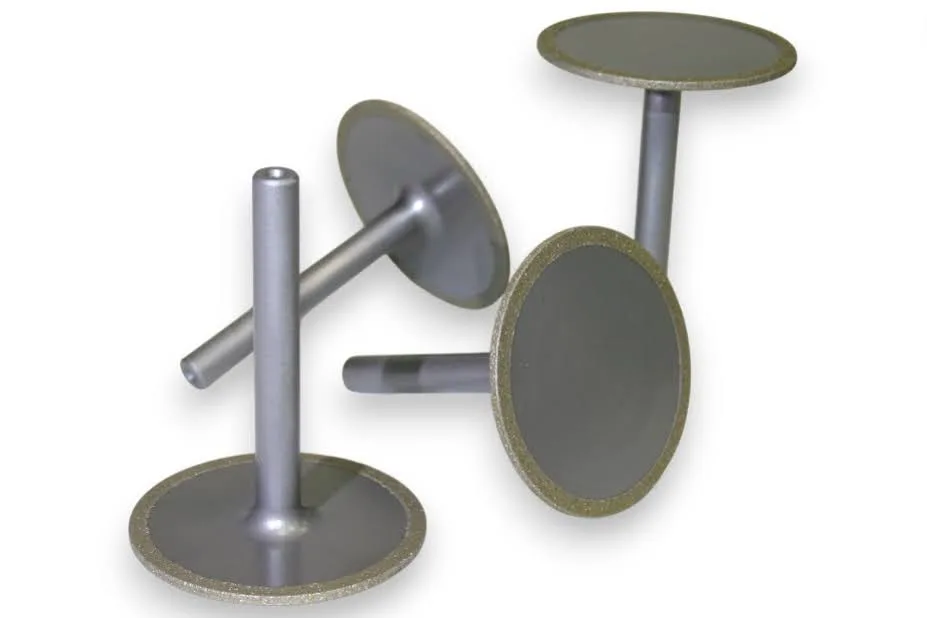

SMART CUT® Diamond Plated Mounted Saws/Blades are precision-engineered cutting tools designed for exceptional performance and reliability. These blades are available in continuous rim and slotted configurations, offering versatility and optimized results across various applications. Constructed as a single piece, they provide enhanced durability and stability during cutting operations. Each blade features a 1/8-inch diamond return on both sides, ensuring extended tool life and superior cutting efficiency.
With a diameter range from 3/4 inch (19.05 mm) to 6 inches (152.4 mm), these blades accommodate a variety of project requirements. The kerf thickness options, ranging from .080 inch (2.03 mm) to .150 inch (3.81 mm), enable precise cutting. The standard overall length is 1.5 inches (38.1 mm), with customizable shank diameters available to fit any equipment or customer-specific needs.
These mounted saws and blades are specifically designed to cut challenging materials such as fiberglass, phenolics, fiber-reinforced plastics (FRPs), carbon, carbon fiber, and ceramics. They are suitable for both wet and dry cutting applications; however, tool life is significantly extended when used with water or coolant, which reduces heat buildup and wear. The blades are made with hardened alloy steel blanks, machined to exacting tolerances, ensuring precision, accuracy, and long-lasting performance.
Designed for professionals working with advanced materials, composites, and ceramics, these diamond-plated saws and blades deliver consistent performance and exceptional results. With flexible diameter and shank options, they are compatible with various cutting equipment, providing an ideal solution for both industrial-scale and precision applications. Continuous rim and slotted designs are available to meet diverse material and application requirements, ensuring reliability and efficiency in every cut.
Tab Content
Tab Content
Tab Content
Tab Content
Tab Content
Image | Item Number (Slotted) | Item Number (Slotted) | Outside Diameter (in/mm) | Thickness Kerf (in/mm) | Shank Diameter x Length (in/mm) | Get A Quote |
|---|---|---|---|---|---|---|
 | 3027002 | 3/4" (19.05 mm) | .080"–.100" (2.03–2.54 mm) | 1/4" x 2-1/2" (6.35 mm x 63.5 mm) | ||
| 3027004 | 1" (25.4 mm) | .080"–.100" (2.03–2.54 mm) | 1/4" x 2-1/2" (6.35 mm x 63.5 mm) | ||
| 3027006 | 1-1/4" (31.75 mm) | .080"–.100" (2.03–2.54 mm) | 1/4" x 2-1/2" (6.35 mm x 63.5 mm) | ||
| 3027008 | 1-1/2" (38.1 mm) | .080"–.100" (2.03–2.54 mm) | 1/4" x 2-1/2" (6.35 mm x 63.5 mm) | ||
| 3027010 | 2" (50.8 mm) | .080"–.100" (2.03–2.54 mm) | 1/4" x 2-1/2" (6.35 mm x 63.5 mm) | ||
| 3027012 | 2-1/2" (63.5 mm) | .080"–.100" (2.03–2.54 mm) | 1/4" x 2-1/2" (6.35 mm x 63.5 mm) | ||
| 3027014 | 3" (76.2 mm) | .080"–.100" (2.03–2.54 mm) | 3/8" x 2-1/2" (9.53 mm x 63.5 mm) | ||
| 3027016 | 4" (101.6 mm) | .102"–.130" (2.59–3.3 mm) | 3/8" x 2-1/2" (9.53 mm x 63.5 mm) | ||
| 3027018 | 4-1/2" (114.3 mm) | .102"–.130" (2.59–3.3 mm) | 3/8" x 2-1/2" (9.53 mm x 63.5 mm) | ||
| 3027020 | 5" (127 mm) | .102"–.130" (2.59–3.3 mm) | 3/8" x 2-1/2" (9.53 mm x 63.5 mm) | ||
| 3027022 | 6" (152.4 mm) | .102"–.130" (2.59–3.3 mm) | 3/8" x 2-1/2" (9.53 mm x 63.5 mm) |
