Diamond Core Drill Bit Guide: How to Choose the Right One for Precision Cutting (USA)
Choosing the correct diamond core drill bit is one of the most important decisions for achieving precision drilling, faster cutting speeds, and longer tool life. Whether you’re drilling concrete, granite, porcelain tile, marble, or masonry, your bit selection directly impacts efficiency, hole quality, and overall project cost.
This USA-focused buyer’s guide explains exactly how to select the right bit for your application while avoiding the most common performance and durability mistakes.
What Is a Diamond Core Drill Bit?
A diamond core drill bit is a cylindrical cutting tool embedded with industrial-grade diamonds designed to grind through extremely hard materials. Unlike conventional drill bits that cut using sharp edges, diamond bits abrade surfaces, producing clean, accurate holes with minimal vibration and reduced risk of cracking.

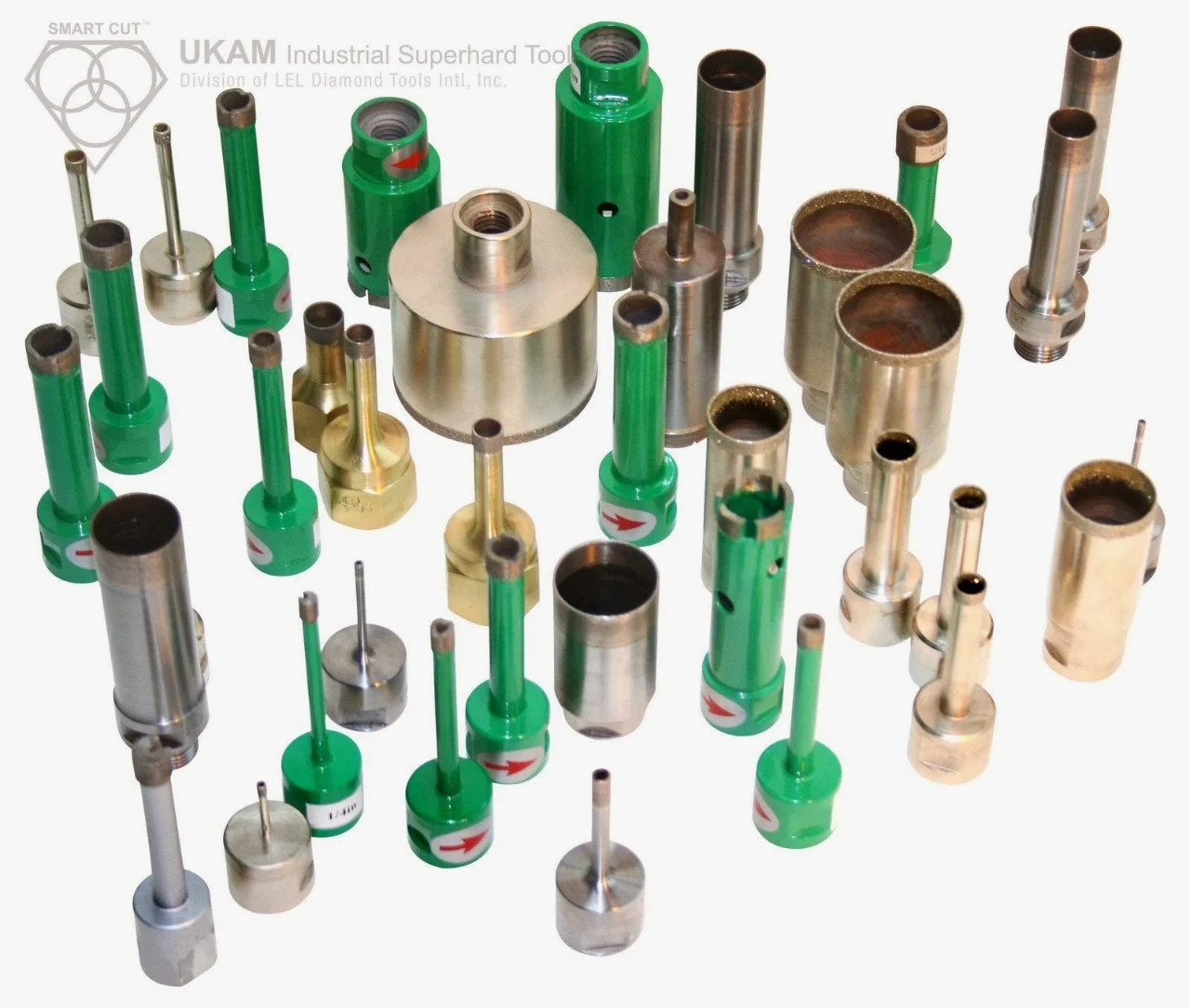

Diamond Core Drill & Tool Types
-
diamond hollow core drills unmounted (tube only)
-
diamond hollow core drills mounted (with female or male thread or straight shank per client spec)
-
ID Core drills
-
non core formation
-
bottoming drills
-
diamond dual core drills.
-
disintegrating drills
-
diamond micro drills
-
Large Diamond Drills
-
ultra thin wall diamond core drills
-
thin wall diamond core drills
-
standard wall diamond core drills
-
heavy wall diamond core drills
-
Continuous Rim (Crown) Diamond Core drills
-
Slotted diamond core drills
-
segmented diamond core drills
-
diamond core drills for ultra sonic drilling machines
-
diamond core drills for ultra sonic drilling machines
-
concrete & construction diamond core bits
-
Diamond hole saws
DIAMOND CORE DRILL APPLICATIONS:
They are paired with diamond core drills or a diamond core drill machine depending on drilling depth, diameter, and material hardness.
Why Selecting the Right Diamond Core Drill Bit Matters
Using the wrong bit can lead to:
- Slow drilling speeds
- Excessive heat buildup
- Glazing (diamonds stop cutting)
- Premature segment wear
- Chipped or damaged surfaces
The correct bit improves:
- Precision cutting accuracy
- Drilling speed
- Tool lifespan
- Project profitability
Proper bit selection is not just about compatibility — it’s about optimizing performance.
Why Selecting the Right Diamond Core Drill Bit Matters
Identify the Material You’re Drilling
Different materials demand different diamond bond hardness.
Bond Hardness Rule:
- Hard material → Soft bond
- Soft / abrasive material → Hard bond
|
Material Type |
Ideal Bond |
|---|---|
|
Granite / Porcelain |
Soft bond |
|
Marble / Limestone |
Medium bond |
|
Concrete / Masonry |
Hard bond |
Why this matters:
Hard materials dull diamonds quickly, so a soft bond exposes fresh diamonds faster. Softer materials wear the bond quickly, requiring a harder matrix.
Wet vs Dry Diamond Core Drilling
Wet Drilling (Recommended for Most Jobs)
Benefits:
- Superior cooling
- Faster drilling
- Cleaner holes
- Extended bit life
- Reduced dust
Best for:
- Concrete
- Stone
- Tile
- Glass
Dry Drilling
Benefits:
- No water setup
- Faster mobility
- Cleaner jobsite logistics
Requires:
- Proper airflow
- Vacuum/dust extraction
- Heat management
Best for:
- Light masonry
- Fast, shallow drilling
Tip: Even dry bits benefit from intermittent cooling pauses.
Choose the Correct Bit Diameter & Depth
Select the right diamond core drill bit based on the final hole requirement.
Consider:
- Anchor holes
- Plumbing penetrations
- Electrical conduit
- Fastener installations
Small diameter bits provide faster precision holes.
Large diameter bits handle structural penetrations.
Diamond Quality & Concentration
Higher diamond concentration typically results in:
- Longer bit lifespan
- More consistent cutting
- Better performance on dense materials
Premium-grade bits engineered by specialists like UKAM Industrial Superhard tools are designed for optimal diamond exposure and wear resistance.
Low-quality bits may appear cheaper but often cost more in replacements and downtime.

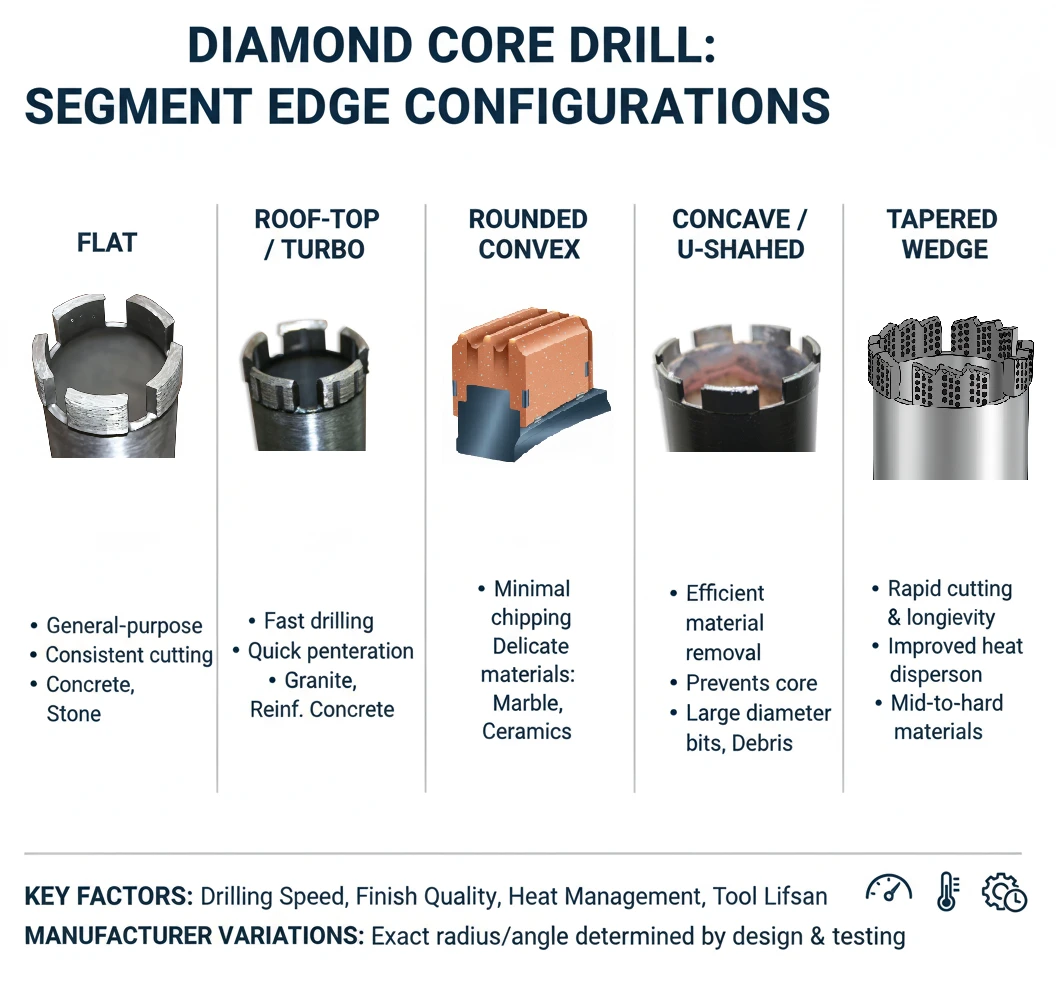

Segment vs Continuous Rim Design
Diamond core drill bit guide
Segmented Rim Bits
Advantages:
- Faster cutting
- Better debris removal
- Improved cooling
- Ideal for concrete & stone
Continuous Rim Bits
Advantages:
- Ultra-smooth finish
- Reduced chipping
- Best for tile & glass
Table comparing continuous rim, slotted, and segmented diamond core drills:
|
Feature |
Continuous Rim Diamond Core Drills |
Slotted Diamond Core Drills |
Segmented Diamond Core Drills |
|---|---|---|---|
|
Cutting Edge Design |
Smooth, uninterrupted edge |
Slots or gaps along the cutting edge |
Individual segments separated by gullets |
|
Best for Material Type |
Soft to medium-hard, delicate materials (e.g., tile, ceramics) |
Harder materials requiring quick drilling (e.g., concrete, stone) |
Hard, dense, and abrasive materials (e.g., granite, reinforced concrete) |
|
Cut Quality |
Very smooth, chip-free finish |
Moderate finish, some chipping possible |
Rougher cut, more chipping |
|
Cutting Speed |
Slower due to full contact with material |
Faster drilling with reduced friction |
Fastest cutting for hard materials |
|
Debris Removal |
Less efficient, prone to clogging in deeper holes |
Improved debris removal through slots |
Excellent debris clearance through gullets |
|
Cooling Efficiency |
Best with wet drilling, limited cooling in dry conditions |
Improved cooling via coolant flow through slots |
Superior cooling due to air/water flow around segments |
|
Tool Lifespan |
Longer for softer materials, shorter for hard applications |
Balanced lifespan based on material hardness |
Long lifespan, especially for tough applications |
|
Typical Application |
Precision cuts requiring clean edges |
Versatile drilling in hard materials where moderate precision is needed |
Heavy-duty drilling, deeper holes, and fast removal of hard materials |
Drill Speed (RPM) Compatibility
Incorrect RPM settings cause:
- Overheating
- Glazing
- Segment damage
Always match:
- Bit diameter
- Material hardness
- Manufacturer recommendations

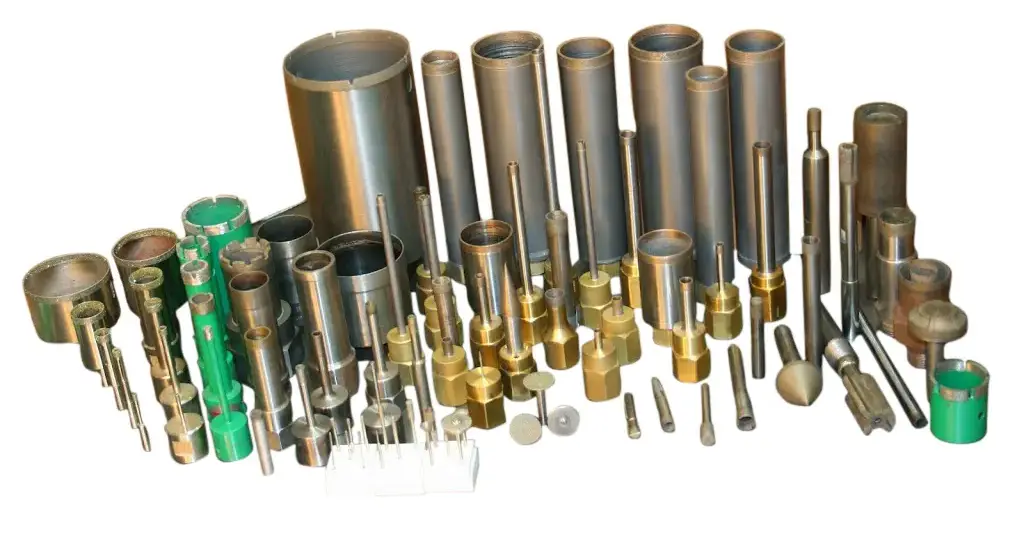

How to Recognize Proper Diamond Core Drill Bit Performance
Signs you chose correctly:
- Steady drilling speed
- Minimal vibration
- Clean hole edges
- Even segment wear
- No burning smell

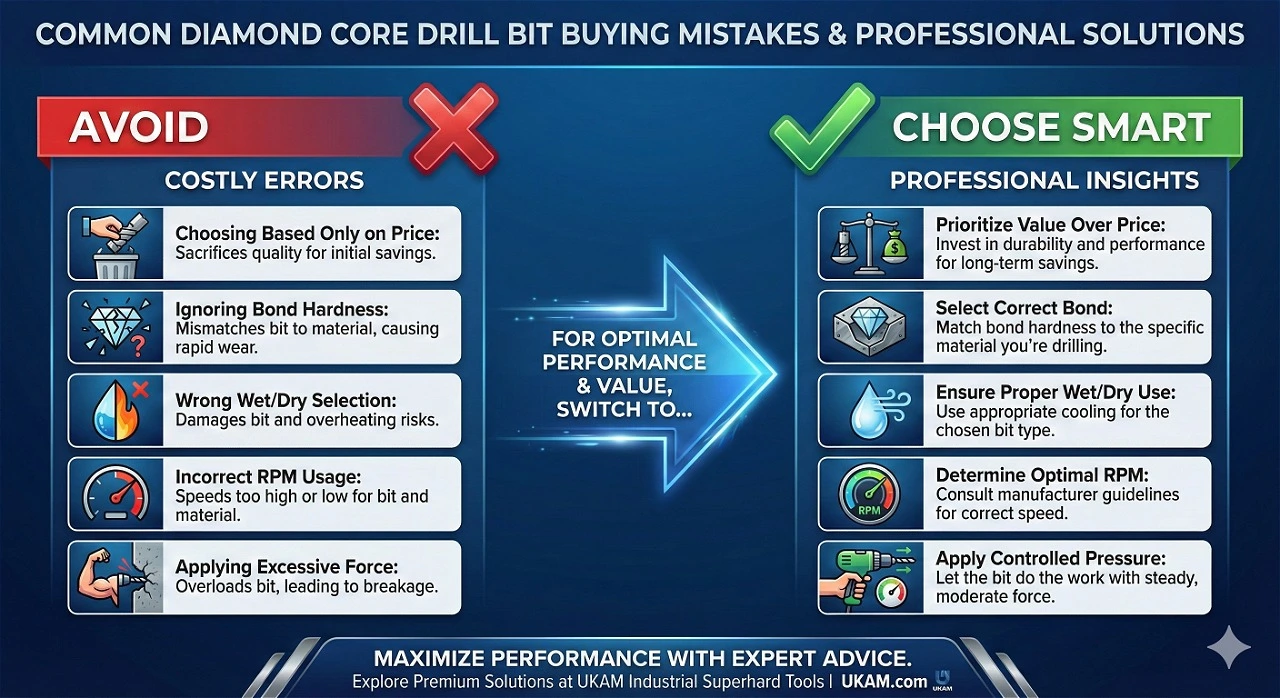

Common Diamond Core Drill Bit Buying Mistakes
Avoid these costly errors:
- Choosing based only on price
- Ignoring bond hardness
- Wrong wet/dry selection
- Incorrect RPM usage
- Applying excessive force
Remember:
Diamond tools grind — they should not be forced.

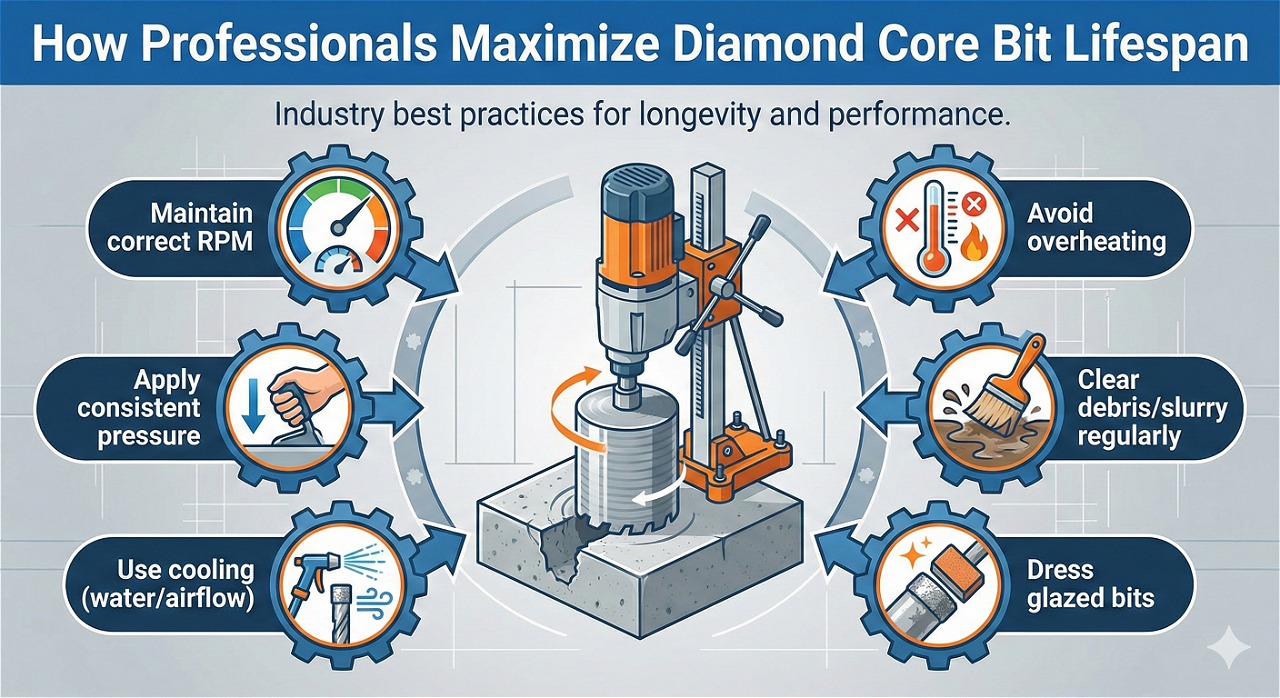

How Professionals Maximize Diamond Core Bit Lifespan
Industry best practices:
- Maintain correct RPM
- Apply consistent pressure
- Use cooling (water/airflow)
- Avoid overheating
- Clear debris/slurry regularly
- Dress glazed bits
How to Fix a Glazed Diamond Core Drill Bit
If your bit stops cutting:
- Drill into abrasive material (soft brick/dressing stone)
- This exposes fresh diamonds
- Restores cutting efficiency
Diamond bits do not “sharpen” traditionally. Guide on how to properly dress diamond core drill bits
Where to Buy Diamond Core Drill Bits in the USA
For professional-grade performance, purchase from specialized industrial suppliers rather than general hardware stores.
Manufacturers, R & D labs, Contractors and hobby enthusiast across United States adn around the world often choose UKAM Industrial Superhard tools for:
- Precision-engineered diamond core drill bits
- High diamond concentration
- Application-specific designs
- Consistent durability
- Technical guidance
When buying, look for:
- Material compatibility charts
- RPM recommendations
- Wet/dry specifications
- Quality manufacturing standards
Ready to Improve Your Drilling Precision?
Investing in the right diamond core drill bit dramatically improves:
- Hole accuracy
- Cutting speed
- Tool lifespan
- Jobsite efficiency
Explore industrial-grade diamond core drill bits designed for demanding applications at UKAM Industrial Superhard tools.
Frequently Asked Questions
A diamond core drill is a drilling machine designed specifically to operate with diamond core drill bits. It uses rotary motion and controlled pressure to grind holes through concrete, stone, tile, masonry, and other hard materials.
Diamond bits are refreshed, not sharpened.
- Drill into abrasive material (soft brick/dressing stone)
- This removes glazing
- Exposes fresh cutting diamonds
Purchase from specialized industrial suppliers. In the USA, professionals often source from manufacturers like UKAM Industrial Superhard tools for consistent quality and performance reliability.
Basic usage steps:
- Secure work surface
- Set correct RPM
- Start drilling slowly
- Apply steady pressure
- Use cooling (water for wet drilling)
Avoid forcing the bit — diamonds grind naturally.
The best bit depends on:
- Secure work surface
- Wet or dry drilling
- Hole diameter
- Cutting depth
- Drill compatibility
Premium-grade bits typically deliver superior durability, speed, and precision.
Final Thoughts
Selecting the correct diamond core drill bit is essential for achieving precision cutting, faster drilling, and reduced replacement costs. By matching bond hardness, drilling method, segment design, and RPM compatibility, professionals can significantly improve both performance and profitability.
For demanding drilling applications in the USA, high-quality solutions from UKAM Industrial Superhard tools help ensure reliability, accuracy, and long-term value.
