Diamond Cylindrical Tools for Faceting

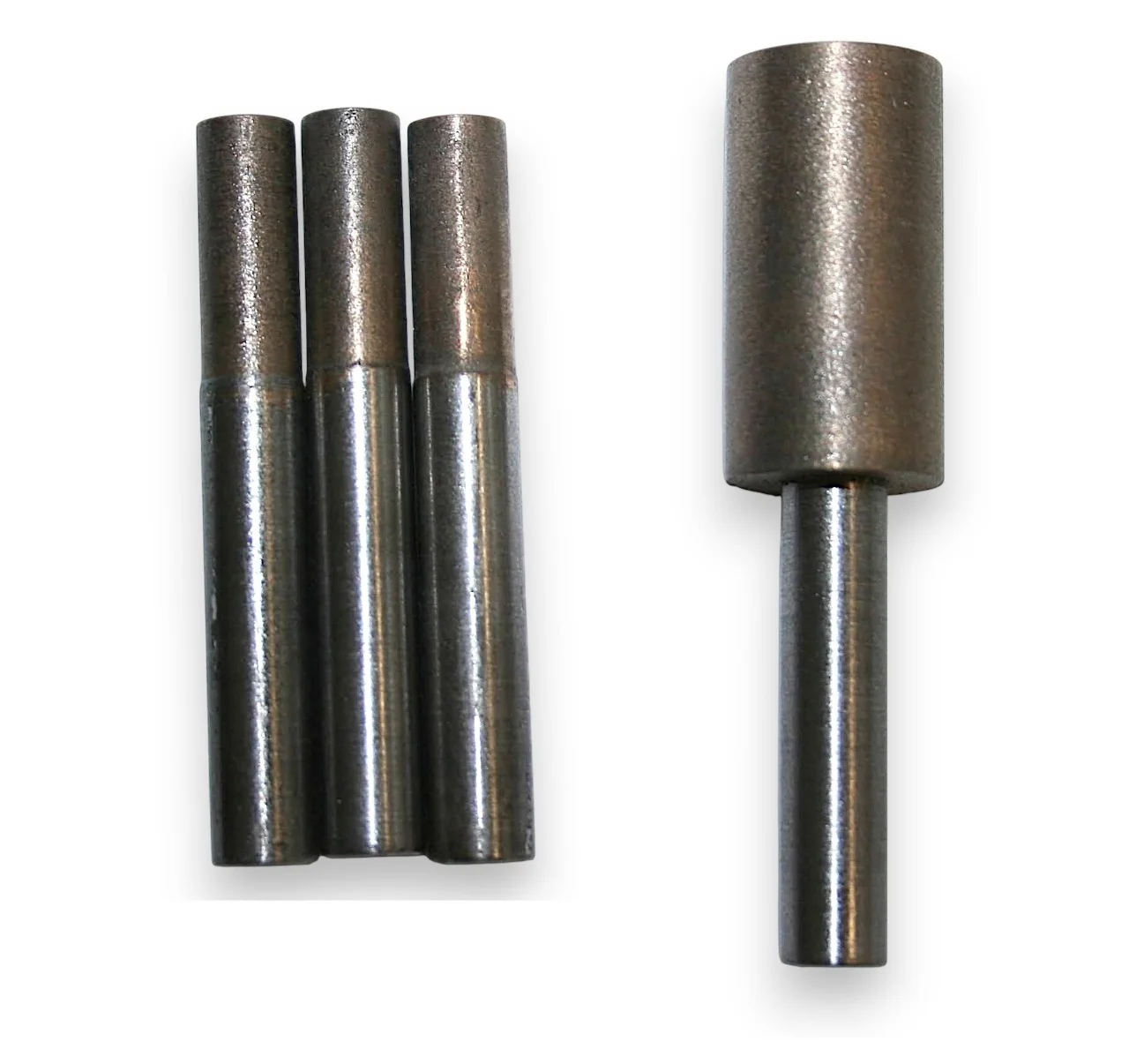

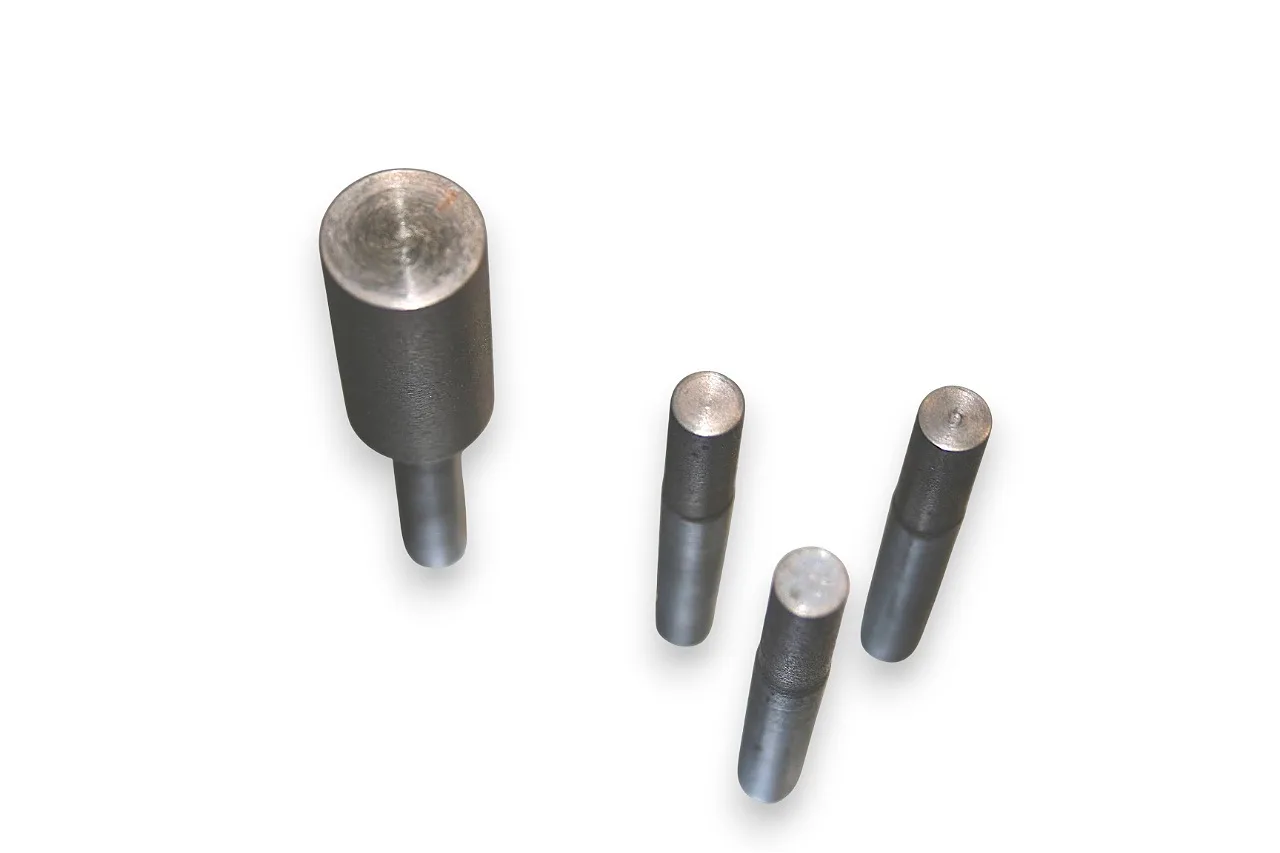

SMART CUT® Diamond Cylindrical Tools for the UltraTec fantasy machine are sintered metal bond tools fully impregnated with diamond from the outside diameter to the inside of the cylinder head. The working section contains hundreds of diamond layers throughout the full diamond depth, which provides long service life, stable cutting rates, and consistent performance as new diamond is exposed during use.
These tools are produced in a range of diameters typically used for fantasy cutting. Common sizes include 6 mm, 8 mm, 13 mm, 15 mm, 17 mm, and 23 mm. Other Diameters also available. This range allows you to select the proper diameter based on the depth of cut, groove width, and required level of design detail.
Each tool is available in several diamond grit sizes to support all stages of work. Typical options include 260 grit for rapid shaping, 600 and 1200 grit for intermediate refinement, and 3000 grit for fine finishing. Other diamond grit sizes are also available. This selection gives you precise control of material removal and surface finish.
All tools maintain accurate geometry, smooth operation, and stable performance when forming grooves, curves, and complex sculpted features. The sintered construction ensures predictable wear and reduces maintenance. These tools support both standard faceting and advanced fantasy cutting where precision, repeatability, and surface quality are required.
ADVANTAGES:
-
Sintered metal bond construction provides long service life and stable performance.
-
Fully impregnated diamond structure exposes new diamond layers during use and maintains consistent cutting action.
-
Hundreds of diamond layers deliver uniform wear and predictable behavior throughout the tool’s life.
-
Multiple diameters from 6 mm to 23 mm support fine detail work and deeper sculpting operations.
-
Wide grit range from 260 to 3000 allows controlled shaping, refinement, and finishing.
-
Accurate cylindrical geometry ensures precise groove formation and consistent pattern replication.
-
Smooth and stable operation supports clean cutting of complex curves and fantasy features.
-
Reduced dressing requirements due to the self-sharpening behavior of the sintered matrix.
-
High repeatability helps achieve uniform designs across multiple stones.
-
Reliable performance on the UltraTec fantasy machine for both routine and advanced faceting tasks.
