Technology that redefines the standard in cutting and drilling. Diamonds are
oriented inside matrix so that every diamond is better able to participate in
cutting, drilling, or diamond machining action.
In 1998 UKAM Industrial Superhard Tools, Division
of LEL Diamond Tools International, Inc. Developed a solution to this
problem. A new breakthrough called “SMART CUT technology” in
manufacturing precision diamond tools.
SMART CUT will greatly improve your diamond tool cutting,
drilling, grinding, and lapping efficiency SMART CUT™ is an ADVANCED
technology that redefines the standard in manufacturing diamond tools.
Utilizing this technology a diamond tool manufacturer is capable of
orienting diamonds inside matrix so that every diamond is better able to
participate in cutting or drilling action. SMART CUT™
open bond design makes sure every diamond is in the right place and at the
right time, working where you need it most. You get maximum use of diamond
diamond concentration almost irrelevant. What most diamond tool manufacturers
used to do, and still do today is place
diamonds inside the metal matrix, with no control over diamond
distribution. The problem with this approach
is inconsistent diamond tool performance. Only about 40% of these
diamonds are able to participate in diamond machining action. The rest
fall out, become dull, or disintegrate before they have a chance of being
used. This factor causes the following problems:
One of the main
problems faced by diamond tool manufacturers worldwide involves properly
orienting and positioning diamonds inside bond matrix. Over the
decades there have been numerous attempts to solve the diamond and CBN
distribution problem. Unfortunately, none of the attempts have been proven
Current technologies are also
inadequate to provide effective control of diamond mesh size (grit size)
and concentration of variations on different parts of the same tool.
Current technologies also do not allow diamond distribution to be factored
in when manufacture a wheel specifically designed for individual material
property and structure.
99% diamond tool manufacturers still have no way or technology to evenly
control and distribute Diamond or CBN particles inside bond matrix, nor
properly position them to maximize their machining efficiency.
with Conventional Diamond Tools
distribution between each Diamond or CBN particles determines the work
load each diamond will perform. Improper distribution of diamond or CBN
particles typically leads to premature failure of diamond particles or
bond structure. If diamond or CBN particles are too close to one another,
some of these particles are redundant and provide little or no
assistance in cutting, drilling, grinding, or lapping. Excess
diamonds particles increase the cost of manufacturing diamond tools, due
to high cost diamond and CBN powder.
Yet have no
effect in increasing performance. In fact excess and non performing diamond or CBN particles reduce the
diamond tools overall performance and efficiency by blocking up the
passage of debris from material being machined. In many cases these
excessive diamond particles play a major rule in decreasing the useful
life of your diamond tool. Conventional diamond tools have been suffering
from these type of problems and inefficiencies for over 50 years.

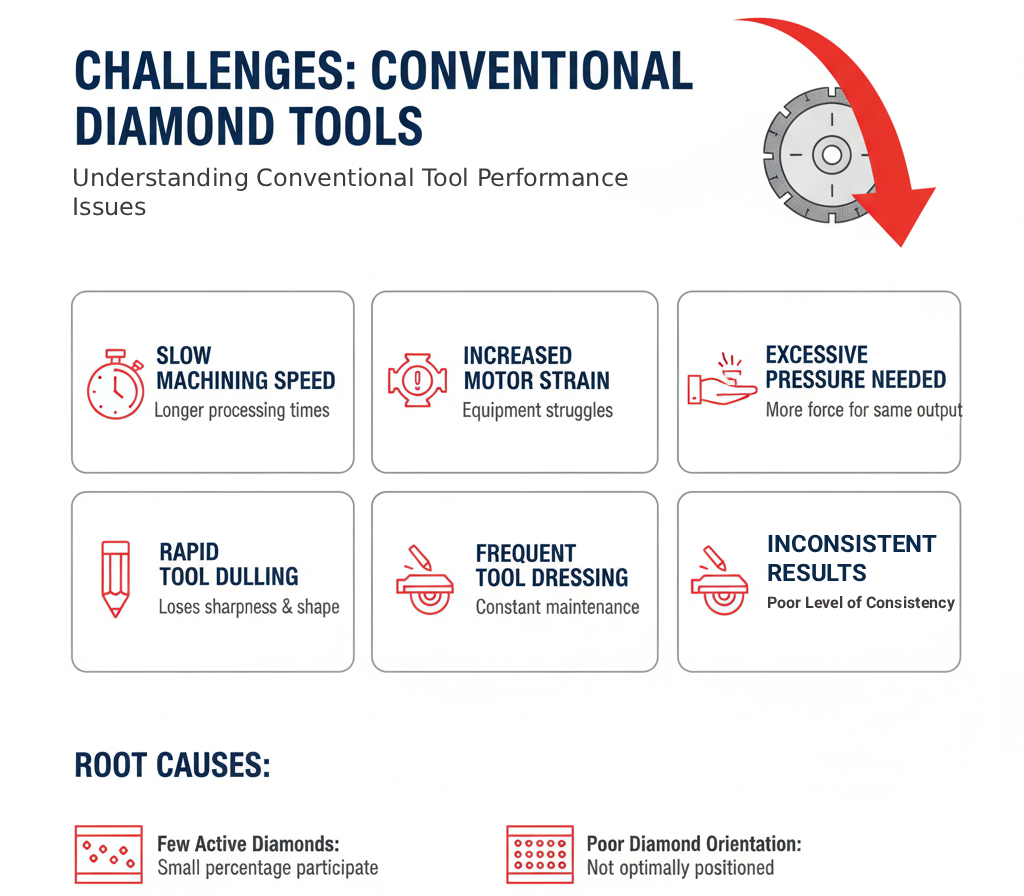

& Excessive Tool
a conventional diamond tool, and
its speed gradually begins
down. You will notice
and equipment motor
bug downs. And
since only a
few diamonds participate
machining action, you
your self applying
an increasing amount
material. Without properly orienting
conventional diamond tools quickly
out of round. With further
Generation & Loss of straight
diamond tool dressing and pressure put forth on material, causes the tool to
overheat and loose its tension. The user may find themselves using excessive
force and pressure just to machine a small amount of material.
SMART CUT™ technology allows the diamond tool manufacturer to
control diamond spacing. Hence improving performance of every diamond particle.
This Reduces the need for high diamond concentration used today in conventional
diamond tools. Every Diamond
in a SMART CUT™ product
works like a small horse. Unlike many other
bond designs, the SMART CUT™
to work from the first cut, and
remains to work at the same level of
consistent performance until you take your last
cut. This unique open bond design insures you
get the maximum usage of diamond and
bond every time you use a SMART
Diamonds Working for you / Maximum Diamond Exposure
open bond is designed to keep diamonds
working at their maximum potential. SMART
diamond bond undergoes regular renewal,
making sure all diamonds are constantly under
maximum exposure to materials being worked
Some of the ADVANTAGES include:
More Consistent & Uniform Overall Performance
Faster Machining Action
Minimal Machining Noise
Minimal Loss of Material
Preserve Material Micro Structure
Minimal Tool Dressing / Diamond
Easier to Use
SMART CUT WORKS?
sharpest and finest quality Synthetic DeBeers diamonds that go into a SMART
CUT™ Diamond Bond. Immediately penetrate into the material , grinding and
polishing as they cut.
are activated only at the exposed layer. As diamond layer begins to wear out,
diamonds in the new layer are immediately activated, substituting the already
used up diamond layer. The SMART CUT™ Diamond Bond makes sure every
diamond is in the right place and at the right time, working where you need it
newly exposed diamonds don’t effect diamonds working already inside the
material. Unlike many other diamond bonds, diamond in a SMART CUT™
remain sharp and grow sharper with each cut. Prolonging product life and
advanced formulated open bond design insures minimal chipping, fast cut,
constant speed of cut, minimal cutting noise, and most important of all minimum
loss of precious material.
Working at Maximum Capacity
technology in diamond orientation and distribution allows each
diamond particle to be fully exposed at its sharpest point.
Fully Exposed Diamond
PROBLEMS WITH CONVENTIONAL
Diamond is broken off and often
wears faster than it can be used. This causes inconsistent and
inefficient tool performance.
quickly loose their sharp edge. Machining speed is quickly reduced,
and tool requires constant dressing to sharpen existing diamonds and
rexpose the next diamond bond layer.
by excessive force, heat, and impact applied by over excessive
number of diamonds coming in contract with material machined.
pulled out of bond matrix before it has a chance of being used.
is the difference between a conventional diamond tools, and a diamond tools with
Advanced Coolant System
diamond tools manufactured utilizing SMART CUT™ technology, are built
with a special open bond design that promotes a better coolant system. Air and
water flows freely through the diamond bond, providing extra coolant, greater
conductor of heat and thus increased product longevity. Instead of heat
generated in a few places, it is evenly distributed and hence minimized.
Easy to Use
We made a science out of making your work easier. SMART
CUT™ technology are easier to use than most conventional diamond products.
Thousands of sharp and high quality diamond particles metallurgically bonded to
alloy steel allow diamond tools with SMART CUT™ technology to
complete a job by applying little or no pressure. Freeing the user from
constantly having to dress and renew the diamond layer. SMART CUT™
technology makes any sophisticated job a simple one.
Tools with SMART CUT™ technology require minimal dressing, the bond
faster machining action
Tools manufactured utilizing this technology are much more aggressive than your
conventional blades. They machine material faster, still leaving behind a smooth
In most cases
diamond tools manufactured utilizing SMART CUT™ technology, will
outlast other conventional metal (sintered), resin, and nickel bonded diamond
tools. SMART CUT™ diamond tools are more sturdy than tools manufactured
with conventional technologies. Unlike many other resin or metal bonded diamond
tools, these will not dull and maintain its firm shape and bond configuration
all the way through the diamond tools life.
Controlled Diamond Concentration at different parts of diamond
Many times a metal bond diamond tool
requires different sizes of diamonds and different diamond concentrations to be
disposed at different parts on the same tool. Most diamond tools wear faster on
the edge or in front than the middle. Higher diamond concentrations are
preferred in these locations to prevent uneven wear and thus premature
By making the distribution of Diamond
or CBN particles uniform and in a predetermined pattern, tailored to individual
customer application. The work load can be evenly distributed to each diamond
particle. As a result a diamond tool with SMART
will machine material faster and its working life will be extended a
considerable amount of time. SMART CUT technology
promotes not only even diamond distribution. But strong diamond retention as
well. Allowing the diamond tool manufacturer to use of smaller diamond
particles. Small diamond particles will improve surface finish, and optimized
performance of each diamond particle.
There are other advantages of
utilizing diamond tools manufactured with the SMART
We feel, that you will find SMART CUT
technology a significant breakthrough in your industry.
you see the SMART CUT™ symbol on a product, you know there is more to the product
than it looks. Because what you don’t see is what makes all the difference.
Whatever your goal requires you will find an advanced, high quality, and cost
effective SMART CUT™ solution, specially designed for your needs. Just how
superior is a SMART CUT™ product? That’s for you to decide. Because you can’t
really see the difference or get a sense of it from words. You must feel it, and
you will from the first time you pick up a SMART CUT™ diamond
product to the time you first use it, and all the way to the tools life.
